Chauvet SF-9005 Timer System Package

Chauvet SF-9005 Timer System Package

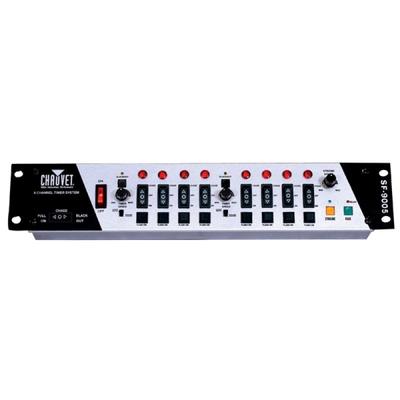

The SF-9005 Timer System Package includes 1 SF-9005 controller, 1 SR-8 Relay Pack, and 1 SF-EXCB 9-pin 25ft. extension cable for linking the controller and relay pack. The package features 8 on/off/chase switches. They can be configured and adjusted to perform one of two chase patterns, either 16-pattern sound activation for channels 1-4 and/or 5-8, and a timed chase with user-definable speeds from twenty seconds to fifteen minutes. The controller also features built-in fog and strobe controllers, a three-way switch for selecting full on, chase, or blackout, and an output for the CH-865/866 controller.

• Pre-Programmed
• Sound-Activated

  Features

• 1 x rack mount controller, 2 Rack Units (2 RU)
• 1 x 8-channel relay pack (SR-8)
• 1 x SF-EXCB linking cable (7.6 m)
• Individual control of 2 separate zones with 4 channels each (8 channels total)
• Each zone contains:
• 4 channels with LED indicator and flash button
• Separate blackout button
• Selector switch for automatic or sound-activated programs
• Speed control knob for automatic programs (20 sec~15 min)
• Controls external 16-pattern controller (CH-866, sold separately)
• Connect up to 2 relay packs together (SR-8, sold separately)
• Fog & strobe control buttons (with strobe speed adjustment)
• Non-switched output for linking relay packs (on SR-8)

  Specifications

• DMX channels: 4

  Controller

• Power and current: 230 V, 50 Hz, 1 W; Input voltage: 100~240 V, 50/60 Hz (Auto-ranging)Weight: 2.1 kg
• Dimensions: 482 x 88 x 94 mm

  Relay Pack

• Input voltage equals output voltage
• Output: 230 V, 50 Hz, 5 A; 1,150 W per chan; 15 A, 3,450 W per channel
• Input voltage: 230 V, 50 Hz
• Weight: 1.3 kg
• Dimensions: 356 x 97 x 46 mm
