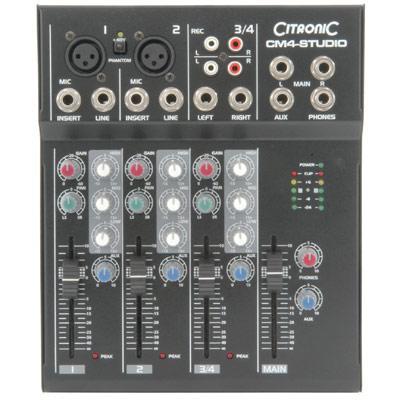

Citronic CM4 3-Channel Compact Mixer With USB Output

The Citronic CM4 3-Channel Compact Mixer With USB Output is a compact format mixing console with mic/line inputs (jack/XLR) and a stereo line channel. Mic/line channels have individual inserts and all channels have 3-band EQ and Aux controls. Phantom power of +48V is switchable to the XLR inputs for condenser microphones. Main output is via balanced 6.3mm jacks and a USB type B connector feeds main output and receives a master input for DAW applications.

Features:

• Compact, accessible design
• Channel inserts for Mic/line inputs
• Switchable +48V phantom power
• 3-band EQ for each channel
• USB digital audio input/output

Technical specifications:

• Model CM4-STUDIO, 4ch
• Mic inputs 2 x balanced XLR
• Dimensions 60 x 190 x 230mm
• Weight 2.09kg
• Phantom power Switchable 48V (XLR inputs)
• Power supply 12Vac, 500mA (included)
• Frequency response: Inputs 20Hz - 20kHz
• Line inputs L+R 6.3mm TRS jack
• Stereo input 6.3mm jack/RCA (-8 to +15dB / +13 to +60 parallel)
• SNR: Mic inputs 120dB E.I.N.
• SNR: Line inputs 95dB E.I.N.
• SNR: Stereo input 96dB E.I.N. (or 104dB E.I.N. in parallel)
• EQ: High 10kHz, ±15dB
• EQ: Mid 700Hz, ±15dB
• EQ: Low 50Hz, ±15dB
• Outputs: Main (L+R) 6.3mm jack (+28dBu balanced / +22dBu unbalanced)
• Digital input/output USB type B connector
• Aux send, Effects send, Tape out unbalanced 6.3mm jack (+22dBu)
• Phones output +15dBu stereo 6.3mm jack
