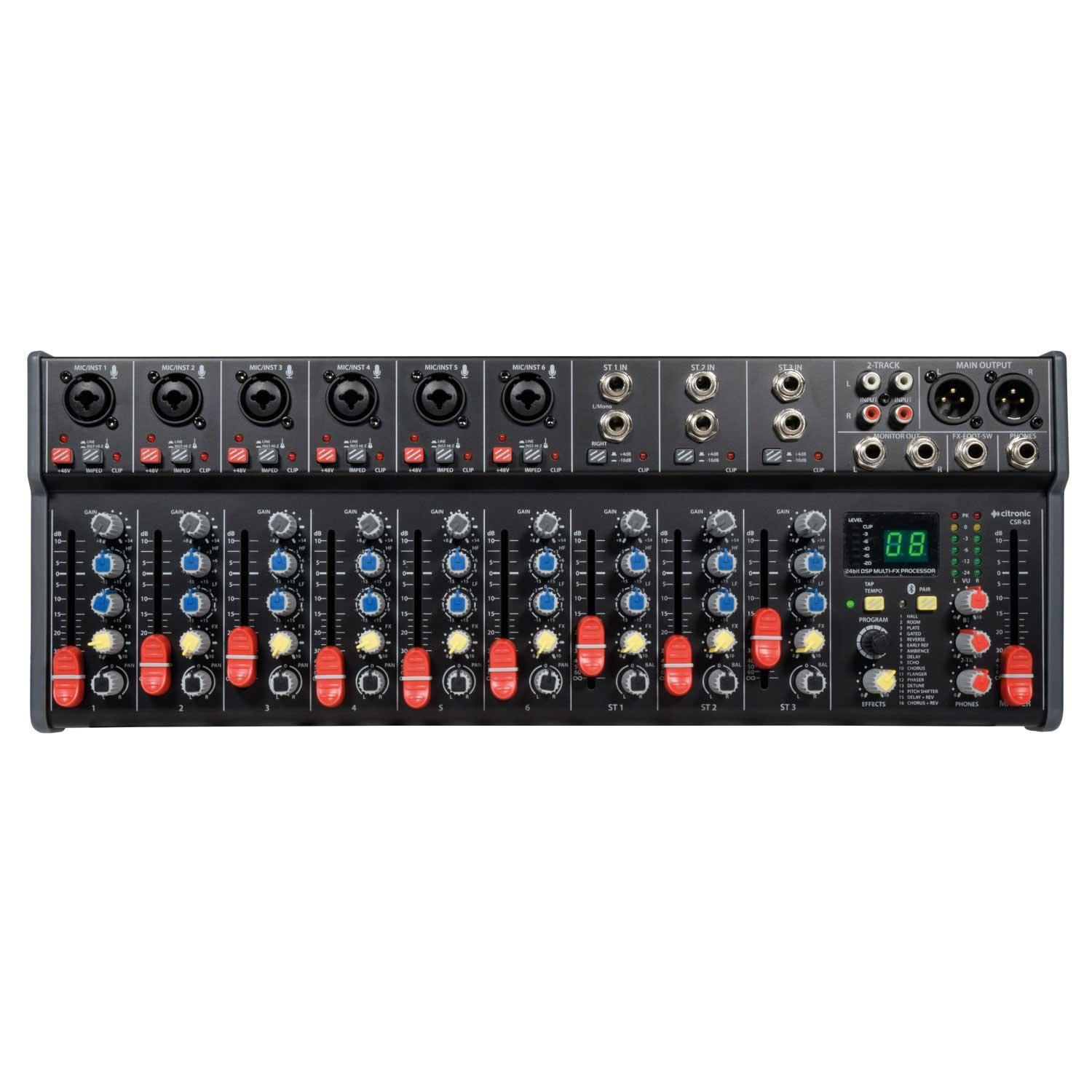

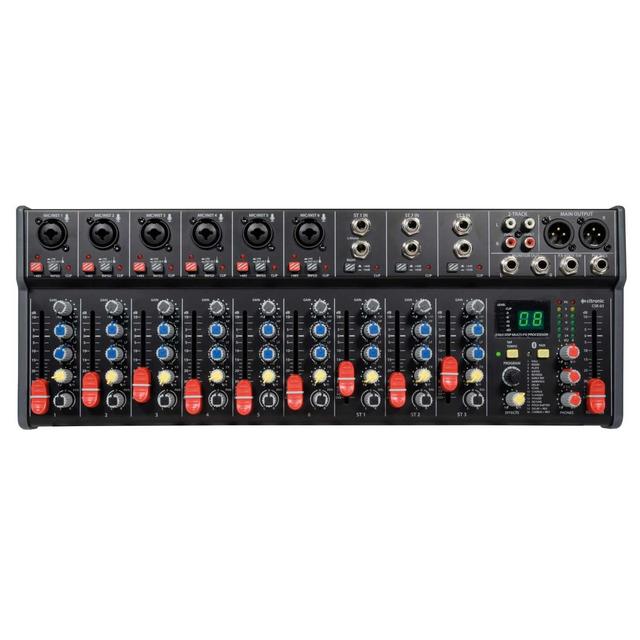

The Citronic CSR-63 is a versatile 9-channel rack-mount mixer that combines the functionality of a full-size mixing console with a compact, installation-friendly design. Featuring six mono mic/line channels, three stereo line channels, built-in Bluetooth and a 16-program DSP effects processor, it is ideal for both fixed installations and portable PA systems.

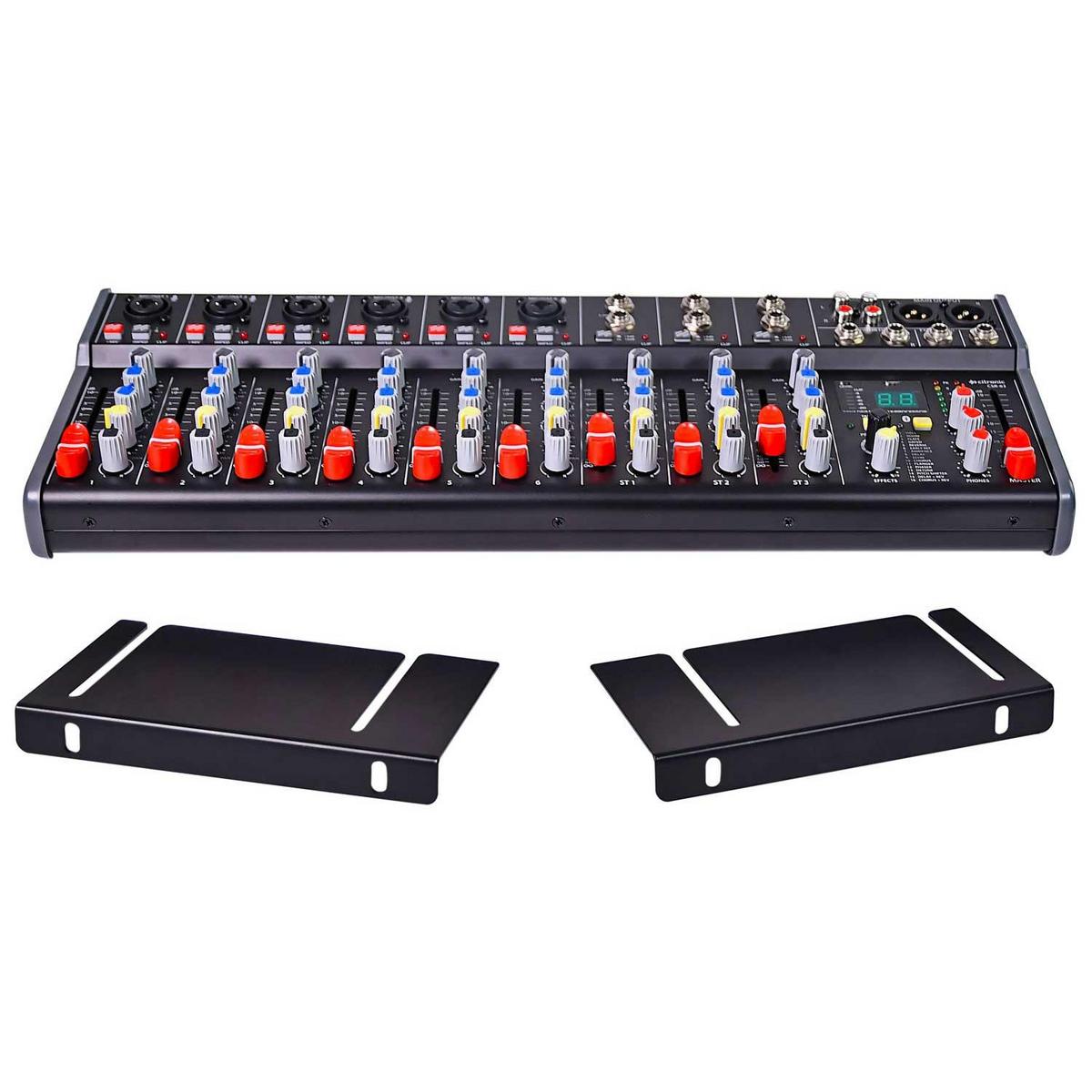

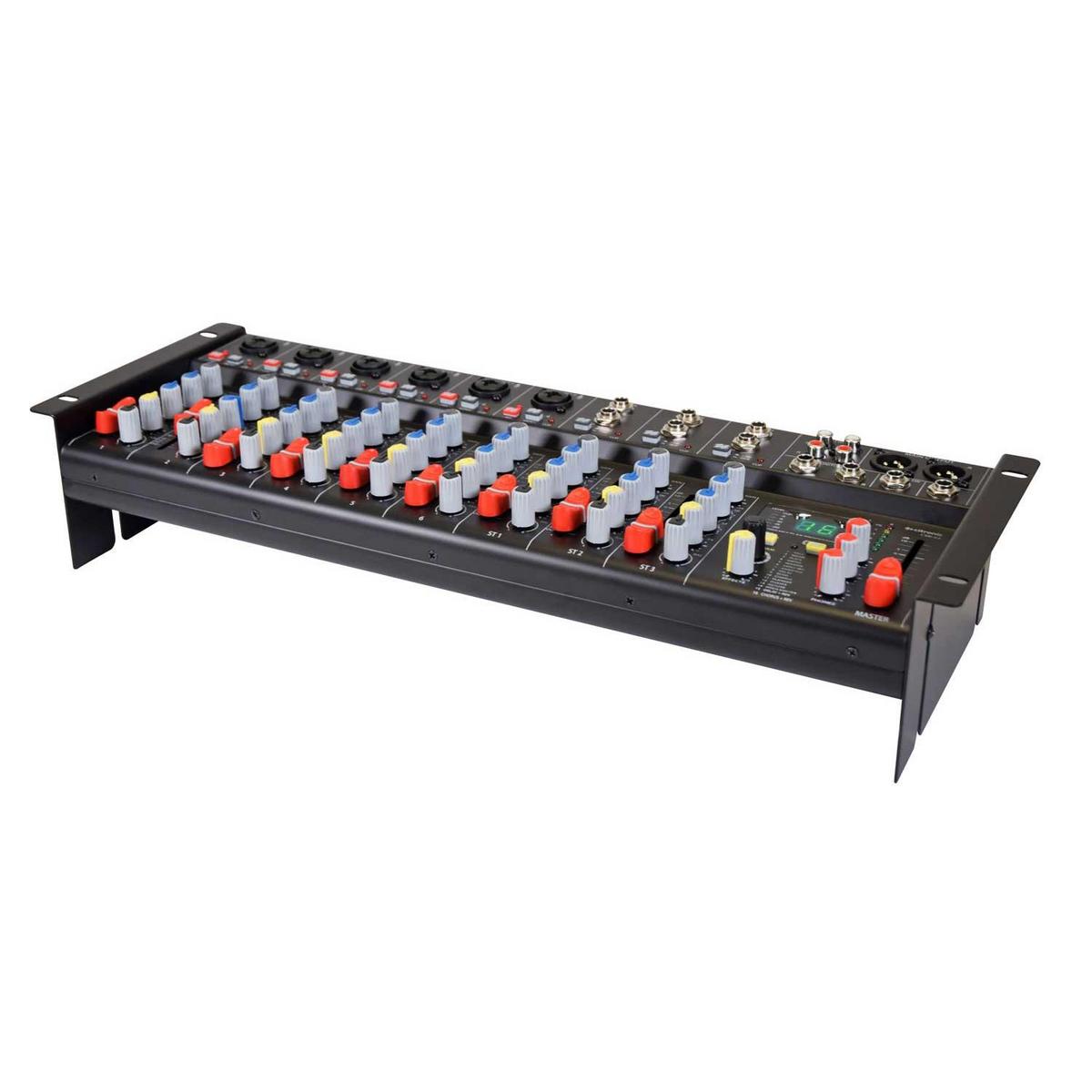

Supplied with adjustable rack ears, the CSR-63 can be installed in a standard 19-inch equipment rack or used as a desktop mixer, making it suitable for venues, houses of worship, schools, conference facilities and live performance applications.
Ideal for live sound, houses of worship, schools, conference rooms, clubs, rehearsal spaces, installed PA systems and mobile audio applications.
| Channels | 9 (6 Mono, 3 Stereo) |
|---|---|
| Inputs | 6 x Combo XLR/Jack, 3 x Stereo Jack |
| Bluetooth | Integrated Audio Receiver |
| DSP Effects | 16 Presets, 24-bit |
| EQ | High ±15dB @ 12kHz, Low ±15dB @ 80Hz |
| Phantom Power | +48V Individually Switchable |
| Main Outputs | Balanced Left & Right XLR |
| Frequency Response | 20Hz – 20kHz (±0.5dB) |
| THD+N | <0.03% @ 1kHz |
| Dynamic Range | 102dB |
| Maximum Output Level | 3Vrms |
| Power Supply | 5V DC, 1A (Adaptor Included) |
| Power Consumption | 10W Maximum |
| Dimensions | 482 x 160 x 90mm |
| Weight | 2.75kg |

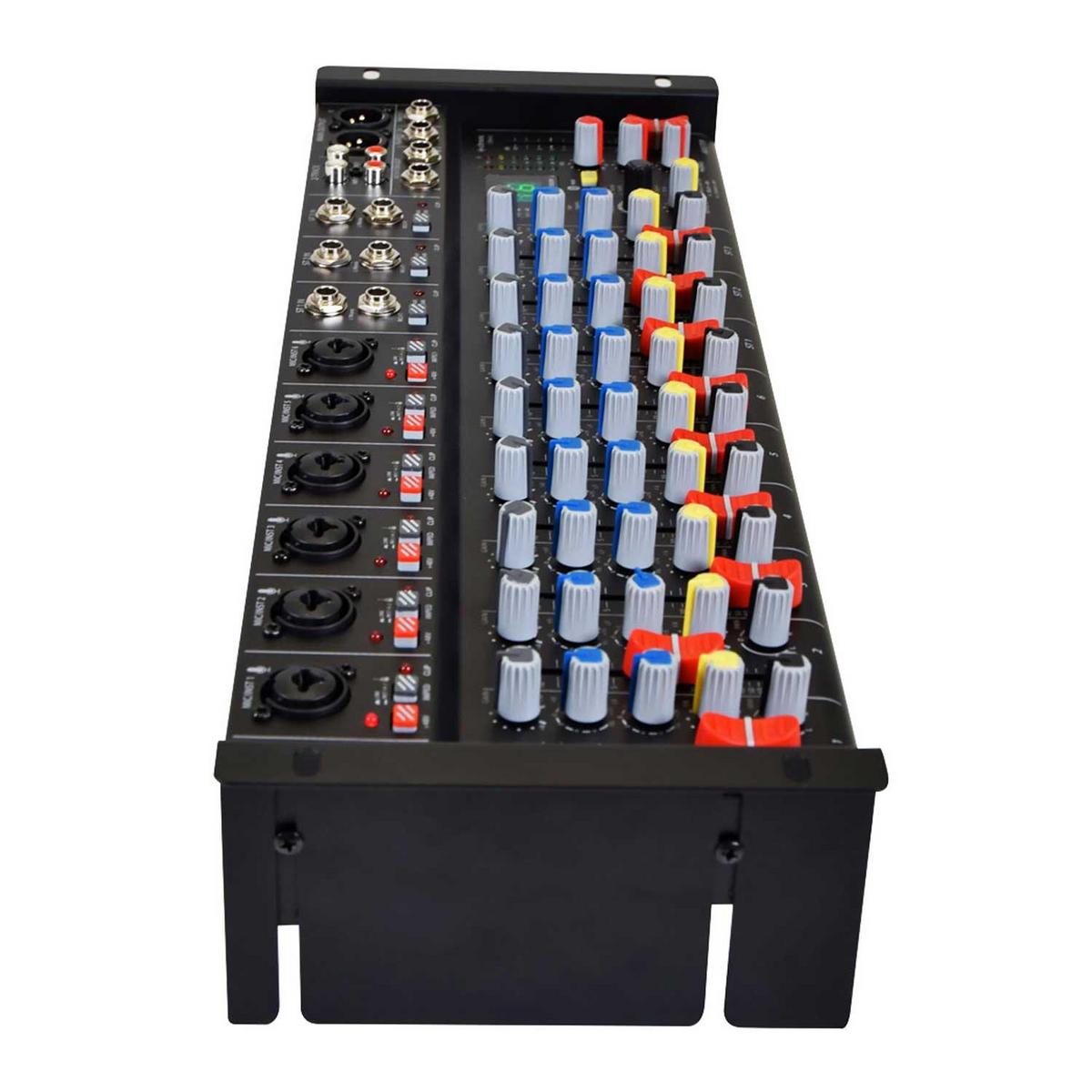

Yes. The supplied adjustable rack side panels allow installation into a standard 19-inch rack while leaving room for cable routing from the top-mounted connections.
Yes. Each mono input features individually switchable +48V phantom power for compatible condenser microphones.
Yes. The built-in Bluetooth receiver allows wireless audio streaming from smartphones, tablets and other compatible devices.
Yes. The mixer features a 16-preset, 24-bit DSP effects processor with editable programs for live vocals and instruments.
Yes. Its shallow, rack-friendly design and comprehensive connectivity make it suitable for both permanent installations and mobile sound systems.
