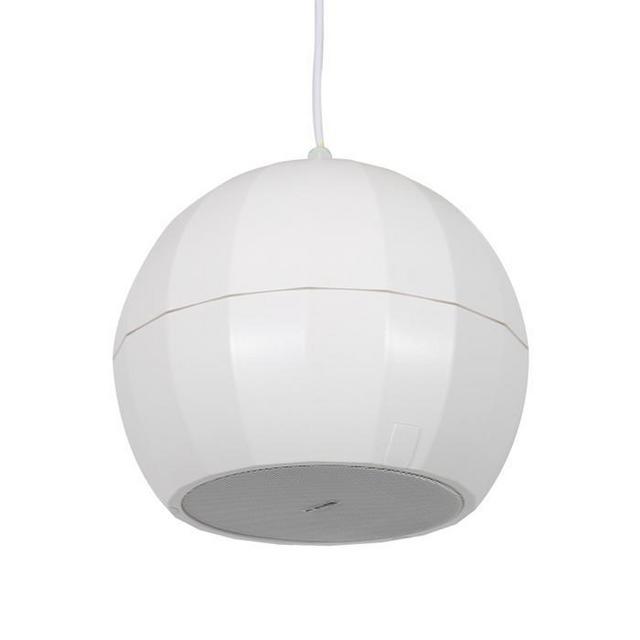

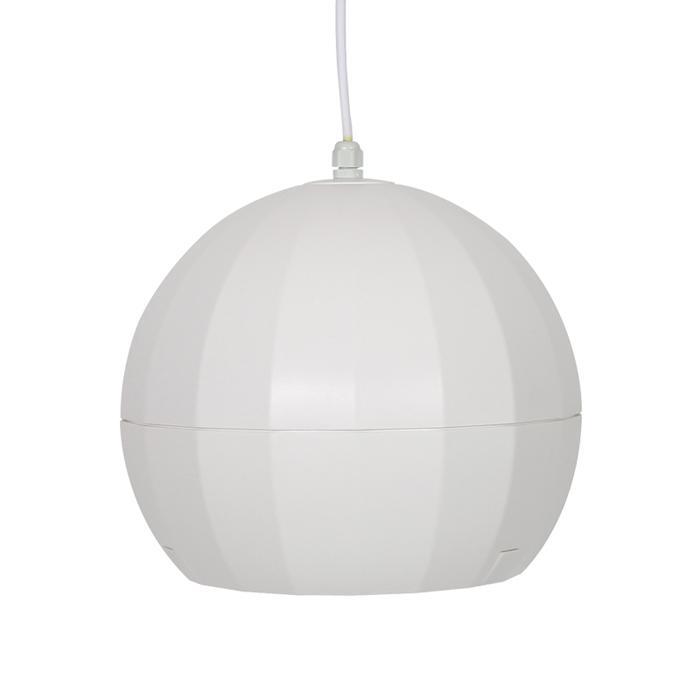

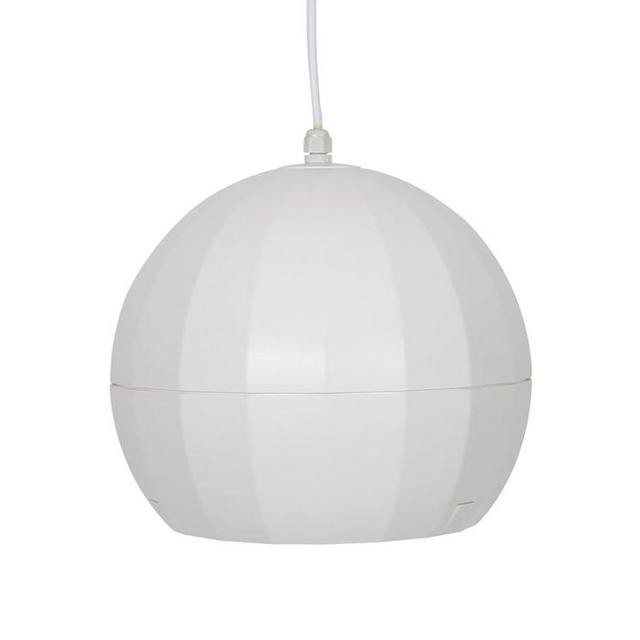

The Clever Acoustics PDS 615 is an elegant pendant ball loudspeaker designed for professional audio installations in environments with high ceilings, such as supermarkets, warehouses, and open-plan offices. It delivers full-range audio through a 6-inch dual-cone driver, making it ideal for background music and speech reinforcement.
Constructed with a robust ABS enclosure and a metal grille, the PDS 615 ensures durability and reliability. Its pendant design allows for seamless integration into various architectural settings. The speaker is supplied with a 5-metre suspension cable, complete with an internal steel safety core and ceiling plate, allowing for secure and adaptable installation options to accommodate different ceiling heights and layouts.
| Specification | Details |
|---|---|
| Power Handling (RMS) | 15W |
| Power Taps @ 100V | 3.75W / 7.5W / 15W |
| Power Taps @ 70V | 1.9W / 3.75W / 7.5W |
| Impedance | 2.6kΩ / 1.3kΩ / 670Ω |
| Sensitivity (1W/1m) | 86dB ±3dB |
| Maximum SPL | 98dB |
| Frequency Response | 100Hz - 16kHz |
| Driver | 6" Dual-Cone Full Range |
| Connections | Flying Leads |
| Dimensions | 260mm (H) x 255mm (Dia) |
| Weight | 2.6kg |
| Housing | ABS Plastic with Metal Grille |
| Suspension Cable | 5m with Internal Steel Core |
The Clever Acoustics PDS 615 is optimised for clarity and coverage in acoustically challenging environments. Its consistent SPL output and wide frequency response make it suitable for clear speech and ambient background music. With easy installation and reliable build quality, it is a trusted choice for AV contractors and installers working on commercial premises.
Q: Is the PDS 615 suitable for high ceilings?
A: Yes, it is specifically designed for ceilings higher than standard, with a 5m cable and pendant design optimised for large, open spaces.
Q: Can it be used in a 70V system?
A: Yes, it supports both 70V and 100V line installations with selectable power taps.
Q: Is this speaker weatherproof?
A: No, the PDS 615 is intended for indoor use only and should not be exposed to moisture or outdoor conditions.
Q: What kind of cable is included?
A: A 5-metre suspension cable is included, featuring an internal steel safety core and a ceiling mounting plate.
Q: Can this be installed in a retail environment?
A: Absolutely. Its stylish design, clear audio projection, and ease of installation make it ideal for retail shops and showrooms.
