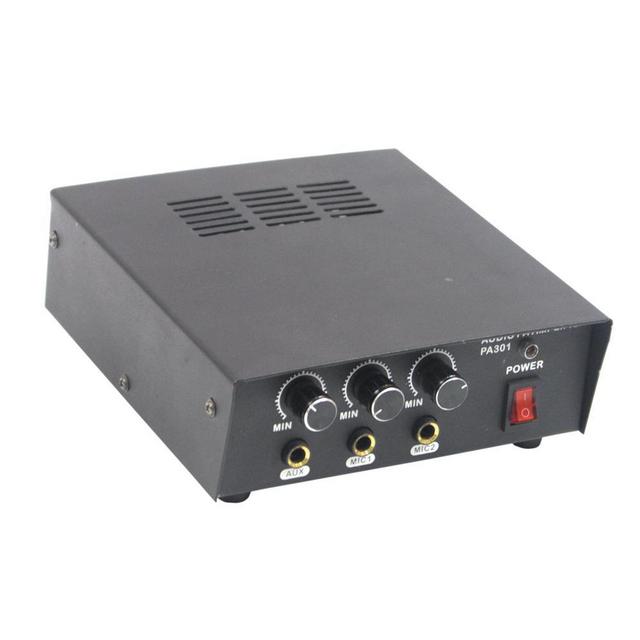

The Eagle 12 V Vehicle PA Amplifier is a 30 W RMS system designed for professional in-vehicle public address applications. With three independent inputs (two microphone and one AUX), each featuring individual volume control, it offers versatile connectivity for announcements, music playback, and external audio sources. Ideal for campaign vehicles, service vans, and mobile events, this unit delivers clear and powerful sound reinforcement on the move.
Constructed with a robust black chassis, the amplifier is built to withstand regular vehicle use. Its compact form factor ensures easy installation, while the clearly labelled controls and independent volume adjustments enable precise audio management. With a sturdy build and reliable 12 V DC operation, it is tailored for demanding mobile sound applications.
| Specification | Details |
|---|---|
| Power RMS | 30 W |
| Power Supply | 12 V DC vehicle input |
| Inputs | 2 × Mic, 1 × AUX (each with volume control) |
| Microphone Input | -50 dB (2.45 mV) / 2 kΩ, balanced |
| Frequency Response | Mic: -3 dB (100 Hz - 20 kHz); Line: -3 dB (30 Hz - 20 kHz) |
| Dimensions (W × H × D) | 165 × 55 × 200 mm |
| Product Dimensions | 195 × 165 × 80 mm |
| Net Weight | 10 kg |
| Finish | Black |
The Eagle 30 W Vehicle PA Amplifier provides clear and reliable sound performance. With separate volume controls for each input, it allows users to balance microphones and auxiliary sources effortlessly. Its wide frequency response ensures both speech and music are reproduced with clarity, while the 12 V operation makes it convenient for vehicle-based setups.
Q: What is the power output of this amplifier?
A: It delivers 30 W RMS output, providing clear sound projection for vehicle-based PA use.
Q: How many inputs does it have?
A: It has three inputs in total -- 2 microphone inputs and 1 AUX input, each with its own volume control.
Q: What power supply is required?
A: It operates directly from a 12 V DC vehicle power source.
Q: Is this suitable for speech and music?
A: Yes, with a mic frequency response of 100 Hz - 20 kHz and line input response of 30 Hz - 20 kHz, it handles both speech and music effectively.
Q: Is it easy to install in vehicles?
A: Yes, its compact design allows for easy installation into most vehicle PA systems.
