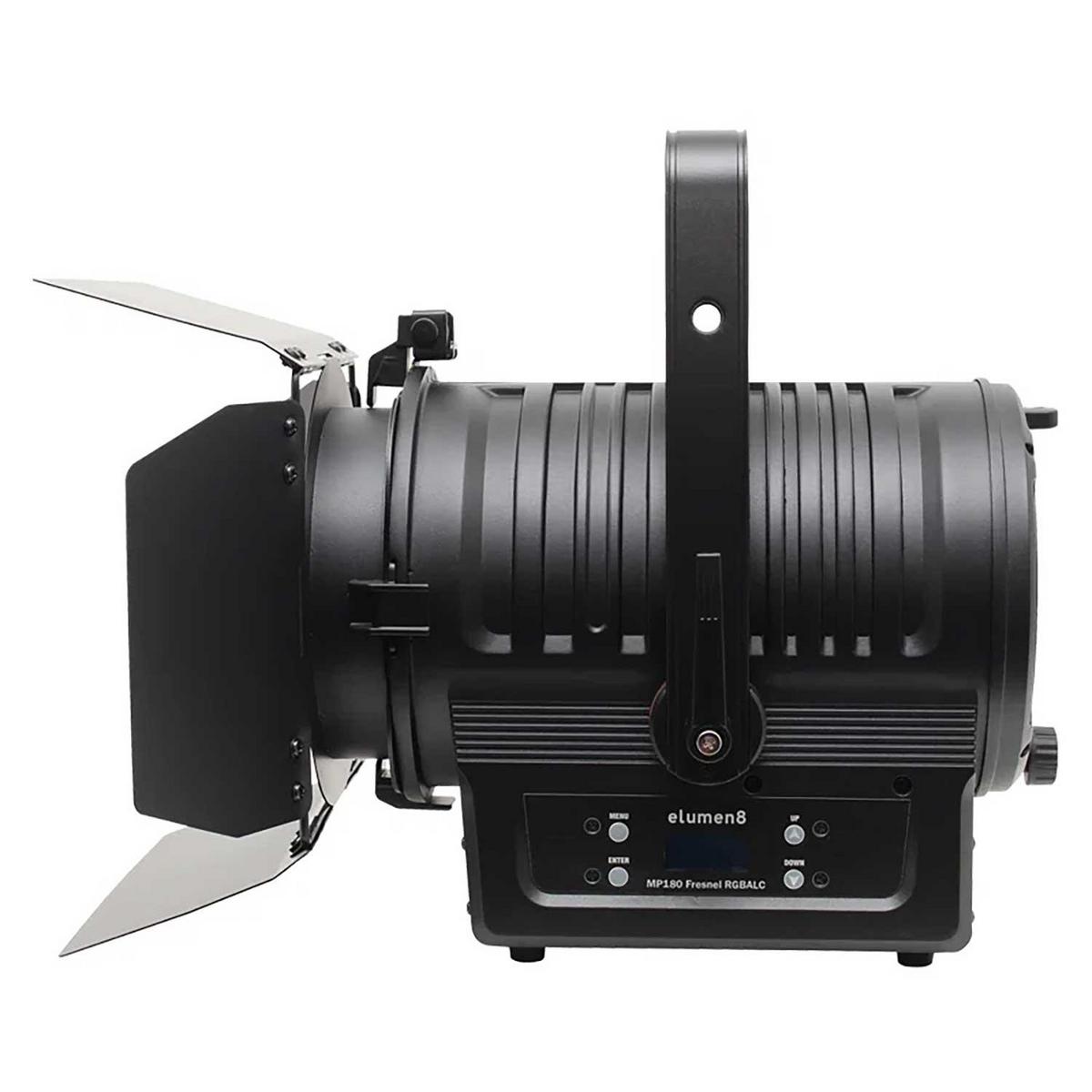

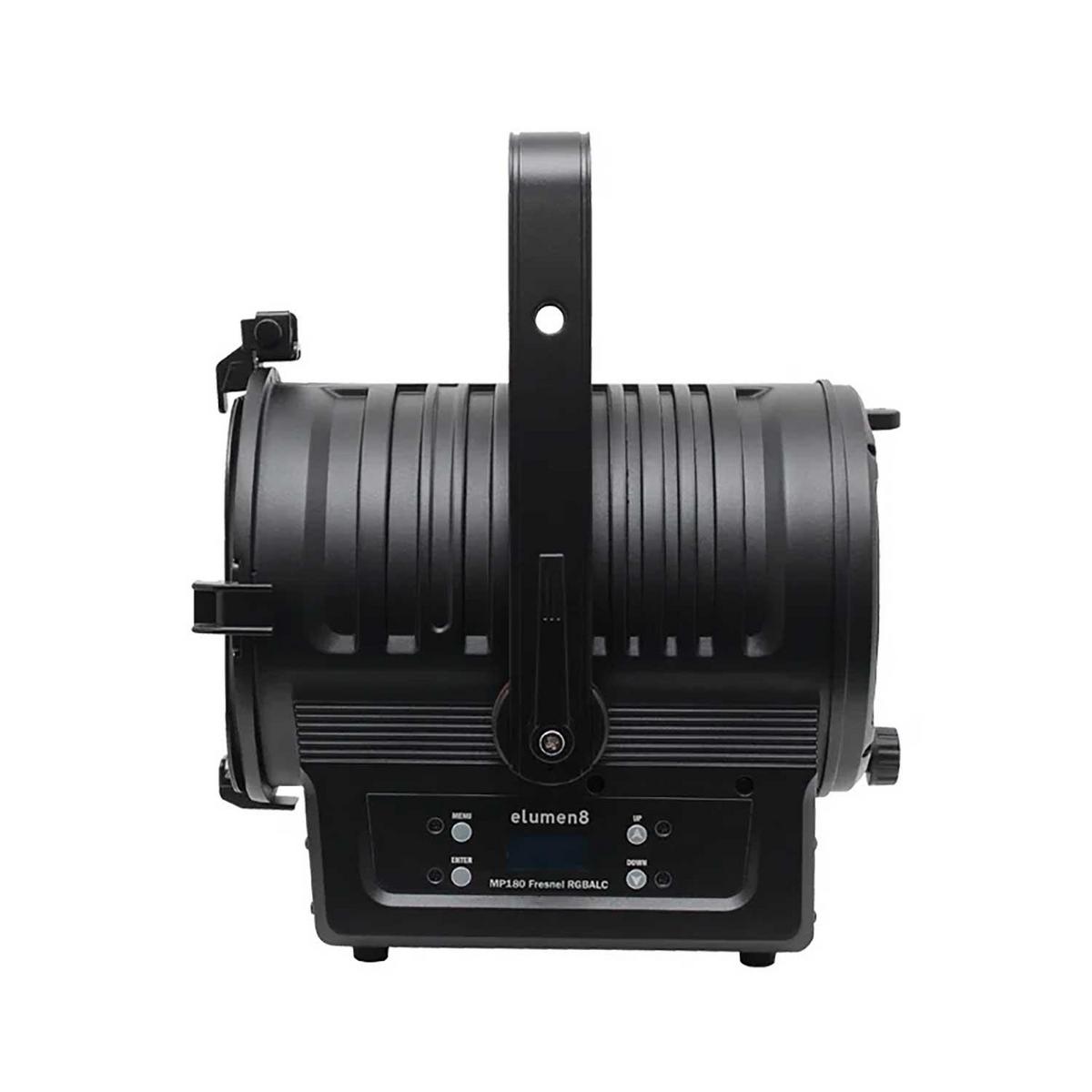

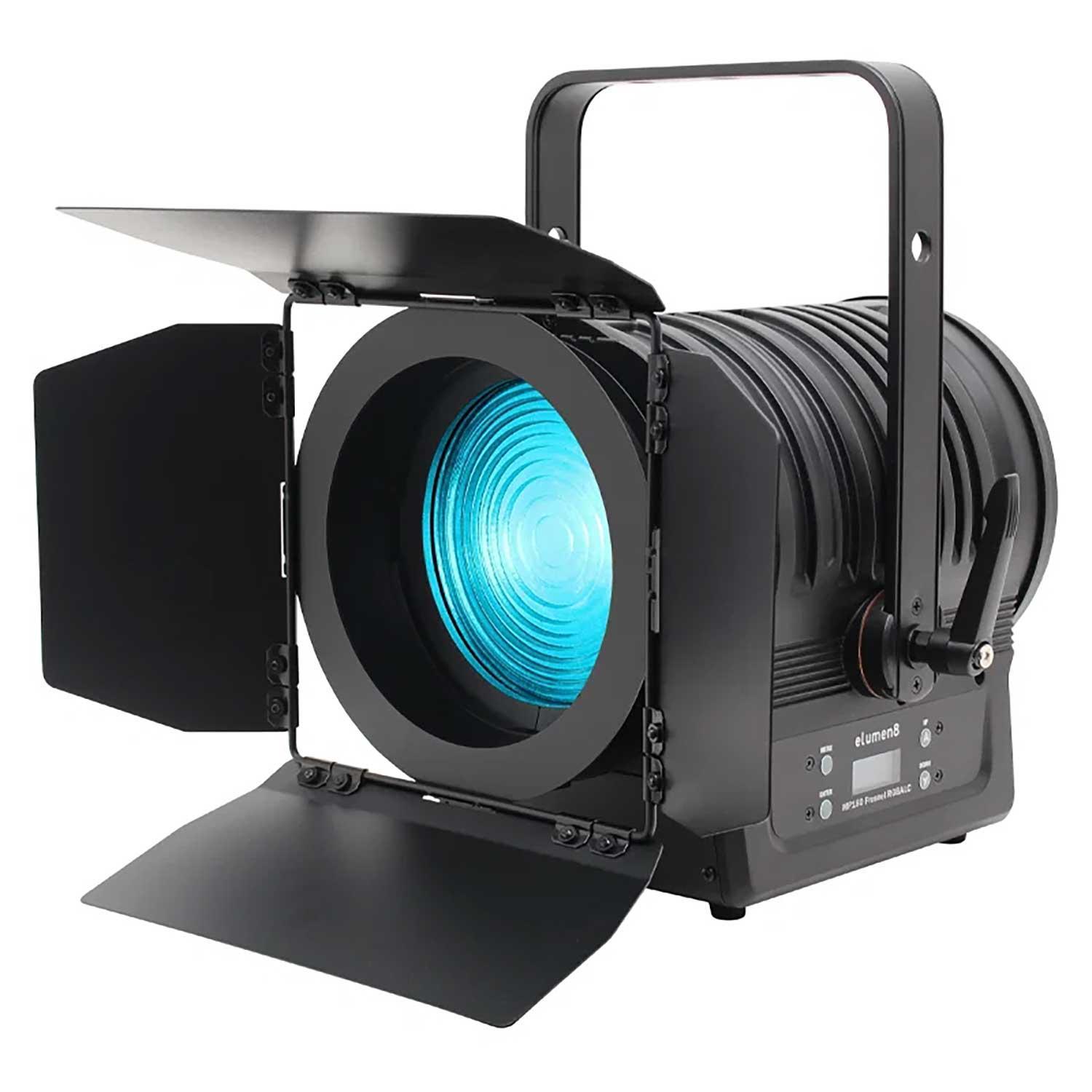

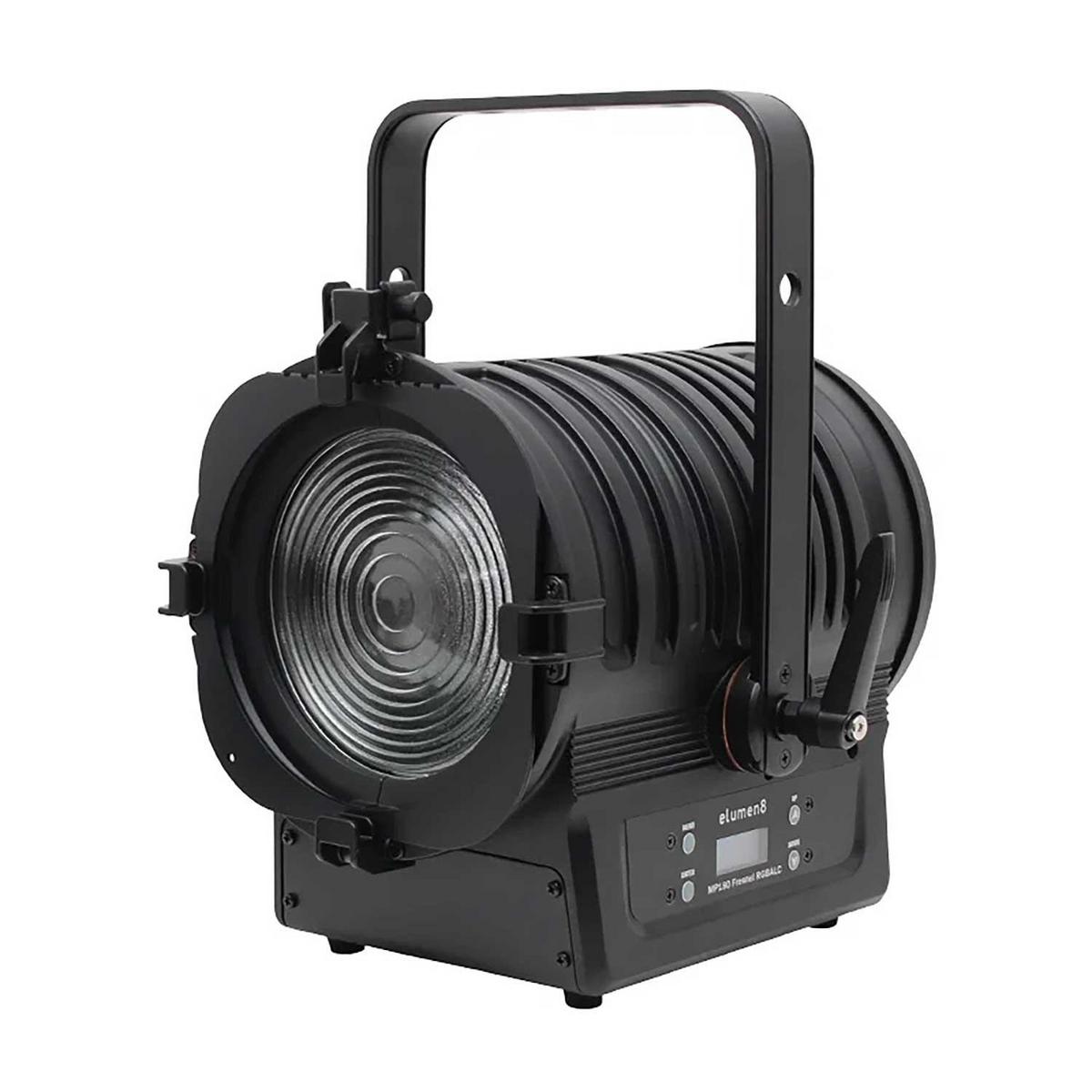

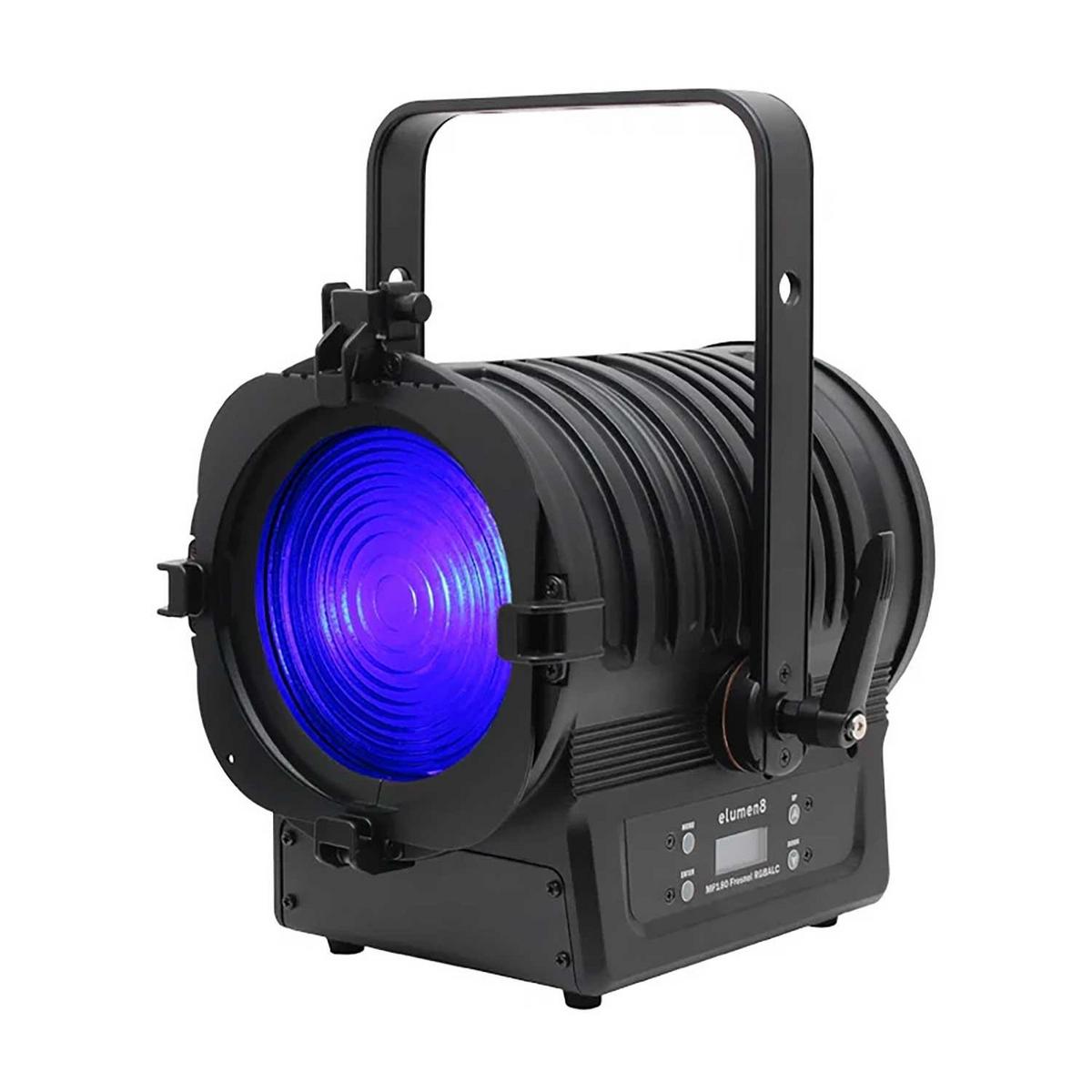

The eLumen8 MP180 LED Fresnel is a professional 180W RGBALC LED fixture designed for theatres, television studios, houses of worship and live productions. Utilising a powerful six-colour COB LED engine with red, green, blue, amber, lime and cyan LEDs, it delivers exceptional colour mixing, high CRI performance and smooth dimming for professional lighting applications.
Featuring a manually adjustable beam angle from 13° to 46°, RDM compatibility, selectable DMX personalities and advanced dimming curves, the MP180 provides outstanding versatility for stage, broadcast and architectural lighting where precise colour reproduction is essential.
Ideal for theatres, television studios, schools, churches, conference venues, live productions, exhibition spaces, museums and performance venues requiring high-quality colour mixing and professional Fresnel lighting.
| Light Source | 1 x 180W RGBALC Six-Colour COB LED |
|---|---|
| Beam Angle | 13° – 46° (Manual Zoom) |
| Illuminance | 6,849 lux @ 2m (13°), 2,141 lux @ 2m (46°) |
| Colour Rendering Index (CRI) | >90 |
| Refresh Rate | 17kHz |
| DMX Modes | 1, 5, 6 or 16 Channels |
| RDM | Yes |
| Dimming | 0–100% (8-bit or 16-bit) |
| Dimming Curves | Linear, Square Law, Inverse Square Law and S-Curve (LED & Halogen Profiles) |
| Strobe | Variable Electronic Strobe |

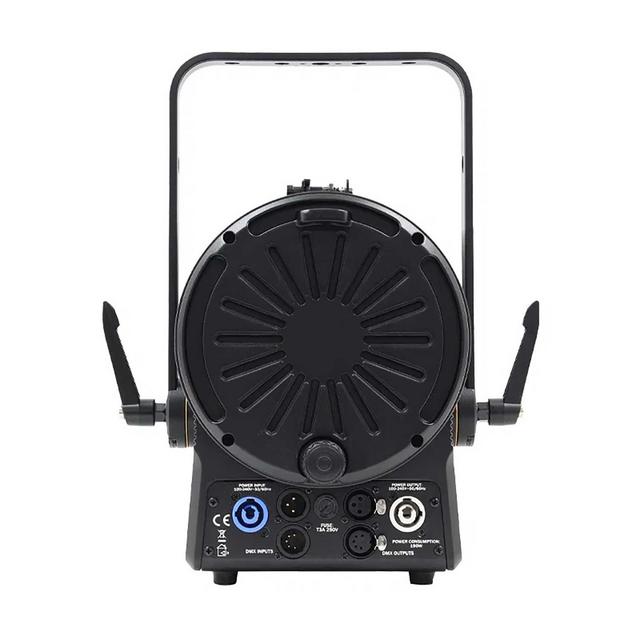

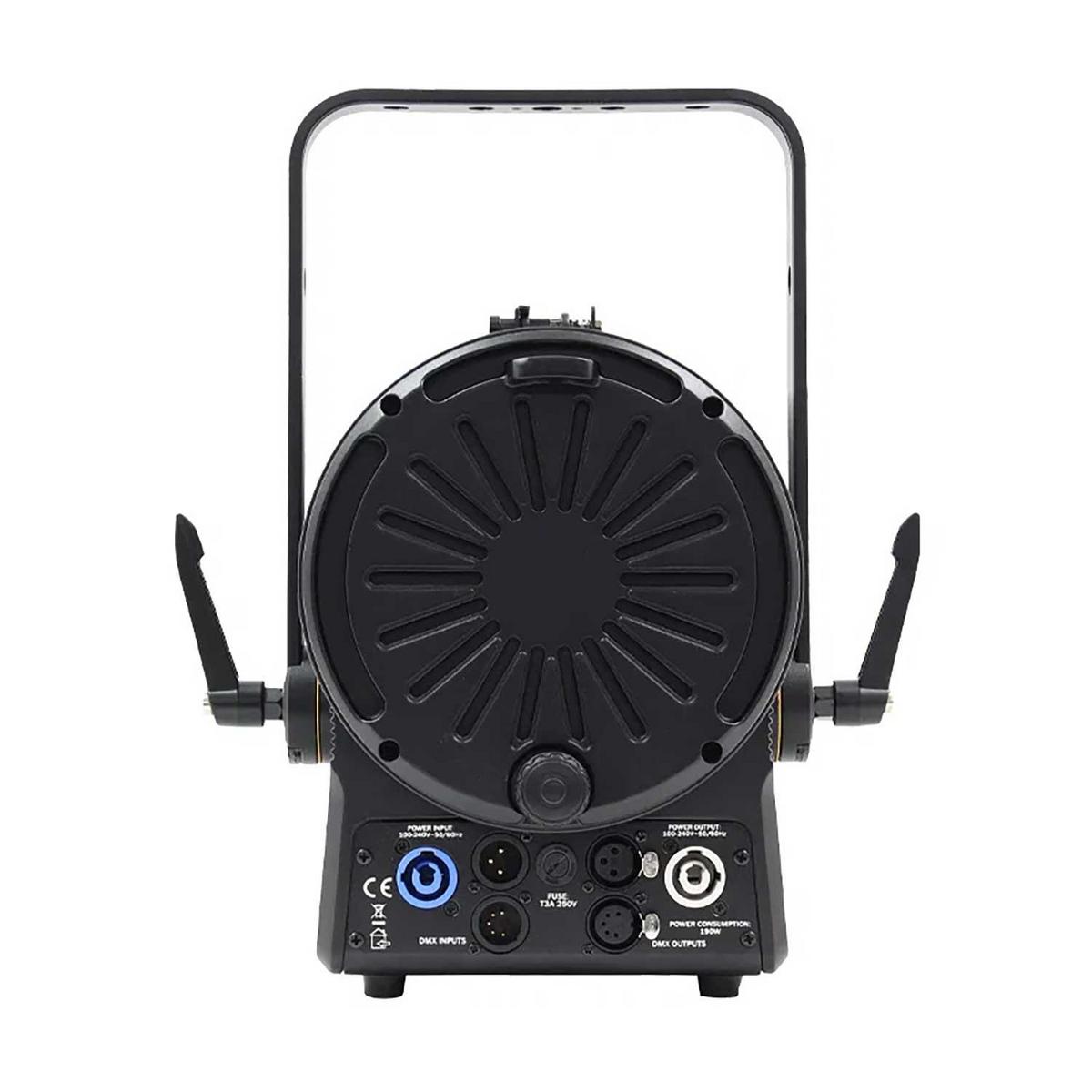

| DMX Connections | 3-Pin and 5-Pin XLR In/Out |
| Power Connections | powerCON® In/Out |
| Cooling | Temperature-Controlled Fan |
| Power Consumption | 190W |
| Power Supply | 100–240V AC, 50/60Hz |
| Dimensions | 371 × 301 × 318mm |
| Weight | 8.7kg |

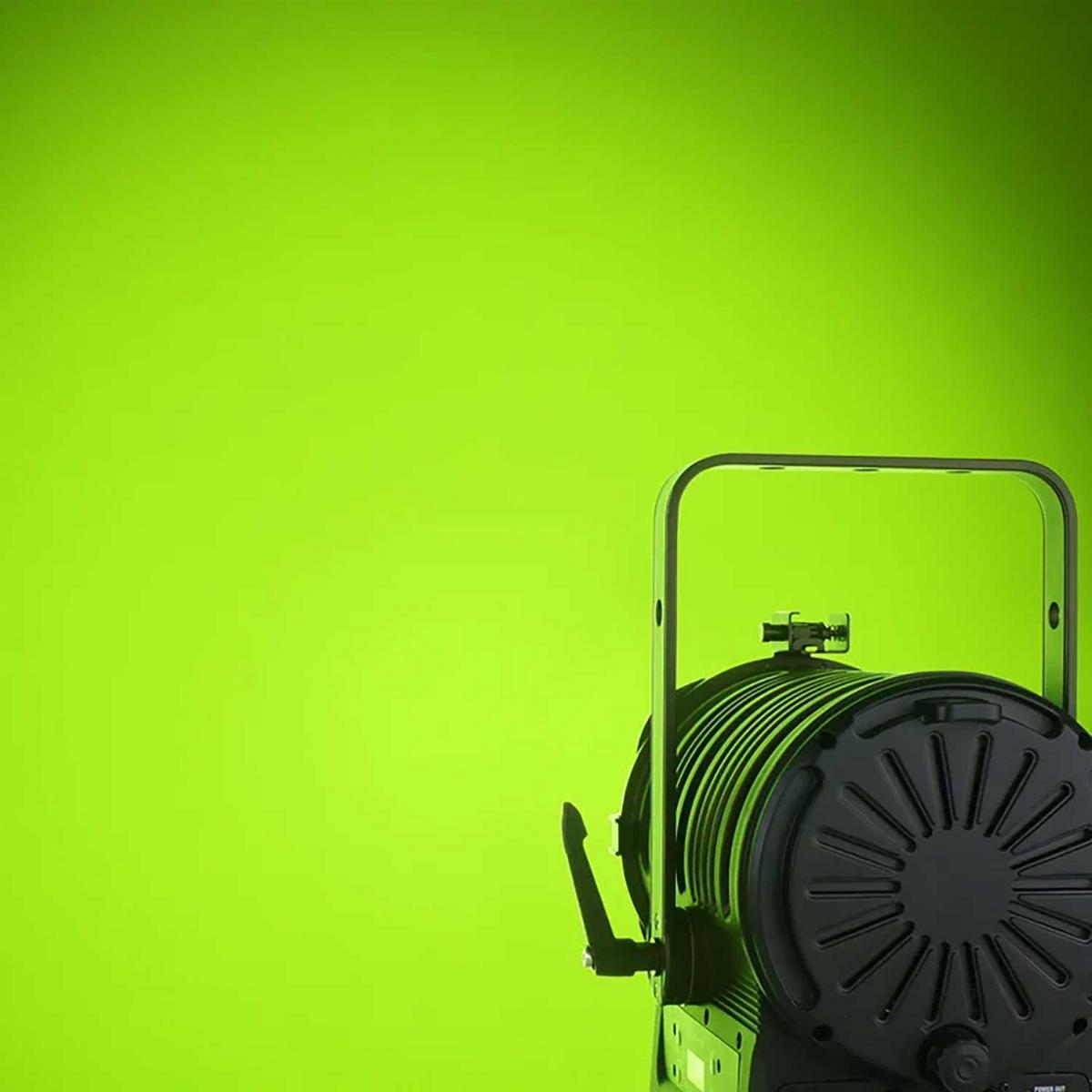

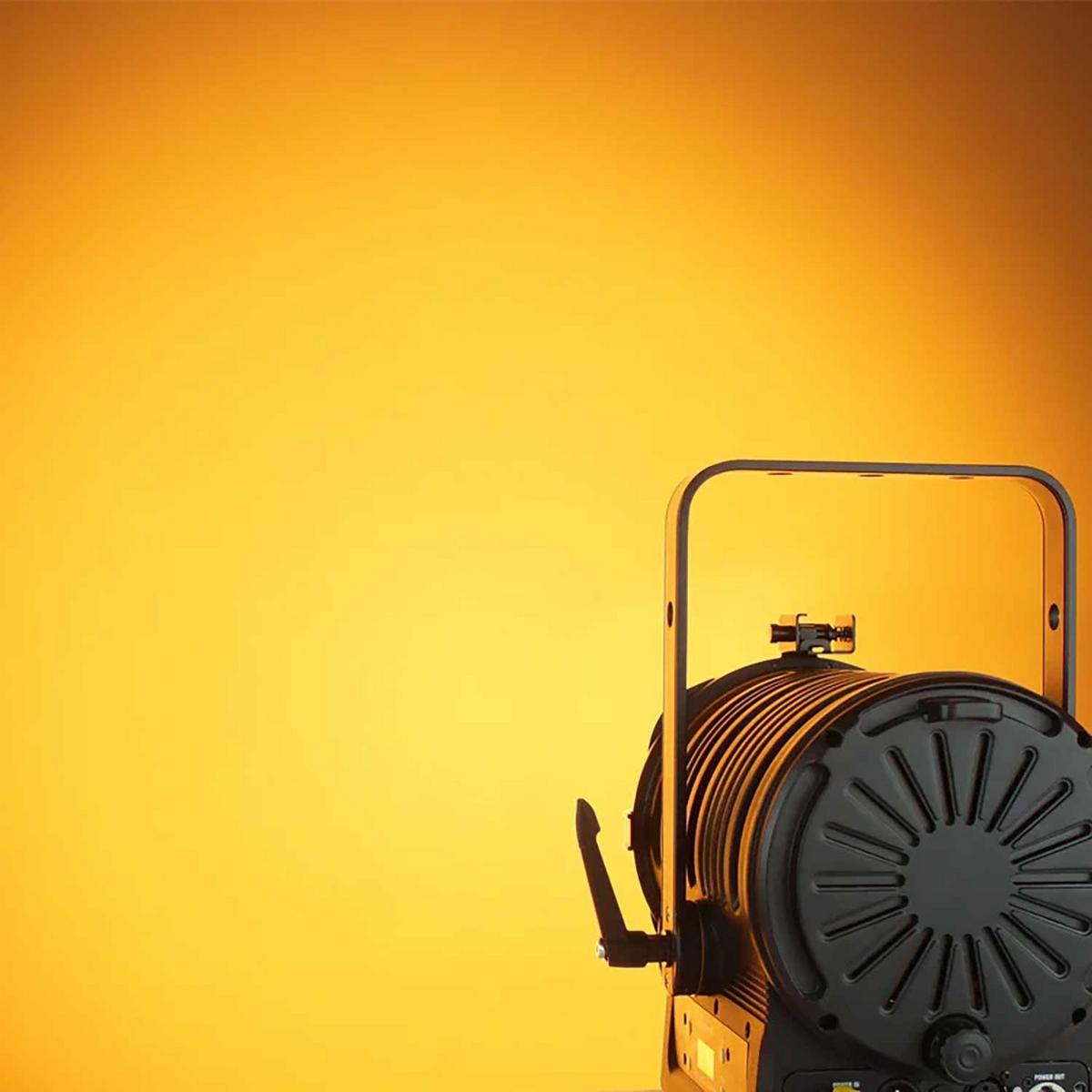

In addition to red, green and blue LEDs, the inclusion of amber, lime and cyan produces smoother colour mixing, improved pastel shades and more natural-looking white light with excellent colour rendering.
Yes. The manual zoom allows the beam angle to be adjusted from 13° for focused lighting to 46° for wider scene coverage.
Yes. Its high CRI rating, flicker-free 17kHz refresh rate and smooth dimming make it ideal for theatres, studios, live broadcasts and stage productions.
Yes. RDM (Remote Device Management) allows compatible lighting consoles to remotely configure and monitor fixture settings over the DMX network.

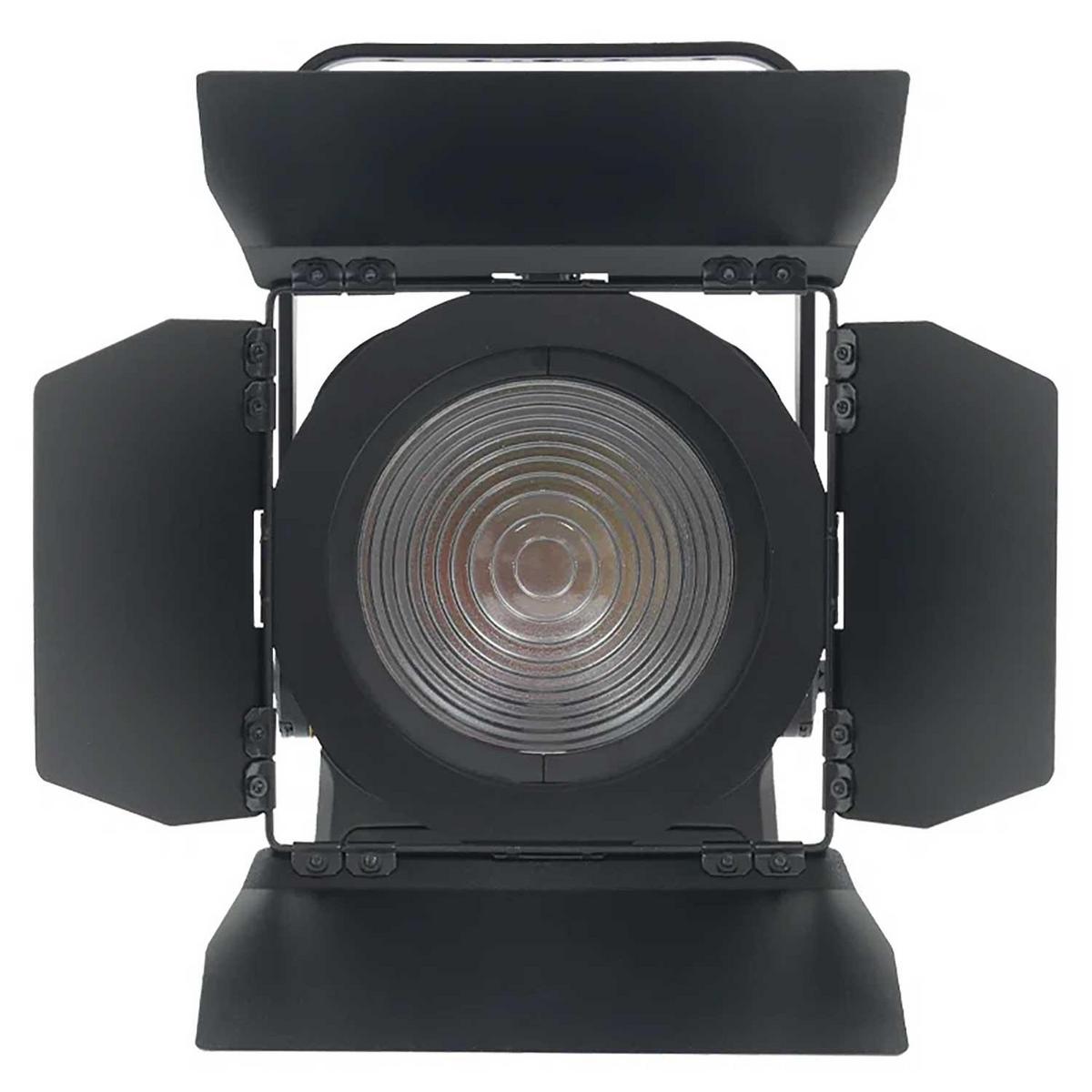

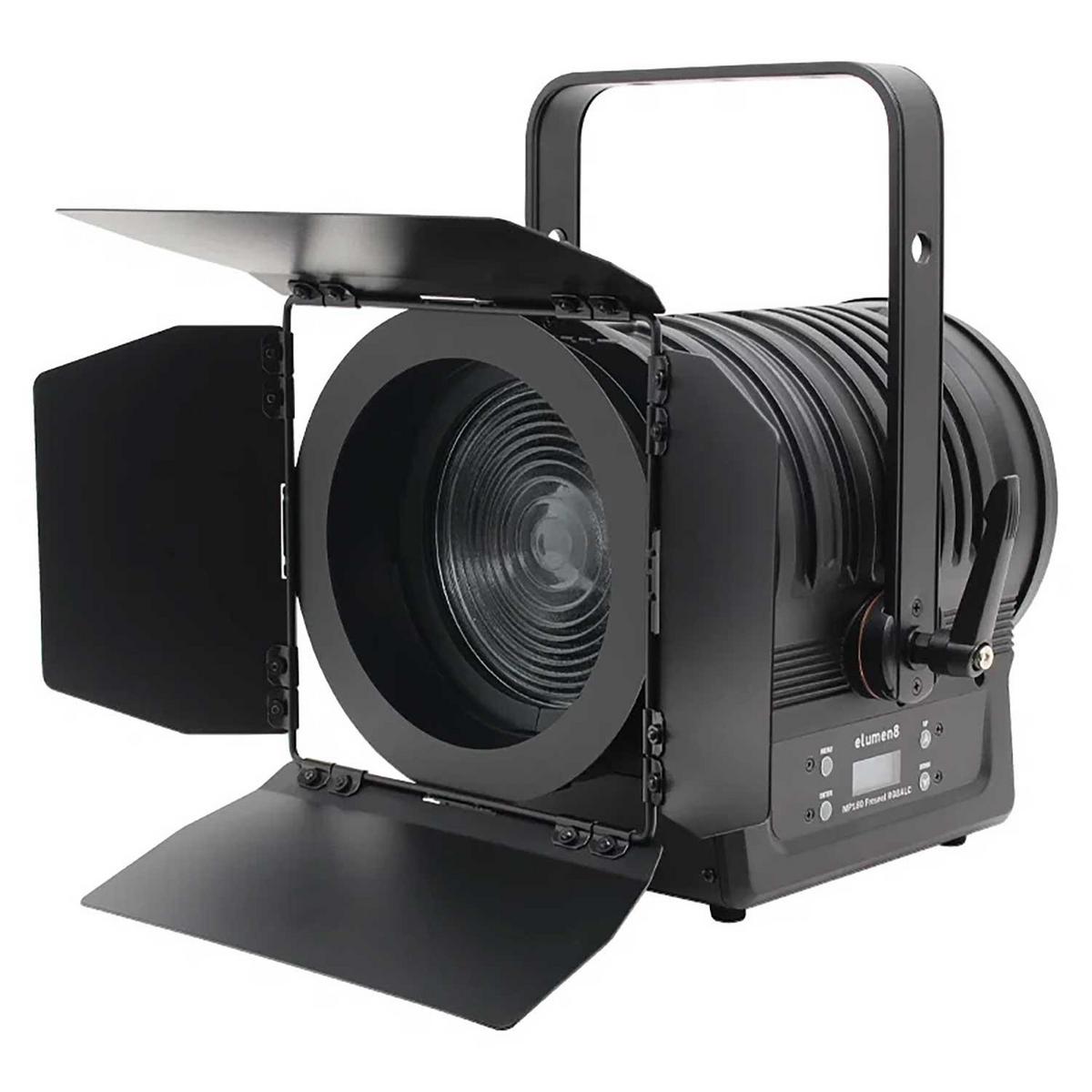

The fixture is supplied with a filter frame and adjustable barn doors, allowing you to shape and control the beam for professional lighting applications.
