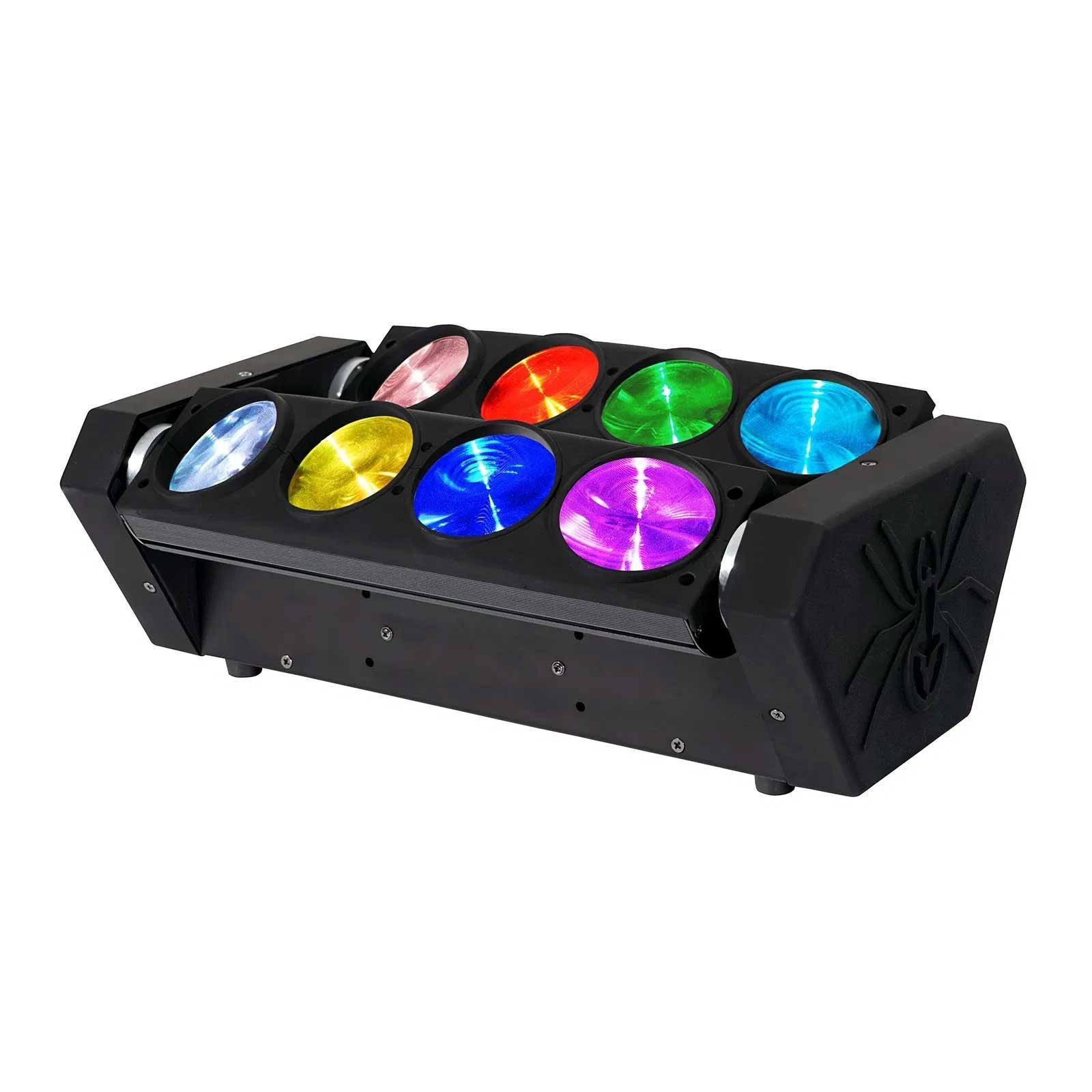

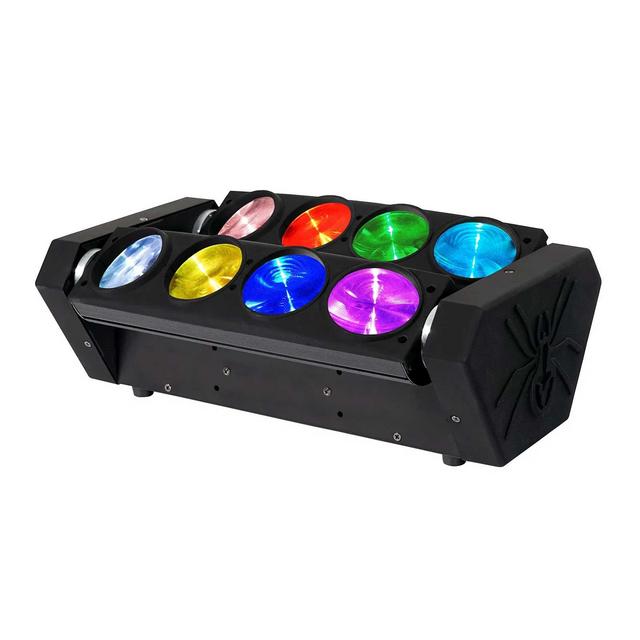

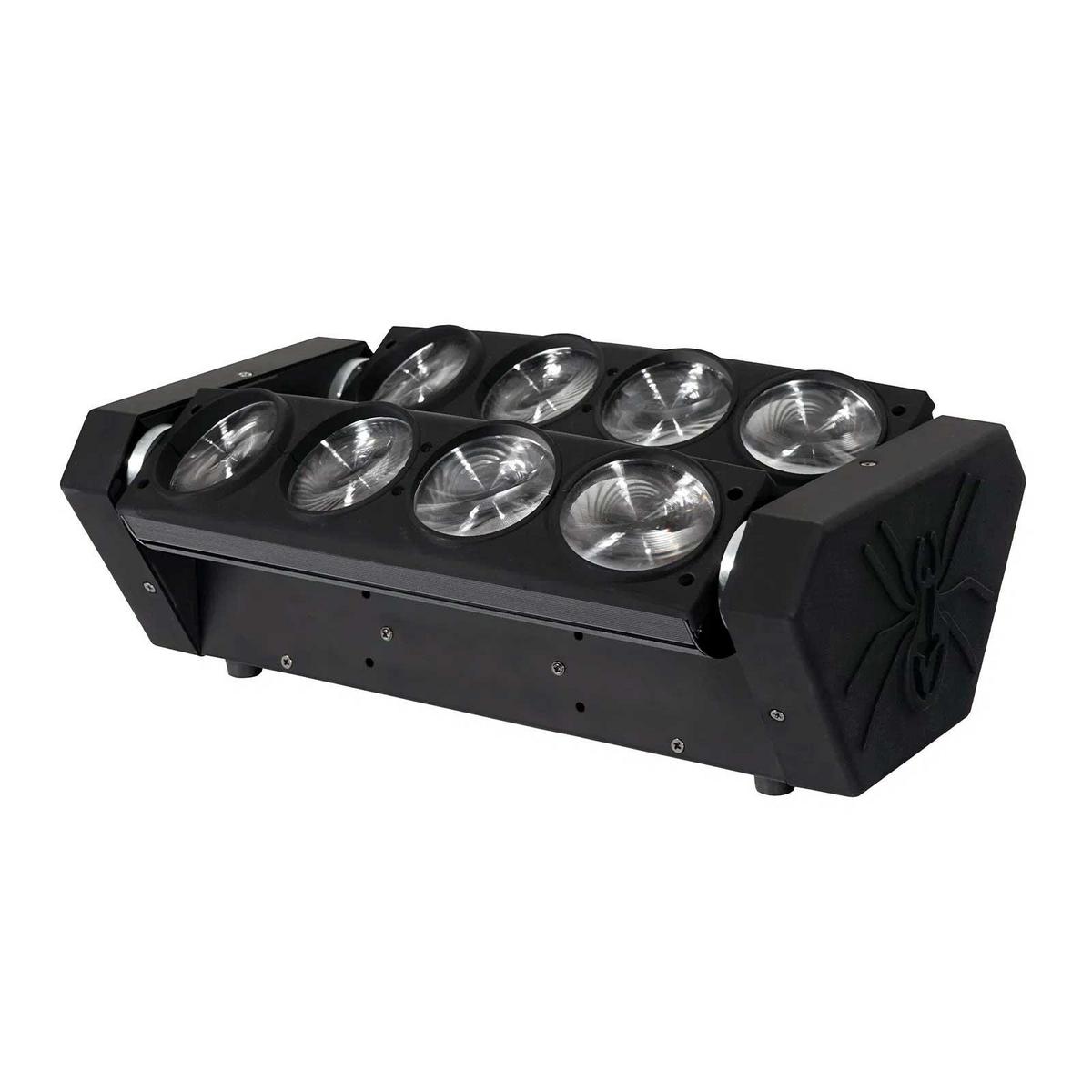

The Butterfly Quad MKII is a dynamic multi-beam lighting effect, ideal for DJs, clubs, and event productions requiring sweeping, narrow beams. It features two LED bars, each fitted with four individually controllable beams--delivering a total of eight sharp, high-contrast outputs.

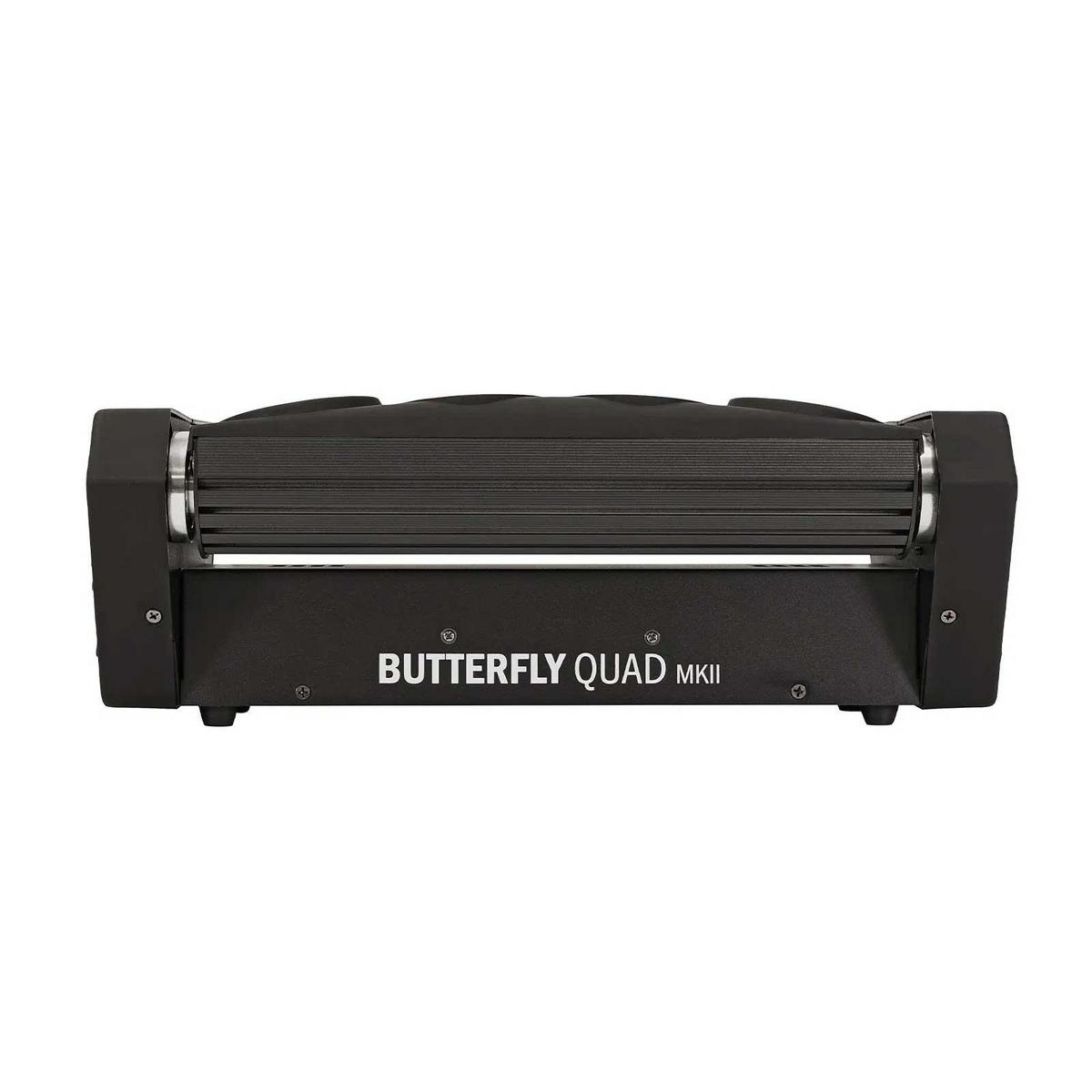

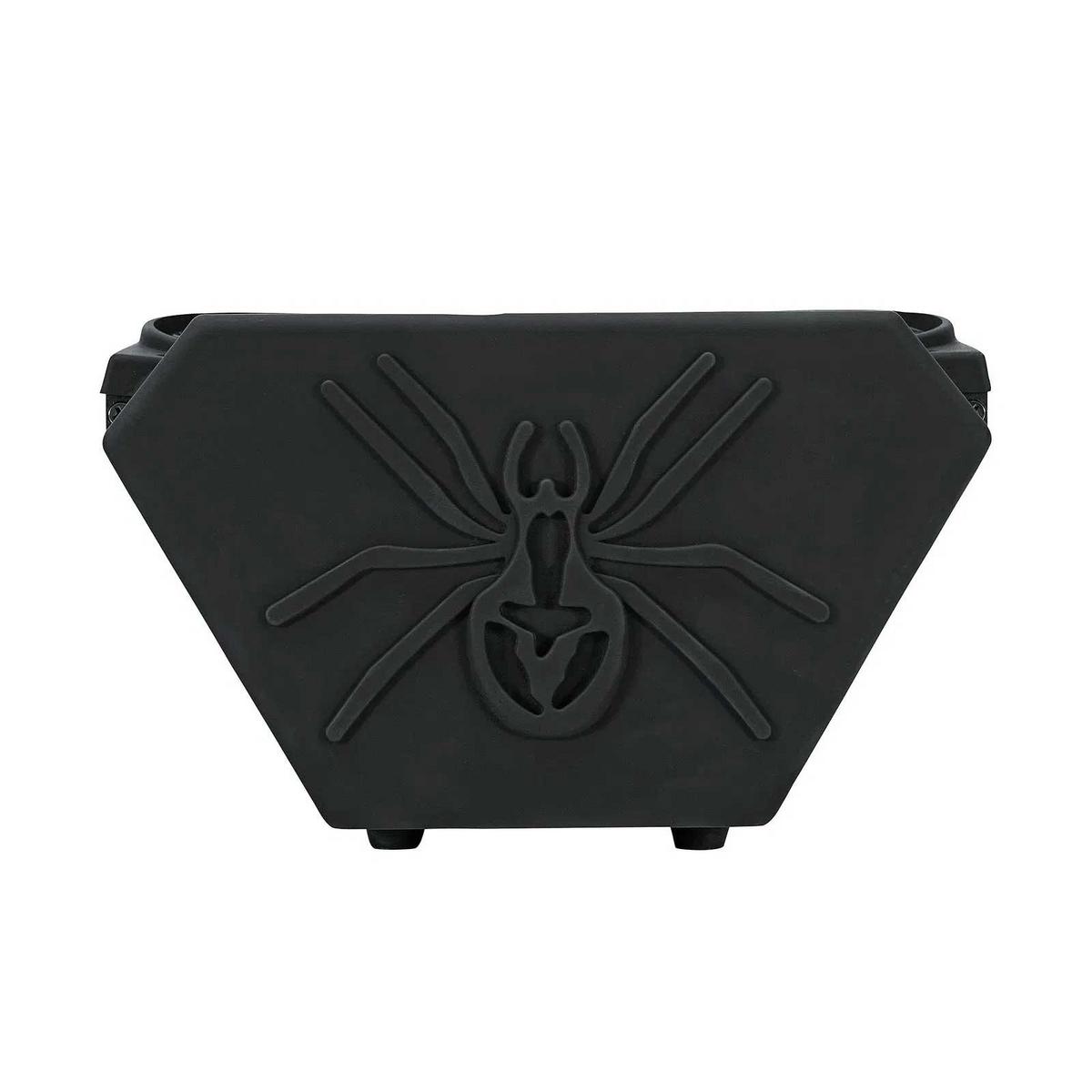

The unit is housed in a robust enclosure with a mounting bracket for easy installation on truss or lighting stands. Its form is optimised for reliable operation and efficient heat dissipation, allowing extended use in professional environments.
| Specification | Details |
|---|---|
| Power Consumption | 100 W (typical) |
| Power Supply | 100-240 V AC, 50/60 Hz |
| Beam Angle | 3 degrees per beam |
| LEDs | 8 × 10 W quad-colour (RGBW) |
| Tilt Range | Up to 160 degrees |
| DMX Modes | 1 / 6 / 12 / 36 channels selectable |
| Dimensions (H × W × D) | 148 × 402 × 235 mm |
| Weight | 4.1 kg |

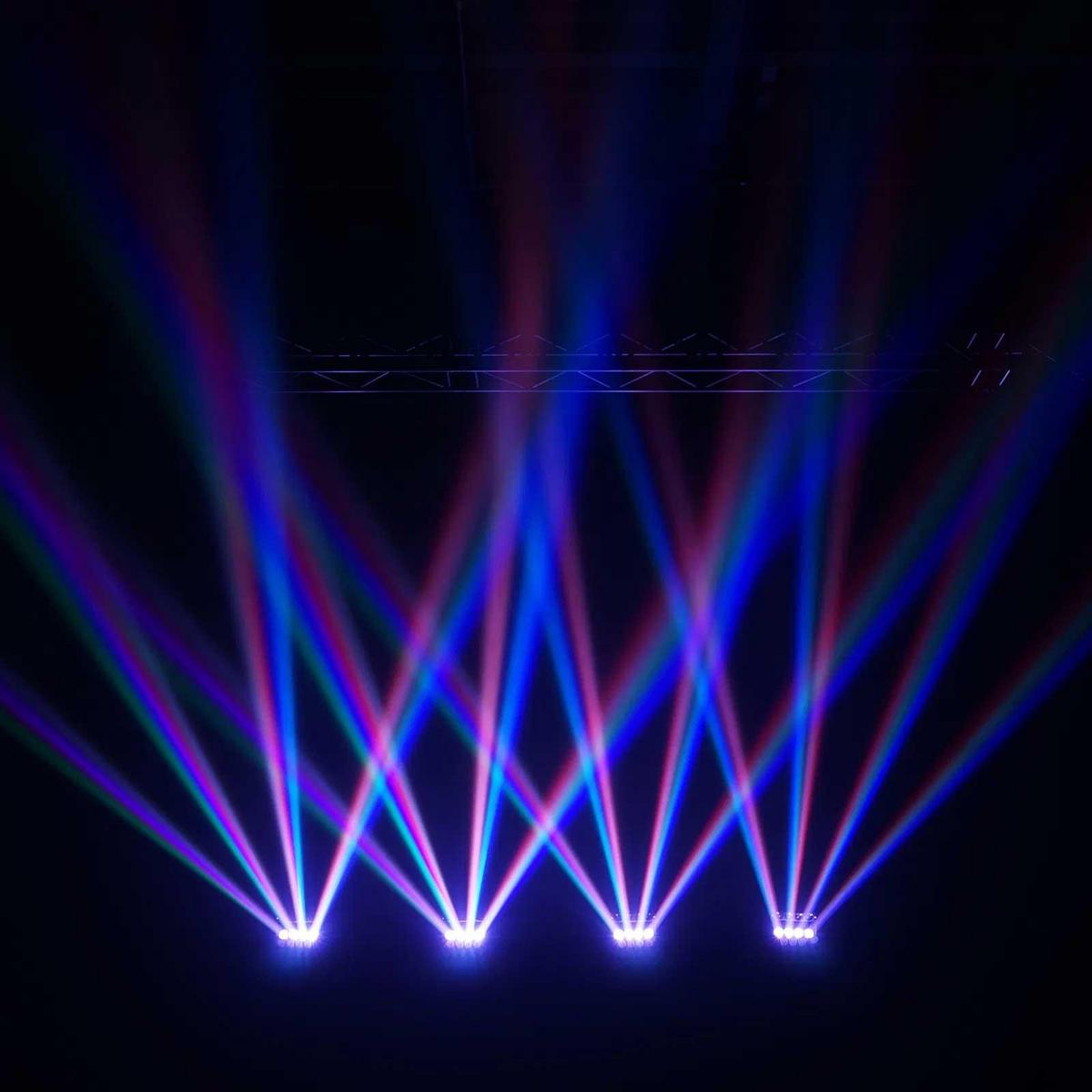

In stand-alone use, the Butterfly Quad MKII delivers sweeping beam effects, filling a space with dynamic motion through its dual LED bars. With pixel mapping, you can shape beam behaviour on a per-LED basis, enabling complex visual designs and synchronised movement when multiple units are used in unison. Its tilt range and narrow beam ensure that the effect holds even over distance. With DMX control, it integrates easily into elaborate rigs, while its auto and sound-active modes allow it to run by itself if needed.
Q: How many beams does the Butterfly Quad MKII produce?
A: Eight beams--two LED bars, each with four controllable narrow beams.
Q: Does it support pixel mapping?
A: Yes, individual LED control allows for creative pixel-mapped effects.
Q: What control modes are supported?

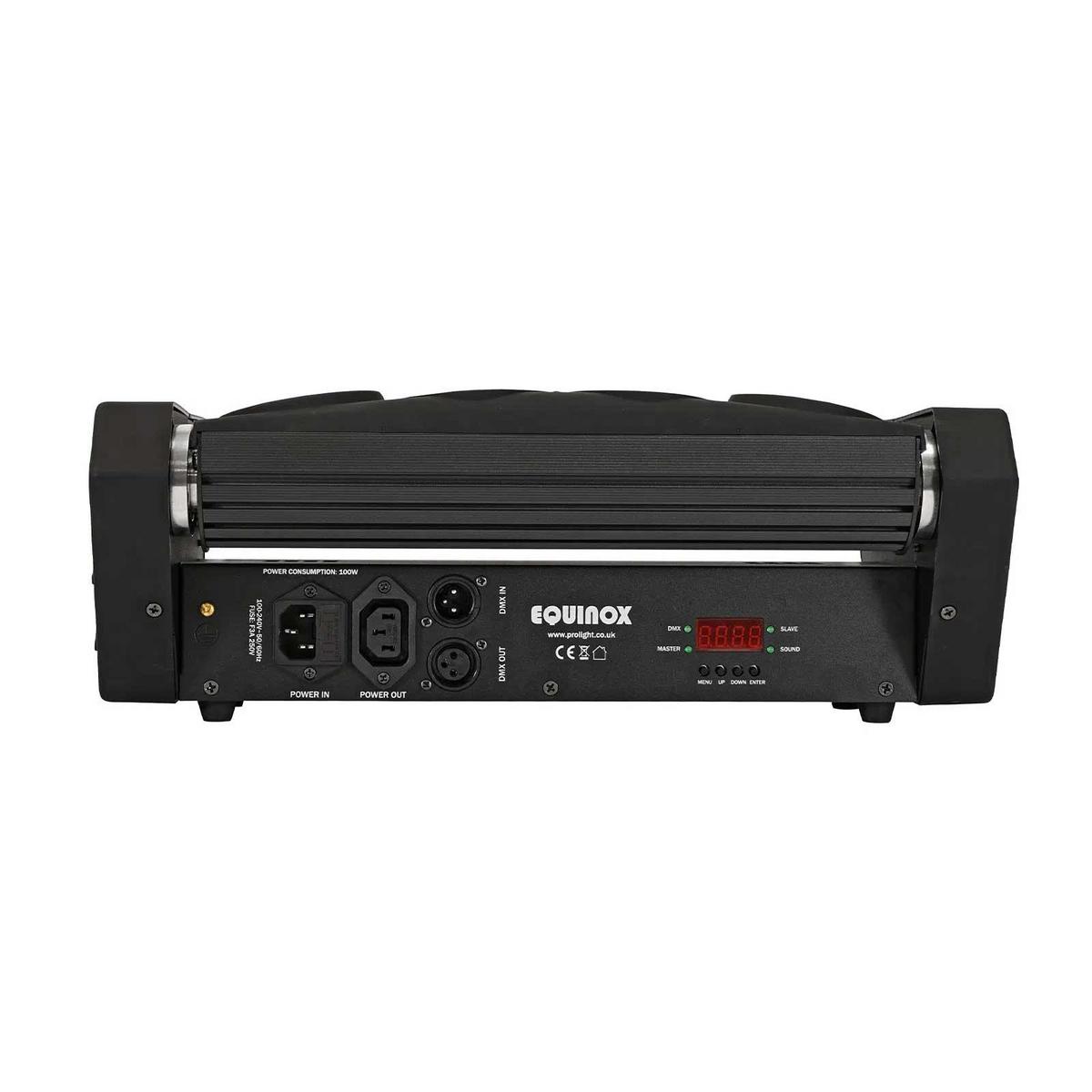

A: Auto, sound-active, master/slave, and DMX (selectable channel modes).
Q: Is it suitable for mobile DJ setups?
A: Yes, thanks to its moderate weight and compact form, it fits well in portable rigs while delivering high-impact beam effects.
