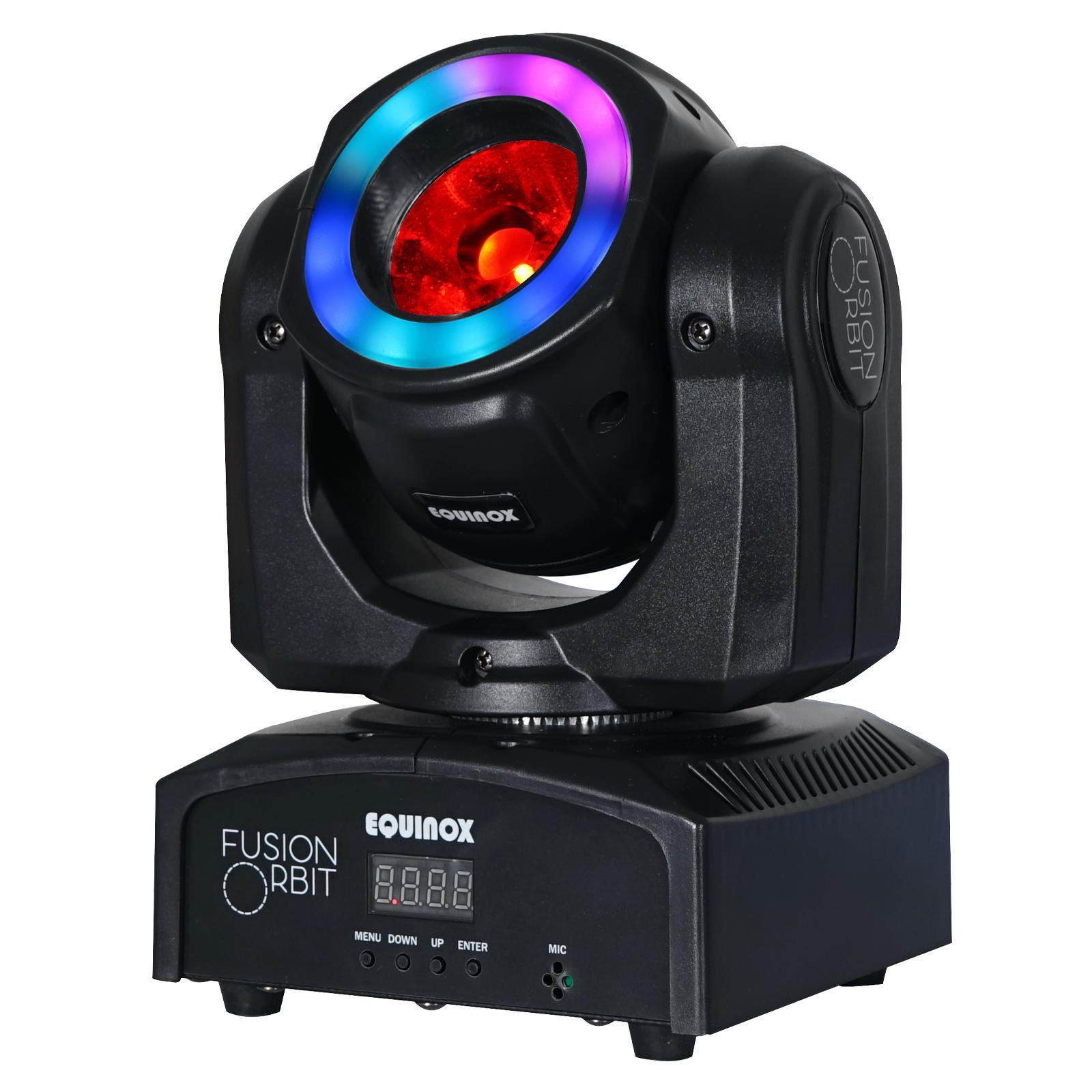

The Equinox Fusion Orbit MKII is a compact yet powerful moving head fixture designed to deliver striking aerial beam effects and vibrant colour chases. Powered by a 60W RGBW quad-colour LED producing a tight 4 degrees beam, it creates sharp, focused light effects ideal for clubs, stages, and events. Surrounding the central beam is an RGB LED ring with 12 tri-colour SMD LEDs that provide additional colour chases and dynamic patterns for a truly mesmerising display.
With its lightweight yet durable construction, the Fusion Orbit MKII is built for both mobile and fixed installations. The unit comes supplied with a quick-release omega clamp for easy rigging, while its compact footprint makes it suitable for small to medium venues. Fan cooling ensures reliable, long-term performance, and the LED menu with four push buttons allows straightforward and intuitive configuration.
| Specification | Details |
|---|---|
| Light Source | 1 x 60W Quad-Colour LED (RGBW) |
| LED Ring | 12 x Tri-Colour 5050 SMD LEDs (RGB) |
| Beam Angle | 4 degrees |
| Illuminance | 22,403 Lux @ 2m |
| DMX Channels | 1, 2, 16, or 37 Selectable |
| Operating Modes | Auto, Sound Active, Master/Slave, DMX |
| Pan/Tilt | Pan: 540 degrees / Tilt: 210 degrees |
| Dimming/Strobe | 0-100% Dimming, Variable Strobe |

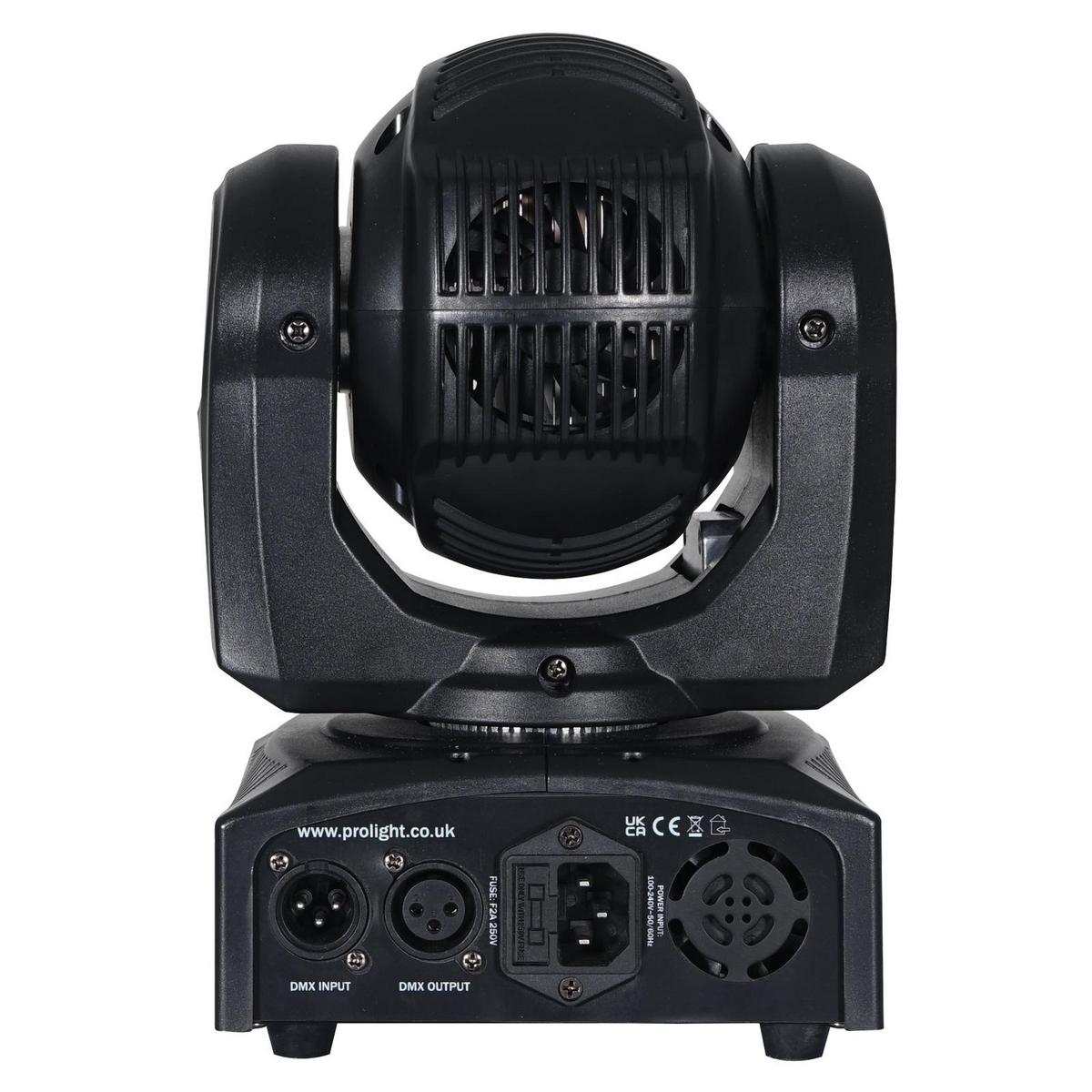

| Connections | IEC Power In, 3-Pin XLR In/Out |
| Mounting | Quick Release Omega Clamp |
| Cooling | Fan Cooled |
| Power Consumption | 65W |
| Power Supply | 100-240V, 50/60Hz |
| Fuse | F3.15A 250V |
| Dimensions | 238 x 172 x 146mm |
| Weight | 2.5kg |
The Fusion Orbit MKII excels in producing sharp aerial beams combined with vivid LED ring effects for a layered and eye-catching performance. With selectable DMX modes, versatile movement, and multiple operating options, it provides both plug-and-play ease of use and advanced control for lighting designers. Compact, lightweight, and reliable, it is a perfect choice for DJs, small venues, and event professionals who need high-impact lighting in a portable package.
Q: What makes the Fusion Orbit MKII stand out from other moving heads?
A: Its combination of a powerful 60W quad-colour LED beam and RGB LED ring effects creates a unique multi-layered lighting effect.
Q: How many DMX channel modes are available?
A: The fixture offers selectable modes of 1, 2, 16, or 37 channels for flexibility in control.
Q: Can it be used without a DMX controller?
A: Yes, it has auto, sound active, and master/slave modes for standalone operation.
Q: Is it suitable for mobile DJs?
A: Absolutely. Its lightweight design (2.5kg) and compact dimensions make it highly portable.
