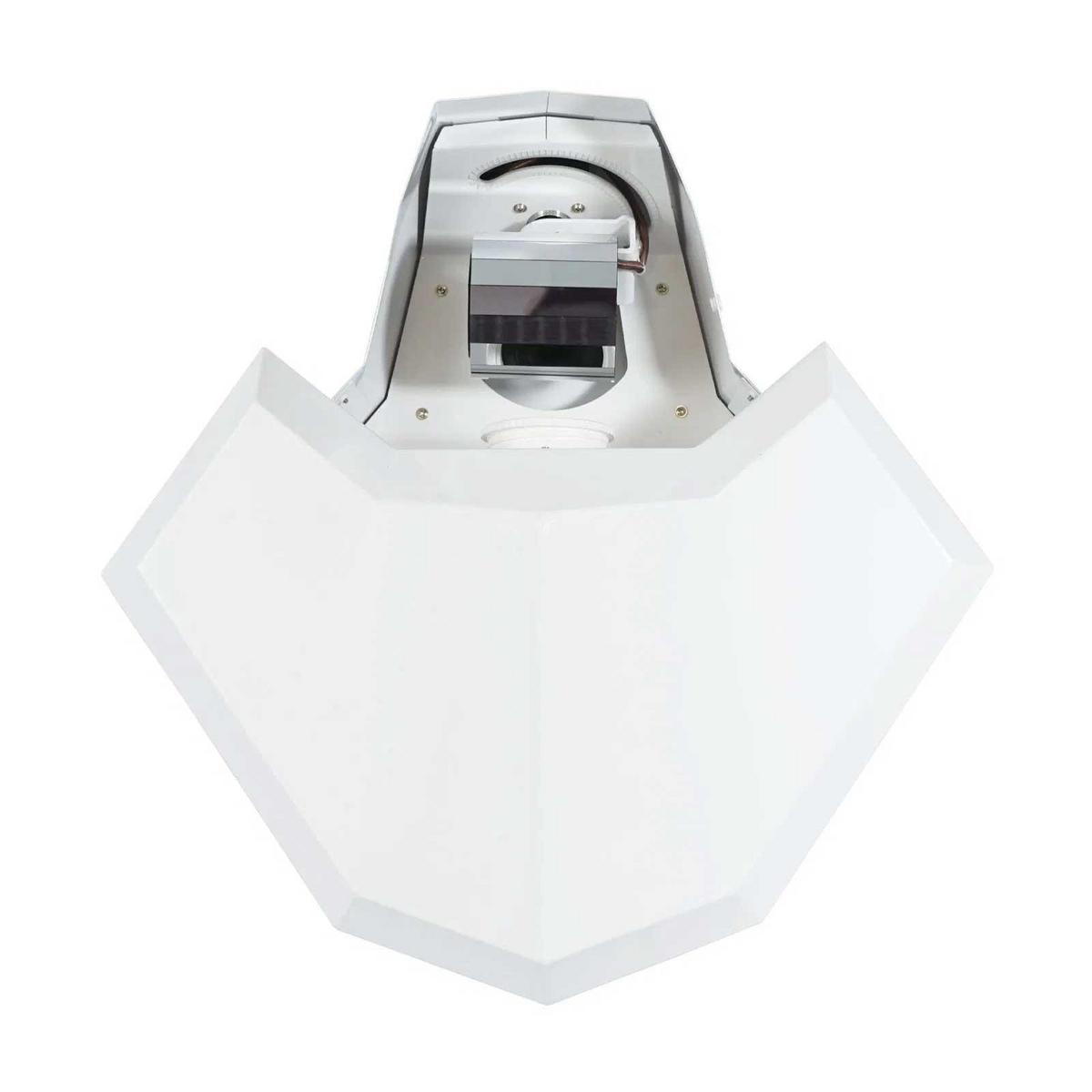

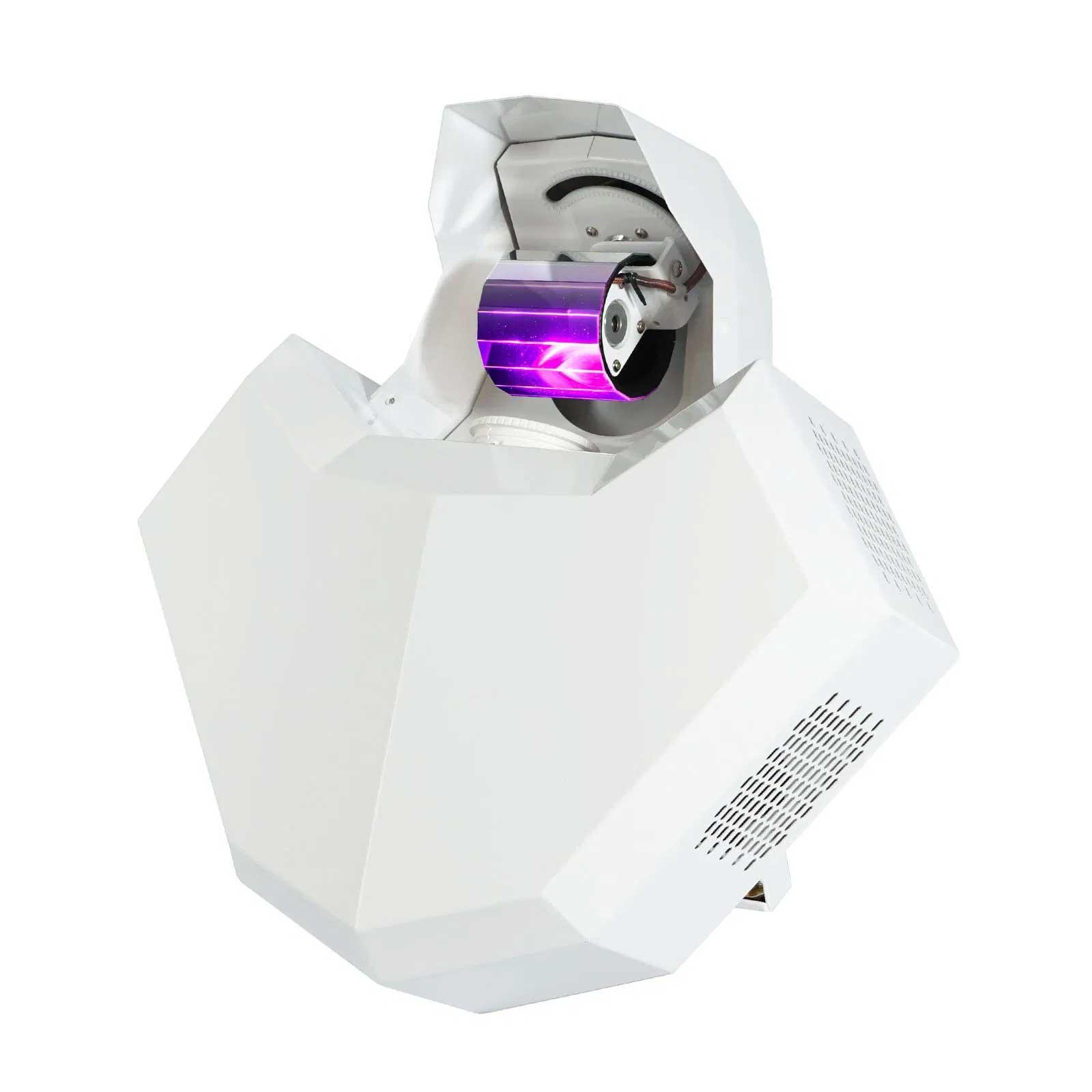

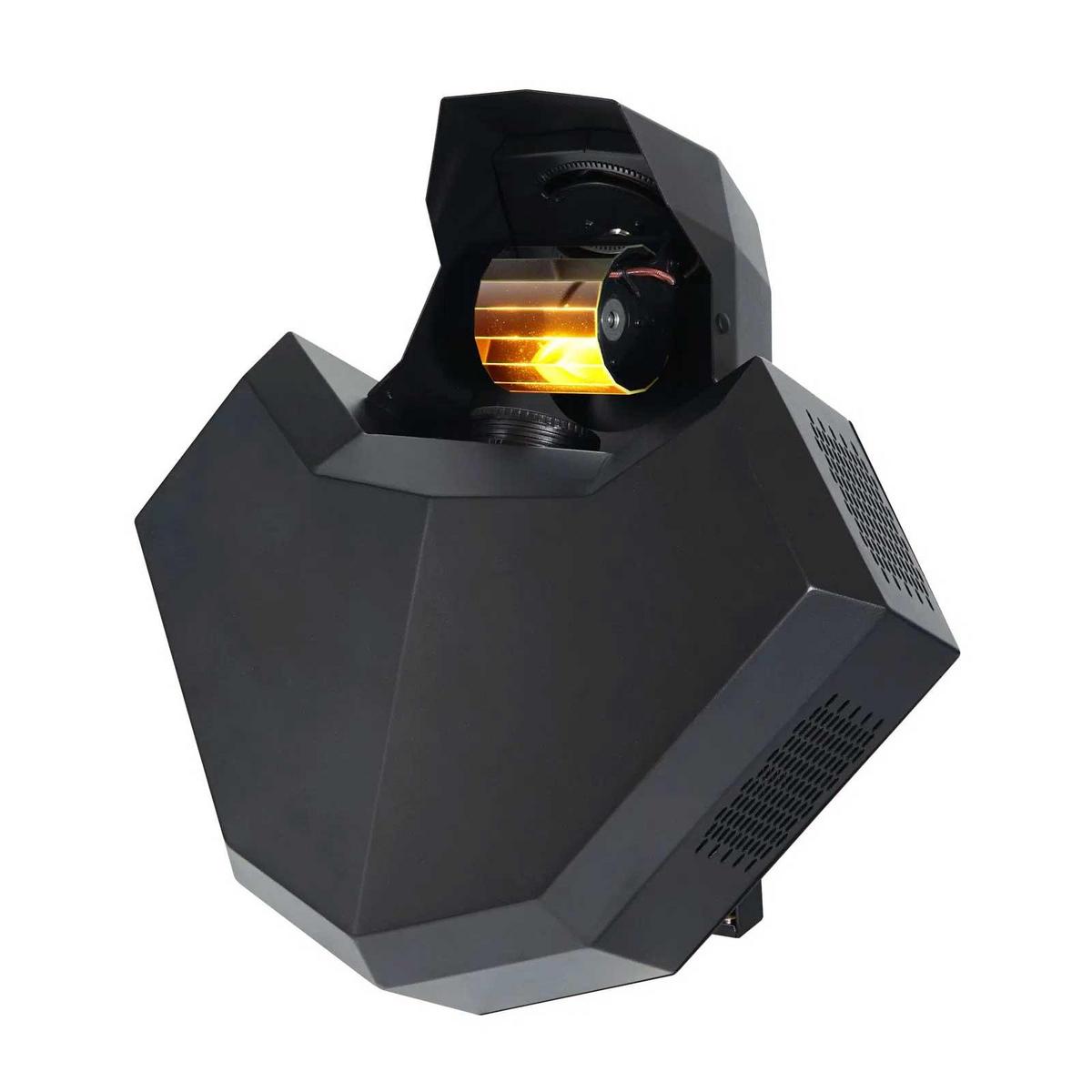

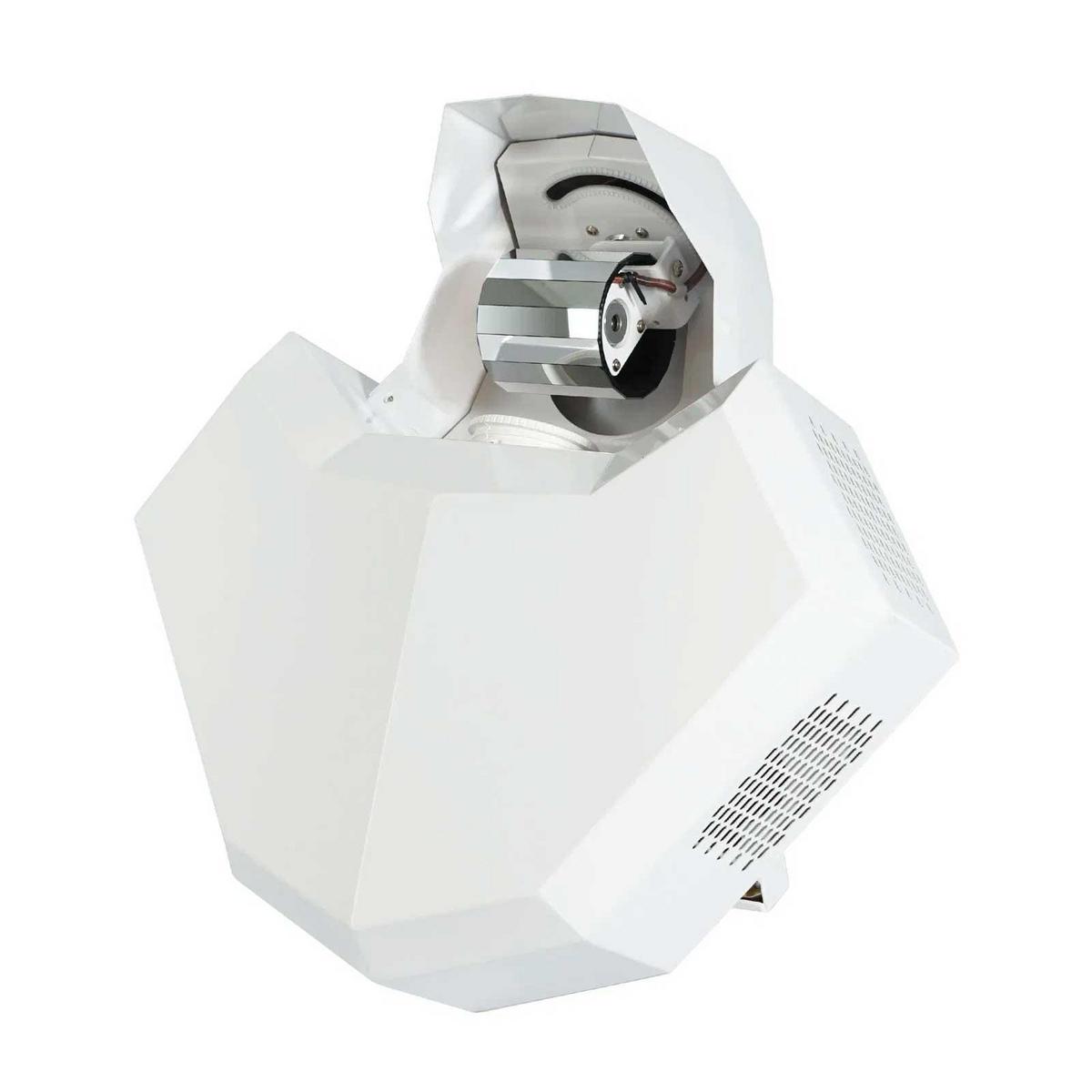

The Equinox Helix Evo XP is a powerful barrel effect fixture combining high-output LED projection with a rotating mirror dish. It projects multi-coloured, dynamic gobos across walls, floors and ceilings, creating sweeping visual movement and a dramatic atmosphere.

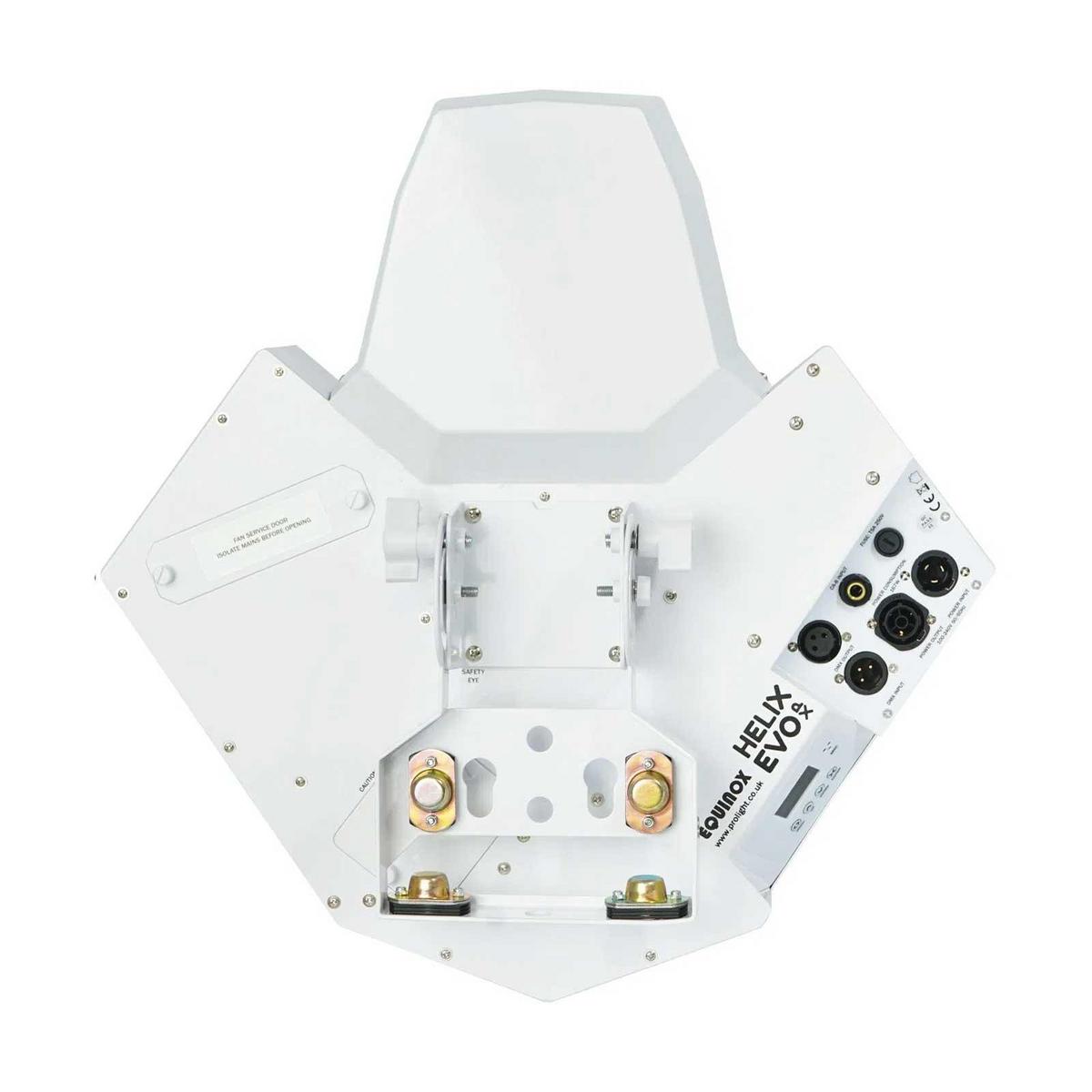

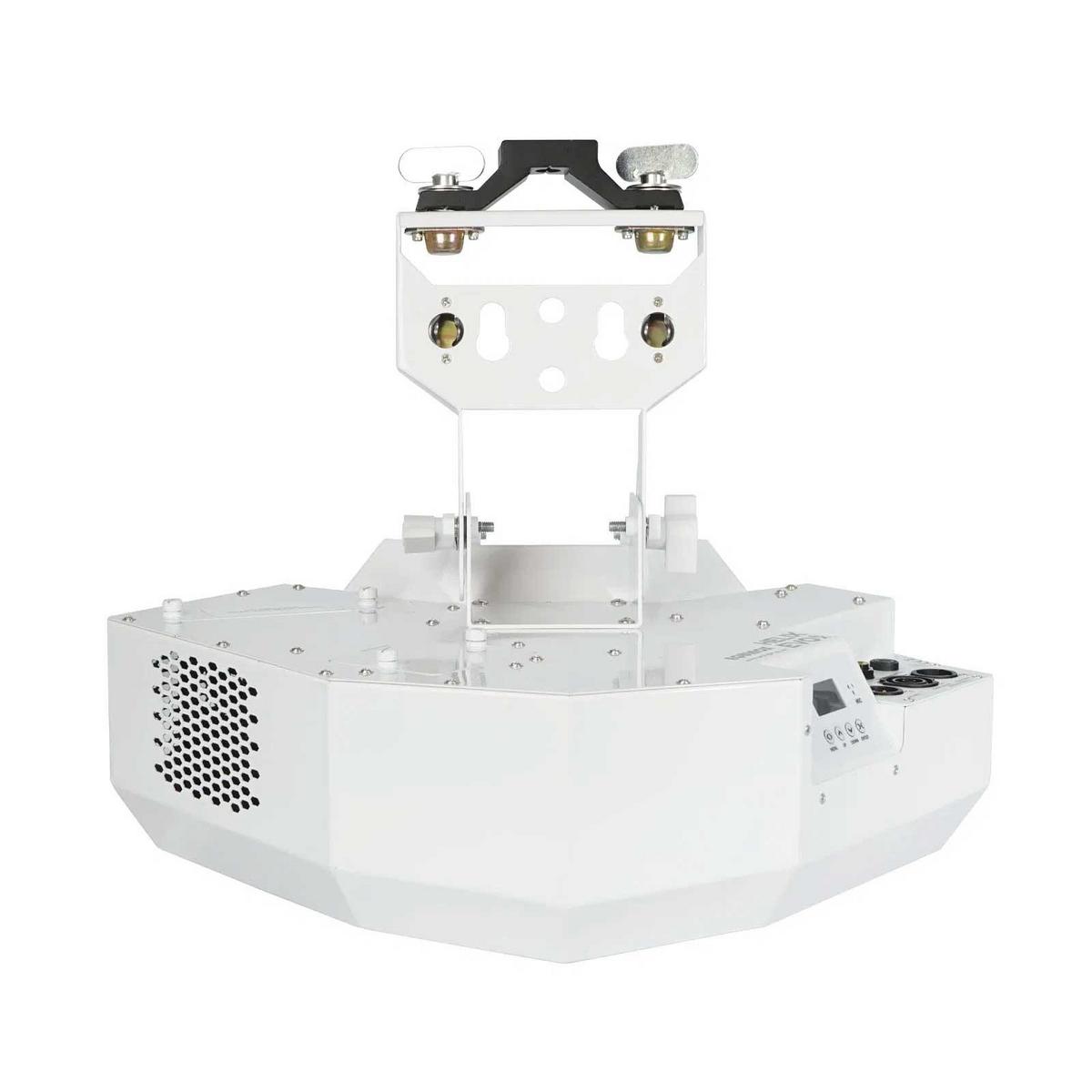

Built with serious rigging and performance in mind, the Helix Evo XP features interchangeable gobos, a separate colour wheel, robust metal housing, a heavy-duty mounting bracket, and easy service access. Its construction balances durability and portability. Although it is not lightweight, it is engineered for dependability in touring and fixed installations.
| Specification | Detail |
|---|---|
| Power Consumption | 149 W |
| Power Supply | 100-240 V AC, 50/60 Hz |
| Beam Angle (per beam) | 2.3 degrees |
| Beam Angle (gobo flower) | 22 degrees |
| Coverage Angle | 160 degrees |
| Dimensions (H × W × D) | 467 × 456 × 208 mm |
| Weight | 7.5 kg |
| Gobos | 8 rotating, interchangeable gobos + open |
| Colour Wheel | 9 colours + open |
| Pan / Tilt | Pan 180 degrees, Tilt 360 degrees continuous |
| DMX Channels | 3 / 9 / 12 selectable |
| Control Modes | Auto, Sound Active, Master/Slave, DMX, Built-in Programs |

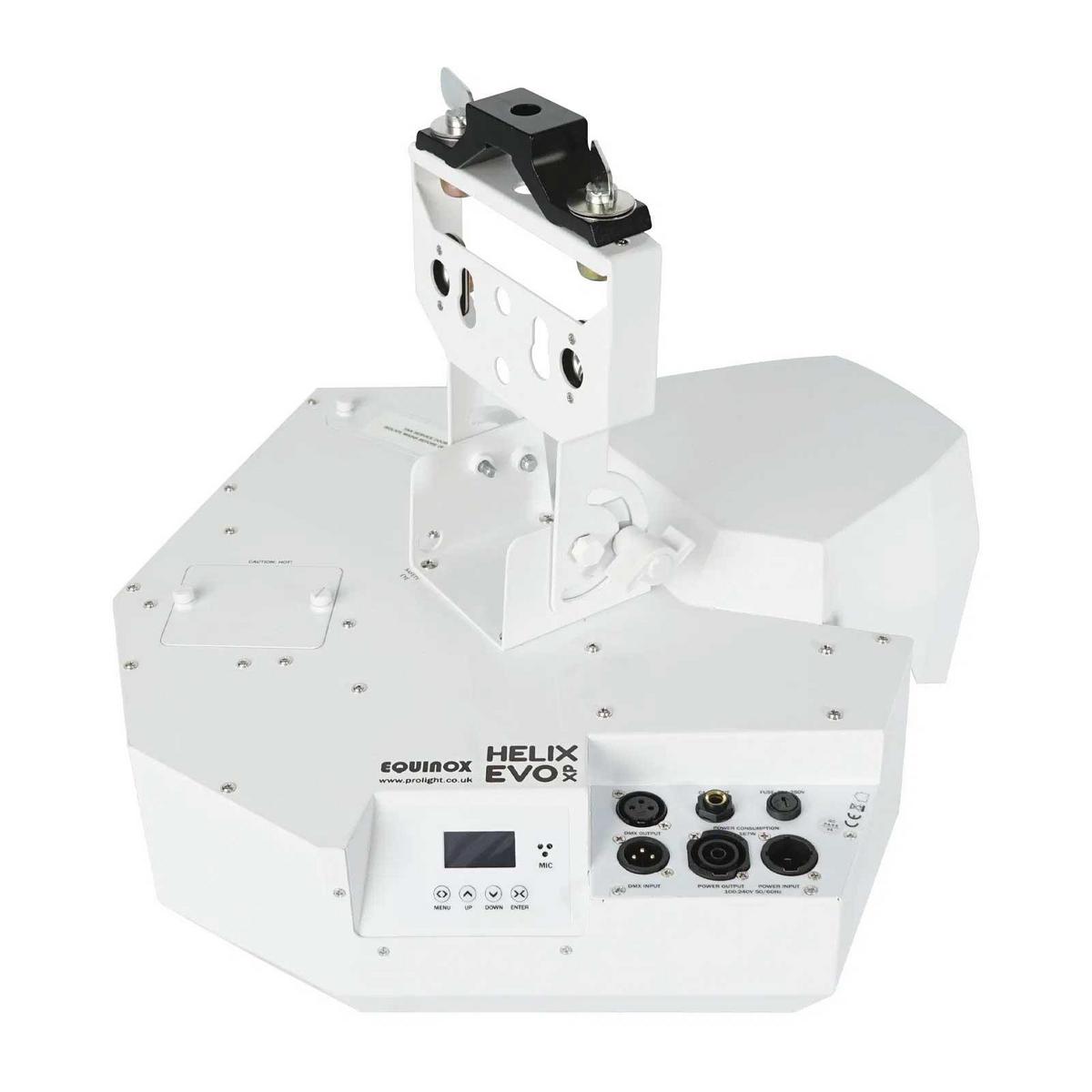

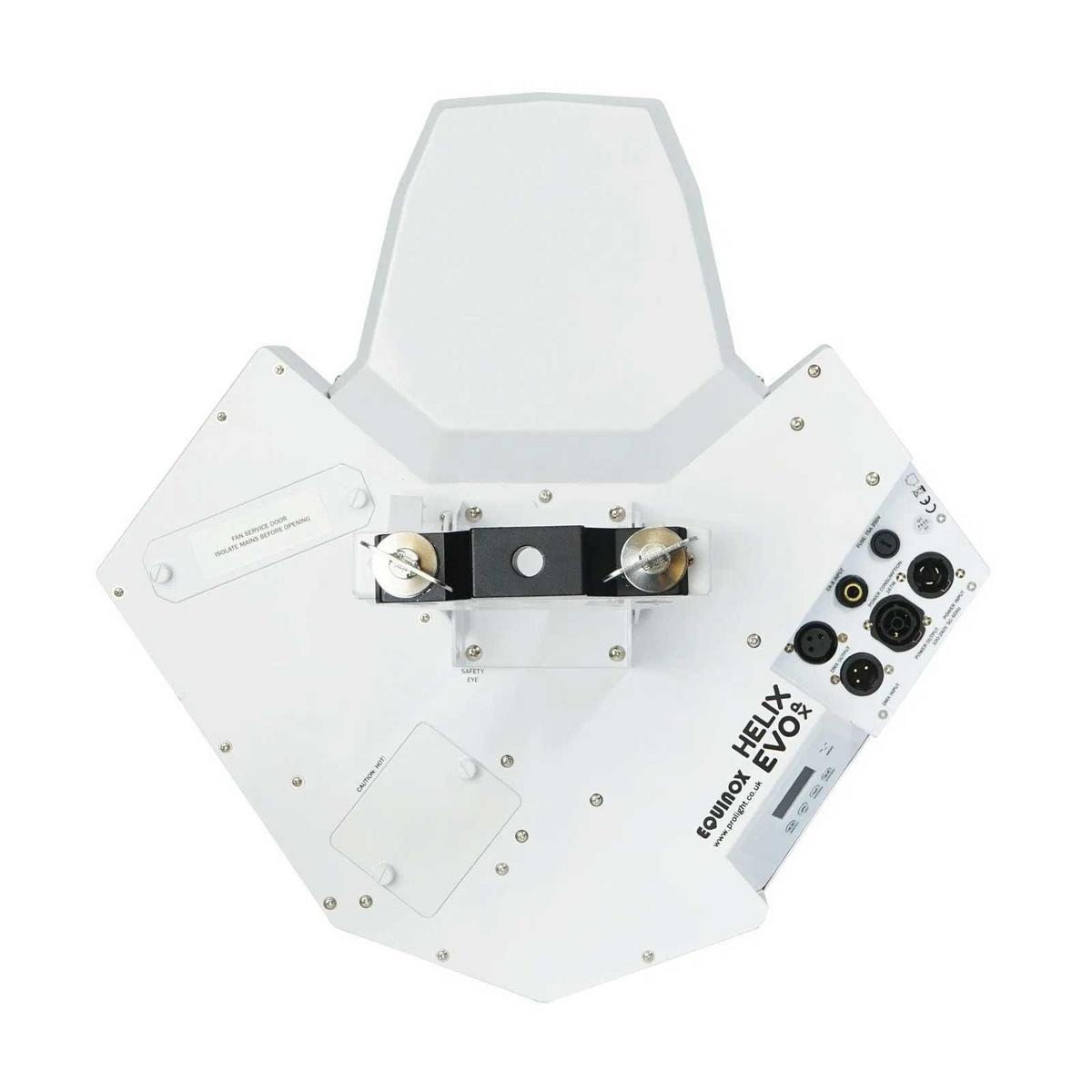

| Connectivity | powerCON in/out, 3-pin XLR in/out |

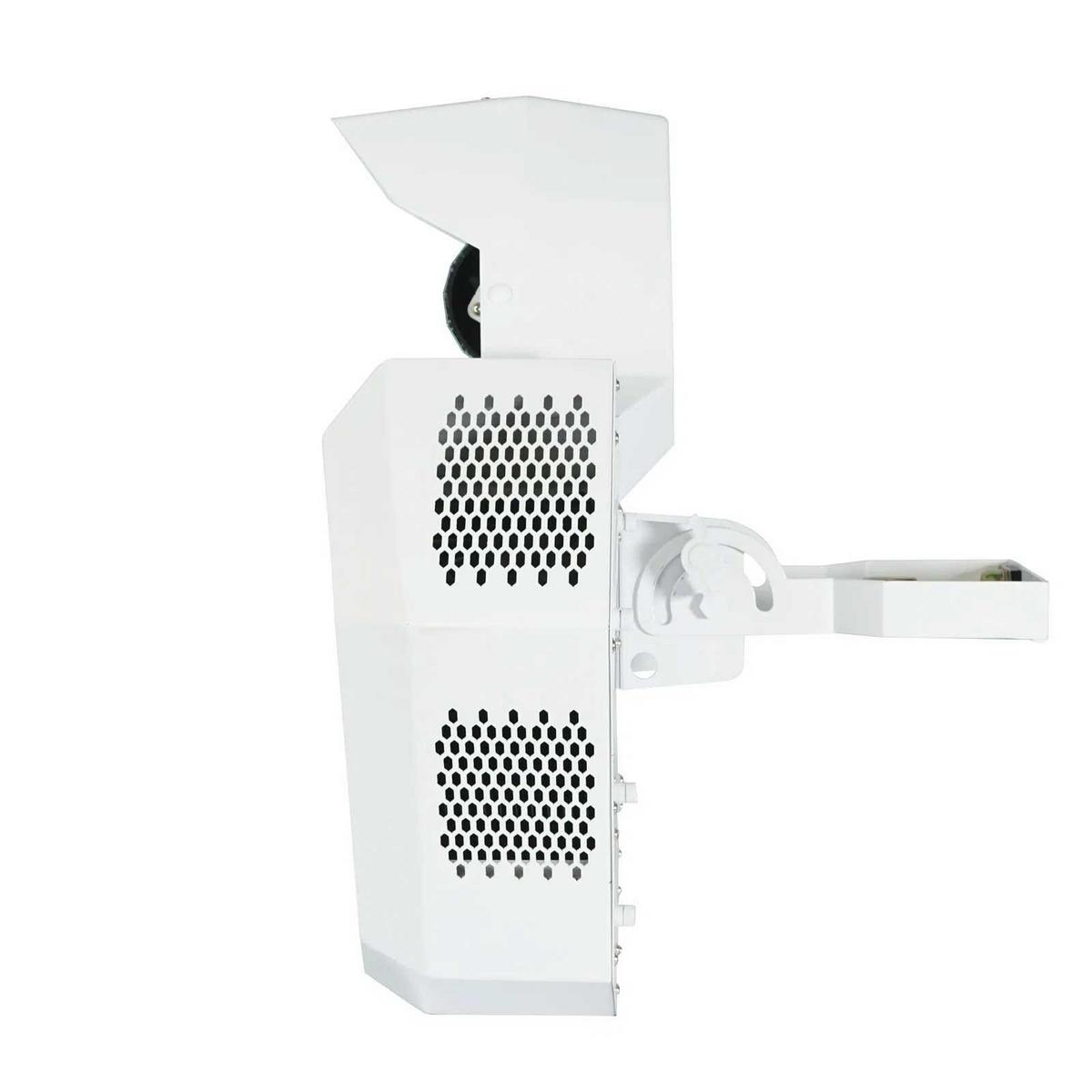

| Cooling | Fan cooled with temperature control |
The Helix Evo XP combines sharp beam projection with sweeping movement to deliver high-impact visuals. Through the rotating mirror barrel, it projects vivid gobo patterns that evolve across surfaces. The wide 160 degrees coverage ensures the effect reaches deep into rooms, while its optics maintain crisp projection over distance. In standalone modes, it offers reliable automatic and sound-reactive performance. In DMX mode, it integrates smoothly into complex shows.
Q: What type of LED is used?
A: A single 150 W cool white LED (≈ 7700 K).
Q: Does it support DMX control?
A: Yes -- selectable modes (3, 9 or 12 channels) for flexible integration.
Q: Can it run without a DMX controller?
A: Yes -- it supports built-in programs, auto, sound active, and master/slave operation.
Q: What is the beam geometry?
A: Each beam is ~2.3 degrees, with a gobo "flower" effect ~22 degrees, covering ~160 degrees.
Q: Is the unit suitable for touring?
A: While heavy (7.5 kg), it's built for touring use with sturdy mounting options and linkability with other units.
