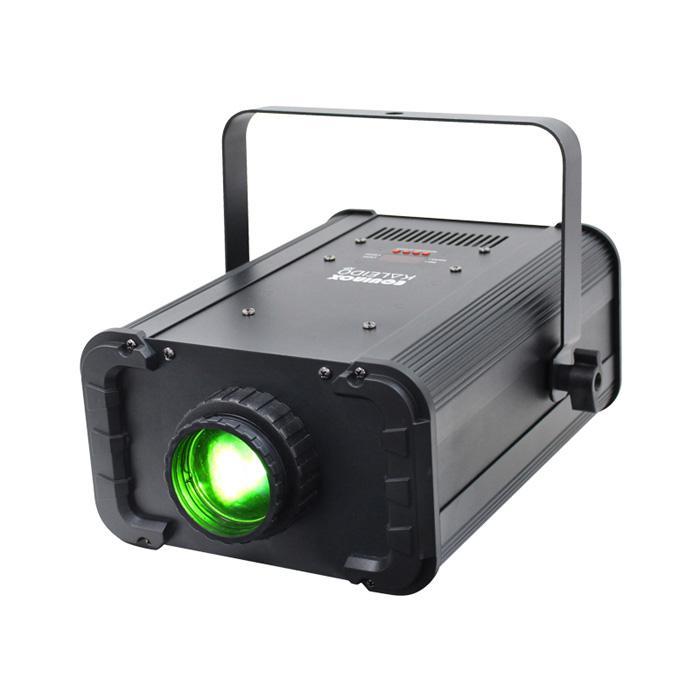

The Equinox Kaleido XP is a high-power 100W LED lighting effect designed to enhance any event with dazzling psychedelic patterns. Featuring a rotating 3-facet prism, versatile control modes, and vibrant light output, this fixture is ideal for DJs, clubs, parties, and stage performances that demand eye-catching visual effects.

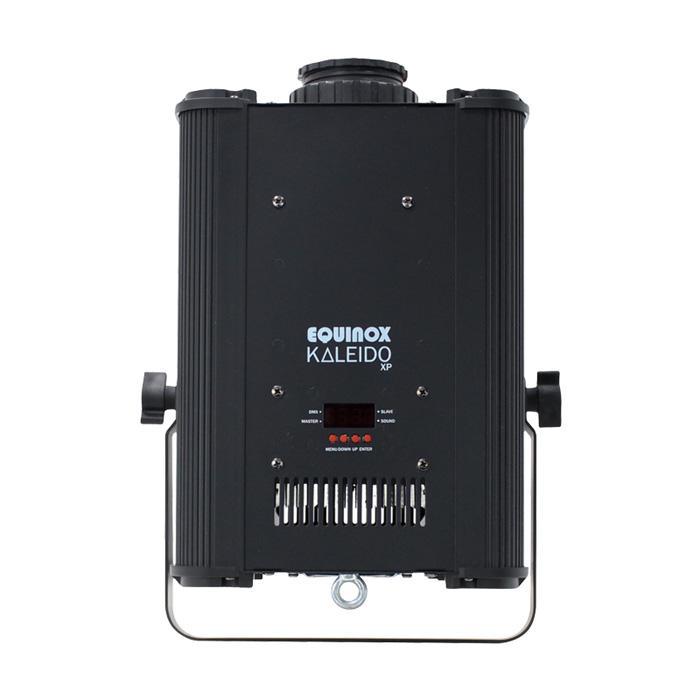

Built for professional use, the Kaleido XP combines a durable housing with fan cooling to ensure reliable performance during long events. Its compact design and lightweight build make it easy to transport and install, while the supplied hanging bracket provides flexible mounting options. A user-friendly LED display with a 4-button menu ensures straightforward operation and setup.
| Specification | Details |
|---|---|
| Light Source | 1 x 100W White LED |
| Prism | 3-Facet Rotating Prism |
| DMX Channels | 4 |
| Control Modes | DMX, Manual, Sound Active, Master/Slave |
| Effects | 0-100% Dimming, Variable Strobe |
| Power Consumption | 133 W |
| Power Supply | 100-240 V, 50/60 Hz |
| Fuse | F3A 250 V |

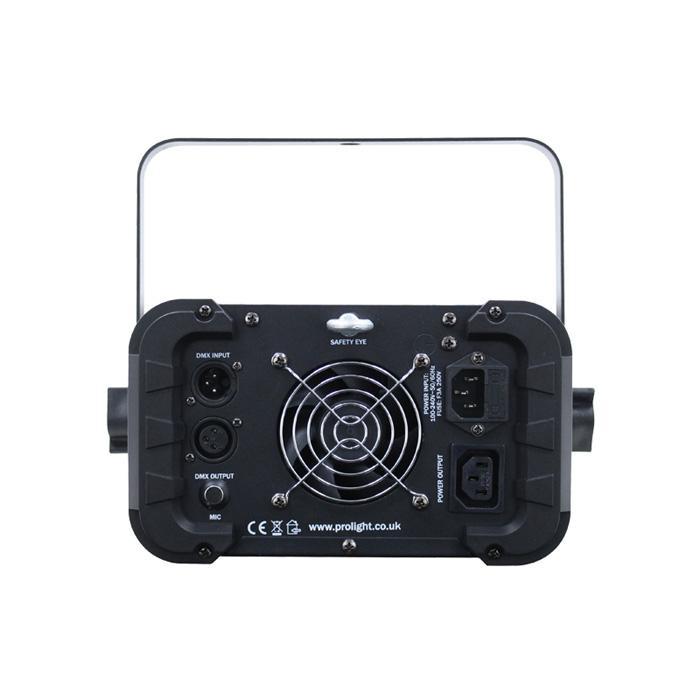

| Connections | IEC In/Out, 3-pin XLR In/Out |
| Cooling | Fan Cooled |
| Dimensions | 230 x 275 x 340 mm |
| Weight | 3.6 kg |
The Equinox Kaleido XP delivers vibrant and dynamic lighting effects that are perfect for creating an engaging visual atmosphere. With multiple operating modes, it offers flexibility for both beginners and professionals. Whether running sound-active for a simple setup or integrated into a DMX-controlled rig, it produces crisp, psychedelic projections that captivate audiences. Lightweight and easy to install, it is a versatile addition to any lighting system.
Q: Can it be used without a DMX controller?
A: Yes, it supports manual, sound active, and master/slave modes in addition to DMX control.
Q: Is the unit portable?
A: Yes, weighing only 3.6 kg, it is highly portable and easy to transport for mobile DJs and event setups.
Q: How is the unit cooled?
A: It uses a fan cooling system to ensure reliable performance during extended use.
