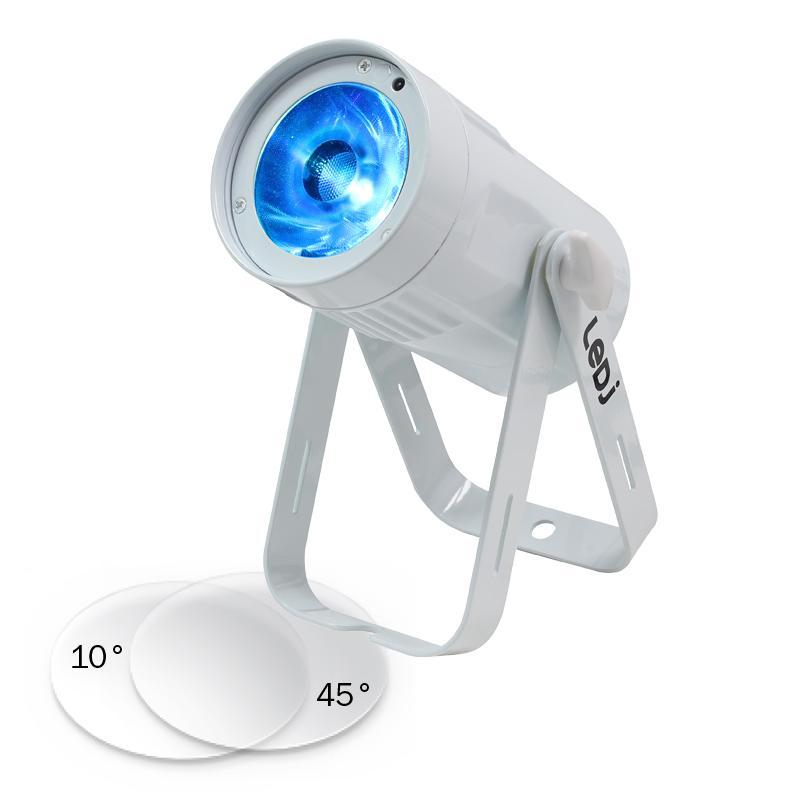

The LEDJ Event Spot RGBW MKII is a compact, high-performance LED pinspot designed for both professional and enthusiast-level lighting applications. Its versatile features and robust construction make it ideal for stage productions, retail displays, event lighting, and architectural installations.
This unit is engineered to deliver precise and vibrant lighting effects. Equipped with a 15W quad-colour LED, it offers a default 4 degrees beam angle, with additional 10 degrees and 45 degrees frost lenses supplied for broader coverage. This flexibility allows users to tailor the light output to specific requirements, whether for focused pinspotting or ambient wash effects.
Constructed with a durable housing available in both black and white finishes, the Event Spot RGBW MKII is designed to blend seamlessly into various environments. Its compact dimensions (210 x 140 x 175mm) and lightweight design (1.3kg) facilitate easy integration into existing setups. The fixture features a convection-cooled system, ensuring silent operation without internal fans, making it suitable for noise-sensitive applications.
| Specification | Details |
|---|---|
| Power Source | AC 100-240V, 50/60Hz |
| Power Consumption | 17W |
| LED Type | 1 × 15W Quad-Colour (RGBW) |
| Beam Angles | 4 degrees, 10 degrees, and 45 degrees (with frost lenses) |
| Lux Output @ 2m | 4 degrees: 9,700; 10 degrees: 3,866; 45 degrees: 497 |
| Refresh Rate | 1.1kHz |
| DMX Channels | 1/4/6 or 7 selectable |
| Control Modes | DMX, Manual, Master/Slave, Sound Activation |
| Dimming | 0-100% |
| Strobe | Variable |
| Cooling | Convection cooled |
| Dimensions | 210 × 140 × 175 mm |
| Weight | 1.3kg |
| Connectors | PowerCON in/out, 3-Pin XLR in/out |
| User Interface | LCD with 4-button menu |
| Optional Accessories | LEDJ90C IR Remote (sold separately) |
The Event Spot RGBW MKII offers exceptional light output and versatile control options in a compact, silent-running format. It's ideal for small venues, exhibitions, and noise-sensitive settings. Users can easily switch between tight beam spots and wide washes using the supplied lenses and achieve professional-grade effects with comprehensive DMX options.
Q: Can the Event Spot RGBW MKII be used for both focused and wide-area lighting?
A: Yes, it includes 4 degrees, 10 degrees, and 45 degrees lenses for customisable beam angles.
Q: Is the fixture compatible with standard DMX controllers?
A: Yes, it supports several DMX channel modes for integration with most systems.
Q: Does the unit require active cooling?
A: No, it features convection cooling for silent operation.
Q: Is there an option for remote control?
A: Yes, it supports the optional LEDJ90C IR remote (sold separately).
Q: What housing colours are available?
A: Available in both black and white finishes.
