Gemini XGA-4000 Power Amplifier 700W RMS
With 4000 watts of Instant Peak Power (700 watts RMS), the XGA-4000 is ideal for powering PA systems and DJ rigs. To ensure seamless, reliable performance, the amp features front-to-rear airflow and a cooling fan for thermal stability, DC output protection and short circuit protection.

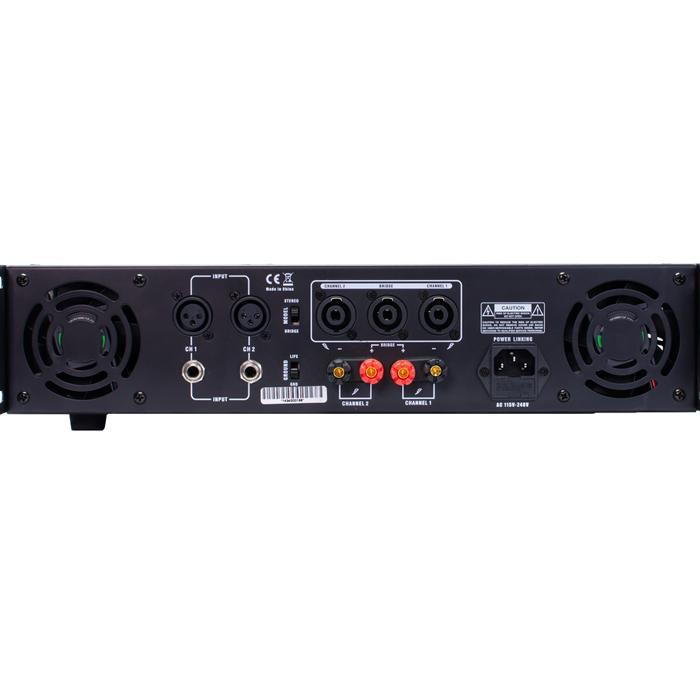

For true connecting convenience, the XGA-4000 boasts XLR and ¼-inch balanced inputs and three Speakon outputs. The unit also provides front panel indicators for Signal, Clip, Protect and Bridge, plus level controls for channels 1 and 2. Selectable modes for Stereo and Mono Bridge give you even more flexibility, while its sleek, lightweight design ensures total portability.
With clean, dependable power in a resilient, 23-pound enclosure, the XGA-4000 offers unmatched value for anyone who is serious about sound.
Features:
- 4000 Watt IPP* High Power output to drive professional loudspeakers without clipping
- Front-to-rear airflow and cooling fan for thermal stability and reliability
- XLR and ¼” (6.5mm Jack) balanced
- Stereo and Mono Bridge
- Constant speed fan for low noise

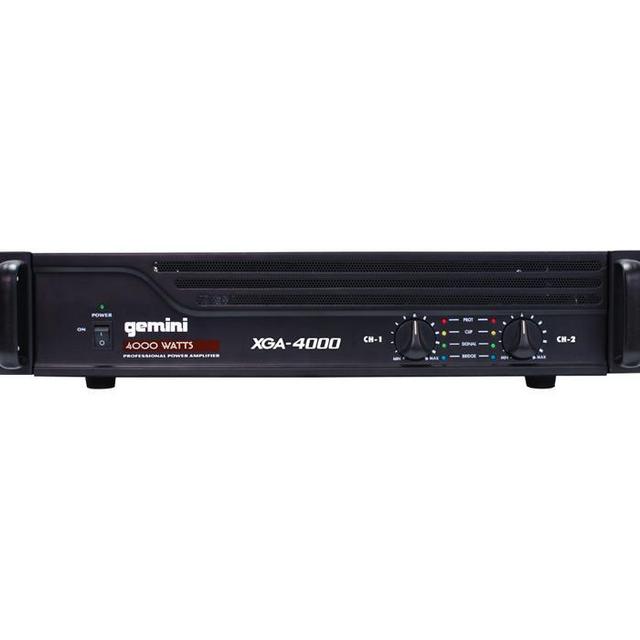

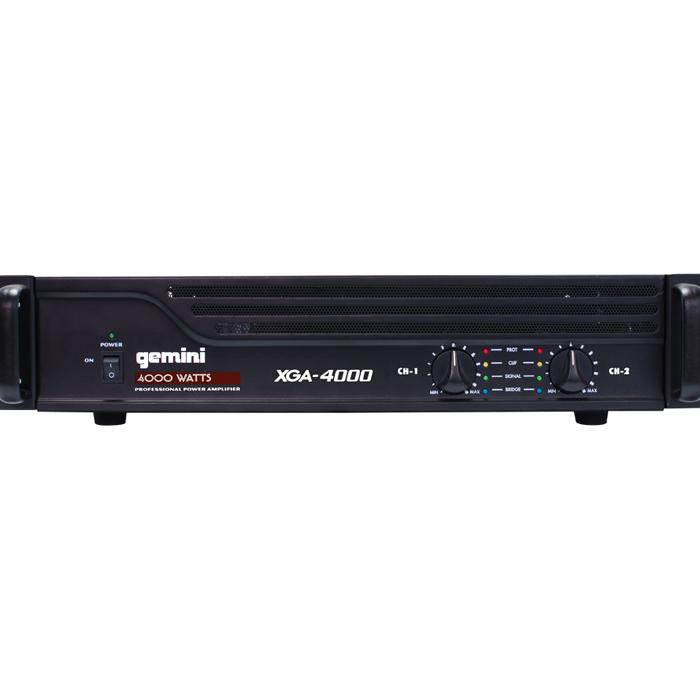

- Comprehensive front panel indicators including signal, clip, protect and bridge
- 3 Speakon outputs for Channels A/B/Bridge
- 5-way binding banana plug channel outputs
- Bridge control switch
- DC output protection and Short circuit protection
- Frequency response 10Hz – 50kHz at 1.5 dB
- Ground lift switch
- Total Harmonic Distortion: Less than 0.1%
- Input sensitivity & Impedance: 0.77v
- Signal to Noise (20 Hz – 20 kHz) > 90dB
* Instant Peak Power
Specification:
- Frequency Response 10Hz ~ 50kHz ±1.5dB
- Signal to Noise (LF / HF) >90dB
- THD (LF / HF) > 0.1%
- Input Sensitivity 0.77v
- Maximum Input Level 21dBv/9v
- Damping Factor (F=1kHz 8Ω) >350
- Input Impedance 20K Ω
- Fuse 5mm x 20mm AC 115v/230v 50~60Hz
- Output Stereo 8 Ω 2 x 250W RMS
- Output Stereo 4 Ω 2 x 350W RMS
- Output Bridged 8 Ω 700W RMS
- Dimensions - 48.2 x 35 x 8.8 cm
- Weight - 10.6 kg
