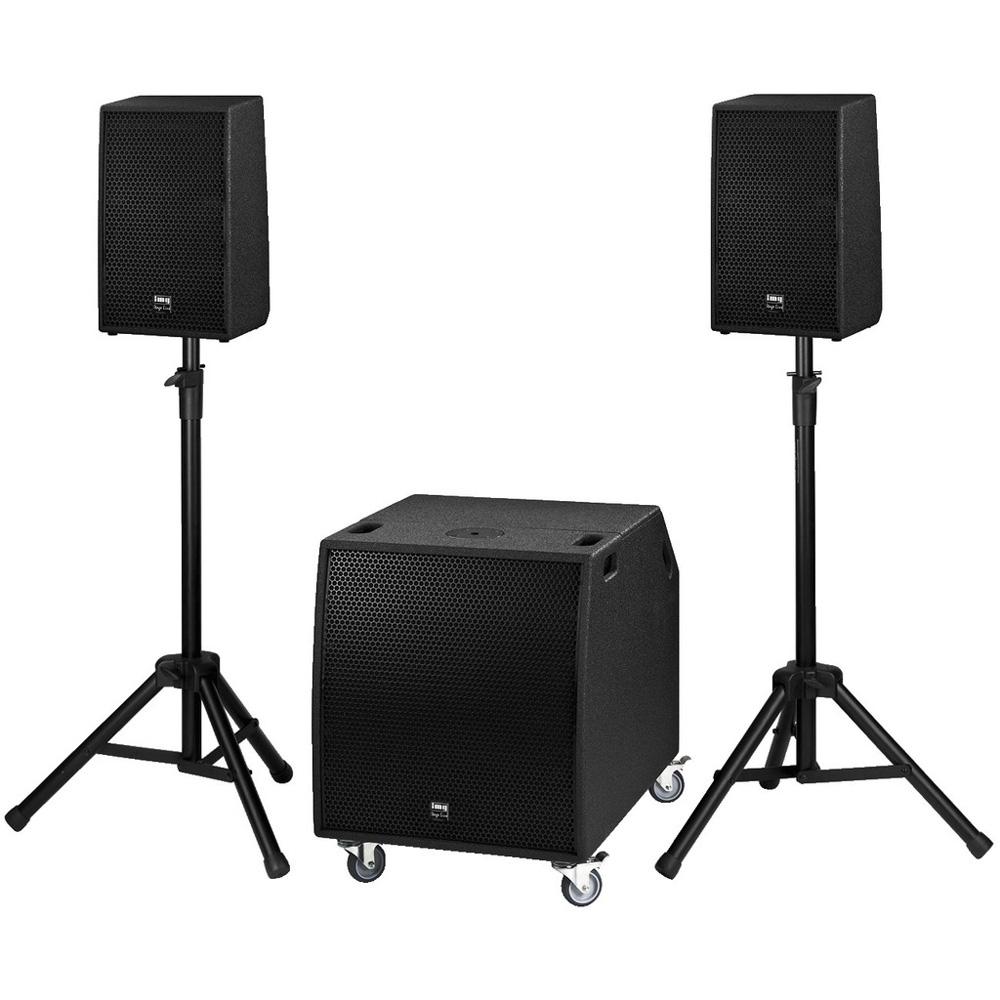

IMG Stageline Complete PA System Proton-18NEO 2,300W

The PROTON-18NEO from IMG Stageline is a Portable Satellite/Sub Complete PA System designed for those on the move. The Subwoofer Section houses a massive 18" B&C Driver which can handle 800W RMS. The two Satellite speakers are home to 2 x 10" Celestion Midrange Drivers each capable of 250W RMS each.

The Satellite Speakers fit neatly into the Subwoofer cabinet making it ideal for transportation. This Stageline complete PA system / speaker system is ideal for large events where music and announcements are required to be heard. From music festivals, parties, weddings and sports events - this system will do the job. If you are looking at buying a portable PA system speaker package, our technical sales team can be contacted to advise some of the finer details of this package. Please contact us on the number below.

Features:

• Subwoofer/satellite system with integrated 3-channel amplifier
• Lightweight due to the application of neodymium speakers and class D amplifier
• High-quality cabinet made of birch plywood (multiplex)
• Durable two-component PU coating
• High-performance bass-reflex subwoofer system with 46 cm (18", B&C) bass speaker
• 25 cm (10", CELESTION) midrange speaker providing a powerful sound and 25 mm (1") CD horn tweeter, constant directivity
• Adjustable volume balance between subwoofer and satellites
• Balanced (comb. XLR) and unbalanced (RCA) inputs and parallel outputs
• Limiter
• Stereo/mono selection, surround effect circuit

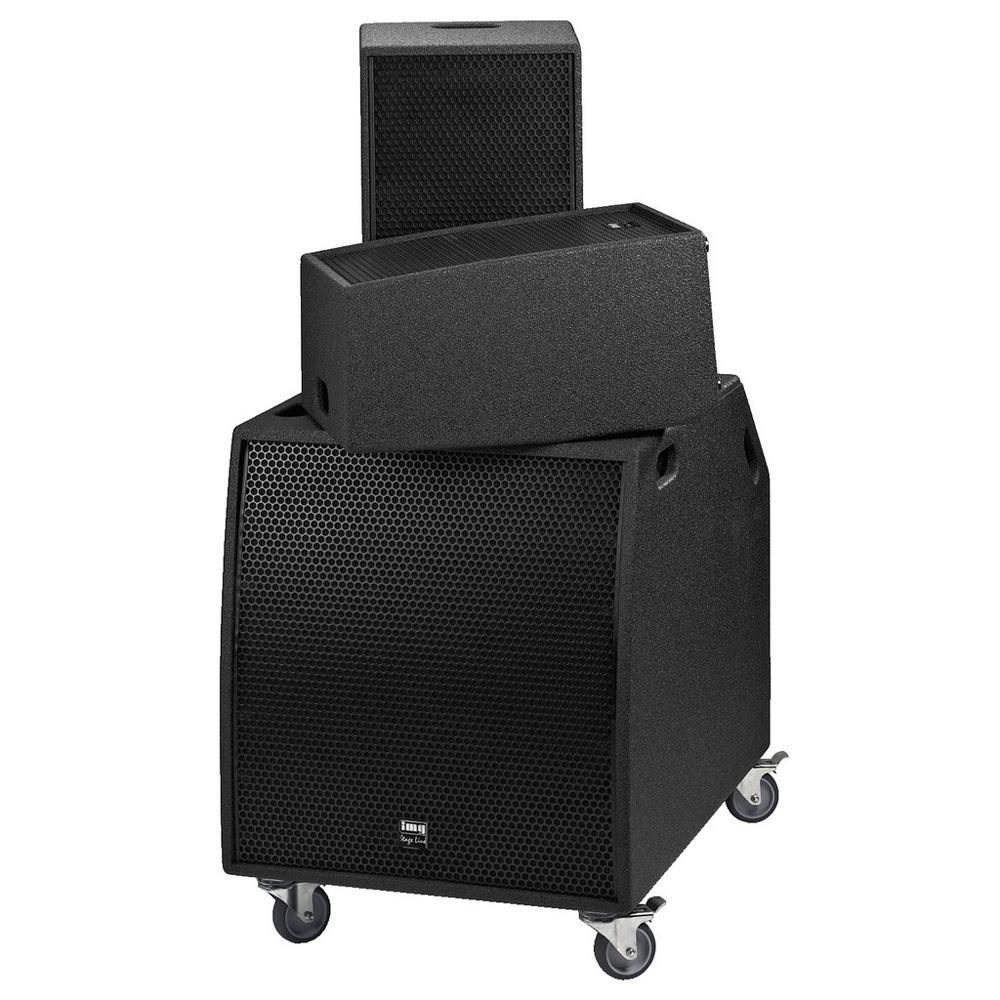

• Satellites can be stored in the subwoofer cabinet
• Supplied with speaker cables with NEUTRIK SPEAKON plugs
• Stand sleeve in the satellites
• Subwoofer with M20 mounting plate (recommended spacer tube: KM-21367, available at option)
• 75 mm castors with brakes
• Protective cover
• Total weight: 57 kg only

Specifications:

• Max. output power 2,300 WMAX
• Power rating 800 WRMS (SUB), 2 x 250 WRMS (SAT)
• Speakers 1 x 46 cm (18", B&C) bass speaker, 2 x 25 cm (10", CELESTION) midrange speaker, 2 x 25 mm (1") horn tweeter
• Max. rated SPL (system) 128 dB
• Frequency range 30-20,000 Hz
• Inputs:
• Balanced comb. XLR jack, 260 mV-7 V
• Unbalanced RCA, 280 mV-7 V
• Outputs:
• Line (par. out) XLR (bal.) + RCA (unbal.)
• Satellite speakers (> 150 Hz) SPEAKER, 8 Ω
• S/N ratio > 80 dB
• Power supply 230 V˜/50 Hz/2,750 VA
• Admiss. ambient temp. 0-40 °C
• Dimension:
• Subwoofer (WxHxD) 516x642x718 mm
• Satellite speakers (WxHxD) 279x465x229 mm
• Weight:
• Subwoofer 41 kg
• Satellite speaker 8 kg
• System 57 kg
