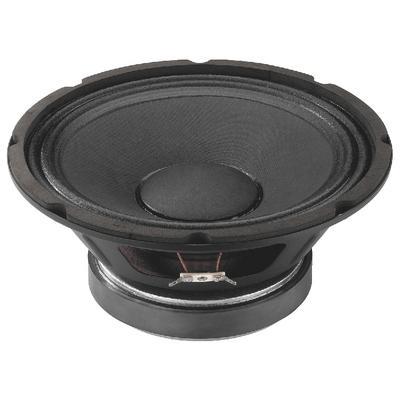

IMG Stageline SP-10/150PA Bass Midrange Speaker, 300W Max. 8ohm 10"
#10.2500
PA bass-midrange speaker, 300WMAX, 8ohm
Especially well-suited as a high-power midrange speaker in large multi-way systems, very extended frequency response.
Technical Specification
- Impedance (Z) 8ohm
- Resonant frequency (fs) 60Hz
- Max. frequency range f3-5,000Hz
- Music power 300WMAX
- Power rating (P) 150WRMS
- SPL (1W/1m) 98dB
- Suspension compl. (Cms) 0.19mm/N
- Moving mass (Mms) 38g
- Mech. Q factor (Qms) 5.36
- Electr. Q factor (Qes) 0.30
- Total Q factor (Qts) 0.29
- Equivalent volume (Vas) 34 l
- DC resistance (Re) 6.9ohm
- Force factor (BxL) 18.2Tm
- Voice coil induct. (Le) 0.94mH
- Voice coil diameter 65mm
- Voice coil former Kapton
- Linear excursion (XMAX) ±4mm
- Eff. cone area (Sd) 350cm2
- Magnet weight 1.9kg
- Weight 5.8kg
Item has been discontinued
3 Year Warranty
