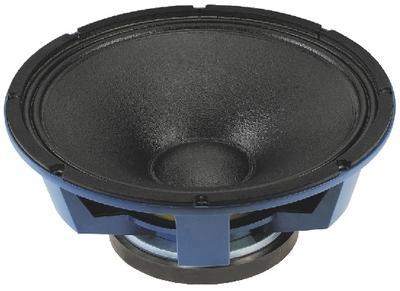

IMG Stageline SP-38/A 300 PA PA Bass Speaker 1,200W Max, 8ohm 15"

#10.3390

PA bass speaker, 1,200WMAX, 8ohm

The most popular size for all-round PA applications, very high SPL, suitable for bass and bass-midrange applications in very compact bass-reflex cabinets, the first choice for full range and professional mid-high range speaker systems for particularly high requirements.

Technical Specification

  • Impedance (Z) 8ohm
  • Resonant frequency (fs) 48Hz
  • Max. frequency range f3-4,000Hz
  • Rec. crossover freq. (fmax.) 1,100Hz
  • Music power 1,200WMAX
  • Power rating (P) 300WRMS
  • SPL (1W/1m) 102dB
  • Suspension compl. (Cms) 0.09mm/N
  • Moving mass (Mms) 100g
  • Mech. resistance (Rms) 4.4kg/s
  • Mech. Q factor (Qms) 7.45
  • Electr. Q factor (Qes) 0.31
  • Total Q factor (Qts) 0.29
  • Equivalent volume (Vas) 101 l
  • DC resistance (Re) 5.4
  • Voice coil induct. (Le) 1.3mH
  • Voice coil diameter 76mm
  • Voice coil former glass fibre
  • Voice coil winding height 18.5mm
  • Air gap height 9mm
  • Linear excursion (XMAX) 4.8mm
  • Eff. cone area (Sd) 880cm2
  • Volume displacement (Vd) 422cm3
  • Force factor (BxL) 24,1Tm
  • Reference efficiency (No) 4.8%
  • Magnet diameter 200mm
  • Magnet weight 2.kg
  • Mounting cutout 360mm
  • Mounting depth 172mm
  • Dimensions 391mm
  • Weight 8.5kg
  • Rec. net cabinet volume Closed -
  • Bass-reflex
  • approx. 75 l
