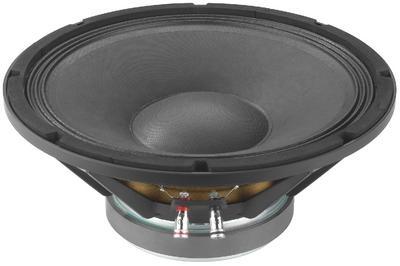

IMG Stageline SPA-12PA PA Bass-Midrange Speaker, 300W Max, 8ohm 12"

This new series from IMG Stage Line consists of bass speakers and bass-midrange speakers with aluminium diecast basket at a particularly attractive price. These speakers are also used in the current 100 series of speaker systems from IMG Stage Line (PAB-108MK2 to PAB-115MK2) PA bass-midrange speaker, 300WMAX, 8ohm

30cm (12") bass-midrange speaker of high power capability and high efficiency. Features a diecast basket, pole core drilling and pressure connecting terminals. Used in PAB-112MK2.

Technical Specification

• Impedance (Z) 8ohm
• Resonant frequency (fs) 47Hz
• Max. frequency range f3-3,500Hz
• Music power 300WMAX
• Power rating (P) 150WRMS
• SPL (1W/1m) 96dB
• Suspension compl. (Cms) 0.17mm/N
• Moving mass (Mms) 67g
• Mech. Q factor (Qms) 3.33
• Electr. Q factor (Qes) 0.50
• Total Q factor (Qts) 0.44
• Equivalent volume (Vas) 67 l
• DC resistance (Re) 6.3ohm
• Force factor (BxL) 15.75Tm
• Voice coil induct. (Le) 1.1mH
• Voice coil diameter 63mm
• Voice coil former aluminium
• Linear excursion (XMAX) ±4mm
• Eff. cone area (Sd) 530cm2
• Magnet weight 1.3kg
• Weight 4.5kg
