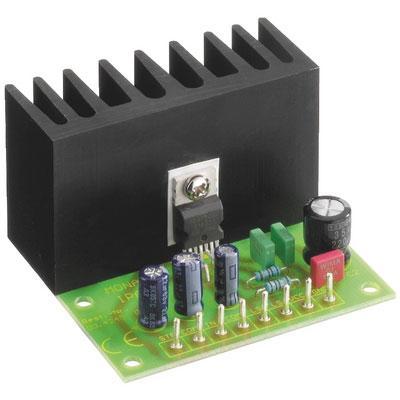

IPA-20 HiFi Power Amplifier Module 15W RMS 4 Ohm - main image

3

3 Year(s) Warranty On this product

Item has been discontinued

Delivery Spend £50 for Free UK Delivery

Returns Hassle-free returns mean that you can shop in confidence that if you need to return an item, it's easy.

IPA-20 HiFi Power Amplifier Module 15W RMS 4 Ohm

Need any help?

Delivery

Returns

Need any help?

Ask any question you need help with and we will get back to you

Delivery

Free tracked delivery on all orders over £50.

Full delivery details

Returns

Hassle-free returns mean that you can shop in confidence that if you need to return an item, it's easy.

Read our returns policy

HiFi power amplifier modules mono version with different output power. A 12V DC voltage (max. 18V DC current ) is required for operation.

Common features

Short-circuit proof

Thermic overload protection

Reliable power amplifer IC technology with low THD

Other features

of IPA-20

Bridge circuit (BTL)

Muting circuit (no on/off switching noises)

Internal speaker protection against DC and AC voltages

Technical Specification

RMS output power 15WRMS/4ohm

12WRMS/8ohm

Music output power 20WMAX/4ohm 16WMAX/8ohm

THD 0.1%/12W

Intermodulation -

Output impedance 4-8ohm

Frequency range 20-20,000Hz

Power bandwidth -

Input impedance 70kohm

Input voltage 80mV S/N ratio > 70dB

Quiescent current 100mA

Power supply 8-18V DC current /1.7A

Recommended heat sink (min.)

Req. panel cutout -

Dimensions 64x42x57mm

Weight 95g
