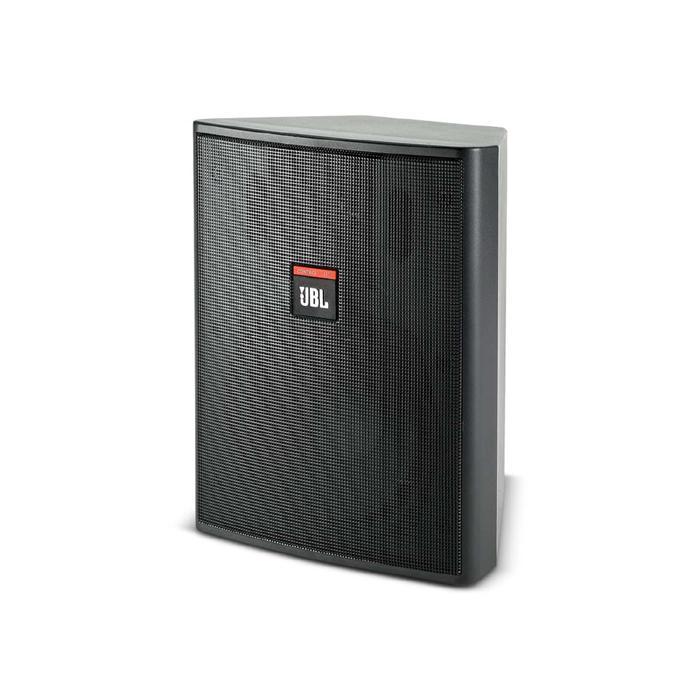

JBL Control 25T 100V Line Wall Mount Speaker
x
#JBLC25TB
JBL Control 25T 100V Line Wall Mount Speaker
Fantastic Indoor/Outdoor versatile wall mount speaker from JBL. Can be tapped up to 30W meaning you can get a lot of sound from this speaker. Ideal for Restaurants, Bars, Schools, anywhere where Wall Mounting is required.
Features:
- Isolation transformer for 70.7 V / 100 V distributed-line sound systems.
- Components: 5.25 in Polypropylene coated woofer, .75 in Titanium coated horn loaded tweeter.
- Built-in InvisiBall® mounting hardware*.
- Weather resistant enclosure and transducers.
- Readily paintable.
- 90° x 90° high frequency horn.
- Overload Protection Circuitry.
Specification:
- Frequency Range: 80 Hz to 15 kHz (-10 dB)
- Power Capacity: 150 W Continuous Program Power; 75 W Continuous Pink Noise
- Transformer Taps: 100 V Line: 30 W, 15 W, 7.5 W - 70 V Line: 30 W, 15 W, 7.5 W, 3.7 W
- Nominal Max Output by Tap (dB-SPL @ 1m): Tap Number / 70.7 V Input / 100 V Input Tap #1: 094 dB 097 dBTap #2: 097 dB 100 dB Tap #3: 100 dB 102 dB Tap #4: 102 dB(do not use)
- Directivity Factor (Q): 5.3 dB
- Directivity Index (DI): 7.2 dB
- Crossover Frequency: 3.0kHz
- LF Driver: 135mm (5.25 in) Polypropylene cone w/ WeatherEdge
- HF Driver: 19mm (.75 in) Titanium coated polycarbonate
- Enclosure Material: HIPS (High Impact Polystyrene)
- Enclosure Material: HIPS (High Impact Polystyrene)
- Overload Protection: Full-Range power limiting to protect network and transducers
- Terminations: Spring terminals, accepts banana plug
- Environmental: Conforms to Mil Spec 810 for humidity, salt spray,temperature & UV. IEC 529 IP-X4 splashproof rating.
- Height: 236mm
- Width: 188mm
- Depth: 149mm
- Weight: 3.6kg
Item has been discontinued
1 Year Warranty
