Professional State-of-the-Art PA Technology Now Also Available at a Compact Size:

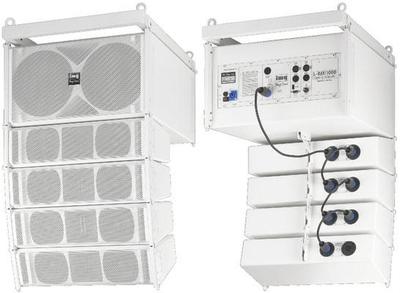

the active speaker arrays L-RAY/1000 and L-RAY/1000WS from IMG Stage Line impress by a perfect sound with professional adjusting facilities, the advantages of the radiation typical of array, a high-quality workmanship and an amazing level stability.
Professional PA speaker arrays (controlled by DSP software), active, 1,000WMAX, 700WRMS (350W+350W)
An array of high power capability and of compact size with 4 mid-high range speaker units and a dual bass module, each section with its own 350WRMS power amplifier and controlling software (the configuration of the system is supported by a PC, but it operates as a stand-alone unit!). Supplied with extensive and variable equipment for hanging the system up in a suspending (flying) way, clusters with up to 4 x L-RAY/1000 are possible. The mid-high range systems are each equipped with 2 x 10cm (4') high-performance speakers and a magnetostatic speaker for a perfect reproduction rich in detail. The dynamic characteristics are absolutely convincing, at the same time the tonality at the basic setting is very pleasant. Despite its compact size, the low frequency response and level stability of the bass module with two 20cm (8') bass speakers are amazing which is only possible by using special bass speakers of very high power capability and the extensive optimisation of the DSP.
The software allows the following adjustments (min. system requirement is a Windows PC only, WIN98 or higher, with CD drive and interface):
Up to 10 L-RAY systems can be addressed via one RS-485 data bus.
On delivery, the software of the system is matched to a perfect base linearity and can be used immediately! Otherwise, the software adjustments are extremely easy to do and sound engineers can even operate it intuitively.
Apart from the system connection cables (NEUTRIK SPEAKON), adjusting elements for the alignment of the system and solid eyelet bolts for suspension are also supplied with the unit. Connection to the mains is done via a PowerCon jack (e.g. with mains cable AAC-115P). The stable wooden cabinets feature grilles which are protected against ball rebound and a robust structured coating.
The L-RAY/1000 systems are a very high-quality solution for every PA application where both perfect tonality and perfect radiation across the room are required. The advantages of the system particularly take effect with fixed installations in clubs and discotheques as well as mobile stage applications of medium size. For larger PA applications, the use of several L-RAY in a cluster is recommended.
L-RAY/1000: black
L-RAY/1000WS: white
For installation by experts only! Please pay attention to the use of appropriate installation material, as otherwise persons and units will be put at risk.
The unit is equipped with a PowerCon jack. Supplied without mains cable (AAC-115P is available at option).
Xound 01/2009
'The L-RAY/100 gives a convincing performance. The system provides a detailed reproduction of absolutely low distortion up to the highest frequencies, even at high volume levels. A real pleasure with perfect speech intelligibility. Excellent price-performance ratio!'
SOUNDCHECK 05/2008
'Remarkable features for this price class. The L-RAY/1000 provides a clear and precise sound with a little help from the system controller and impresses by remarkable level reserves.'
tools4music 03/2008
'Besides an unobtrusive appearance, the L-RAY/1000 also provides a pleasant sound with a clear voice reproduction and convincing operating ranges. It is quite amazing what this little system is capable of.'
Dirk Wedell, PROSOUND 04/2008
'The L-RAY from IMG Stage Line is a useful tool which is available at a favourable price and works exactly as you need it.'
