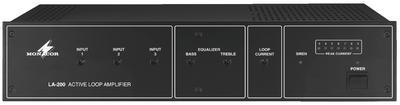

LA-200 3 Channel Active Loop Amplifier - 200mē
#17.2110
LA-200 3 Channel Active Loop Amplifier - 200m²
The LA-200 3 Channel Active Loop Amplifier is an active loop amplifier, that is in constant current technology with volume compressor for setting up an inductive sound reproduction system.
The inductive transmission of audio signals allows users of hearing aids with a T-coil or inductive receivers, like e.g. the LR-200 to receive audio signals. The wireless transmission is an advantage of inductive sound reproduction systems which makes it possible for the user to move freely within the loop.
Inductive sound reproduction systems are used for various applications, e.g. as a hearing aid for the hearing impaired in churches, theatres, cinemas, waiting rooms and lounges, as interpreting systems, for lectures in museums, exhibitions, etc.
With inductive sound reproduction systems, an inductive loop made of a wire winding is laid on the floor, the wall or along the ceiling and is controlled by a constant current amplifier. Thus, a magnetic field is created within the loop which induces a voltage into the T-coil of the hearing aid or into the inductive receiver. In the receivers, this voltage is then converted again into an audio signal.
Features:
- Volume compressor
- Automatic talkover
- Metal loss correction 0-(+3)dB/oct.
- Phantom power can be switched on additionally
Technical specification:
- Loop current 7APEAK
- Loop resistance 0.2-2Ω
- Room size up to 200m2
- Inputs
- Mic/line
- mic 1.6mV/2.6kΩ, Combo, bal.
- switchable to
- line 630mV/6.5kΩ, Combo, bal.
- line 630mV/9kΩ, RCA, unbal.
- alarm: 2 screw terminals for connecting a switch
- Outputs loop: 2 screw terminals
- Equalizer
- Bass ±8dB, 100Hz
- Treble ±10dB, 10kHz
- Frequency range 50-7,500Hz, ±3dB
- THD 0.1%
- Admiss. ambient temp. 0-40 °C
- Power supply 230V˜/50Hz/150VA
- Dimensions 482x88x280mm, 2RS
- Weight 8kg
