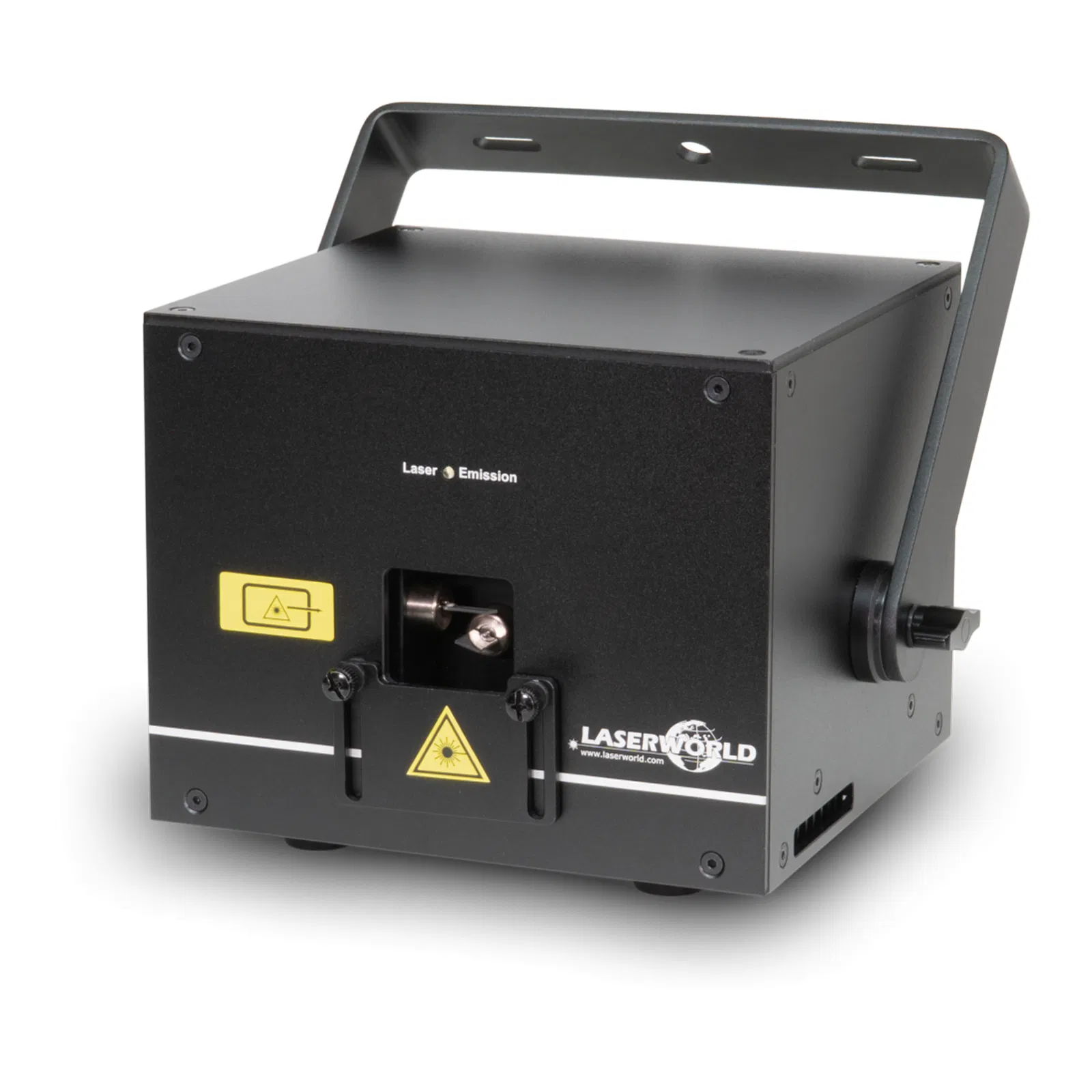

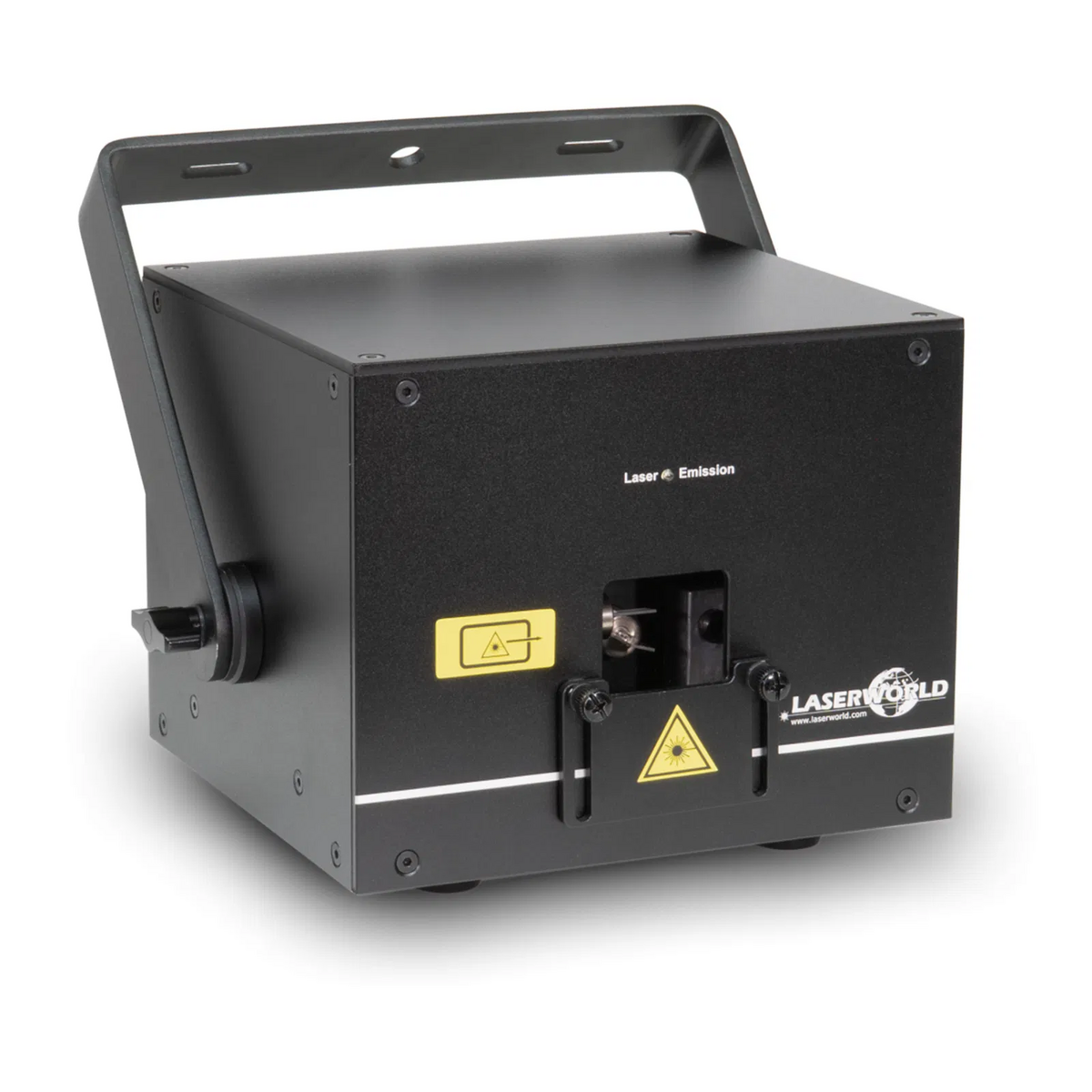

The Laserworld CUBE 1 is a compact, high-performance RGB diode laser designed for semi-professional use where creative flexibility and ease of control are essential. With up to 1,000 mW of total output power, fast scanners and exclusive mobile app control, it is ideal for bars, clubs, mobile DJs and indoor events.

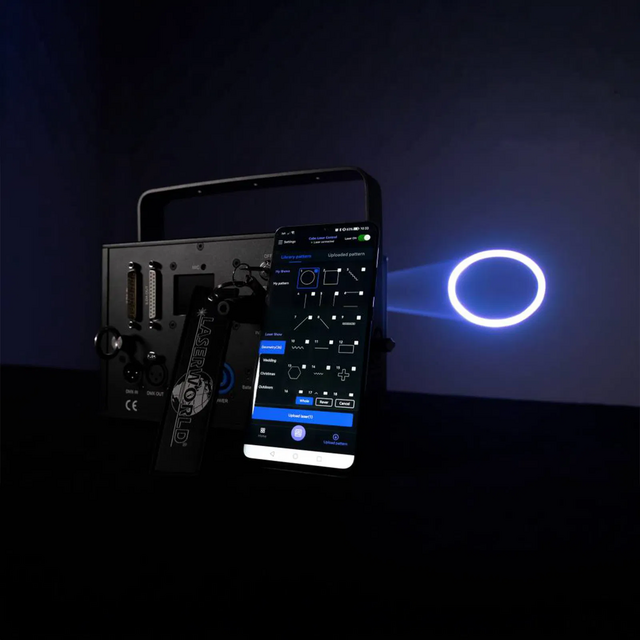

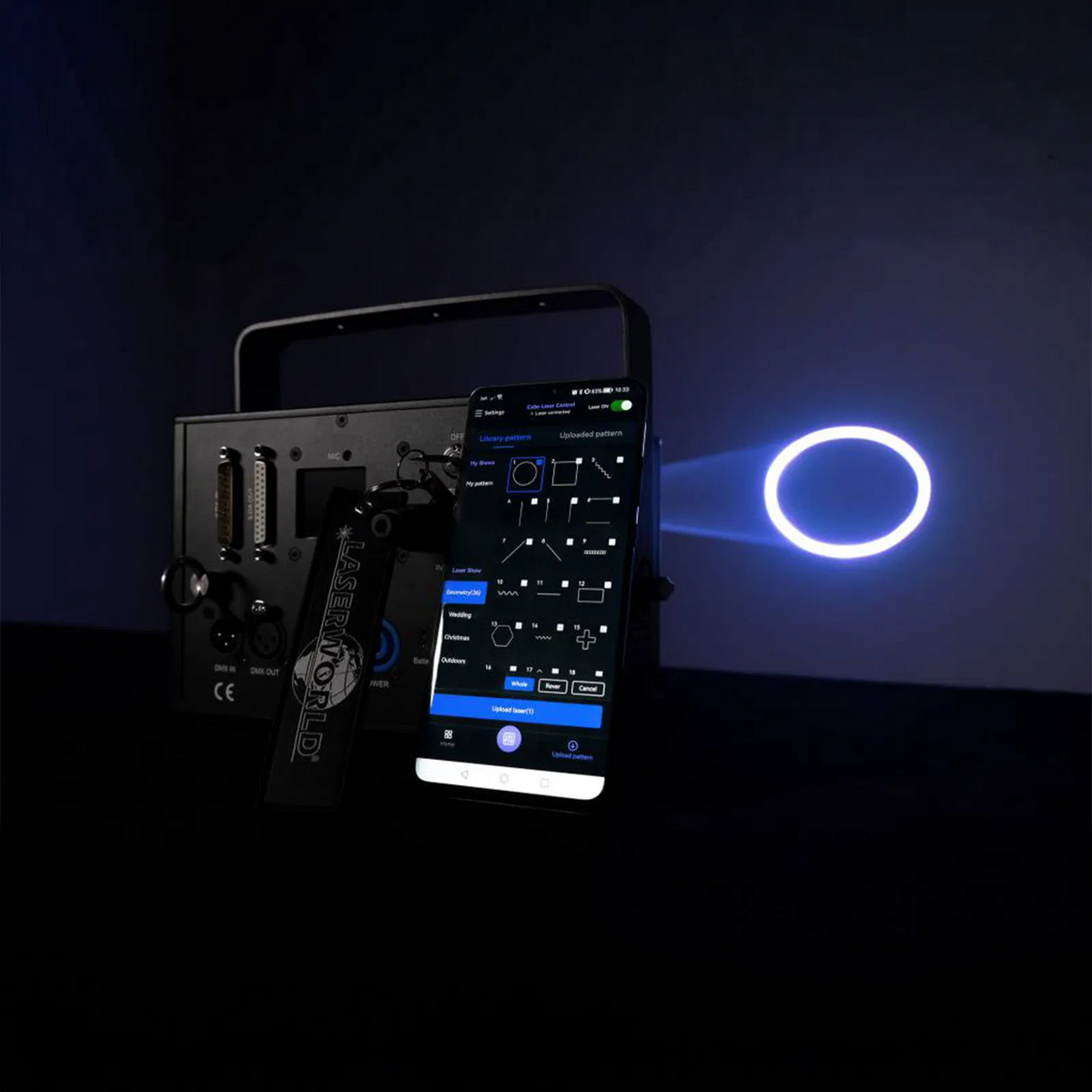

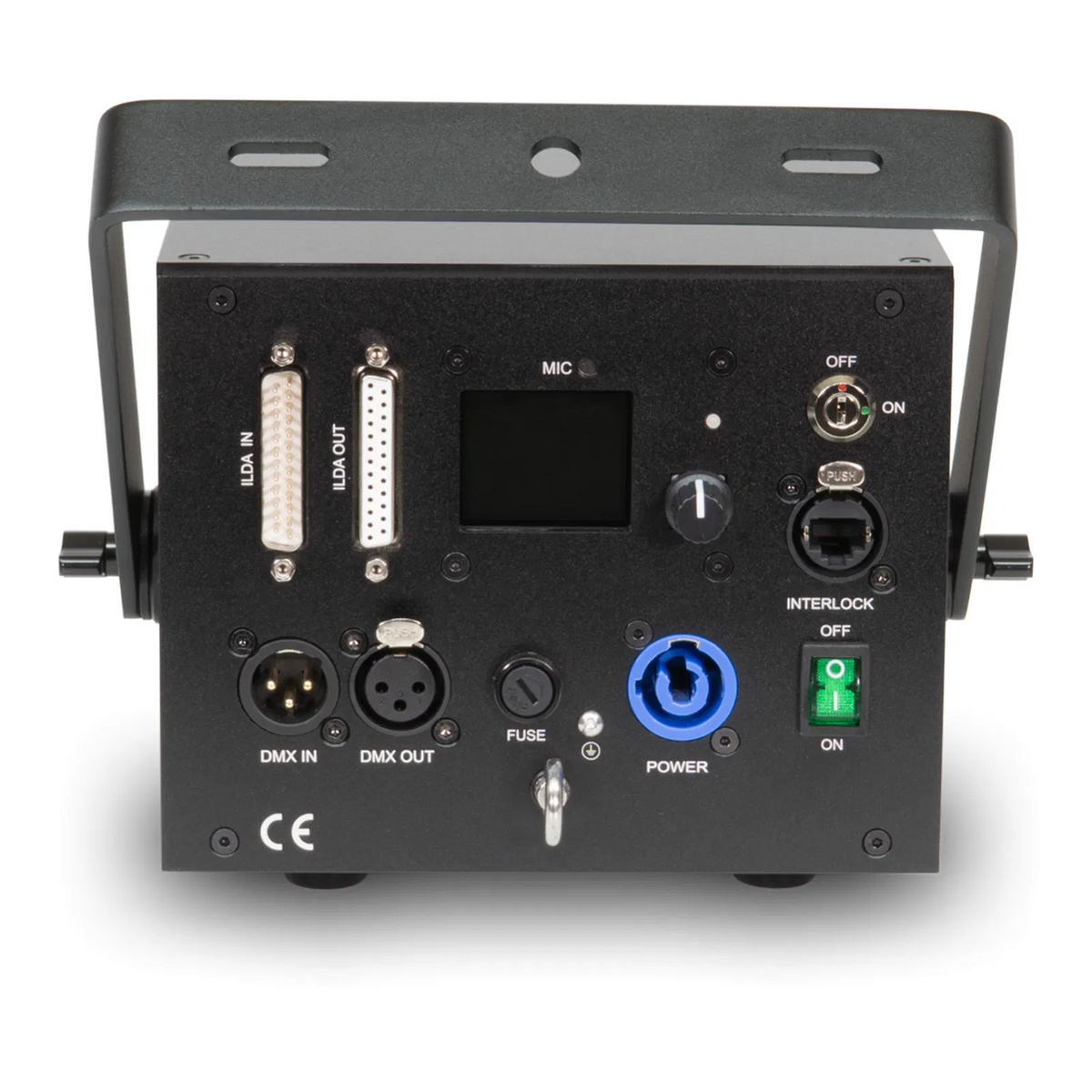

A standout feature of the CUBE 1 is its dedicated Cube Laser Control App, allowing users to run and customise laser shows directly from a smartphone or tablet. In addition to app control, the projector supports DMX, sound-to-light, auto mode, master/slave and ILDA control for professional laser software integration.
The CUBE 1 uses an analog-modulated RGB diode system with 638 nm red (200 mW), 520 nm green (300 mW) and 450 nm royal blue (600 mW) sources. Beam specifications of approximately 3 mm / 1.0 mrad and a 25kpps scanner system @ 8° allow smooth tunnels, waves, grids and geometric patterns with excellent clarity.
Over 250 built-in patterns are included, adjustable in colour, speed and movement. Sound-to-light mode synchronises effects to music via the built-in microphone, while master/slave mode enables multiple units to run in perfect sync for larger setups.

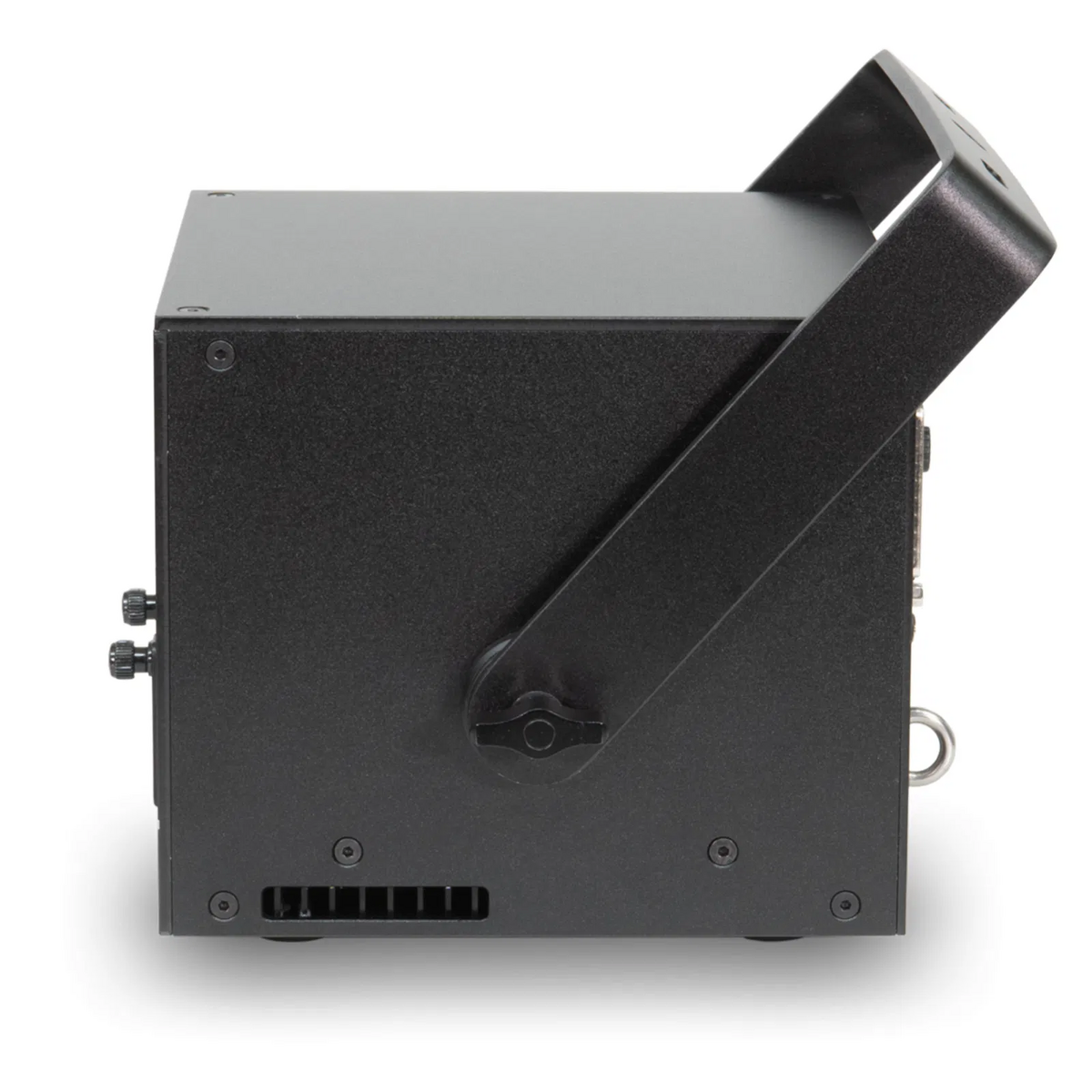

The compact housing and lightweight design make the CUBE 1 easy to transport and install. A sealed optical system reduces maintenance, while professional safety features including a key switch, interlock connector and power switch ensure secure operation.
| Specification | Details |
|---|---|
| Total Output Power | 1,000 mW |
| Red Laser | 200 mW / 638 nm |
| Green Laser | 300 mW / 520 nm |
| Blue Laser | 600 mW / 450 nm |
| Beam Diameter / Divergence | Approx. 3 mm / 1.0 mrad |
| Scanner Speed | 25 kpps @ 8° |
| Maximum Scan Angle | 30° |
| Laser Class | Class 4 |
| Operating Modes | App, DMX, ILDA, Auto, Sound-to-Light |
| Power Supply | 85–250 V AC, 50/60 Hz |
| Power Consumption | 20 W |
| Dimensions (W × D × H) | 170 × 160 × 135 mm |
| Weight | 2.6 kg |
Q: Can it be controlled from a phone or tablet?
A: Yes, the CUBE 1 includes exclusive mobile app control for iOS and Android.
Q: Does it support professional laser software?
A: Yes, the integrated ILDA interface allows full control via professional software.
Q: Is it suitable for mobile DJs and clubs?
A: Yes, its compact size, powerful output and flexible control options make it ideal for both.
