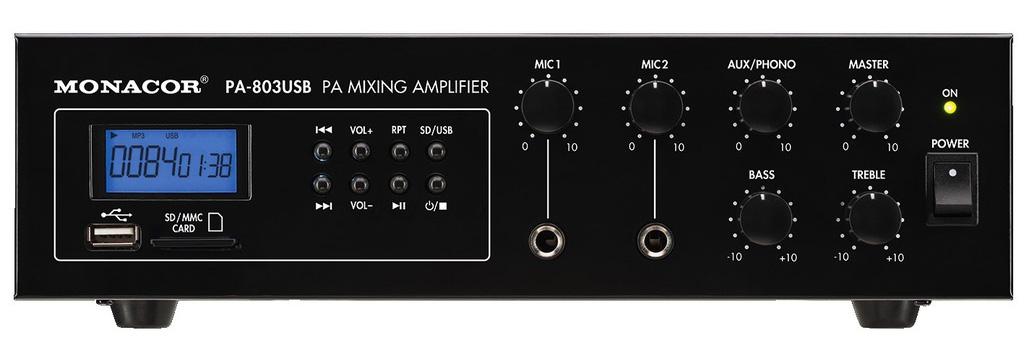

Monacor PA-803USB 30W PA Amplifier With MP3 Player

The Monacor PA-803USB 30W PA Amplifier comes with an MP3 Player and is ideal for waiting rooms or small areas where background music and or the need for microphone announcements is needed.

The silent fanless unit has a built in MP3 Player which takes USB Sticks and SD Cards. It also has a switchable Stereo RCA input which can be selected as Aux (line Level) or Phono (for record deck) via a switch on the rear of the unit.

In addition the PA-803USB also features two 6.3mm Microphone Inputs which can be used simultaneously. It can also be wired for 4, 8 and 16 ohm speaker loads as well as 100V.

Features:

• 1 x 30 WRMS
• Adjustable MP3 player with USB interface and SD card slot, illuminated display
• Silent operation due to fanless cooling concept
• 2 microphone inputs
• Mic 1 with automatic talkover
• 1 aux input, 1 phono input, switchable
• Insert facility, e.g. for effect units, equalizers, feedback controllers
• 2-way tone control for the output
• Mains operation or 12 V battery operation
• Supplied with mounting brackets

Specifications:

• Output power 30 WRMS
• Mic input 3 mV
• Aux input 500 mV
• Phono input 3 mV
• Speaker output 4 Ω, 70/100 V
• Frequency range 80-18,000 Hz, ±3 dB
• Equalizer bass ±10 dB/100 Hz
• Equalizer treble ±10 dB/10 kHz
• S/N ratio > 75 dB
• THD < 1 %
• Power supply 230 V~/50 Hz/100 VA,
• 12 V DC current /5 A
• Admiss. ambient temp. 0-40 °C
• Dimensions 280x75x230 mm
• Weight 4.2 kg
• Special feature USB, SD card
• Inputs:
• Microphone 2 x 6.3 mm jack
• Aux, phono 1 x RCA L/R
