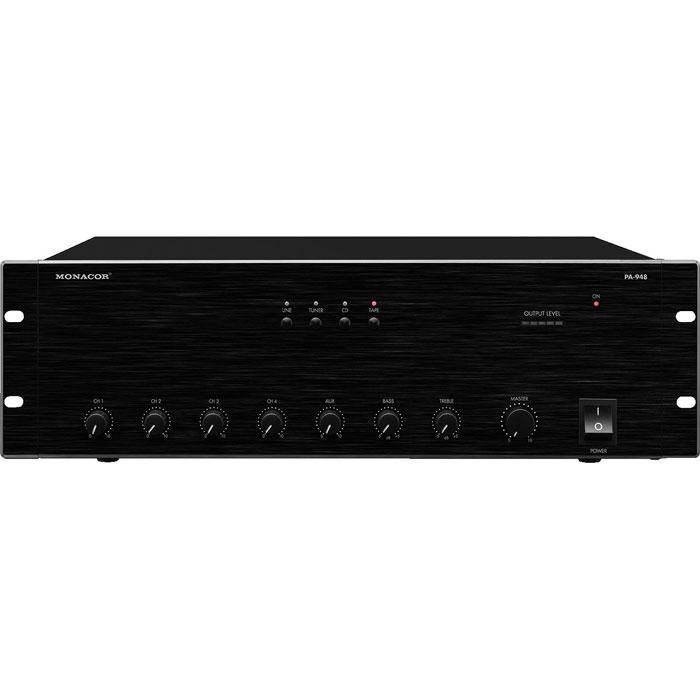

Monacor PA-948 100V Mixing Amplifier 1 X 480W
x
#17.5070
£749.00 inc vat
£624.17 ex vat
Monacor PA-948 100V Mixing Amplifier 1 X 480W
The bigger more powerful brother of the PA-924, this amplifier boasts a healthy 480W. 4 balanced microphone inputs with selectable priority and 4 line inputs to give you more options with sources.
Features:
- 1 x 480 W
- 4 balanced microphone inputs with selectable priority
- 4 line inputs
- Speaker outputs via screw terminals
- Balanced line output
- Record output
- Insert facility, e.g. for effect units, equalizers, feedback controllers
- 2-tone or 4-tone chime, can be activated externally
- Input level control and output level control
- 2-way tone control for the output
- Switchable 48 V phantom power for microphone inputs
- Temperature-controlled fan
- Mains operation or 24 V emergency power operation
- Removable mounting brackets
Specification:
- Channels - 5
- Power rating - 480 W
- Peak music power output (PMAX) - 680 W
- Inputs - 2.5-100 mV (mic), 350 mV (line)
- Frequency range - 50-16000 Hz
- Equalizer bass - ± 10 dB/100 Hz
- Equalizer treble - ± 10 dB/10 kHz
- S/N ratio - >75 dB
- THD - <0,1%
- Power supply - ~ 230 V/50 Hz/1,090 VA, DC 24 V/27 A
- Mains voltage - ~230 V
- Mains frequency - 50 Hz
- Power consumption, operation - 1090 VA
- Alternative operating voltage - DC Current 24 V
- Alternative power supply - DC Current 27 A
- Admiss. ambient temp. - 0-40 °C
- Dimensions - 482 x 137 x 395 mm, 3 RS
- Width - 482 mm
- Height - 137 mm
- Depth - 395 mm
- Rack spaces, RS - 3
- Weight - 22,6 kg
- Connections - 4 x XLR (mic), 4 x RCA L/R (line), 1 x XLR (line out), 1 x RCA L/R (line out), screw terminals (speakers)
In stock
Call for delivery times
3 Year Warranty
On this product
