The Monitor Audio IA60-4 is a compact yet highly versatile professional installation amplifier designed for residential and commercial audio systems where performance, flexibility and rack efficiency are equally important. Despite its space-saving half-width 1U design, the IA60-4 delivers powerful multi-channel amplification alongside advanced DSP matrix processing, making it ideal for multi-room audio, home cinema systems, outdoor entertainment zones and distributed audio installations.
Offering four channels of 60W output, bridgeable operation up to 125W per channel pair, and Power Share functionality delivering up to 250W on a single channel, the IA60-4 provides exceptional installation flexibility from a remarkably compact chassis.
Designed to adapt to a wide range of system requirements, the IA60-4 supports multiple amplifier configurations without compromising performance.
Unlike many compact amplifiers, the IA60-4 includes sophisticated DSP capabilities, allowing installers to optimise performance and configure audio routing precisely to project requirements.

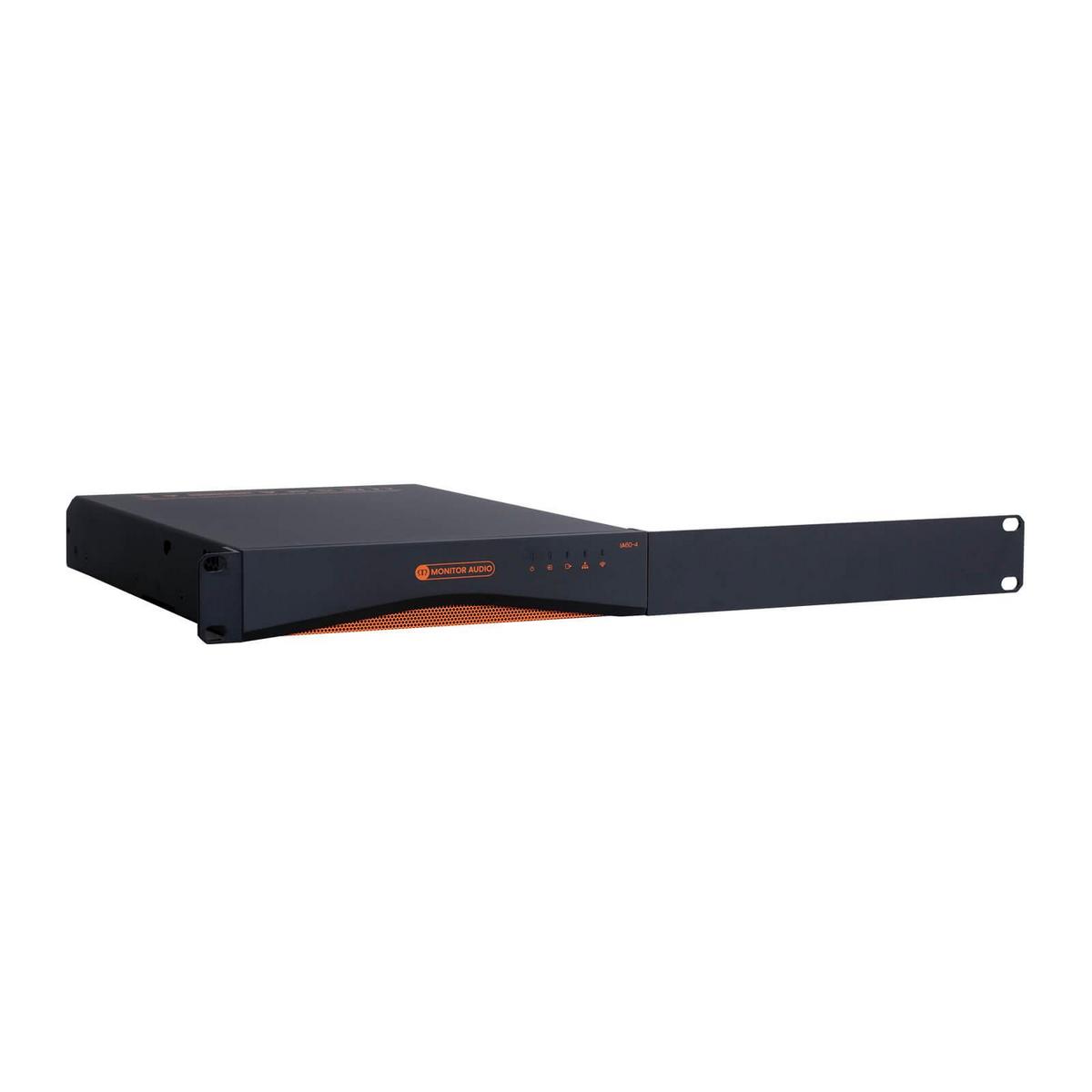

The IA60-4 is designed to maximise rack space while maintaining professional-grade performance and reliability.
Built to Monitor Audio's demanding performance standards, the IA60-4 delivers clean, detailed amplification with extremely low distortion and excellent signal integrity.
Comprehensive protection circuitry safeguards both the amplifier and connected loudspeakers while ensuring long-term reliability.
The advanced switch-mode power supply incorporates Power Factor Correction (PFC) for improved efficiency and reduced energy consumption.
| Amplifier Type | 4-Channel Installation Amplifier |
|---|---|
| Channels | 4 |
| Output Power | 4 x 60W |
| Bridged Output | 2 x 125W |
| Power Share Output | Up to 250W |
| Frequency Response | 20Hz – 20kHz (+0/-0.25dB) |
| Signal-to-Noise Ratio | >106dB (A-weighted) |
| THD+N | <0.05% |
| Output Voltage | 70Vp / 140Vpp (SE), 140Vp / 280Vpp (BTL) |
| Polarity | Non-Inverting |
| Power Consumption | 75W |
| Thermal Output | 256 BTU |
| Protection | Short Circuit, DC, Undervoltage, Temperature & Overload |
| Power Supply | Switch Mode PSU with Power Factor Correction |
| Mains Voltage | 100V – 240V AC, 50/60Hz |
| Standby Consumption | <0.5W |
| Dimensions (H x W x D) | 44 x 220 x 325mm |
| Finish | Black Anodised |
| Warranty | 5 Years |
Ideal for multi-room audio systems, residential custom installations, Dolby Atmos® height channels, distributed audio zones, outdoor entertainment systems, garden speaker installations, media rooms, hospitality venues and professional AV projects requiring compact yet powerful amplification.
Combining flexible power allocation, advanced DSP matrix processing, exceptional audio performance and a remarkably compact form factor, the Monitor Audio IA60-4 delivers professional-grade amplification for modern installation projects. Whether powering multiple audio zones, immersive home cinema channels or outdoor speaker systems, the IA60-4 provides reliable performance and installation flexibility backed by Monitor Audio's comprehensive 5-year warranty.
Yes. With four independent amplifier channels and DSP matrix routing, the IA60-4 is ideal for multi-room and multi-zone audio installations.
Power Share allows available amplifier power to be allocated where needed, enabling the IA60-4 to deliver up to 250W to a single channel without sacrificing performance.
Yes. The IA60-4 can be configured as two bridged channels delivering up to 125W per channel pair for applications requiring additional power.
Absolutely. The amplifier is commonly used to power height and surround channels in immersive home cinema installations due to its compact size and flexible configuration options.
Yes. Monitor Audio provides a comprehensive 5-year warranty, reflecting the company's confidence in the amplifier's reliability and performance.
