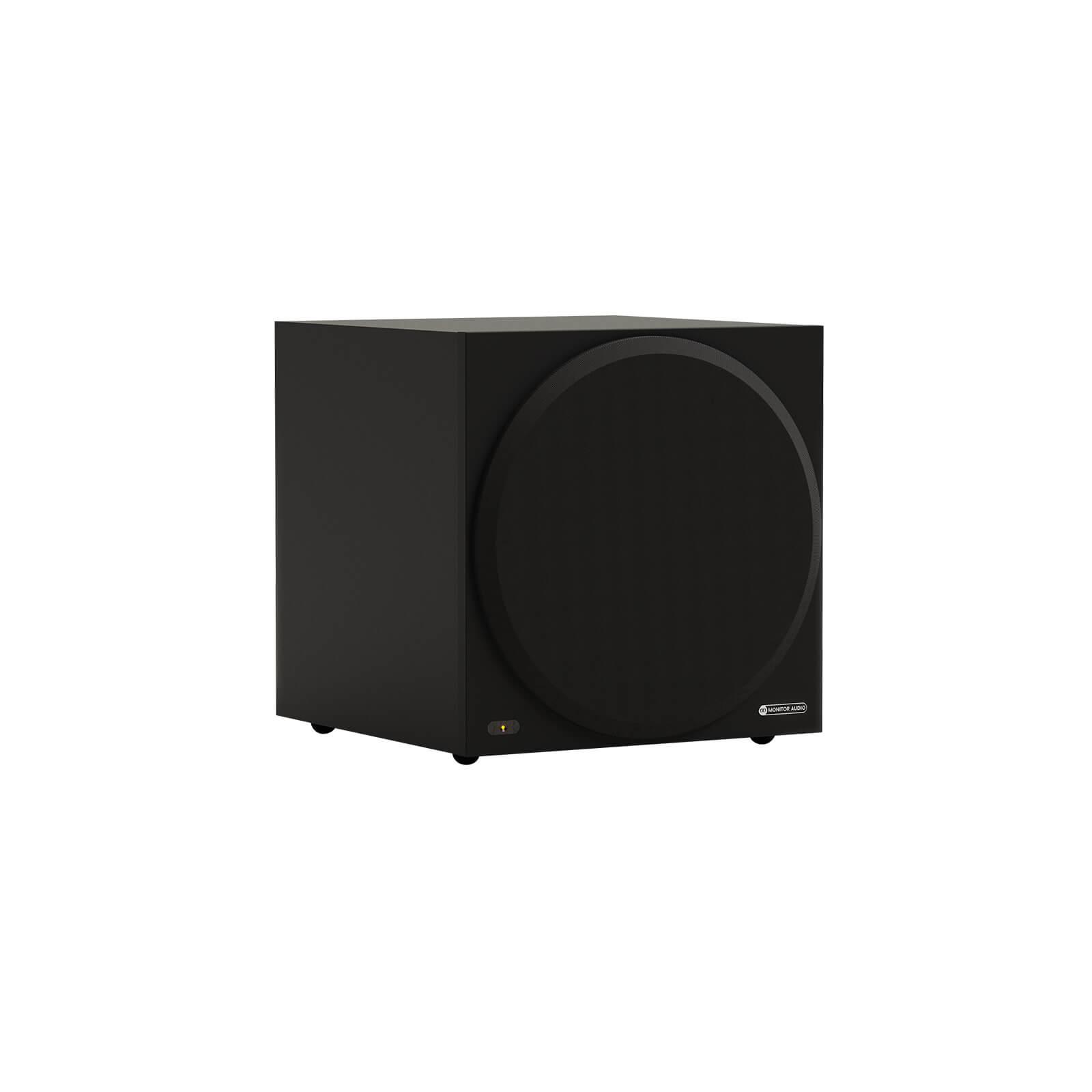

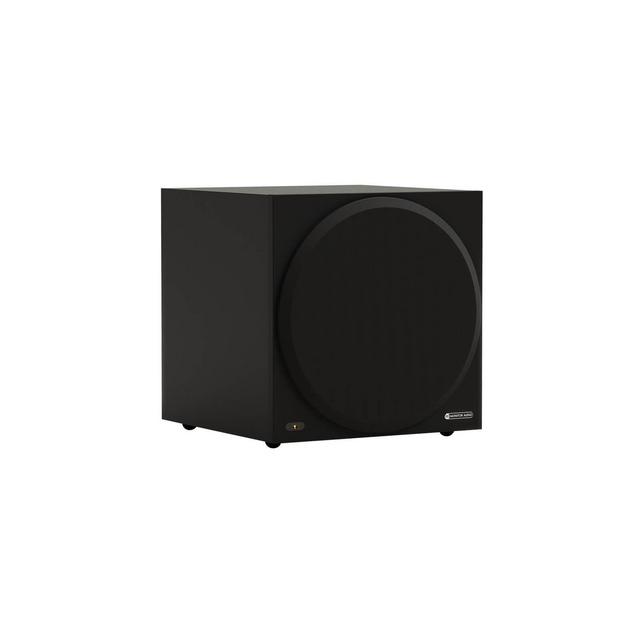

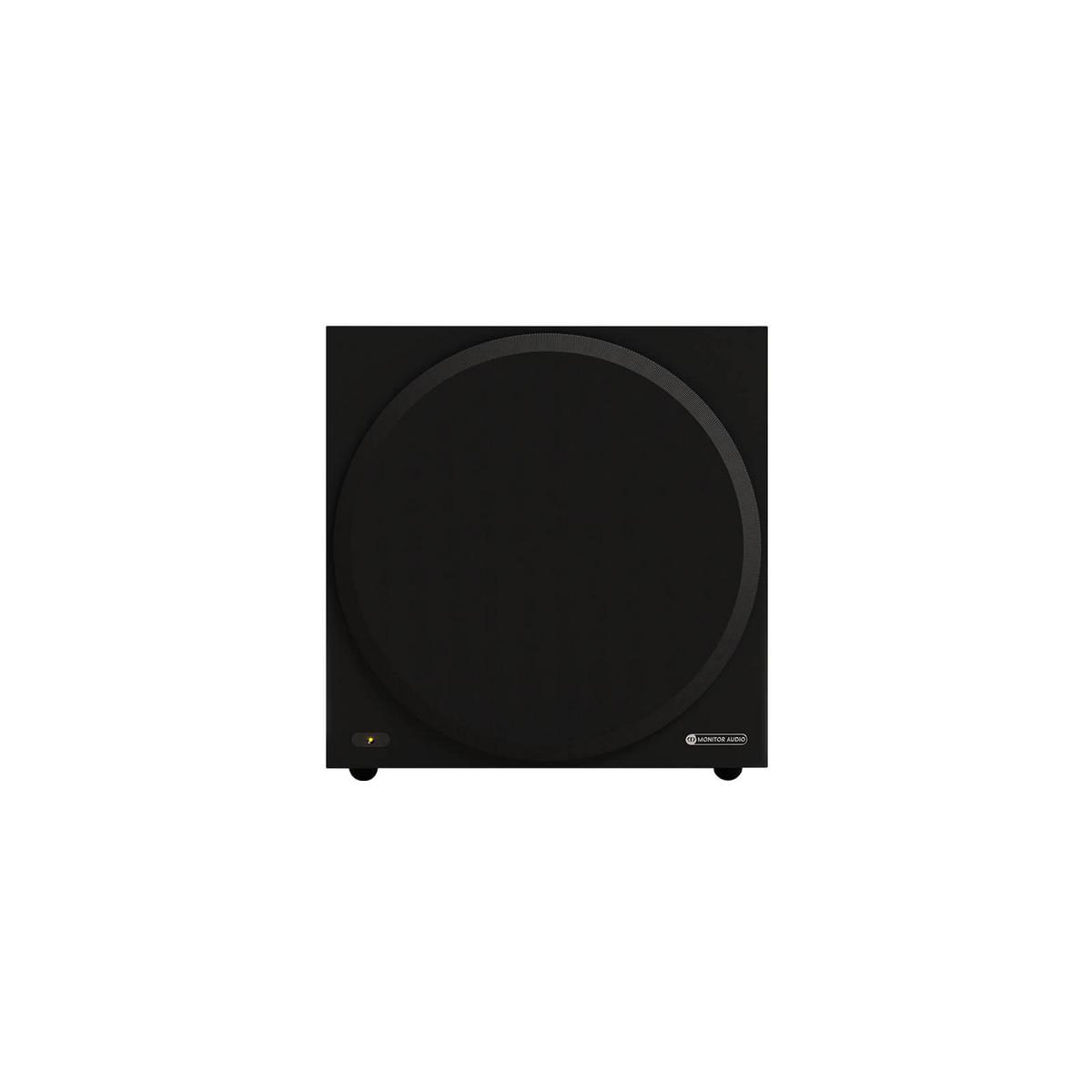

The Monitor Audio Vestra W12 is a powerful 12-inch active subwoofer designed to deliver deep, controlled bass for home cinema and high-fidelity music systems. Featuring a high-performance 500W Class-D amplifier and a specially engineered C-CAM driver, it provides impressive low-frequency extension with excellent precision and impact.
The W12 uses a sealed enclosure and a 12-inch high linear-excursion driver with triple suspension technology to maintain accurate bass reproduction, even during demanding movie soundtracks and dynamic music passages. With an in-room frequency response extending down to 17Hz, it delivers powerful low-frequency effects that add depth and realism to any listening experience.

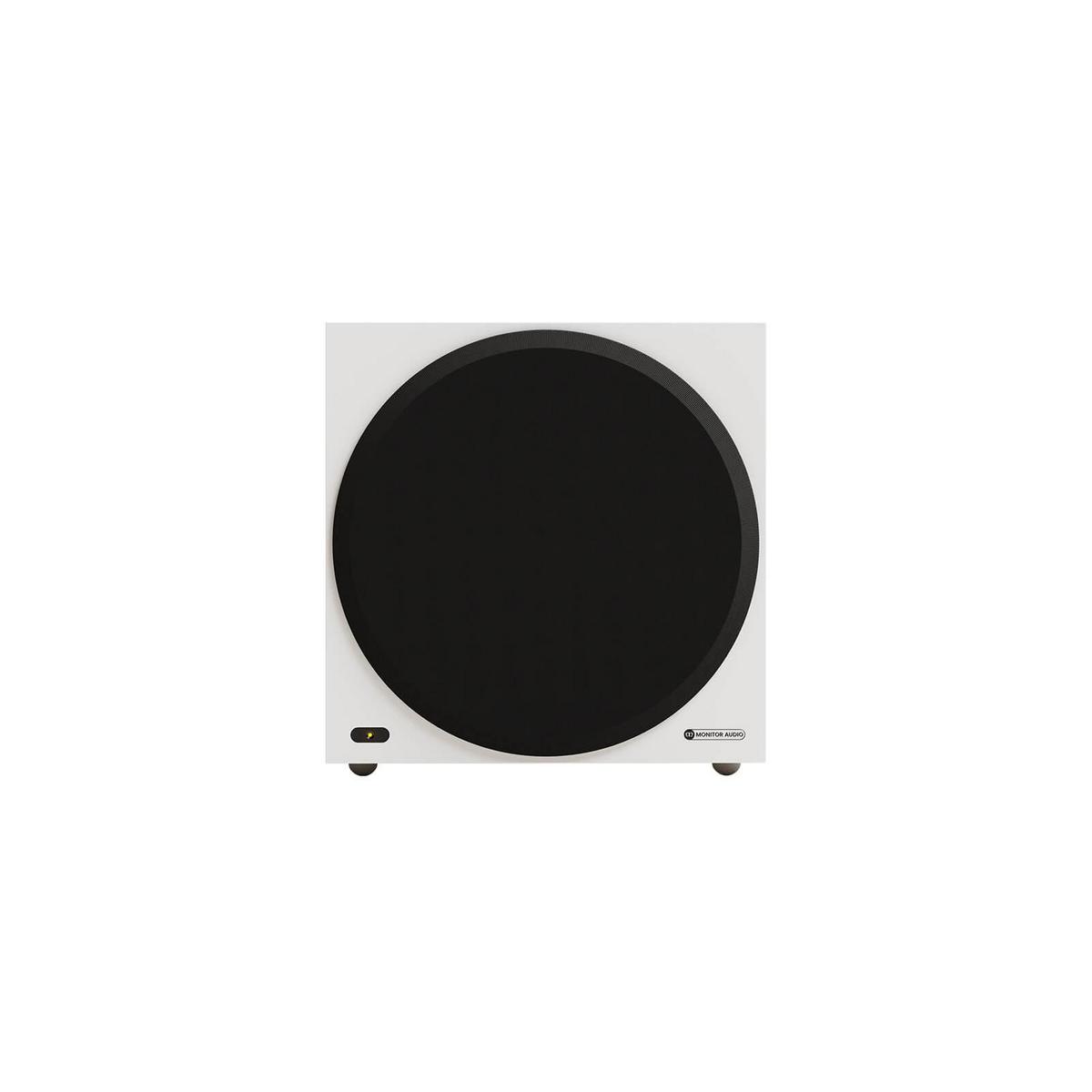

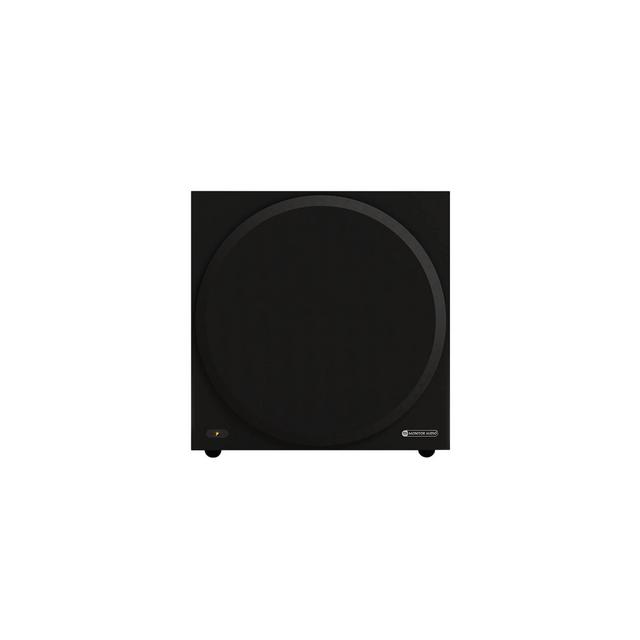

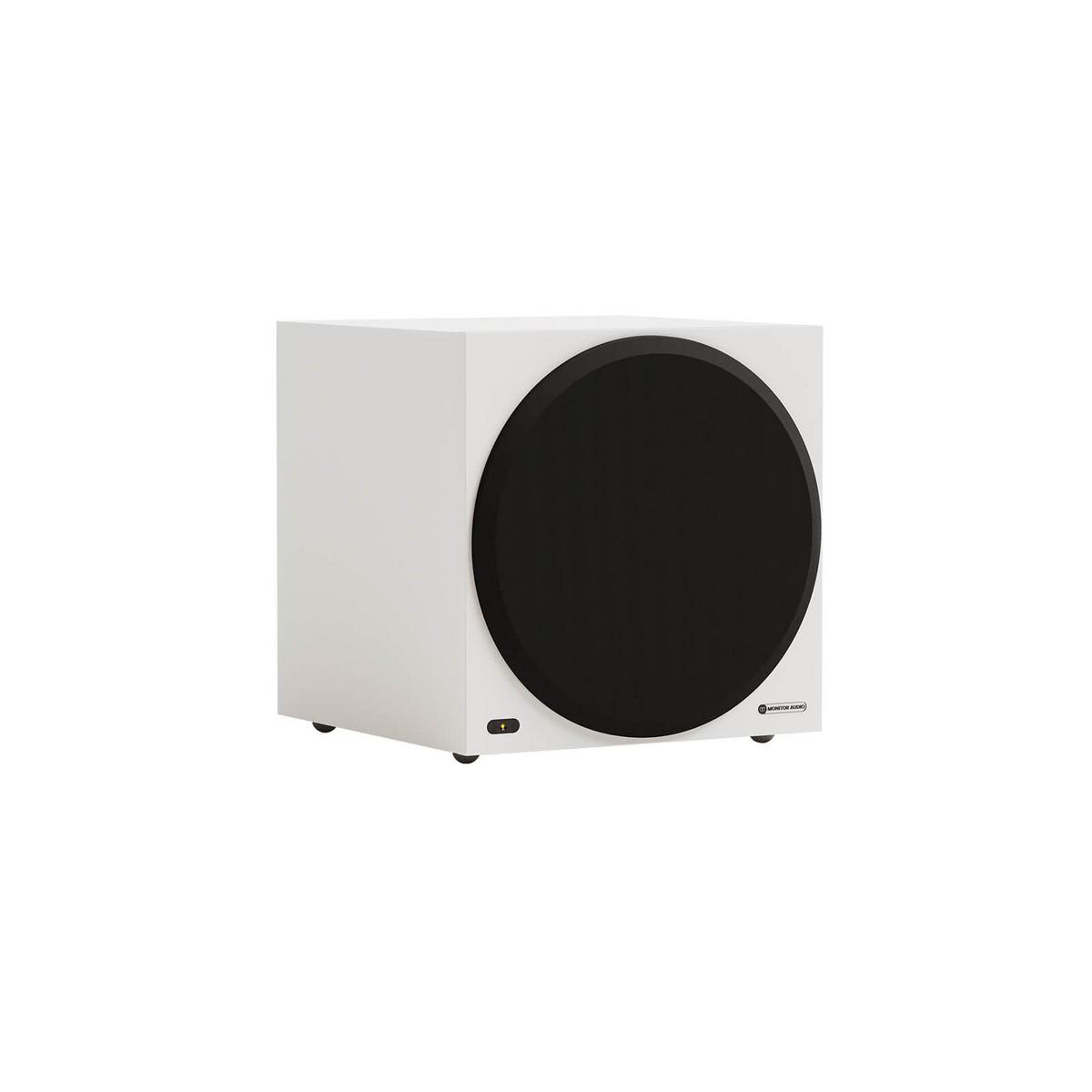

Available in Matte Black or Matte White, the Vestra W12 combines understated styling with flexible connectivity, making it an excellent addition to premium stereo systems and immersive home cinema installations.
The Monitor Audio Vestra W12 is ideal for home cinema systems, premium stereo hi-fi installations, dedicated listening rooms and immersive AV systems. Its powerful amplifier and extended low-frequency performance make it particularly suitable for larger listening spaces and systems requiring substantial bass output.
The W12 can be used as a standalone subwoofer or combined with additional units to achieve more consistent bass coverage throughout a room. Its selectable DSP modes allow performance to be tailored for music listening, films or maximum bass impact.
| Product Type | Active Subwoofer |
|---|---|
| Driver | 1 x 12" (305mm) C-CAM High Linear-Excursion Driver |
| Driver Suspension | Triple Suspension |
| Amplifier Power | 500W RMS (Instantaneous) |
| Amplifier Type | High-Efficiency Class-D |
| Enclosure Type | Sealed |
| Frequency Response | 17Hz - 200Hz (-6dB, In-Room) |
| Maximum Peak SPL | 115dB (CTA 2010-B, Z-Weighted, Half-Space) |
| Low-Pass Filter | 32Hz - 200Hz (-6dB) |
| DSP Equalisation | Impact, Movie & Music |
| Phase Control | 0 degrees / 180 degrees Toggle Switch |
| Audio Inputs | Stereo Unbalanced RCA, LFE RCA |
| Trigger Input | 12V Trigger via 3.5mm Mono Jack |
| Input Impedance | 47k Ohms |
| Auto On | Line-Level Signal Above 3mV |
| Auto Standby | After 20 Minutes |
| Mains Supply | 85-265V AC, 50/60Hz |
| Power Consumption | 120W at 1/8 Maximum Output |
| Dimensions (H x W x D) | 385 x 371 x 401mm |
| Weight | 18.3kg |
| Grille | Cloth-Covered |
| Finish | Matte Black or Matte White |
| Warranty | 5 Years |
At the heart of the Vestra W12 is Monitor Audio's C-CAM (Ceramic-Coated Aluminium Magnesium) driver, engineered to deliver powerful bass while maintaining control and accuracy. Its high linear-excursion design and triple suspension system allow the driver to move substantial volumes of air, producing deep bass with reduced unwanted distortion.
The sealed cabinet helps deliver tight, responsive low frequencies, making the W12 equally capable with demanding film soundtracks and detailed music reproduction. Its 500W Class-D amplifier provides the power required for dynamic bass passages, while three selectable DSP modes allow the sound to be optimised for different listening preferences.
Stereo RCA and dedicated LFE connections simplify integration with hi-fi amplifiers and AV receivers. Automatic signal sensing and a 12V trigger input provide convenient power management, allowing the subwoofer to operate as part of a fully integrated entertainment system.
Yes. The Vestra W12 is designed for home cinema and hi-fi applications. Its 12-inch driver, 500W amplifier and 17Hz low-frequency extension make it particularly effective at reproducing deep bass effects in films.
The three DSP presets allow the subwoofer's response to be tailored to different applications. Impact is designed for a more powerful bass presentation, Movie is optimised for film soundtracks, and Music is intended for balanced, controlled low-frequency reproduction.
Yes. The dedicated LFE RCA input allows the subwoofer to connect to the subwoofer output of a compatible AV receiver or home cinema processor.
Yes. The stereo RCA inputs allow connection to compatible hi-fi amplifiers and preamplifiers with suitable line-level outputs. The adjustable low-pass filter helps integrate the subwoofer with the main speakers.
Yes. Multiple Vestra W12 subwoofers can be incorporated into a compatible audio system. Using two subwoofers can help achieve more even bass distribution across a listening room when correctly positioned and configured.
Yes. The automatic signal-sensing function activates the subwoofer when a suitable audio signal is detected. It also enters standby after approximately 20 minutes without a signal. A 12V trigger connection is provided for compatible equipment.
