Please call or email us to purchase this product and ask about discounts.

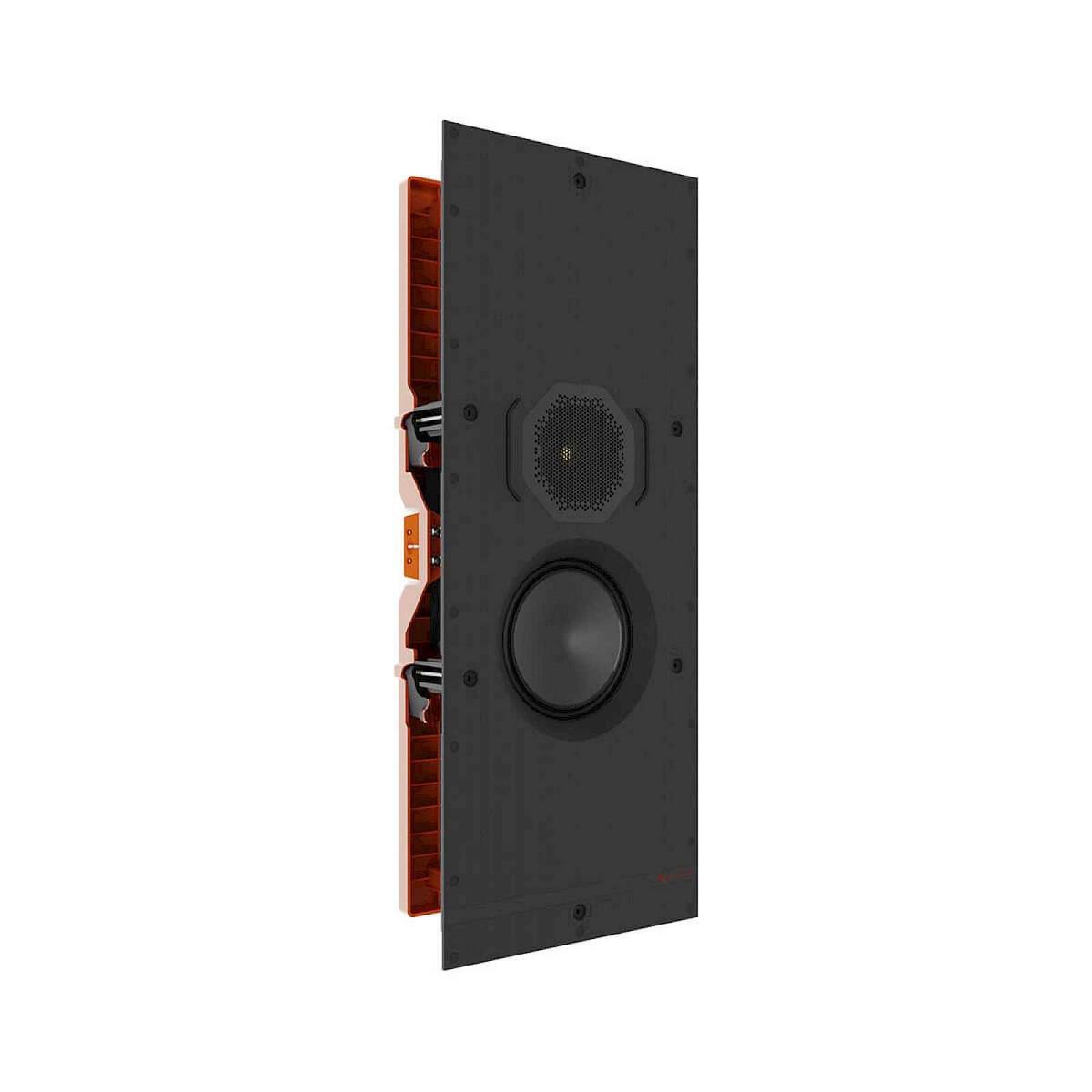

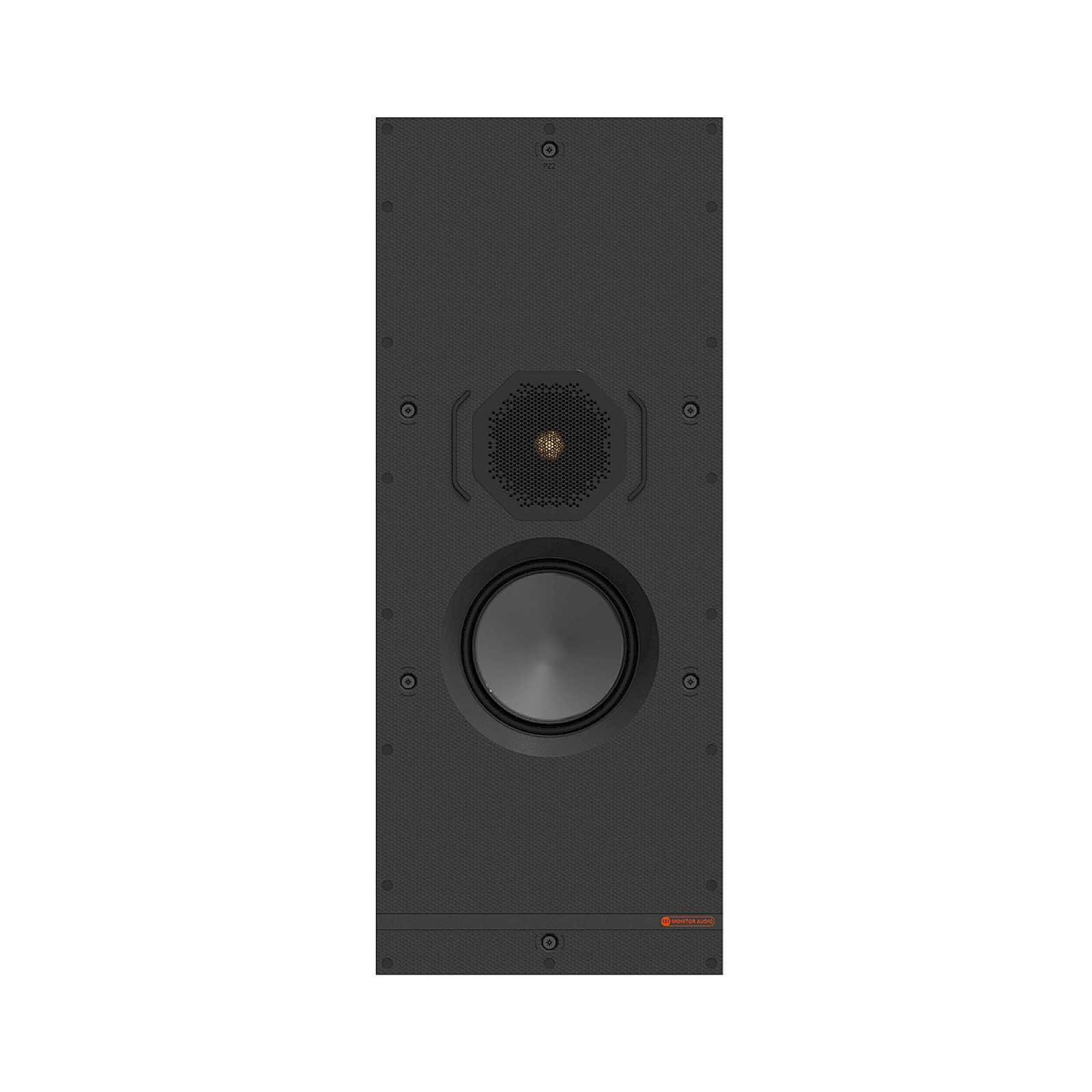

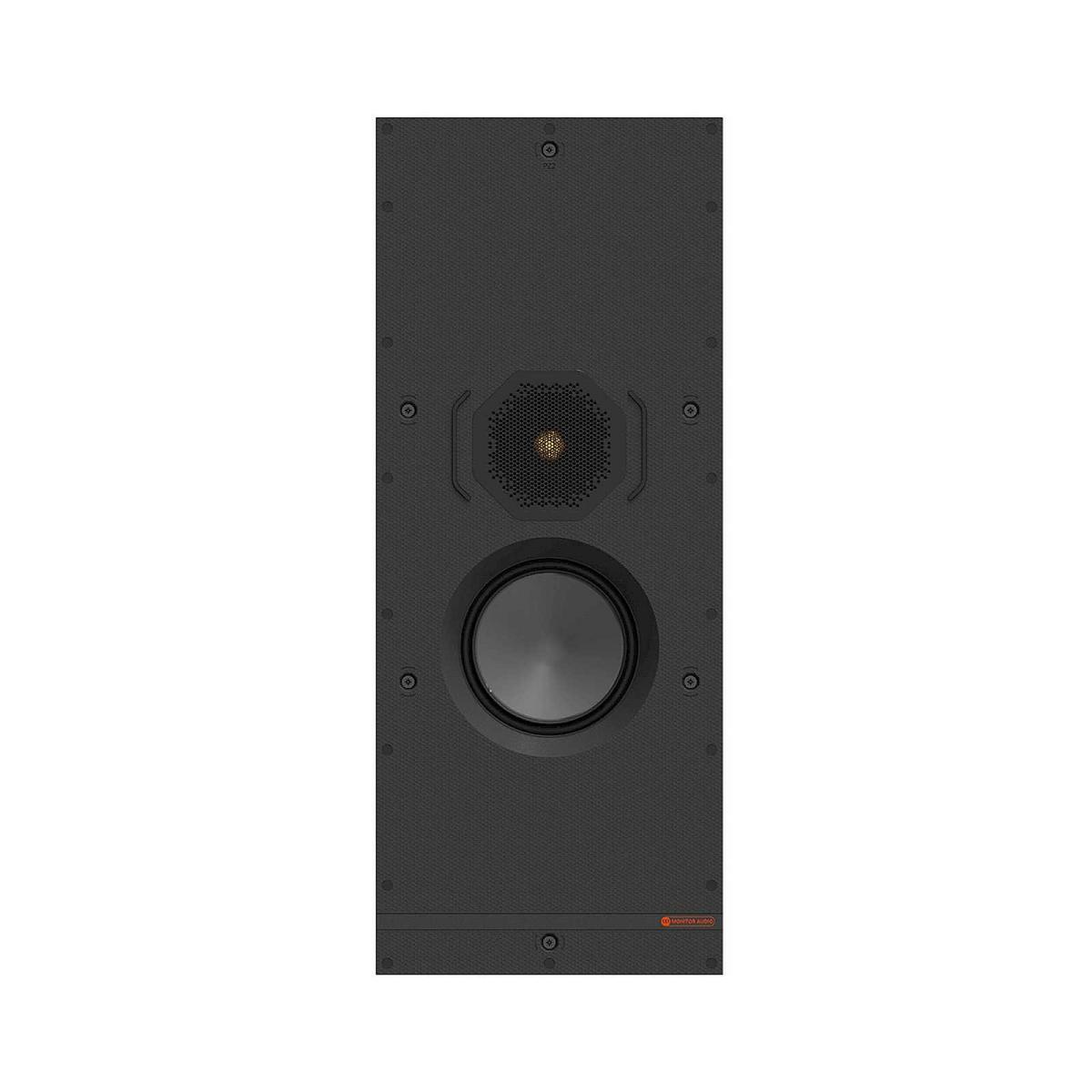

The Monitor Audio W1M-E is a medium-sized Tier 1 in-wall loudspeaker designed for cost-effective installations where simplicity, reliability, and solid acoustic performance are paramount. This two-way design integrates Monitor Audio's signature C-CAM mid-bass driver and C-CAM tweeter, delivering lifelike high-fidelity sound with exceptional clarity and wide dispersion.

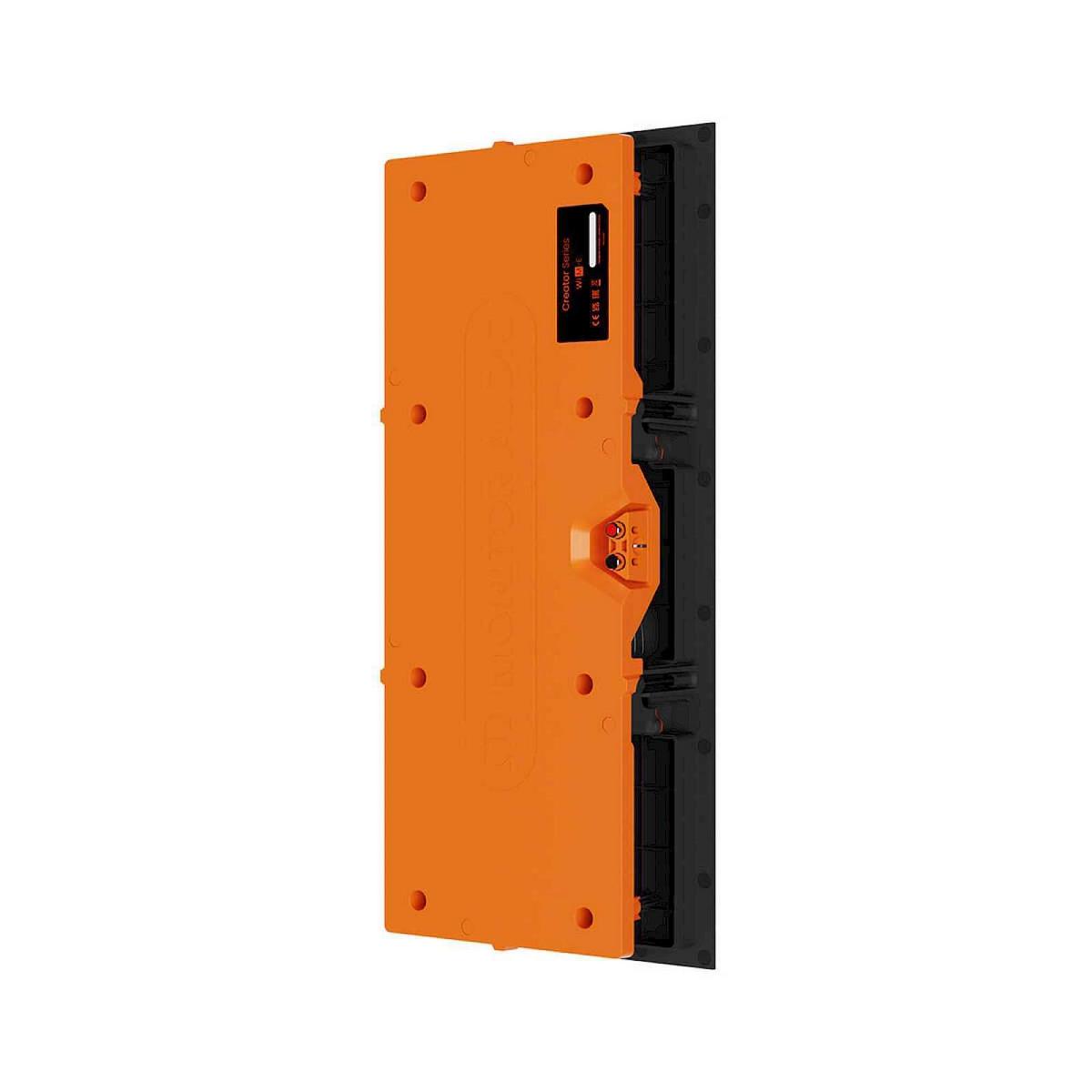

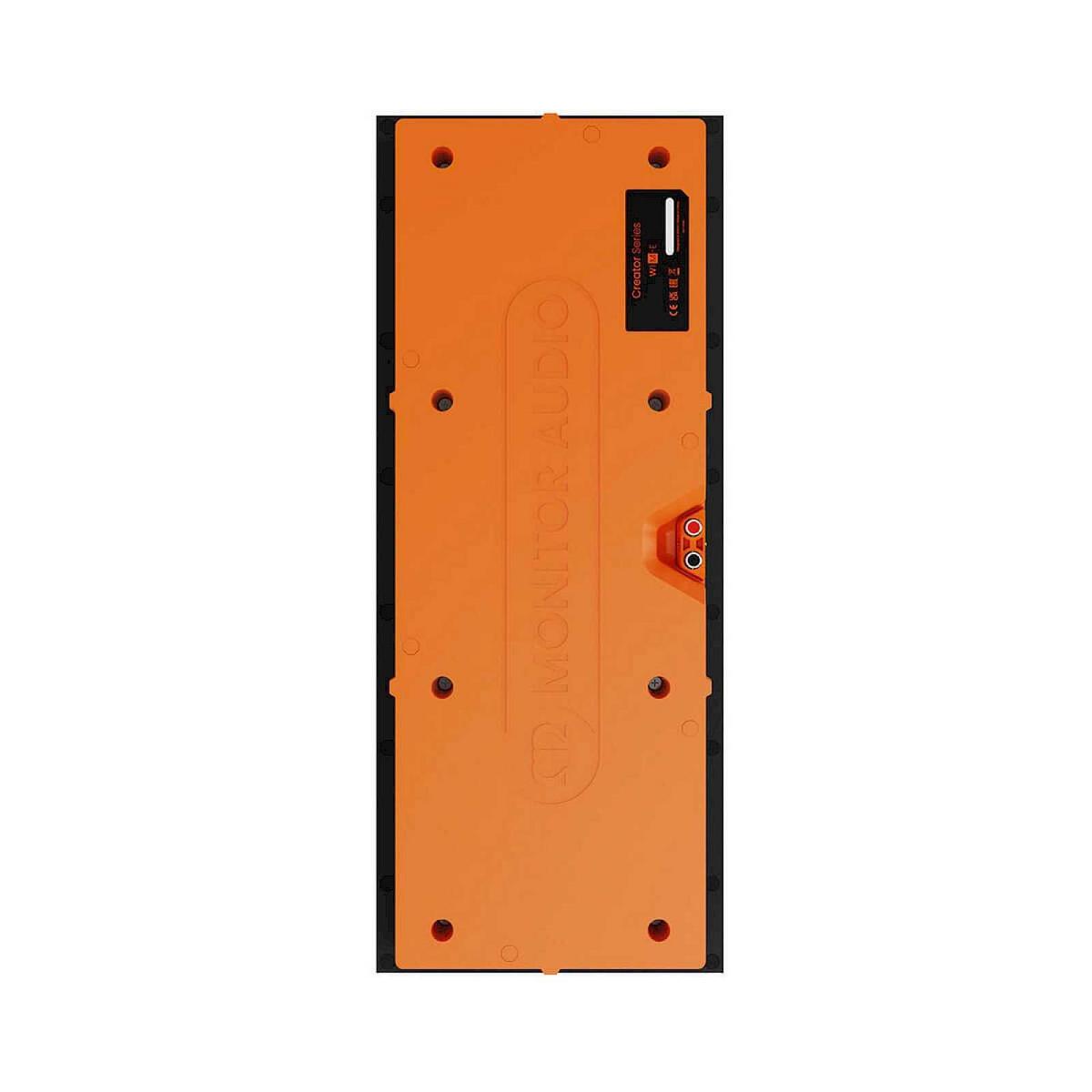

Engineered for straightforward installation, the W1M-E features a robust build with a matte black finish and orange accents. Its compact frame ensures that it blends discreetly into walls while remaining durable. The speaker incorporates the latest Tri-Grip II fixing system for secure, strong, and reliable fitment, alongside the innovative Quik-Link connector for quick, hassle-free cable attachment. The design ensures long-lasting stability with minimal effort during installation.
| Specification | Details |
|---|---|
| System Format | 2-Way |
| Channels | 1 |
| Frequency Response (-6dB) | 40 Hz - 30 kHz |
| Nominal Impedance | 8 ohm |
| Minimum Impedance | 6.5 ohm @ 200 Hz (6.2 ohm @ 20 kHz) |
| Sensitivity | 84 dB (2.83 Vrms @ 1m) |
| Maximum Peak SPL | 110 dB |
| Continuous Power Handling | 50 W RMS |
| Recommended Amplifier Power | 25 - 100 W RMS (into 8 ohm) |
| Drive Units | 1 x 5" C-CAM mid-bass driver, 1 x 1" C-CAM tweeter |
| Crossover Frequency | 2.5 kHz |
| Mounting Depth | 85 mm (3 3/8") |
| Cut-out Dimensions | 527 x 198 mm (20 3/4 x 7 13/16") |
| External Dimensions | 560 x 231 x 90 mm (22 1/16 x 9 1/8 x 3 9/16") |
| Weight | 2.6 kg (5 lb 11 oz) |
| Pre-Construction Bracket | WM-B |
| Cabinet Finish | Matte black and orange |
| Sold As | Single unit |
| Warranty | Lifetime |
The Monitor Audio W1M-E delivers a detailed and balanced sound signature, suitable for both background audio and critical listening environments. With a frequency range extending down to 40 Hz, it provides impressive low-end presence for its size while maintaining crisp and detailed high frequencies. Its wide dispersion ensures an even listening experience across larger spaces, while its installer-friendly design minimises setup time without compromising performance.
Q: What type of environments is the W1M-E best suited for?
A: It is ideal for cost-effective residential and commercial installations where discreet yet high-quality audio is required.
Q: Does it require a separate amplifier?
A: Yes, the W1M-E is a passive in-wall speaker and requires an external amplifier rated between 25 - 100 W RMS into 8 ohm.
Q: How easy is the installation process?
A: Thanks to the Quik-Link connector and Tri-Grip II fixing system, installation is fast, secure, and straightforward, even in challenging spaces.
Q: Can the speaker be used in multi-room setups?
A: Absolutely. Its design allows it to be integrated into distributed audio systems for whole-home or commercial audio applications.
Q: Is there a warranty provided?
A: Yes, the W1M-E comes with a lifetime warranty, offering long-term peace of mind.
