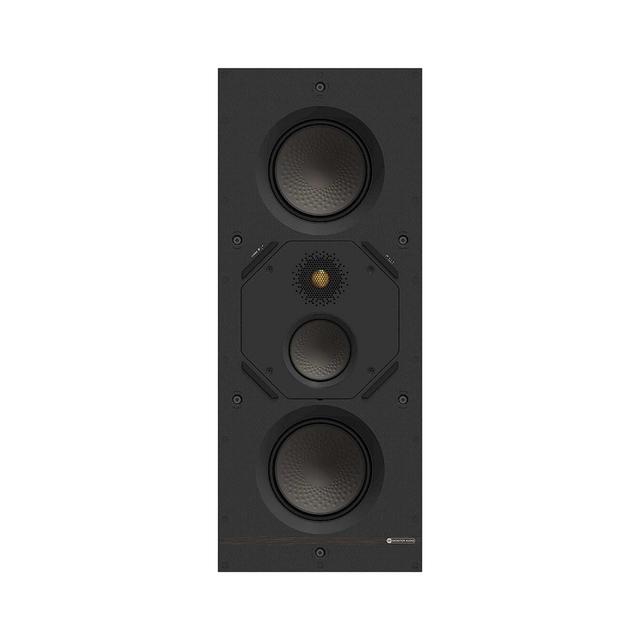

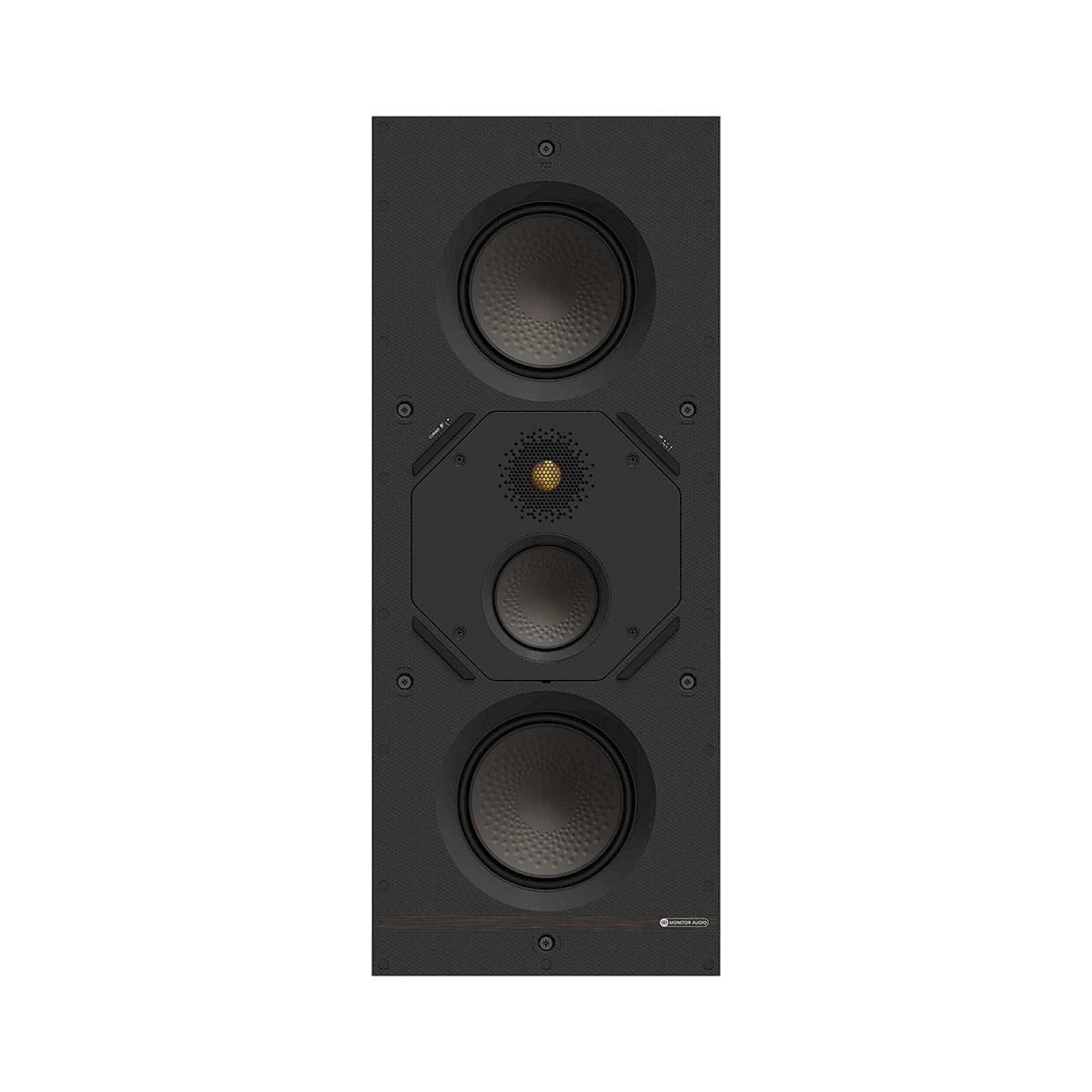

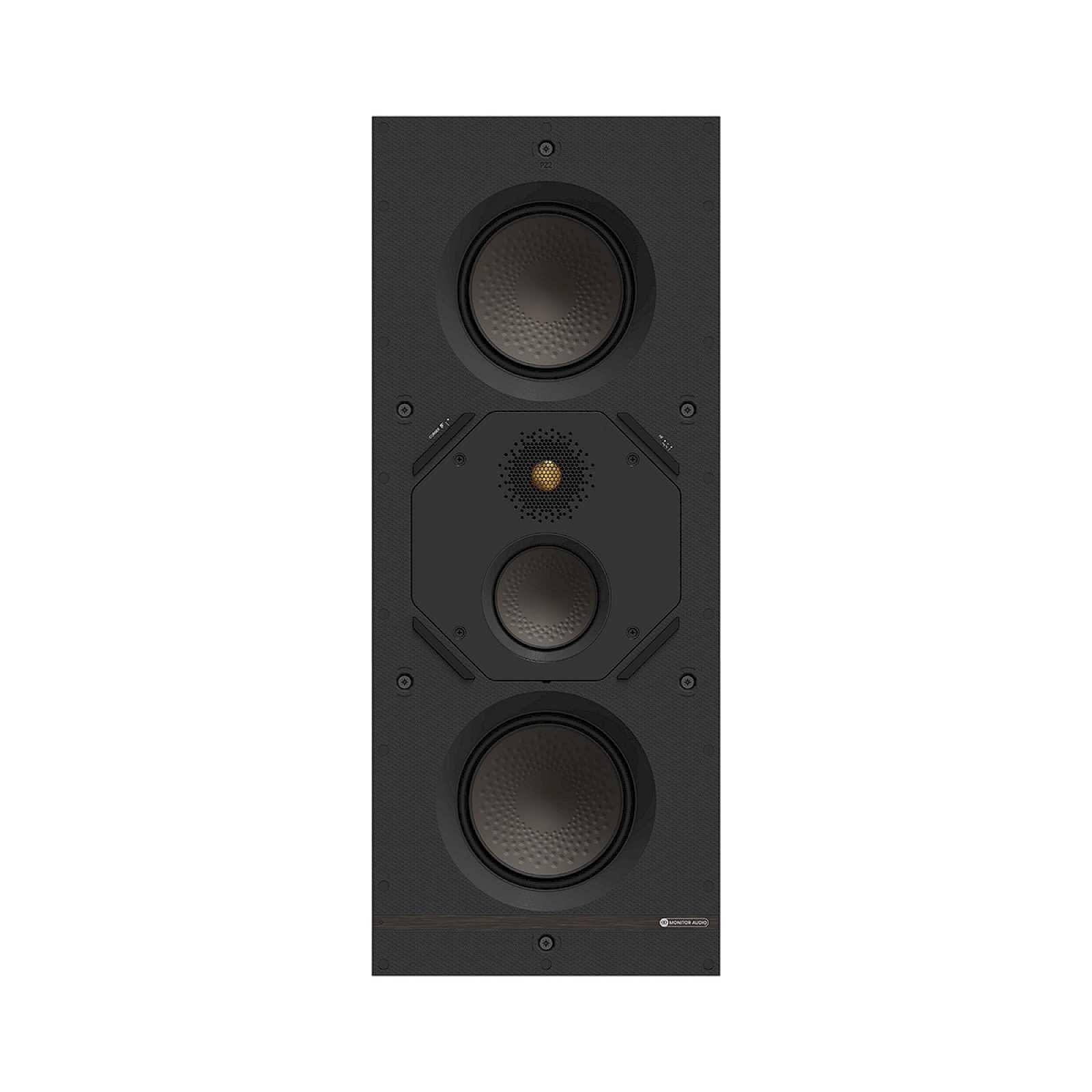

The Monitor Audio W2M is a medium-sized Tier 2 in-wall loudspeaker engineered for installations where high-fidelity audio performance is essential. Featuring a sophisticated three-way design with dual RST II bass drivers, a dedicated RST II midrange driver, and a C-CAM tweeter with UD Waveguide II, the W2M delivers exceptional clarity, power, and accuracy across the full frequency spectrum. Ideal for both high-end residential and commercial spaces, it combines refined acoustic engineering with installer-friendly innovations.

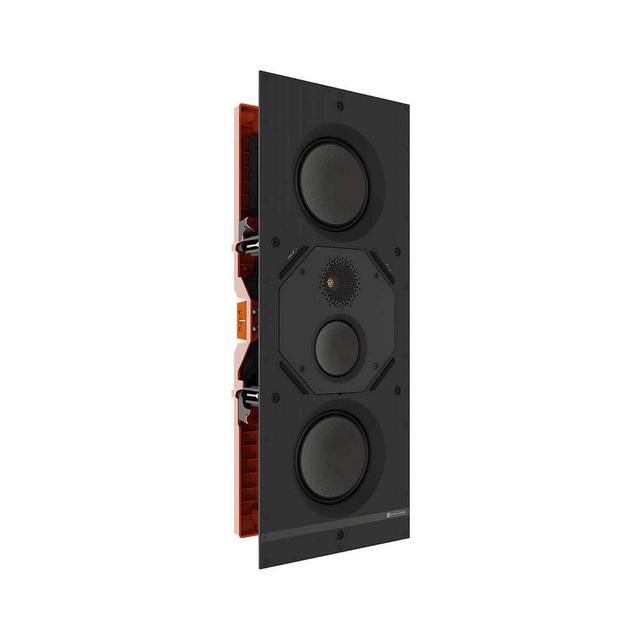

The W2M features a matte black, orange, and bronze finish for a distinctive yet discreet installation. Its slim profile ensures it integrates seamlessly into walls, while the robust construction enhances durability. The evolved Tri-Grip II system provides a secure and stable fit, while the innovative Quik-Link cable connector dramatically reduces installation time, making installation faster, easier, and more reliable.
| Specification | Details |
|---|---|
| System Format | 3-Way |
| Channels | 1 |
| Frequency Response (-6dB) | 40 Hz - 35 kHz |
| Nominal Impedance | 6 ohm |
| Minimum Impedance | 4.8 ohm @ 1 kHz (4.1 ohm @ 15 kHz) |
| Sensitivity | 87 dB (2.83 Vrms @ 1m) |
| Maximum Peak SPL | 116 dB |
| Continuous Power Handling | 120 W RMS |
| Recommended Amplifier Power | 45 - 180 W RMS (into 8 ohm) |
| Drive Units | 2 x 5" RST II bass drivers, 1 x 3" RST II midrange, 1 x 1" C-CAM tweeter |
| Crossover Frequency | LF/MF: 650 Hz, MF/HF: 3 kHz |
| Mounting Depth | 85 mm (3 3/8") |
| Cut-out Dimensions | 527 x 198 mm (20 3/4 x 7 13/16") |
| External Dimensions | 560 x 231 x 90 mm (22 1/16 x 9 1/8 x 3 9/16") |
| Weight | 3.9 kg (8 lb 9 oz) |
| Pre-Construction Bracket | WM-B |
| Cabinet Finish | Matte black, orange & bronze |
| Sold As | Single unit |
| Corner Switch | On/Off |
| HF Switch | - / 0 / + |
| Warranty | Lifetime |
The W2M offers a refined listening experience with pristine accuracy and dynamic range. Its three-way driver configuration ensures that bass, midrange, and treble are delivered with exceptional balance and separation, while the UD Waveguide II optimises sound dispersion for a wide, immersive listening field. With a maximum peak SPL of 116 dB and a continuous power handling of 120 W, the W2M is capable of delivering powerful, room-filling sound without distortion, making it an excellent choice for demanding audio applications.
Q: What sets the W2M apart from Tier 1 in-wall speakers?
A: As a Tier 2 model, the W2M incorporates higher-grade RST II drivers, a dedicated midrange driver, and advanced Waveguide II technology, delivering superior clarity and performance.
Q: Does the W2M require an external amplifier?
A: Yes, it is a passive in-wall loudspeaker and requires an external amplifier rated between 45 - 180 W RMS into 8 ohm.
Q: How does the Quik-Link system help during installation?
A: The Quik-Link connector allows fast, secure cable attachment without tools, reducing installation time and improving reliability.
Q: Can the W2M be tuned for different room conditions?
A: Yes, it includes both a corner switch and a high-frequency (HF) switch, allowing installers to adjust output for optimal performance in various acoustic environments.
Q: Is there a warranty on the W2M?
A: Yes, the W2M comes with a lifetime warranty, providing long-term peace of mind and reliability.
