The Omnitronic EPA-100BT is a versatile 1U rackmount stereo mixing amplifier designed for professional audio installations in environments such as restaurants, gyms, and retail locations. It delivers 2 x 50 watts at 4 ohms and supports multiple audio sources, including Bluetooth streaming, USB, SD cards, and line-level inputs. This flexibility makes it ideal for applications requiring convenient music playback management.

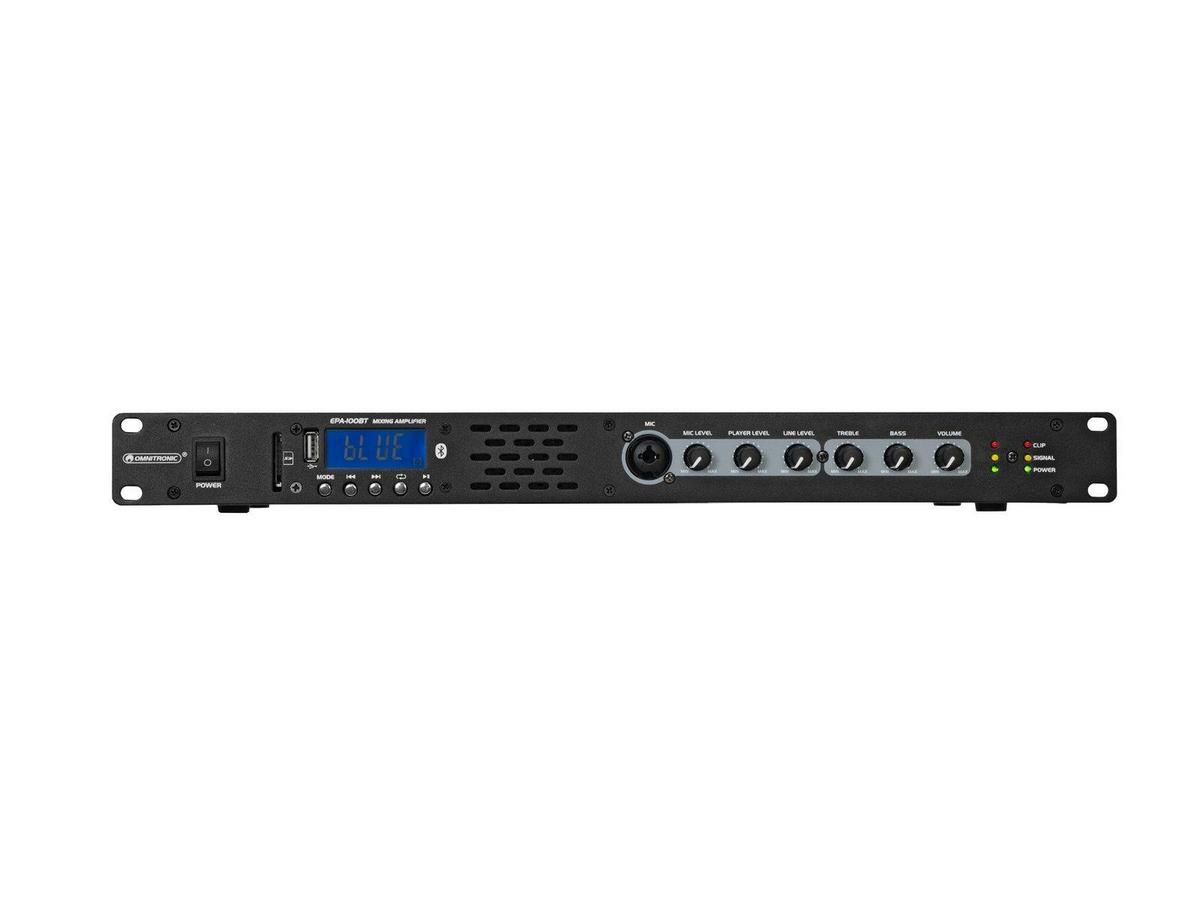

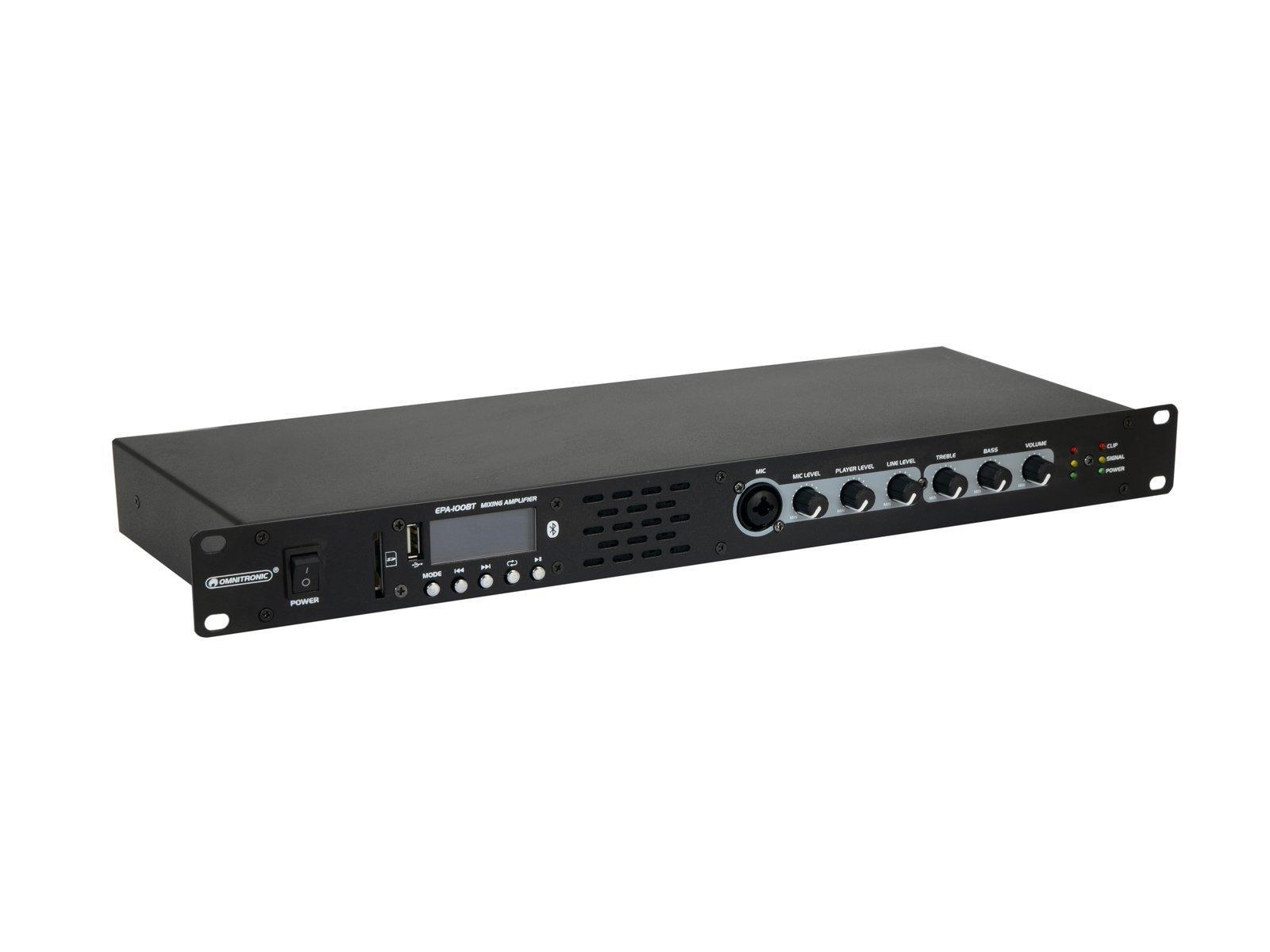

Constructed with a robust 19-inch, 1U steel chassis, the EPA-100BT ensures durability and reliability for rack-mounted setups. The front panel features an intuitive layout with a blue backlit monochrome LCD display, providing clear visibility of settings and statuses. Efficient Class D circuitry contributes to its lightweight design, while an integrated cooling fan maintains optimal operating temperatures during prolonged use.
| Specification | Details |
|---|---|
| Power Supply | 100-240 V AC, 50/60 Hz |
| Power Consumption | 100 W |
| Output Power | 2 x 50 W RMS (4 ohms); 2 x 30 W RMS (8 ohms) |
| Frequency Range | 20 Hz - 20 kHz |
| Inputs | Line: 2 x 3-pin XLR, 1 x stereo RCA; Mic: 1 x 3-pin XLR/6.35mm jack combination socket |

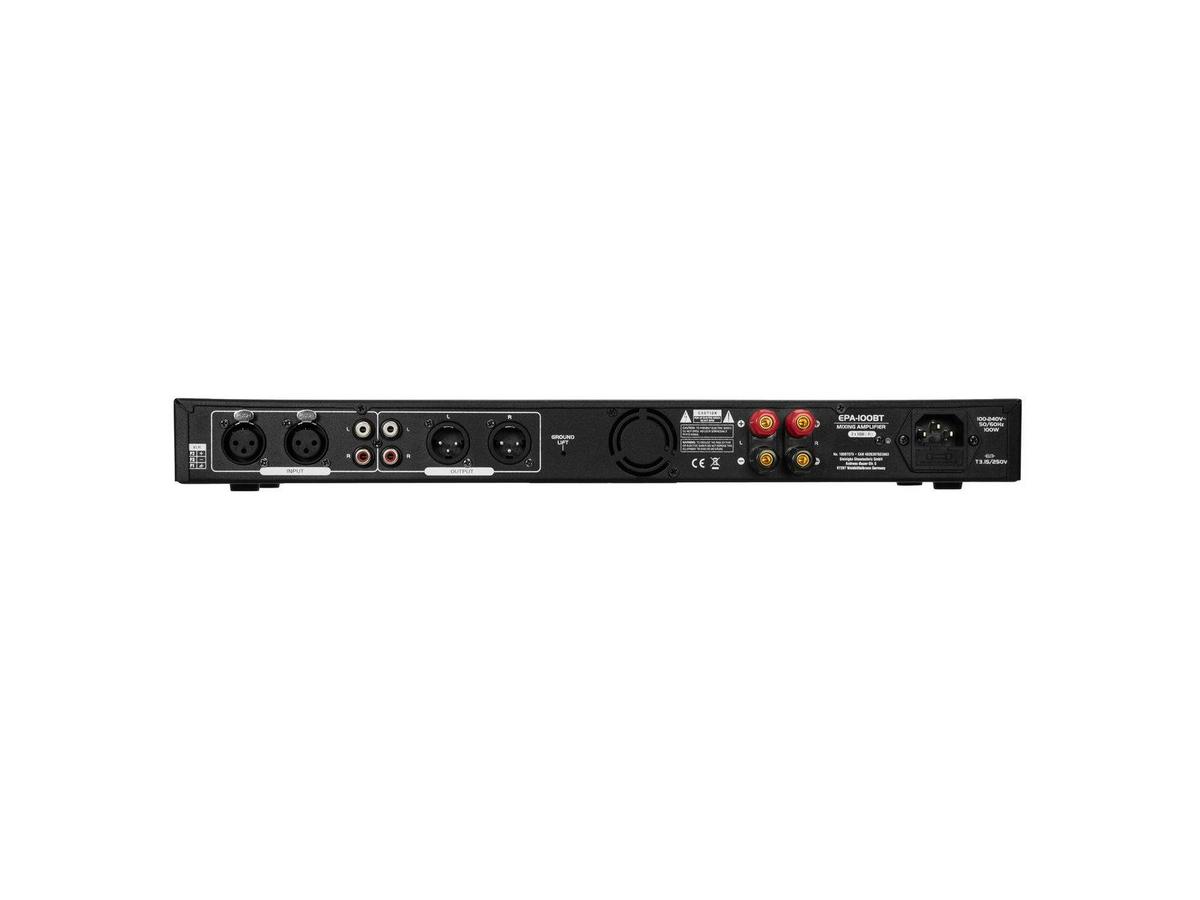

| Outputs | Line: 2 x 3-pin XLR, 1 x stereo RCA; Speaker: screw terminals for low-impedance speakers |
| Equalizer | 2-band tone control (bass and treble) |
| Audio Player | USB, SD, Bluetooth; supports MP3, WMA, WAV formats |
| Bluetooth Range | Up to 10 metres |
| Dimensions (W x H x D) | 482 x 44.5 x 210 mm |
| Weight | 2.59 kg |
The EPA-100BT delivers clear and reliable audio performance, suitable for both background music and public address applications. The efficient Class D amplifier design ensures low power consumption and minimal heat generation, contributing to its longevity and consistent performance in extended-use scenarios.
Q: Can the EPA-100BT stream music wirelessly from my smartphone?
A: Yes, the EPA-100BT features integrated Bluetooth audio streaming, allowing you to wirelessly play music from your smartphone, tablet, or any other Bluetooth-enabled device within a range of up to 10 metres.
Q: What types of audio files are supported by the built-in USB and SD card player?
A: The integrated audio player supports MP3, WMA, and WAV file formats, providing flexibility in media playback options.
Q: Is this amplifier suitable for continuous operation in commercial venues?
A: Absolutely. Its efficient Class D amplifier and active cooling system make it well-suited for continuous operation in environments such as restaurants, gyms, and shops.
Q: Does the EPA-100BT offer tone control features?
A: Yes, it includes 2-band EQ controls (bass and treble), giving you the ability to adjust the output sound to fit your acoustic space.
Q: What are the speaker connection options?
A: The unit provides screw terminals for connecting low-impedance speakers (4-8 ohms), ideal for fixed installations.
