PA-2420Z 20-Zone PA Mixing Amplifier 240W RMS

#17.6240

£699.00 inc vat
£582.50 ex vat
delivery time Want it Tuesday, 24th Sep?
Order within -:- and choose next-day delivery

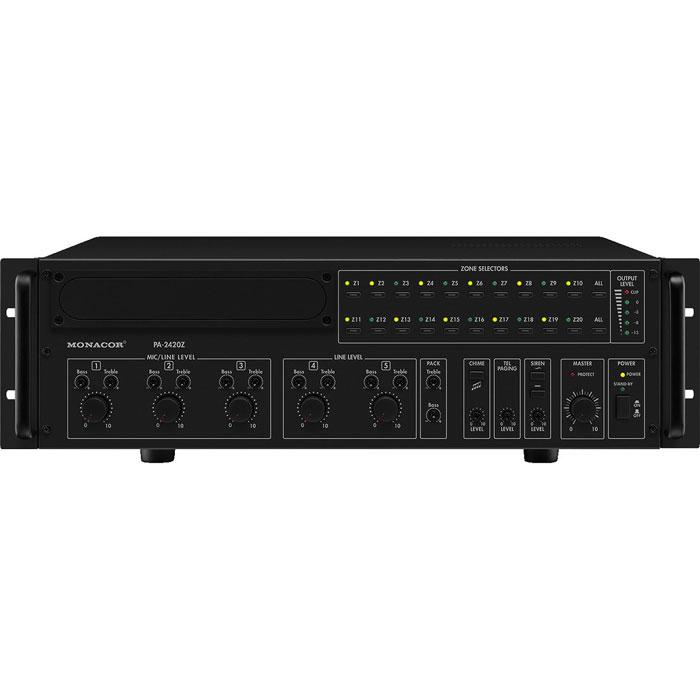

PA-2420Z 20-Zone PA Mixing Amplifier 240W RMS

20 Zone Mixing Amplifier from Monacor, each zone can be individually switched on or off to give great control over zones. 3 Inputs for line or microphone, 2 Inputs for stereo line via RCA jacks. Great Amplifier ideal for large pub or restaurant areas where you need control.

Features:

  • 1 x 240 W
  • 20 zones, can be switched individually
  • 3 inputs microphone/line via comb. jacks
  • 2 inputs stereo line via RCA jacks
  • Chime, continuous sound and wailing sound, automatic mute, 2-tone chime or 4-tone chime (selectable)
  • Bass, treble and master controls, LEDs for indicating signal/clip, regulated fan
  • Insertions for various functions are available at option
  • Phantom power for electret microphones
  • Connection for up to 3 zone paging microphones PA-2400RC
  • Connection for up to 3 push-to-talk microphones PA-4300PTT
  • Mains operation and 24 V emergency power operation
  • Removable mounting brackets

Specifications:

  • Channels - 5
  • Zones - 20
  • Power rating - 240 W
  • Power rating at 100 V - 240 W
  • Peak music power output (PMAX) - 290 W
  • Inputs - 2.5 mV/5 kΩ, 0.3 V/5 kΩ (mic/line 1-3), 0.3 V/15 kΩ (line 4-5), 0.775 V/100 kΩ (preamplifier)
  • Frequency range - 55-16000 Hz
  • Equalizer bass - ± 10 dB/100 Hz
  • Equalizer treble - ± 10 dB/10 kHz
  • S/N ratio - > 70 dB (mic), > 80 dB (line)
  • THD - < 1%
  • Power supply - ~ 230 V/50 Hz/750 VA, DC 24 V/17 A
  • Mains voltage - ~230 V
  • Mains frequency - 50 Hz
  • Power consumption, operation - 750 VA
  • Alternative operating voltage - 24 V
  • Alternative power supply - 17 A
  • Admiss. ambient temp. - 0-40 °C
  • Dimensions - 482 x 133 x 352 mm, 3 RS
  • Width - 482 mm
  • Height - 133 mm
  • Depth - 352 mm
  • Rack spaces, RS - 3
  • Weight - 15 kg

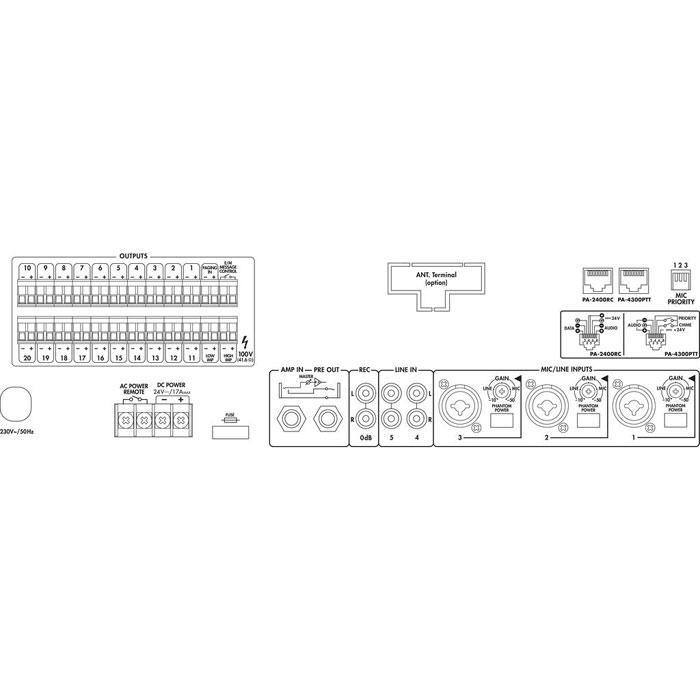

  • Connections 3 x comb. 6.3 mm/XLR (mic/line), 2 x RCA L/R (line), 1 x 6.3 mm jack (preamplifier input), 1 x RJ45 (push-to-talk mic), 1 x RJ45 (zone paging mic), screw terminals (speakers), 1 x RCA L/R (record output) 1 x 6.3 mm jack (preamplifier output).
