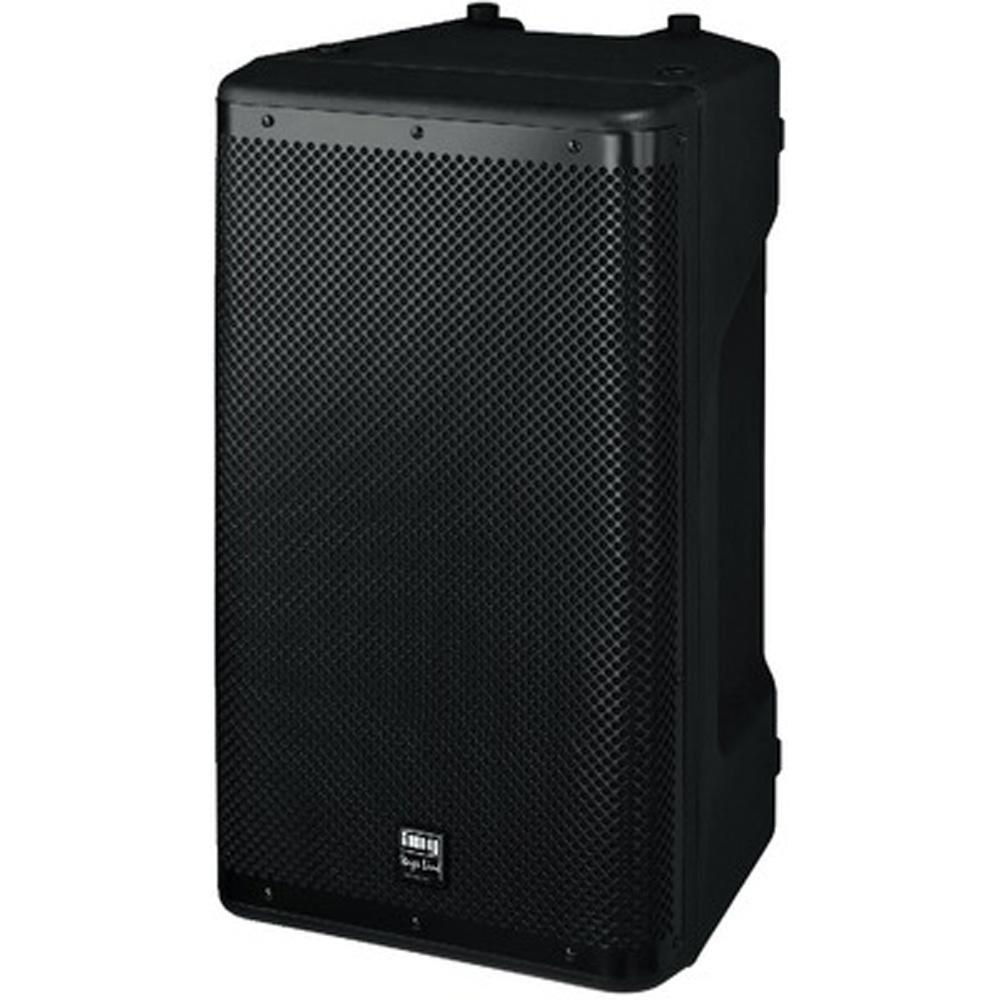

The IMG Stageline PAB-120WP/SW is a robust and weatherproof 2-way bass-reflex PA speaker system designed for both professional and leisure outdoor applications. With a total power rating of 120 W, it is ideally suited to environments such as fairgrounds, pedestrian areas, sports facilities, and other open-air venues where high-quality sound and durability are essential. Its IP45-rated construction ensures reliable performance even in challenging weather conditions.
Constructed from high-quality ABS material, the PAB-120WP/SW offers a sturdy and impact-resistant enclosure. The front grille is equipped with a water-repellent gauze, providing additional protection against moisture. Stainless steel metal parts enhance the system's resistance to corrosion, making it suitable for prolonged outdoor use. The inclusion of M10 threaded inserts at both the top and bottom facilitates secure suspended installations, while the integrated stand sleeve offers versatile mounting options. Additionally, the speaker is ball-resistant in accordance with DIN 18032, Part 3, ensuring durability in high-impact environments.
| Specification | Details |
|---|---|
| Transmission Method | 100 V |
| Total Power Rating | 120 W |
| Power Rating (RMS) | 120/60/30 W |
| Frequency Range | 42-20,000 Hz |
| System | 2-way bass-reflex |
| Bass Speaker | 30 cm (12") PA bass speaker |
| Tweeter | 25 mm (1") horn tweeter |
| Sensitivity | 98 dB/W/m |
| Max. Rated SPL | 119 dB |
| Radiation Angle | 100 degrees (H) / 60 degrees (V) |
| Housing Material | ABS |
| Colour | Black |
| Mounting | M10 threaded inserts, stand sleeve |
| Ball-resistant (DIN 18032) | Yes |
| Protection Class | IP45 |
Designed for rugged outdoor use, the PAB-120WP/SW combines excellent audio performance with durable construction. It delivers exceptional clarity and sound projection, even in noisy, open-air environments. Its weatherproof features and mounting versatility make it an excellent choice for fixed installations requiring long-term reliability with minimal maintenance.
Q: Can the PAB-120WP/SW be used in heavy rain?
A: Yes, its IP45 rating makes it suitable for use in outdoor areas where it may be exposed to rain and dust.
Q: Is this speaker compatible with 8-ohm systems?
A: No, it is designed specifically for 100 V line installations, ideal for distributed public address systems.
Q: How is this speaker mounted?
A: It features M10 threaded inserts for suspended mounting and a stand sleeve for pole mounting.
Q: What is the speaker made of?
A: It has an ABS plastic enclosure with a metal grille and stainless steel components for corrosion resistance.
Q: Is this suitable for sports halls or gymnasiums?
A: Absolutely, it is ball-resistant to DIN 18032, making it safe for use in high-impact areas like gymnasiums.
