Pioneer Sound System for Function Room

Overview

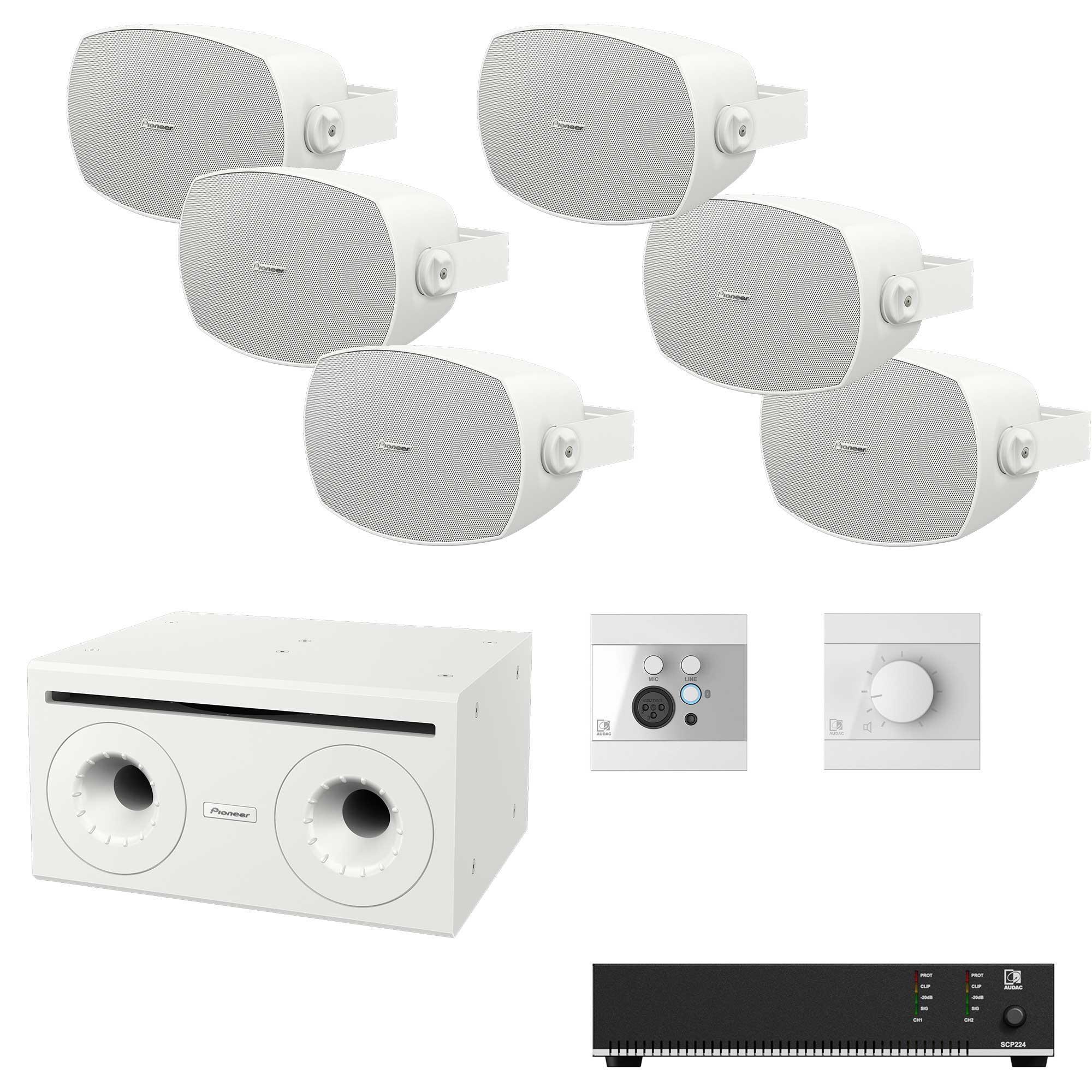

The Pioneer Sound System for Function Rooms is a comprehensive audio solution designed to deliver high-quality sound across various venues. This package includes six CM-S56T wall-mount speakers, one CM-510ST subwoofer, an Audac SCP224 power amplifier, Audac WP200 and WP225 wall panels, and 50 metres of LSZH cable, ensuring uniform audio coverage and robust bass response suitable for speeches, presentations, and background music.

Design and Build Quality

The CM-S56T wall-mount speakers feature a sleek, curved design that blends seamlessly with a variety of interior styles. Their robust construction ensures durability and longevity, with an IP54 rating for dust and water resistance. The CM-510ST subwoofer boasts a compact design, allowing for flexible installation. The Audac SCP224 amplifier offers a compact and lightweight design, while the WP200 and WP225 wall panels provide user-friendly interfaces for volume control and audio input selection.

Key Technologies and Features

Specifications

ComponentModelSpecifications
Wall-Mount Speakers (6 units) CM-S56T
  • Type: Two-way passive, reflex-loaded
  • Frequency Response: 80 Hz - 20 kHz
  • Power Handling (RMS/Program): 60 W / 120 W
  • Nominal Impedance: 8 Ω
  • Transformer Taps:
    • 70 V: 60 W / 30 W / 15 W / 7.5 W
    • 100 V: 60 W / 30 W / 15 W
  • Dispersion: 110 degrees H × 110 degrees V
  • Maximum SPL: 113 dB (peak)
  • Driver Configuration:
    • LF: 6" (152 mm) cone
    • HF: 1" (25 mm) silk dome tweeter
  • Connectors: Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-)
  • Dimensions (W x H x D): 214.1 x 332.3 x 183.5 mm
  • Weight: 5.1 kg per speaker
  • Environmental: IP54 rated
  • Color: White
Subwoofer (1 unit) CM-510ST
  • Type: Kelton method subwoofer
  • Frequency Response: 45 Hz - 150 Hz
  • Power Handling (RMS/Program): 200 W / 400 W
  • Nominal Impedance: 8 Ω
  • Transformer Taps:
    • 70 V: 200 W / 100 W / 50 W / 25 W
    • 100 V: 200 W / 100 W / 50 W
  • Maximum SPL: 124 dB (peak)
  • Driver Configuration: 10" (250 mm) cone
  • Connectors: Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-)
  • Dimensions (W x H x D): 260.0 x 500.0 x 400.0 mm
  • Weight: 17.9 kg
  • Color: White
Power Amplifier (1 unit) SCP224
  • Type: Compact dual-channel Class-D power amplifier
  • Power Output:
    • 2 x 240 W @ 4 Ohm
    • 1 x 480 W @ 70/100V bridge mode
  • Frequency Response: 20 Hz - 20 kHz (±3 dB)
  • THD+N (@ 1 kHz): 0.05%
  • Signal-to-Noise Ratio: > 90 dB
  • Inputs: Balanced stereo line inputs with 3-pin terminal block connections
  • Outputs: 4-pin Euro Terminal Block
  • Cooling: Active optimal cooling design
  • Dimensions (W x H x D): 217.5 x 44 x 300 mm
  • Weight: 3.45 kg
Remote Volume Controller (1 unit) WP200
  • Type: Remote volume controller
  • Control: Stepless analogue voltage regulation
  • Compatibility: Compatible with various products working with an analogue input voltage
  • Front Panel: Hardened glass finish
  • Dimensions (W x H): 80 x 80 mm
  • Installation: Compatible with standard EU style wall boxes
Universal Wall Panel (1 unit) WP225
  • Type: Universal wall panel with microphone, line, and Bluetooth inputs
  • Inputs:
    • 3.5 mm jack stereo line input
    • XLR microphone input
    • Bluetooth receiver (Version 5.0)
  • Control:
    • Individual input level control for Mic & Line
    • Bluetooth pairing button with LED
    • Phantom power (DIP switch on rear)
    • Low-cut (Mic) enable/disable (DIP switch on rear)
    • Output level +12 dBV enable/disable (DIP switch on rear)
    • Bluetooth enable/disable (DIP switch on rear)
    • Mono/Stereo (DIP switch on rear)
  • Connections:
    • 3.5 mm jack input (Stereo line input)
    • Female XLR input connector (Microphone input)
    • 6-pin terminal block input connection on rear (duplicated line & mic inputs)
    • 8-pin terminal block output connection
