Use the customized imaging toggle to easily optimize surround effects in any room setup; choose the “Solid” setting for more localized effects, and the “Diffuse” setting for greater rear channel ambience.

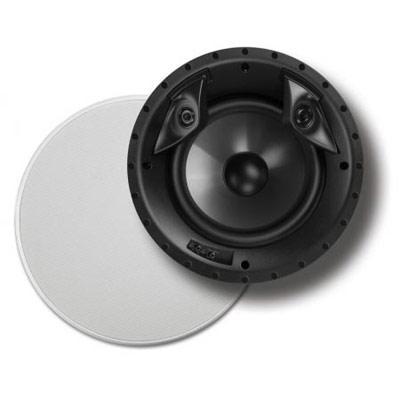

Vanishing Series built-in speakers feature our exclusive wafer-thin Sheer-Grille™, a magnetically-secured grille that protrudes only 7mm from its surroundings. Sheer-Grilles have nearly transparent, ultra-small perfs, and are acoustically inert, for dynamic, unimpeded sound and more uniform coverage, even in larger rooms.
Painted to match your décor, Vanishing Series built-in speakers are virtually indistinguishable from their surroundings.
Dual offset ring radiator tweeters extend top-end response for incredible details and realistic imaging.
Vanishing Series LS speakers are timbre-matched to Polk LSi speakers to insure utterly seamless blending from speaker to speaker in systems that combine traditional and built-in speakers.
Specifications:
- Driver Complement:
- Tweeter
- Quantity2
- Diameter3/4' (1.91cm)
- TypeDynamic Balance ring radiator tweeter
- Mid / Woofer
- Quantity1
- Diameter8' (20.32cm)
- TypeDynamic Balance aerated polypropylene cone and rubber surround
- Electrical:
- Total Frequency Response30Hz-33kHz
- Upper -3dB Limit29kHZ kHz
- Lower -3dB Limit45 Hz
- Nominal Impedance8 ohms
- Efficiency88 dB
- Recommended Amplifier Power10-125 watts per channel
- InputsGold-plated spring-loaded posts
- Dimensions:
- Cut-Out Diameter9 3/8' (23.81cm)
- Overall Diameter11 1/8' (28.26cm)
- Mounting Depth (includes 1/2' drywall)4 5/8' (11.75cm)
- Pre-Construction BracketPB LC80i
- Overall Depth5 1/8' (13.02cm)
- Product Weight (each)4.1 pounds (1.9 KG)
- Shipping:
- Unit of Measurepair
- Total Shipping Weight11.5 pounds (5.2 KG)
- Warranty:
- Speaker Warranty5 Years
