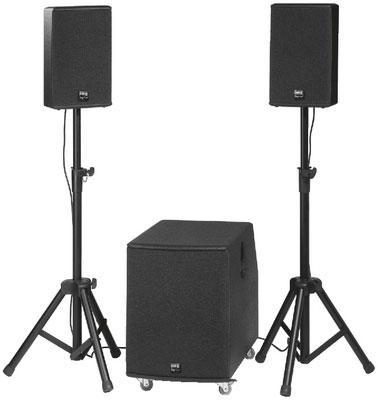

PROTON-15 Compact Professional Active PA System 1,500WMAX


£1345.00 inc vat
£1120.83 ex vat

The PROTON systems from IMG Stage Line set the limit which can be achieved regarding mobility, power capability and sound. The active 3-channel systems are equipped with high-efficiency speakers which allow highest volumes at an absolutely professional level in cabinets as small as possible. The special highlight: the subwoofer serves as a case for the satellite speakers and cables during transport.

This subwoofer/satellite speaker system with integrated 3-channel amplifier, active crossover network and limiter (with various LED indications) is even suitable for larger events with hundreds of guests due to the very high power reserves and the perfect speaker technology but at the same time still perfectly mobile. During transport, the mid-high range speaker systems can be inserted into the subwoofer fitted with castors which are partly equipped with brakes. The high-quality workmanship of the black lacquered MDF cabinets impresses by its appealing design just as well as by its stability and functionality (handles and stand sleeves are perfectly integrated). The subwoofer is equipped with a top-class 38cm (15') bass speaker. A 25cm bass-midrange speaker of extra high quality and a 25 mm horn tweeter (1') are used in the extra compact satellite speakers. The amplifier additionally features a temperature-controlled fan, balanced and unbalanced inputs and par. outputs, stereo/mono selector switch, a surround effect circuit for an enhanced auditory impression, a master volume control and a control for balancing the sound between subwoofer and top parts. Both the SPEAKON cables from the active subwoofer to the satellite speakers and a protective cover for the complete system are included.

  • Max. output power - 1,500WMAX
  • Power rating - 650WRMS (SUB), 2 x 225WRMS (SAT)
  • Speakers - 1 x 38cm bass speaker (15'), 2 x 25cm midrange speaker (10'), 2 x 25mm horn tweeter (1')
  • Max. rated SPL (system) - 125dB
  • Frequency range - 33-20,000Hz
  • Balanced - comb. XLR jack, 370mV-7V
  • Unbalanced - RCA, 170mV-7V
  • Line (par. out) - XLR (bal.) + RCA (unbal.)
  • Satellite speakers (>150Hz) - NEUTRIK SPEAKON, 8Ω
  • S/N ratio> - 75dB
  • Power supply - 230V/50Hz/2,100VA
  • Admiss. ambient temp. - 0-40 C
  • Dimensions - Subwoofer (WxHxD)445x610x720mm, Satellite speakers (WxHxD)275x440x200mm
  • Weight - Subwoofer 46kg, Satellite speaker 9.5kg, System - 65kg
