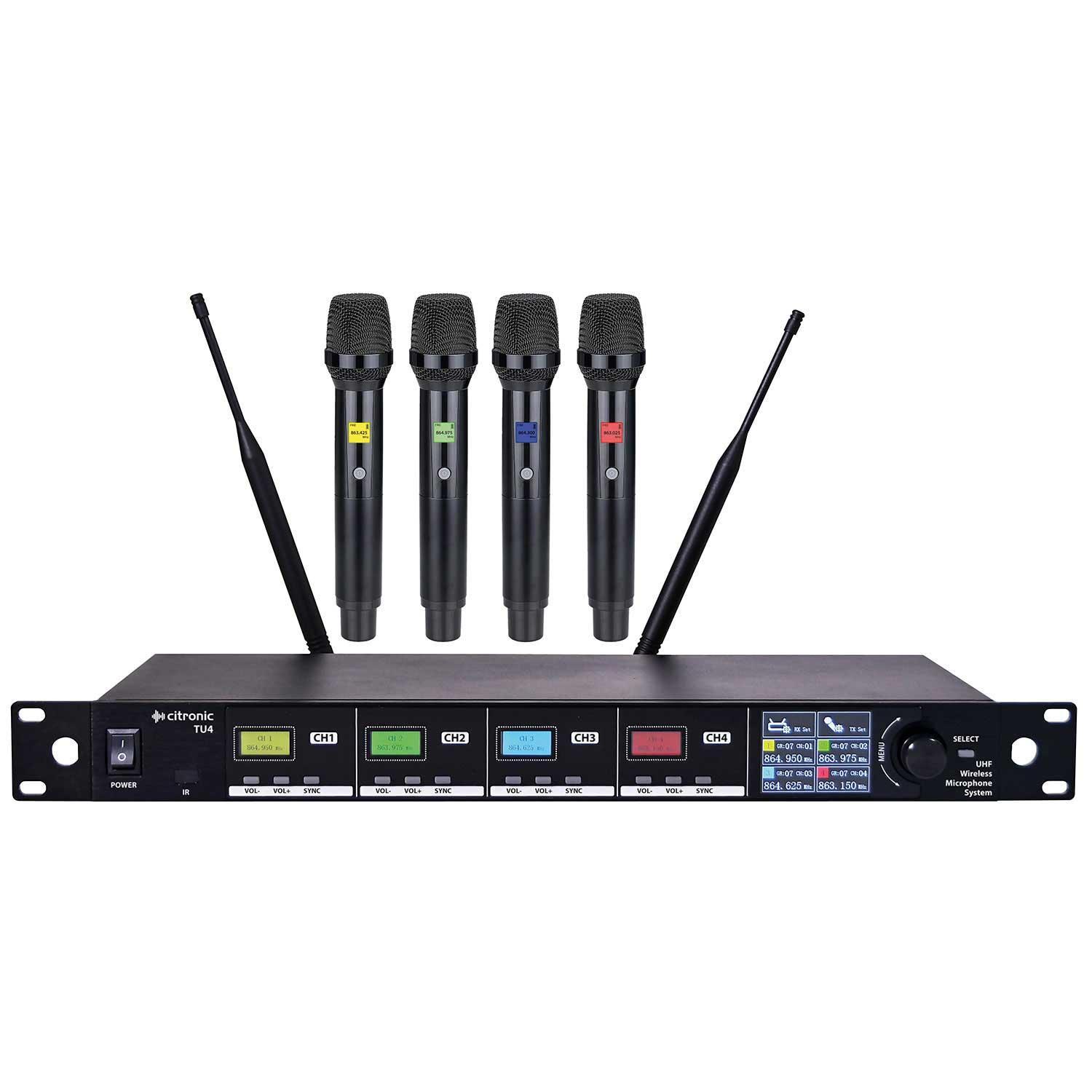

The Quad Handheld UHF Wireless Microphone System is a professional true diversity wireless solution designed for live performances, conferences, houses of worship and theatre productions. Offering four independently programmable channels, the system delivers reliable wireless performance with licence-free operation across both Channel 70 and Channel 65 Duplex Gap frequencies in the UK.

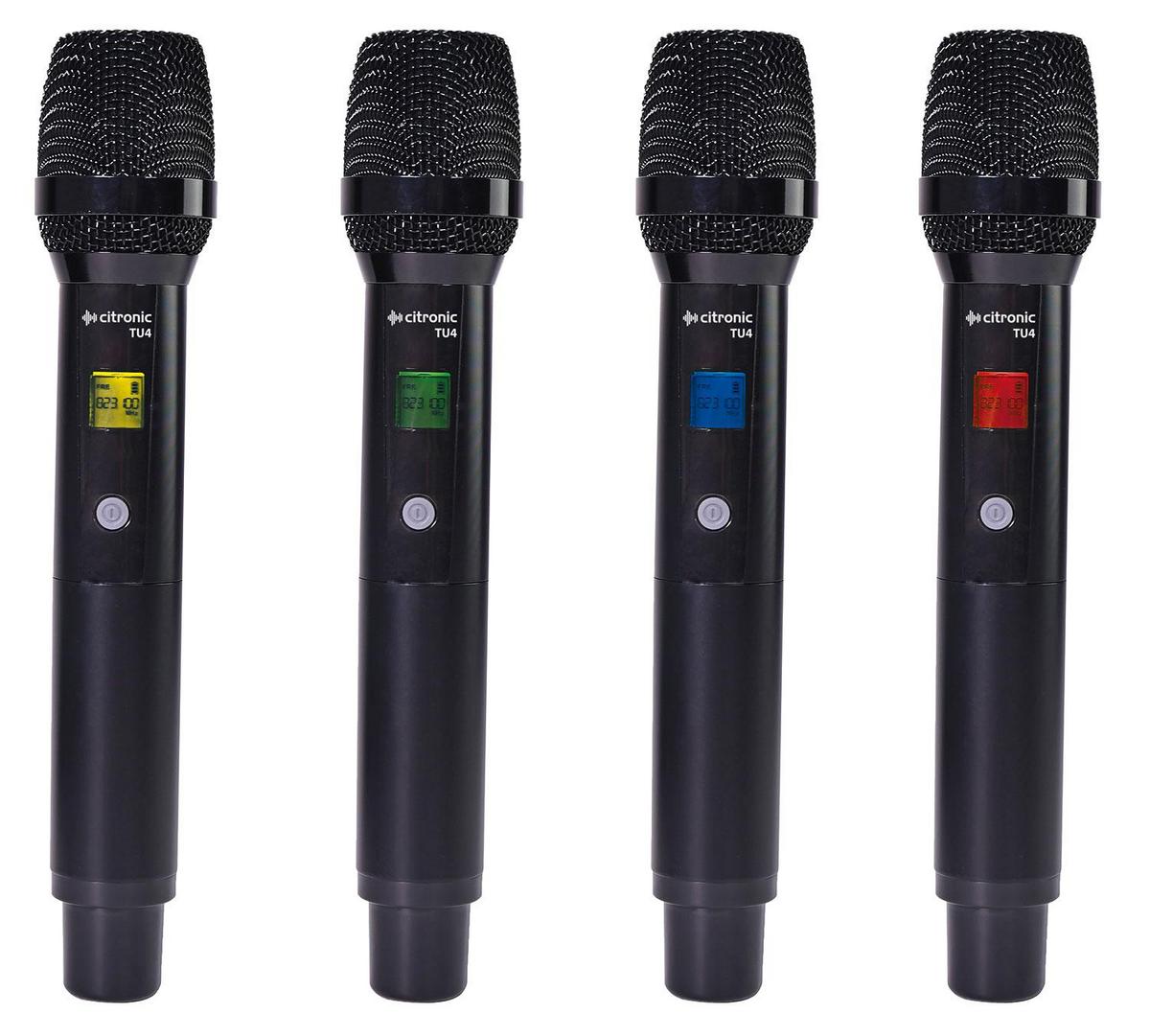

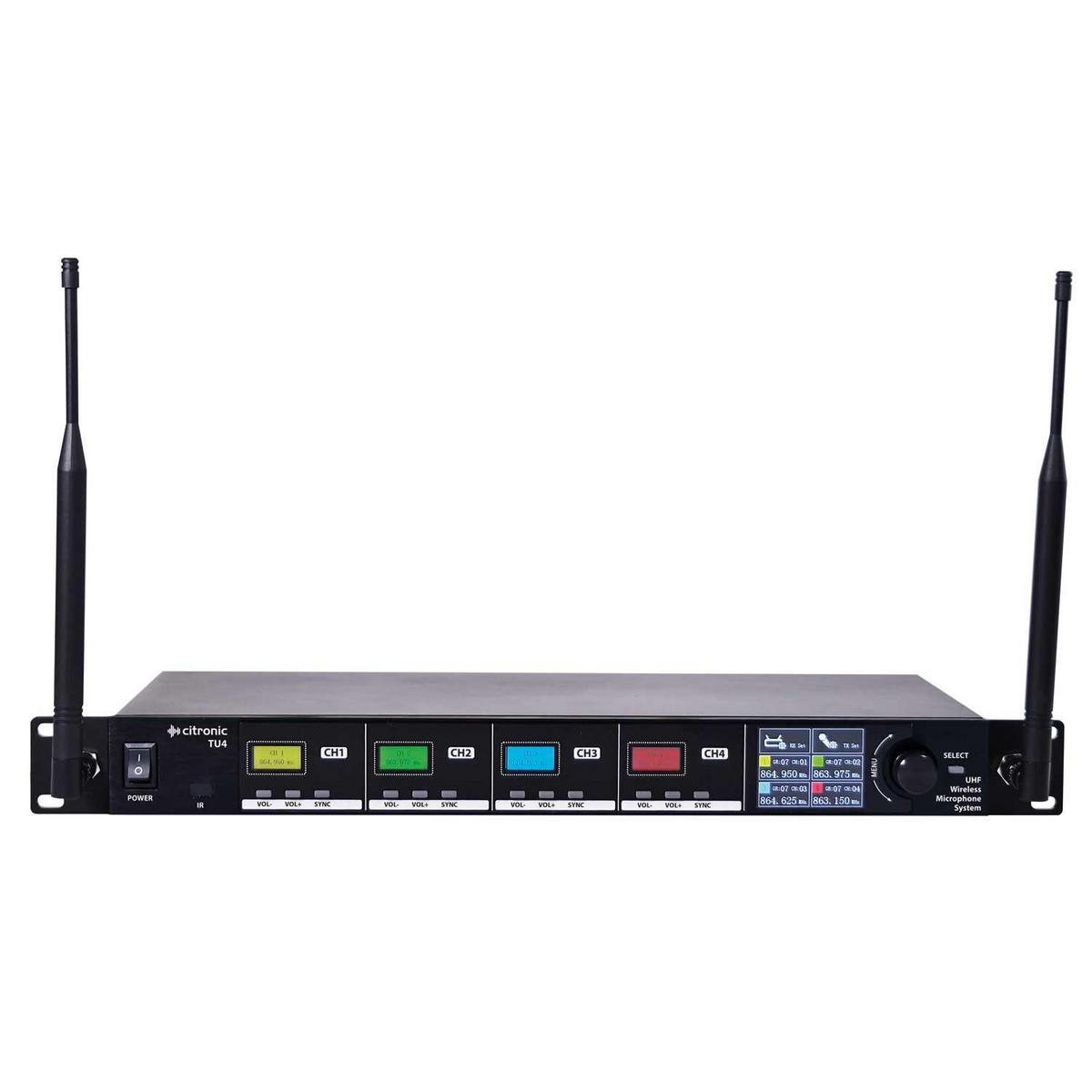

Each handheld transmitter features a durable all-metal construction with a high-quality dynamic microphone capsule, while the receiver provides automatic frequency scanning, individual EQ settings and flexible output options for professional installations and live sound applications.
Suitable for live music venues, conference rooms, schools, churches, theatres, event spaces, presentations and professional vocal performances requiring multiple wireless microphones.
| System Type | Quad True Diversity UHF Wireless Microphone System |
|---|---|
| Microphones Included | 4 x Handheld Wireless Transmitters |
| Carrier Frequencies | 823–832MHz / 863–865MHz |
| Licence-Free Operation | 823–832MHz (Channel 65 Duplex Gap) and 863–865MHz (Channel 70) in the UK |
| Wireless Range | Up to 60 metres |
| Frequency Management | Auto Frequency Sweep with IR Sync |
| Equaliser | Independent 7-band EQ per Channel |

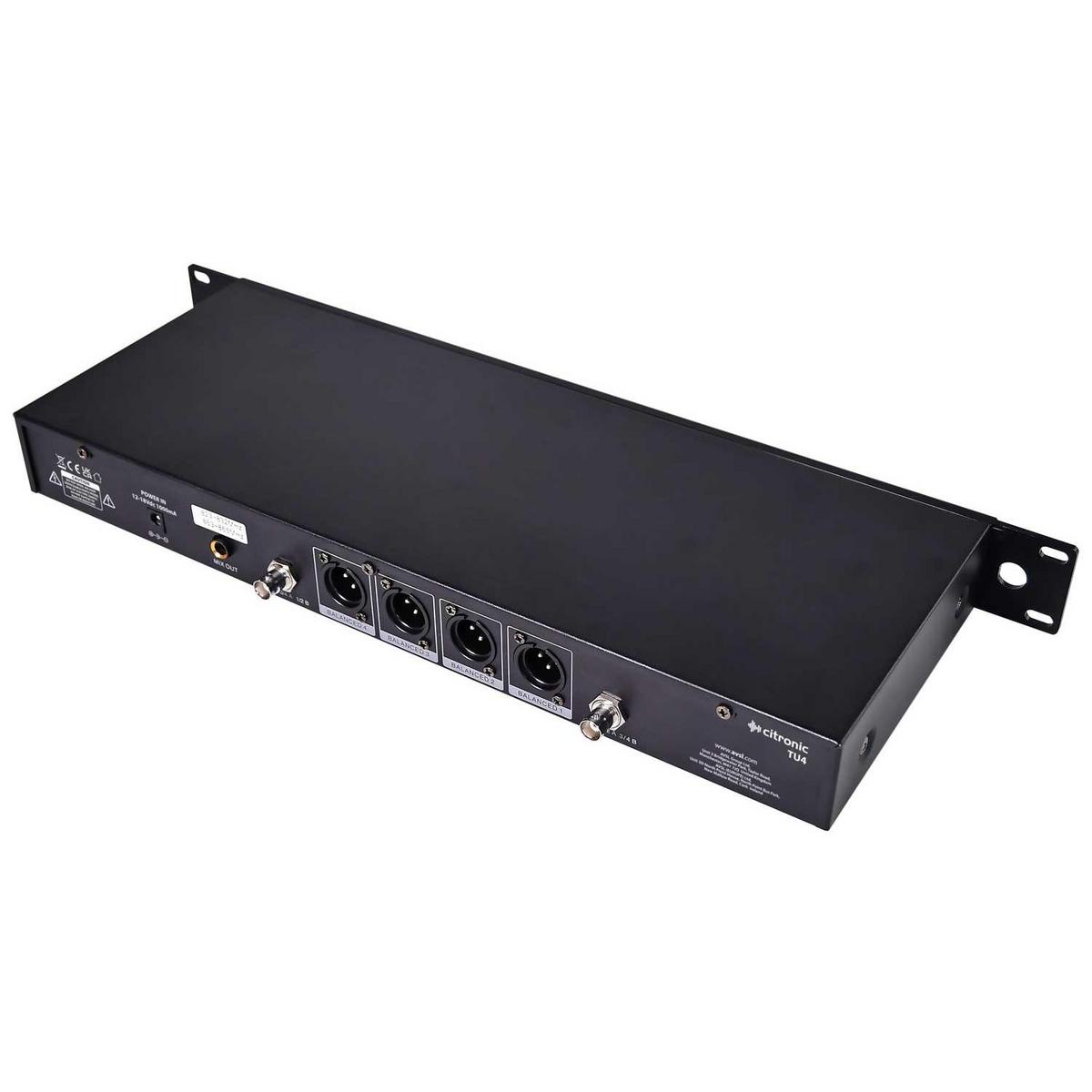

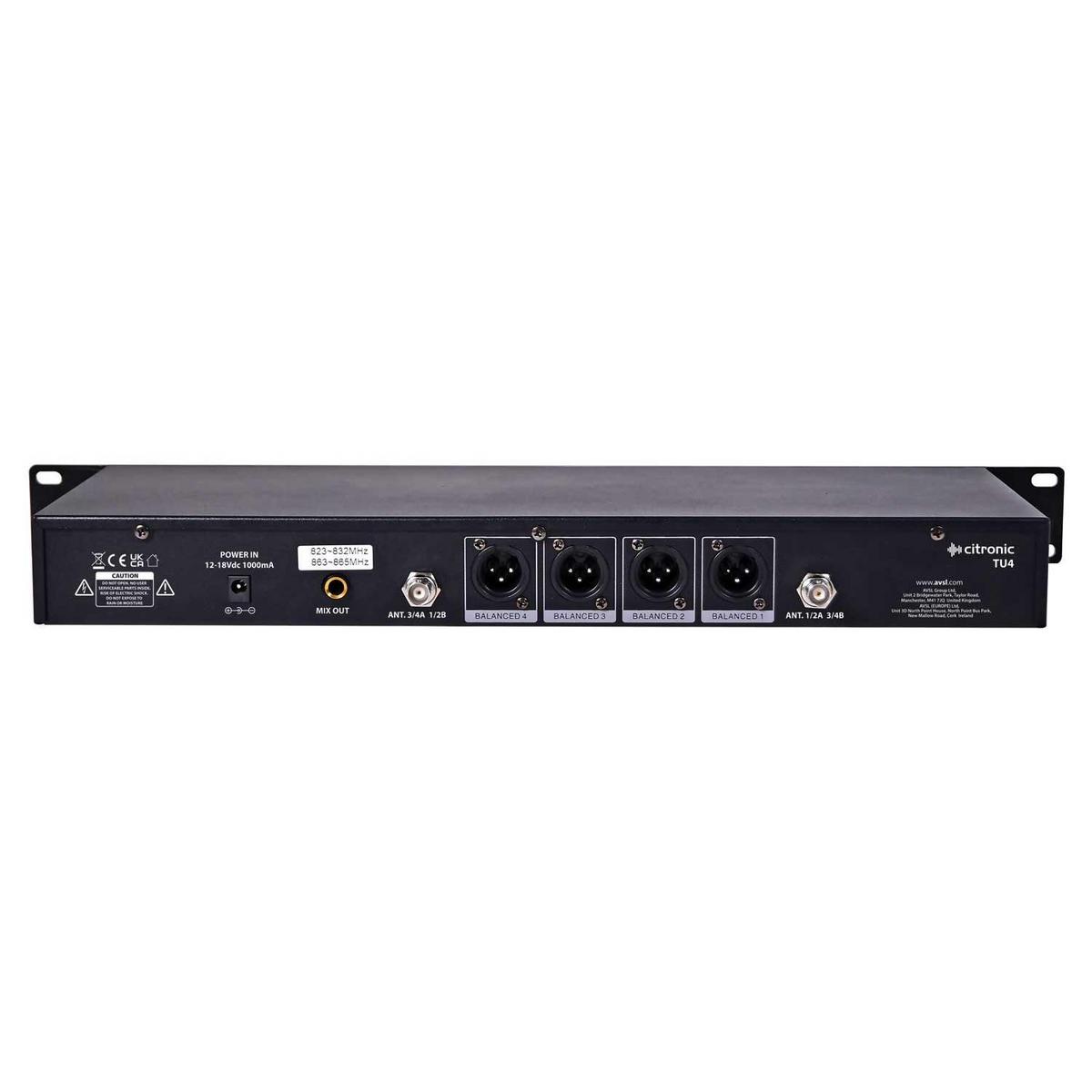

| Outputs | Individual XLR Outputs & Mixed Jack Output |

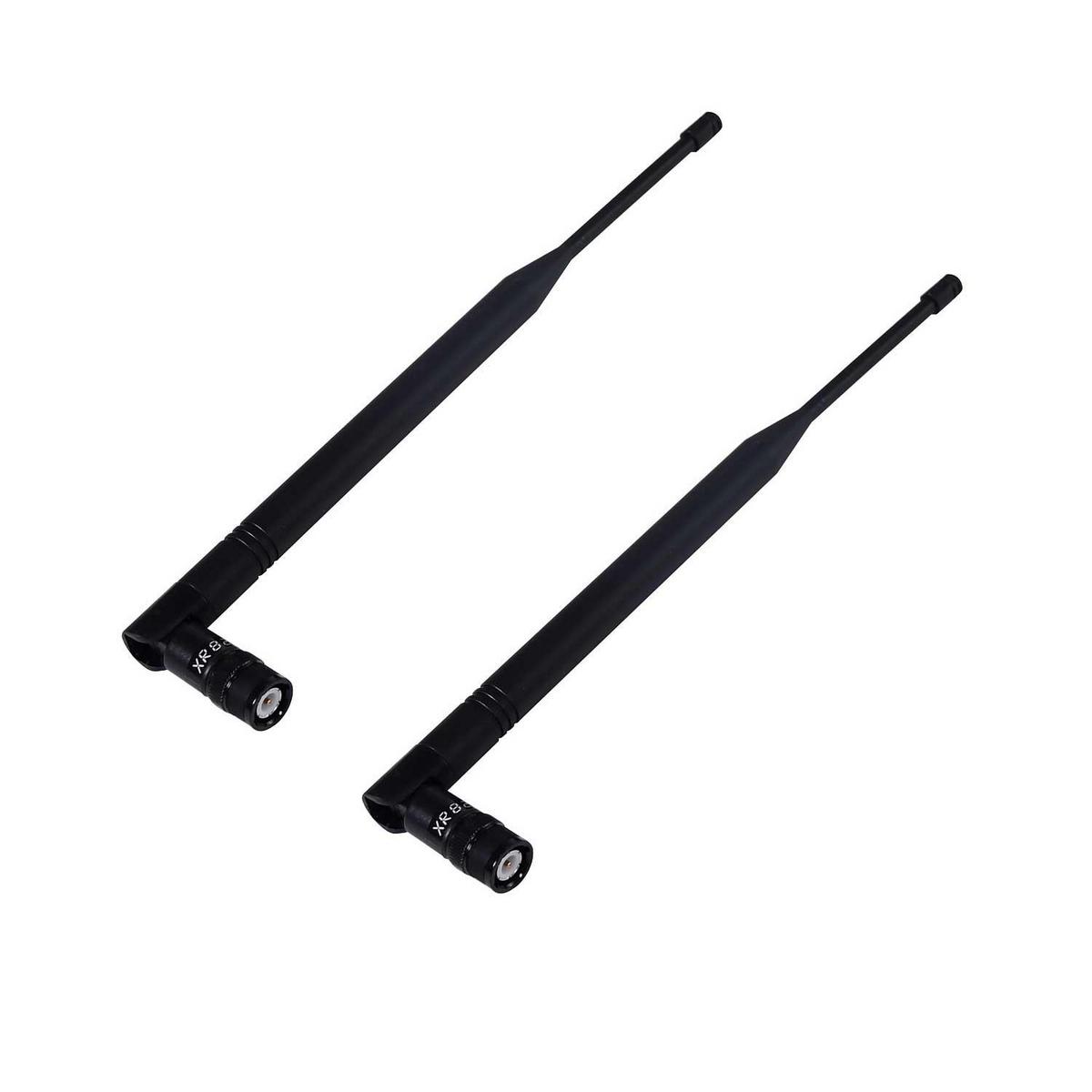

| Antenna Connections | 2 x BNC |
| Receiver Display | Full Colour TFT |
| Power Supply | 12–18V DC, 1000mA |
| Receiver Dimensions | 482 x 185 x 44mm (1U) |
| Receiver Weight | 1.513kg |
| Handheld Dimensions | 258 x 47mm |
| Handheld Weight | 354g (without batteries) |
| Battery Requirement | 2 x AA Batteries per Transmitter |
| Carton Weight | 11.40kg |
Yes. The system operates on both the 863–865MHz (Channel 70) and 823–832MHz (Channel 65 Duplex Gap) UHF bands, both of which are licence-free for use in the UK.
This version supports four wireless handheld microphones operating simultaneously on independent channels.
Yes. An automatic frequency sweep function scans for available channels, while IR synchronisation quickly programs each transmitter.
Yes. Each channel features its own 7-band EQ, programmable settings and a dedicated balanced XLR output.
Yes. The receiver occupies a standard 1U 19-inch rack space and includes front antenna extension cables for convenient rack mounting.
