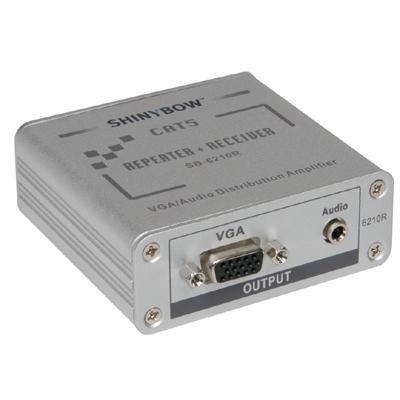

SB-6210R Cat 5 Repeater & Receiver With Single VGA/Audio Output

#128.611UK

£168.00 inc vat
£140.00 ex vat
delivery time Want it tomorrow?
Order within -:- and choose next-day delivery

SB-6210R Cat 5 Repeater & Receiver With Single VGA/Audio Output

The SB-6210R Cat 5 Repeater & Receiver With Single VGA/Audio Output is a compact VGA/Audio distribution unit with facility to feed a RGBHV signal to a VGA based monitor and a loop output to drive the signal to another repeater/receiver unit.

Features:

  • Easy to install and highly reliable
  • CAT 5 (RJ-45) input socket
  • CAT 5 (RJ-45) loop output to feed another receiver/repeater
  • VGA (HD-15) and 3.5mm stereo audio output
  • Brushed aluminium case with mounting brackets
  • LED power ON indicator
  • Supplied with mains adaptor

Technical specification:

  • Power supply: 12Vdc, 300mA
  • Audio Input Level (max): 3.1V (p-p)
  • Distance max. : SXGA (1280x1024): 150m
  • Distance max. : VGA (640x480): 330m
  • Distance max. : XGA (1024x768): 200m
  • Distortion1: V (p-p) @ 5MHz
  • Video bandwidth: 270MHz 1090V/µs @ G=+1
  • Video input: 1.45V (p-p) max.
  • Dimensions: 78.5 x 66 x 29mm
  • Weight: 176g
