SB-6310R Cat 5 Repeater & Receiver With Dual VGA/Audio Outputs
#128.614UK
SB-6310R Cat 5 Repeater & Receiver With Dual VGA/Audio Outputs

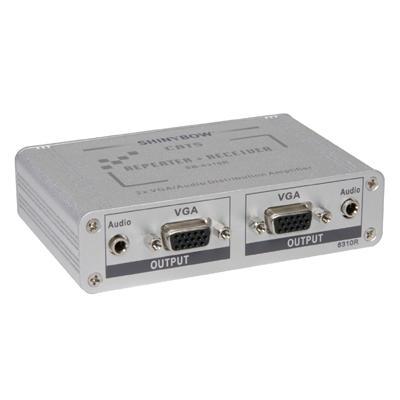

The SB-6310R Cat 5 Repeater & Receiver With Dual VGA/Audio Outputs is a compact VGA/Audio distribution unit to feed RGBHV signal to two monitors and a loop output to extend your system if required. It's easy to install and use and comes with a mains adaptor.
Features:
- Easy to install and use
- CAT 5 (RJ-45) input socket
- Dual VGA (HD-15) & 3.5mm outputs
- CAT 5 (RJ-45) loop output to extend installation
- Brushed aluminium case with mounting brackets
- LED power ON indicator
- Supplied with mains adaptor
Technical specification:
- Power supply: 12Vdc, 300mA
- Audio Input Level (max): 3.1V (p-p)
- Distance max. : SXGA (1280x1024): 150m
- Distance max. : VGA (640x480): 330m
- Distance max. : XGA (1024x768): 200m
- Distortion: 1V (p-p) @ 5MHz
- Video input: 1.45V (p-p) max.
- Dimensions1: 12.5 x 78 x 29mm
- Weight: 225g
Item has been discontinued
