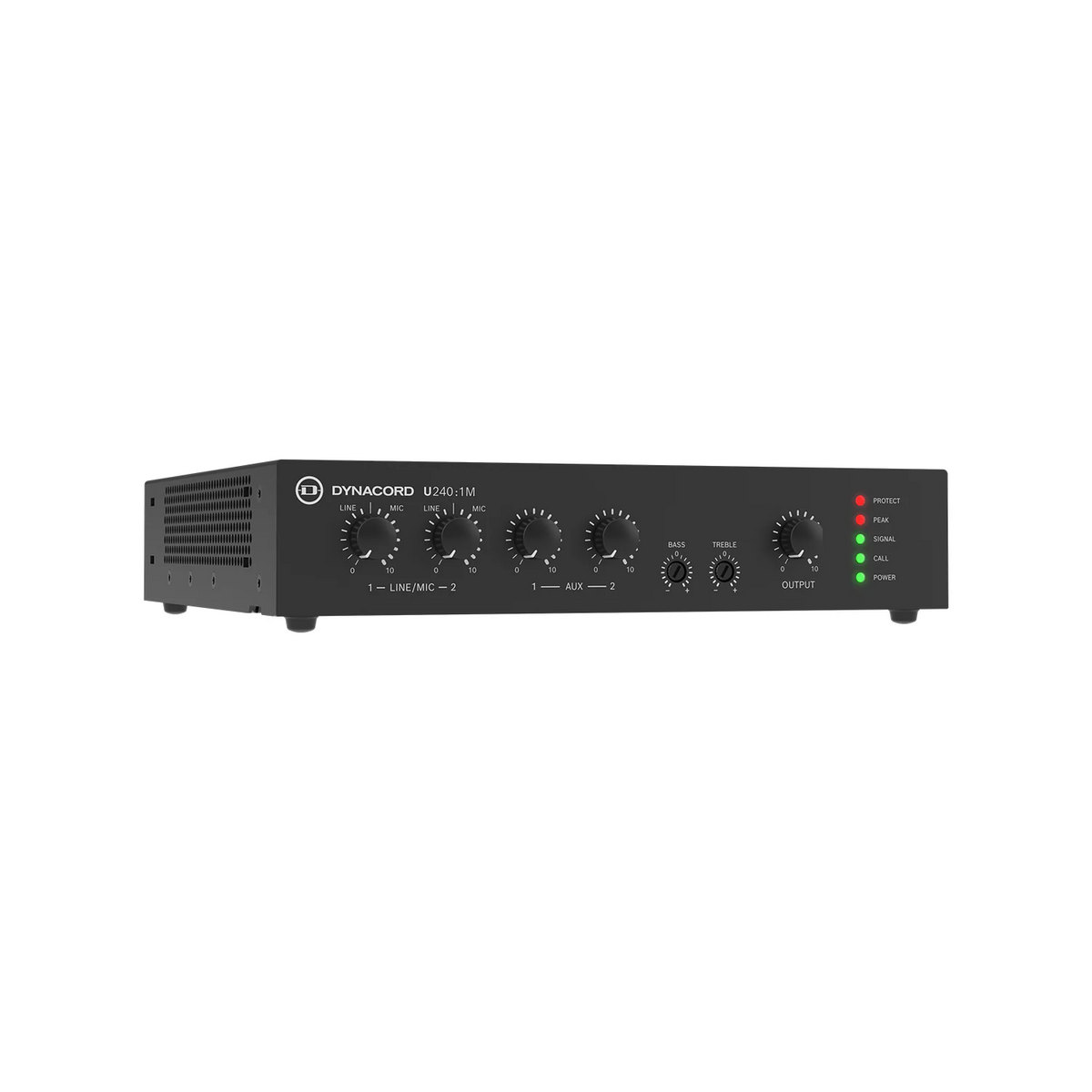

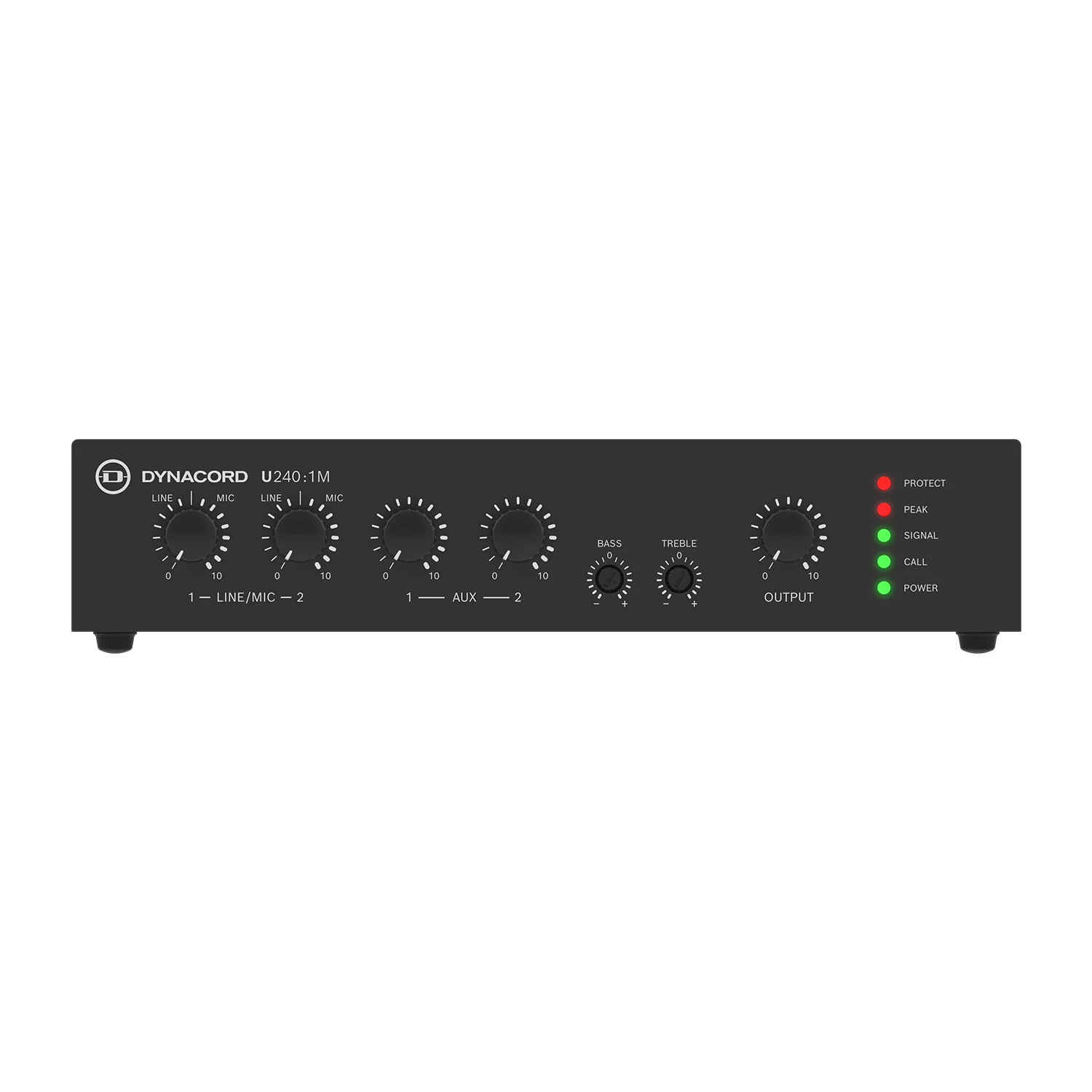

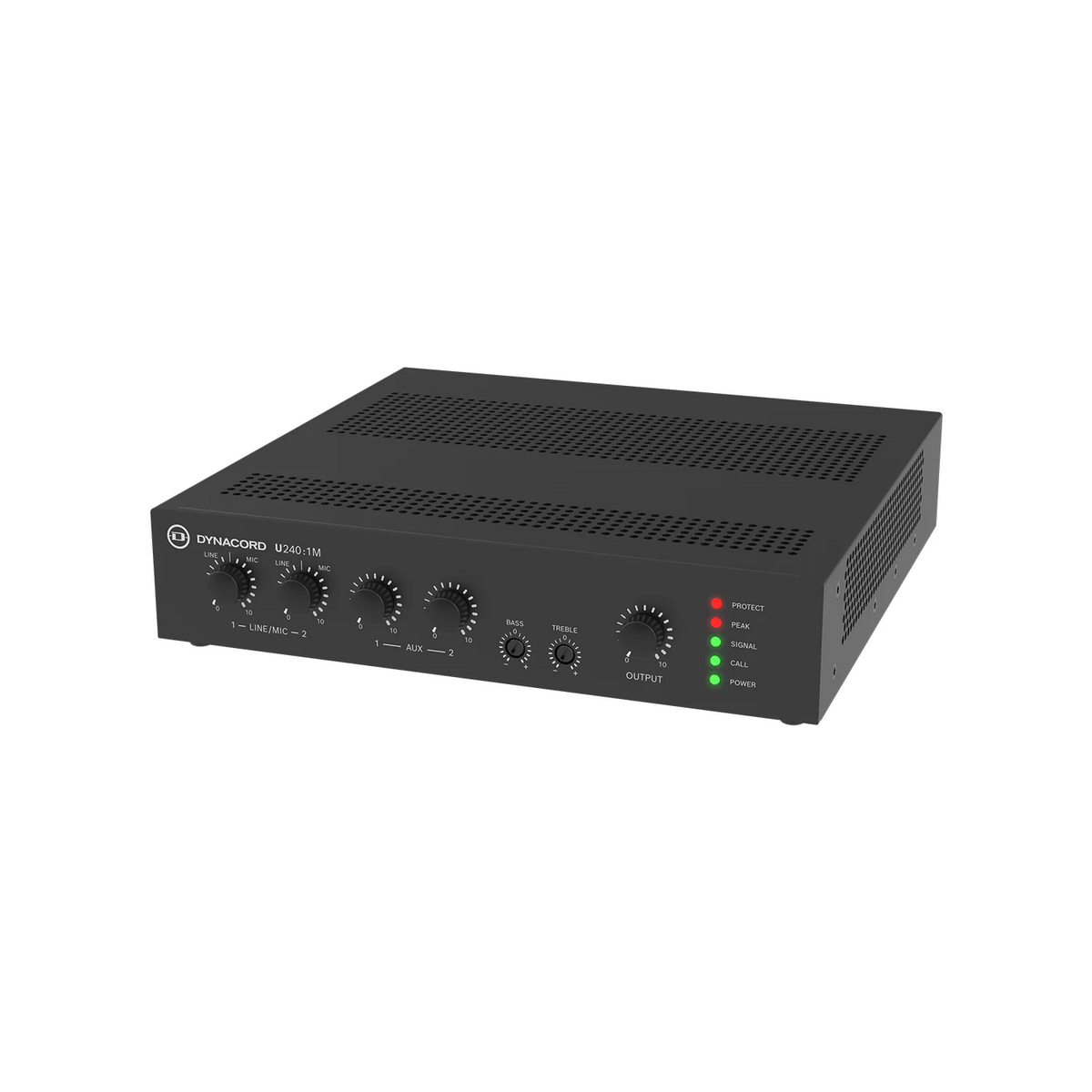

Introducing the U240:1M — a 240-watt mixer amplifier engineered to meet the demands of small to medium-sized installations where exceptional performance, superior audio clarity, and long-term reliability are key. Ideal for background music, public address, and voice announcement systems, it is perfectly suited to bars, restaurants, retail outlets, schools, houses of worship, museums, transport hubs, and conference centres.

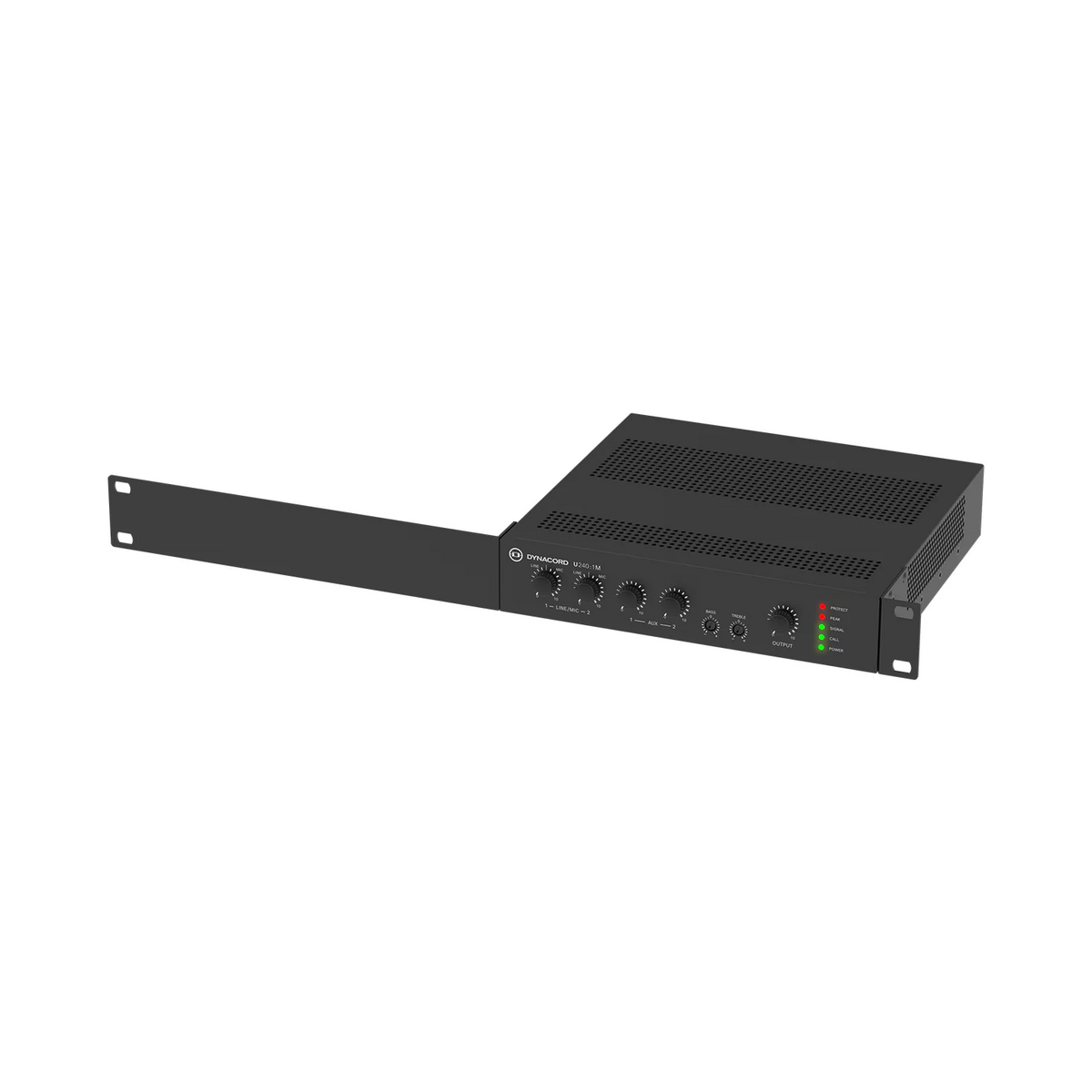

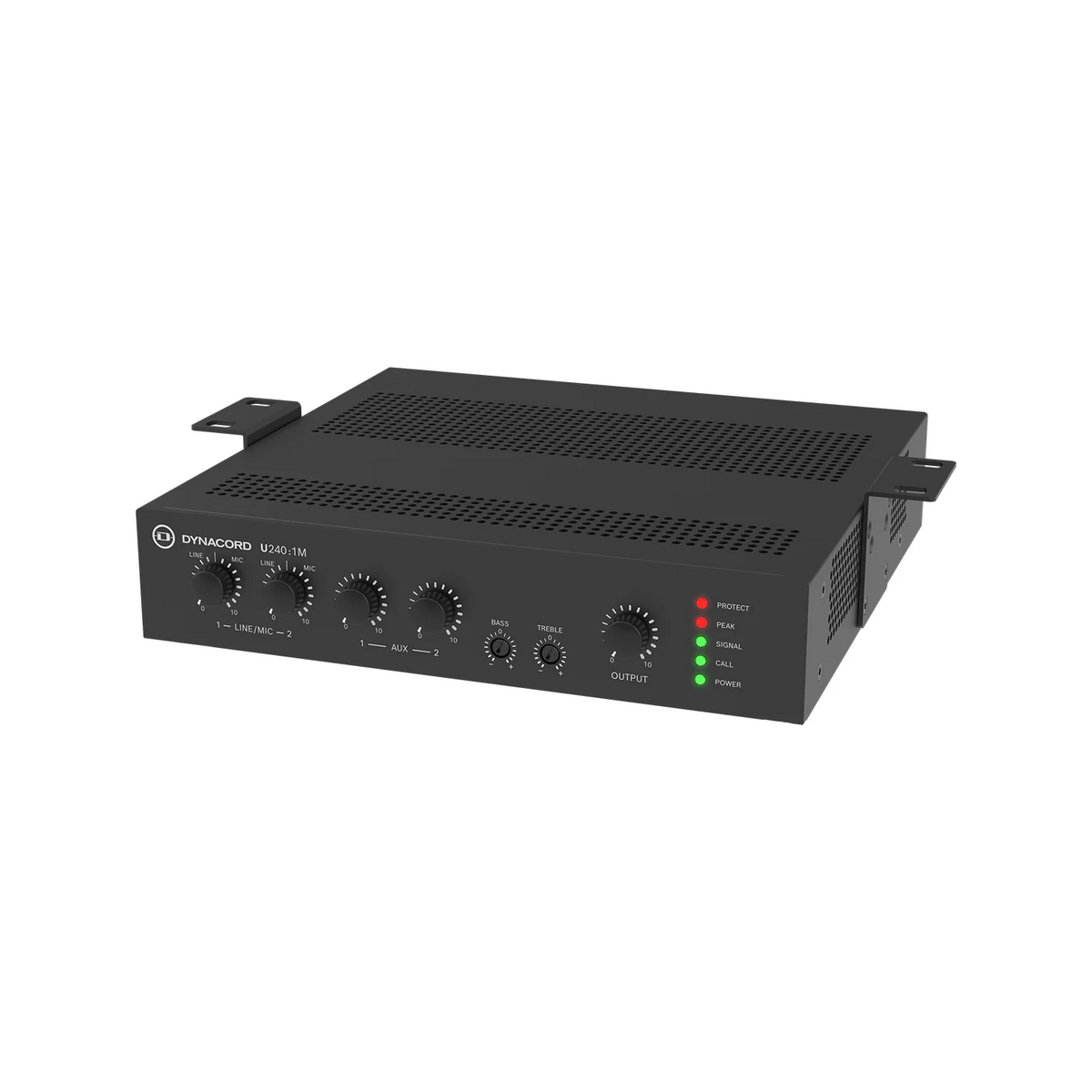

With a space-saving half-rack design, the U240:1M offers exceptional flexibility — it can be installed on a desktop, under a counter, or rack-mounted (single or dual configuration) to maximise space efficiency. When mounted side by side, two amplifiers occupy just one rack unit, effectively doubling your channel count and output capability.
The U240:1M is built around a rugged metal chassis finished in RAL 9017 Traffic Black for a professional finish. Its Class D output stage ensures efficiency and reduced heat generation, aided by an intelligent four-stage cooling system. Despite its compact size, the amplifier offers a full range of connectivity options, precise controls, and protection circuits that safeguard it against short circuits, overcurrent, overheating, and voltage irregularities. Installation is made simple with included rack-mount brackets, making it equally suitable for fixed or mobile setups.
| Category | Details |
|---|---|
| Rated Output Power | 240 W RMS |
| Output Stage Topology | Class D |
| Supported Loads | 4Ω, 8Ω, 70V, 100V |
| Frequency Response | 10 Hz – 22 kHz (-3 dB) |
| Distortion | <1% @ rated output, 1 kHz |
| Equalisation | Bass ±12 dB @150 Hz, Treble ±12 dB @5 kHz |
| High-Pass Filter | 20 Hz fixed; 120 Hz switchable (12 dB/oct) |

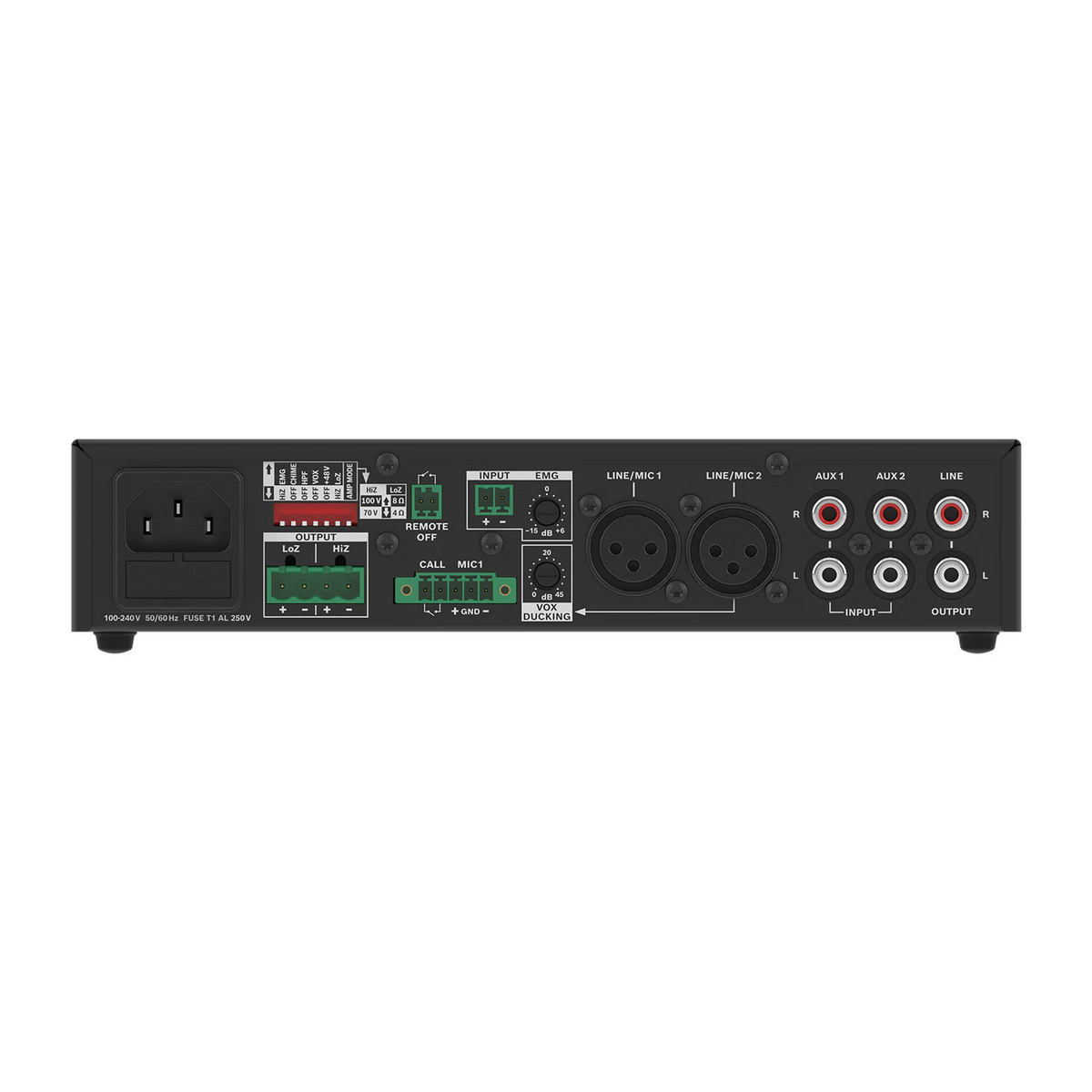

| Inputs | 2 x Mic/Line (XLR), 2 x Line (RCA), EMG input |
| Phantom Power | 48 V switchable (Inputs 1 & 2) |
| Signal-to-Noise Ratio | ≥98 dB (A-weighted) |
| Protections | Thermal, DC, HF, short circuit, overcurrent, and limiter |
| Cooling | Four-stage fan (Off / Slow / Medium / Fast) |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Power Consumption | Standby 1.25 W / Idle 11–12 W |
| Dimensions (HxWxD) | 44.2 × 218 × 217.7 mm |
| Net Weight | 1.85 kg (2.31 kg with accessories) |
The U240:1M delivers exceptional clarity and versatility in a compact format. Its Class D design enables efficient, quiet operation with clean, distortion-free sound for both music and voice applications. Intelligent protection and control systems ensure reliability during continuous operation, while features such as VOX ducking and EMG override preserve communication clarity in critical situations. Whether installed in a retail store, educational facility, or hospitality venue, this amplifier provides professional-grade audio management in a highly efficient, space-saving package.
Q: What type of installations is the U240:1M best suited for?
A: It is ideal for background music and public address systems in commercial environments such as restaurants, offices, and schools.
Q: Can I connect both low-impedance and 100V line speakers?
A: Yes, the U240:1M supports 4Ω, 8Ω, 70V, and 100V output configurations.
Q: Does it include phantom power for condenser microphones?
A: Yes, both mic/line inputs include switchable +48 V phantom power.
Q: How does the VOX Ducking function work?
A: VOX Ducking automatically reduces background music volume during voice announcements to ensure speech clarity.
Q: Can it be installed in a standard 19” rack?
A: Yes, included brackets allow for both single and dual half-rack mounting within a 19” rack system.
