The Dateq MA-60D is a versatile 60W RMS mixing amplifier designed for seamless integration into commercial audio installations. Ideal for environments such as retail spaces, educational institutions, hospitality venues, and corporate settings, this amplifier combines robust performance with user-friendly features. Its built-in media player supports USB, SD, FM/DAB+, and Bluetooth sources, offering versatile audio input options to suit a range of applications.

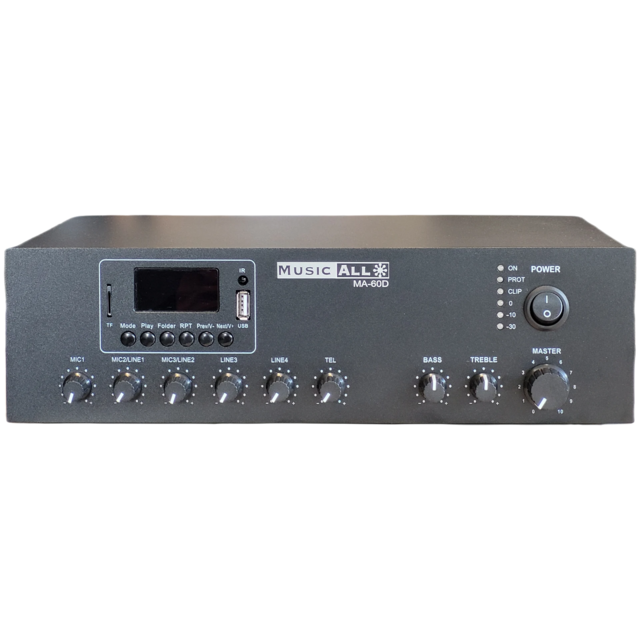

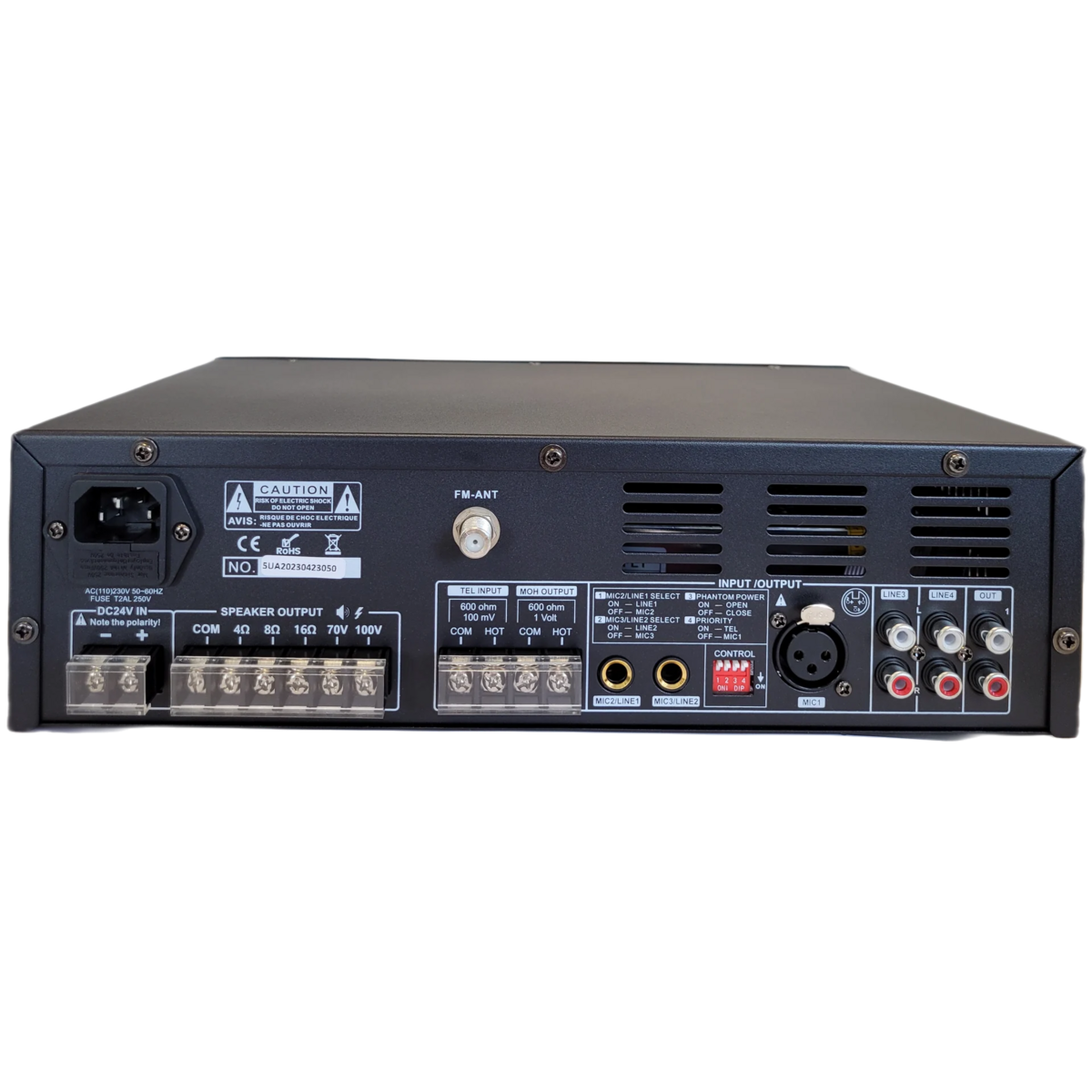

Housed in a durable tabletop chassis, the MA-60D is engineered for longevity and reliability. The front panel offers intuitive controls for volume and source selection, while the rear panel provides comprehensive connectivity options. Its compact design facilitates easy installation in space-constrained environments, and the inclusion of both 230V AC and 24V DC power inputs allows for versatile deployment scenarios.
| Specification | Details |
|---|---|
| Power Source | 230V AC / 24V DC |
| Output Power | 60W RMS |
| Speaker Outputs | 100V, 70V, 4–16Ω |
| Inputs | 3 x Mic/Line, 2 x RCA Line, 1 x TEL |
| Outputs | 1 x RCA Line Output |
| Phantom Power | +48V (Switchable) |
| Media Player | USB, SD, FM/DAB+, Bluetooth |
| Protection Features | Short-circuit, Clip, Overload, High Temperature |
The MA-60D delivers consistent and high-quality audio performance, making it suitable for both background music and public address applications. Its intuitive interface allows for straightforward operation, while the variety of input options ensures compatibility with a wide range of audio sources. The amplifier’s comprehensive protection features offer peace of mind, safeguarding the system against potential faults and ensuring longevity.
Q: Can the MA-60D be used with both low-impedance and high-impedance speaker systems?
A: Yes, the MA-60D supports 100V, 70V, and 4–16Ω speaker outputs, allowing for flexible integration with various speaker configurations.
Q: Does the amplifier support wireless audio streaming?
A: Yes, the built-in media player includes Bluetooth connectivity, enabling wireless audio streaming from compatible devices.
Q: Is phantom power available for condenser microphones?
A: Yes, the XLR input provides switchable +48V phantom power, accommodating the use of condenser microphones.
Q: What protection features are included in the MA-60D?
A: The amplifier includes short-circuit, clip, overload, and high-temperature protection to ensure safe and reliable operation.
Q: Can the MA-60D operate on a DC power supply?
A: Yes, the MA-60D can operate on both 230V AC and 24V DC power sources, offering versatility in installation scenarios.
