The Monacor PA-6020Z is a robust 20-zone mono PA mixing amplifier, delivering a powerful 600 W output. Designed for professional audio installations, it is ideal for environments such as educational institutions, corporate facilities, and large-scale public venues. It allows for individual zone control, ensuring flexibility and precision in audio distribution.

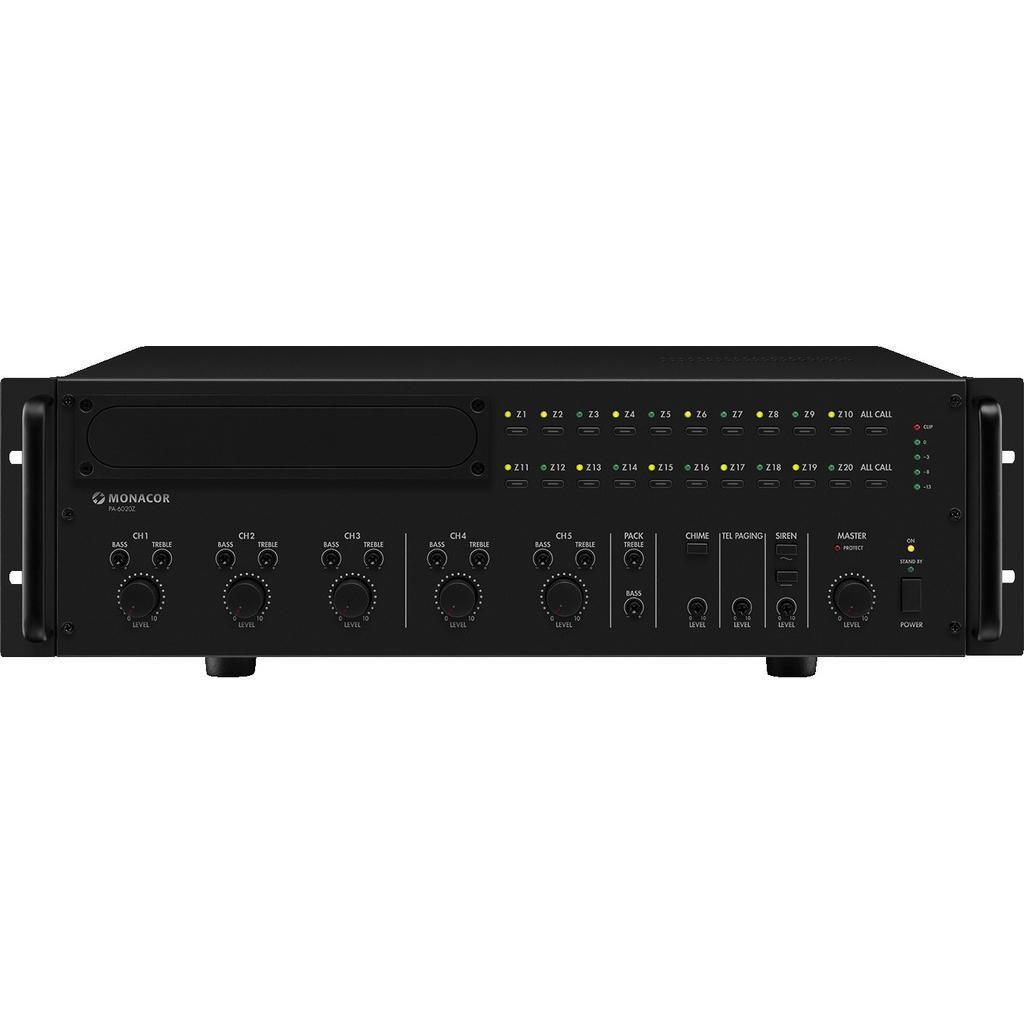

Encased in a durable 19-inch, 3U steel chassis, the PA-6020Z is built for longevity and reliability in rack-mounted configurations. The front panel features user-friendly controls for bass, treble, and master volume adjustments, alongside LED indicators for signal and clip status. A regulated fan ensures optimal cooling during extended operation, enhancing the amplifier's performance and lifespan.
| Specification | Details |
|---|---|
| Power Rating | 600 W |
| Zones | 20 |
| Inputs | Mic/Line 1-3: 2.5 mV/5 kΩ, 0.3 V/5 kΩ; Line 4-5: 0.3 V/15 kΩ; Preamplifier: 0.775 V/100 kΩ |
| Frequency Range | 55 Hz - 16,000 Hz |
| Equalizer | Bass: ±10 dB/100 Hz; Treble: ±10 dB/10 kHz |
| Signal-to-Noise Ratio | Mic: >70 dB; Line: >80 dB |
| Total Harmonic Distortion | <1% |
| Phantom Power | 15 V |
| Power Supply | ~230 V/50 Hz/1,700 VA; DC 24 V/50 A |
| Dimensions (W x H x D) | 482 x 133 x 352 mm |
| Weight | 21 kg |

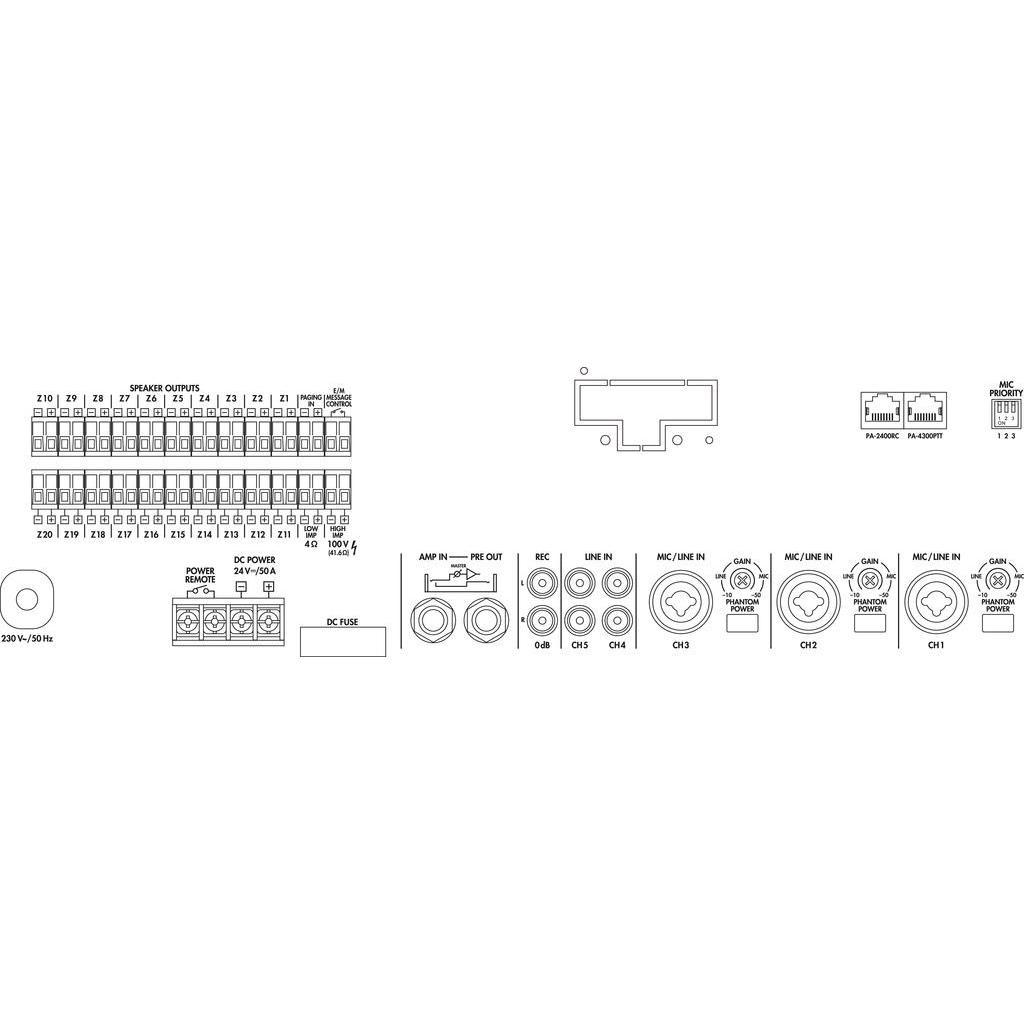

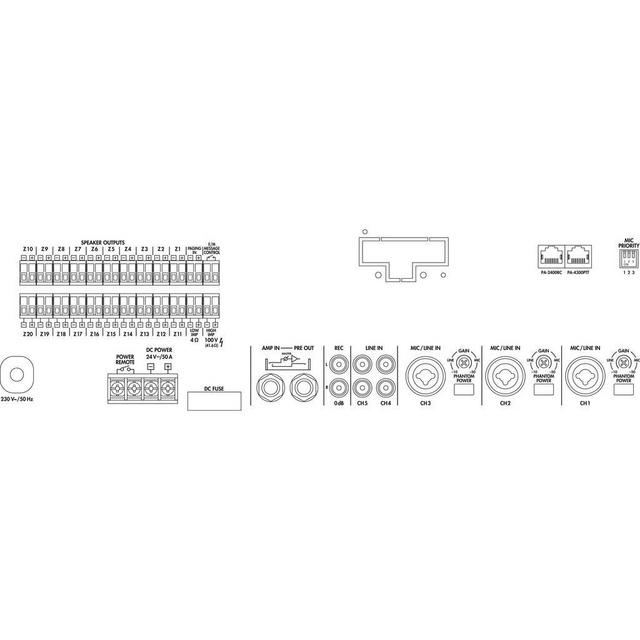

| Connections | 3 x combo 6.3 mm/XLR (mic/line); 2 x RCA L/R (line); 1 x 6.3 mm jack (preamplifier input); 1 x RJ45 (push-to-talk mic); 1 x RJ45 (zone paging mic); 1 x RCA L/R (record output); 1 x 6.3 mm jack (preamplifier output); screw contacts (chime button); screw contacts (speakers) |
The PA-6020Z delivers clear and reliable audio across all zones, with minimal distortion. Its user-friendly interface, combined with flexible control options, makes it suitable for both technical operators and end-users. The amplifier's scalability and integration capabilities allow it to adapt to various installation sizes and requirements.
Q: Can I use multiple microphones and music sources simultaneously?
A: Yes, the unit supports three mic/line combo inputs and two stereo line inputs, thus allowing versatile source mixing.
Q: Is this amplifier suitable for emergency applications?
A: Absolutely. It features a 24 V DC input for emergency power operation, ensuring continuity during power failures.
Q: Can I expand the paging system beyond one microphone?
A: Yes, it supports up to 32 zone paging microphones and three push-to-talk microphones for extensive communication coverage.
Q: Does it include built-in chime functions for announcements?
A: Yes, the PA-6020Z includes selectable 2-tone, 4-tone, and continuous tone chimes with auto mute features.
Q: What type of environments is this amplifier best suited for?
A: It's perfect for large venues like schools, commercial buildings, and public facilities requiring multi-zone audio control and high output performance.
