The Monacor PA-1200 is a versatile 4-zone mono PA mixing amplifier designed for professional audio installations in environments such as conference centres, educational institutions, and retail spaces. It allows seamless integration of various audio sources with individual zone control, catering to both background music and public address requirements.

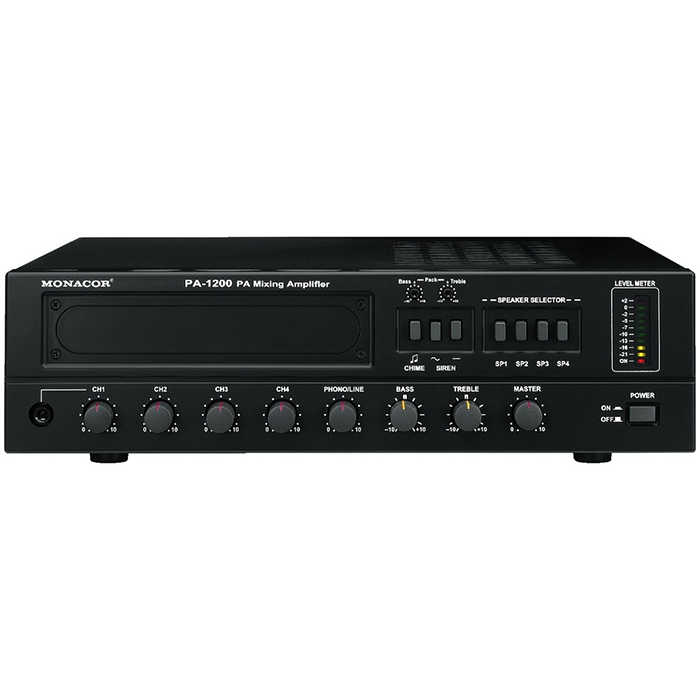

Constructed with a robust steel chassis, the PA-1200 ensures durability and reliability for continuous operation. Its fanless cooling design enables silent operation, making it suitable for noise-sensitive environments. The front panel features intuitive controls, including rotary knobs for volume and tone adjustments, as well as LED indicators for level monitoring. Optional 19-inch rack installation is available with the mounting frame PA-1200RM.
| Specification | Details |
|---|---|
| Output Power | 120W RMS, 170W max |
| Inputs | 4 x Mic/Line, 1 x Line/Phono |
| Outputs | 1 x 4Ω, 4 x 70/100V zones |
| Frequency Response | 80 Hz - 15 kHz |
| Tone Control | Bass: ±10 dB at 100 Hz; Treble: ±10 dB at 10 kHz |
| Signal-to-Noise Ratio | Mic: >60 dB; Line: >70 dB |
| Total Harmonic Distortion | <1% |
| Power Supply | 230V AC / 50Hz; 24V DC (emergency power) |
| Dimensions (W x H x D) | 420 x 122 x 350 mm |
| Weight | 13 kg |
The PA-1200 delivers clear, reliable audio performance with minimal distortion and ensures effective sound distribution across all zones. Its user-friendly interface, combined with flexible input and output options, makes it suitable for both technical operators and end-users.
Q: Can the PA-1200 handle both microphone and line-level inputs simultaneously?
A: Yes, the PA-1200 is equipped with four microphone/line inputs and one line/phono input, allowing simultaneous use of multiple audio sources.
Q: Is it possible to control the audio output to different zones individually?
A: Absolutely. The PA-1200 features four output zones with 70/100V outputs, each of which can be switched on or off individually for customised audio distribution.
Q: Does the PA-1200 support emergency power operation?
A: Yes, the unit includes a 24V DC power connection to maintain operation during mains power outages, ensuring continuous audio distribution in critical situations.
Q: Are there optional accessories for rack mounting?
A: Yes, the PA-1200 can be installed in a 19-inch rack using the optional mounting frame PA-1200RM.
Q: What type of environments is the PA-1200 best suited for?
A: The PA-1200 is ideal for commercial installations, including conference centres, educational institutions, and retail spaces that require dependable audio amplification across multiple zones.
