The Audac COM24 is a robust 240W public address mixing amplifier designed to meet the needs of small to medium-sized commercial audio installations. Suitable for environments such as retail stores, offices, warehouses, and public buildings, it offers versatile input options and reliable performance for both background music and paging applications.

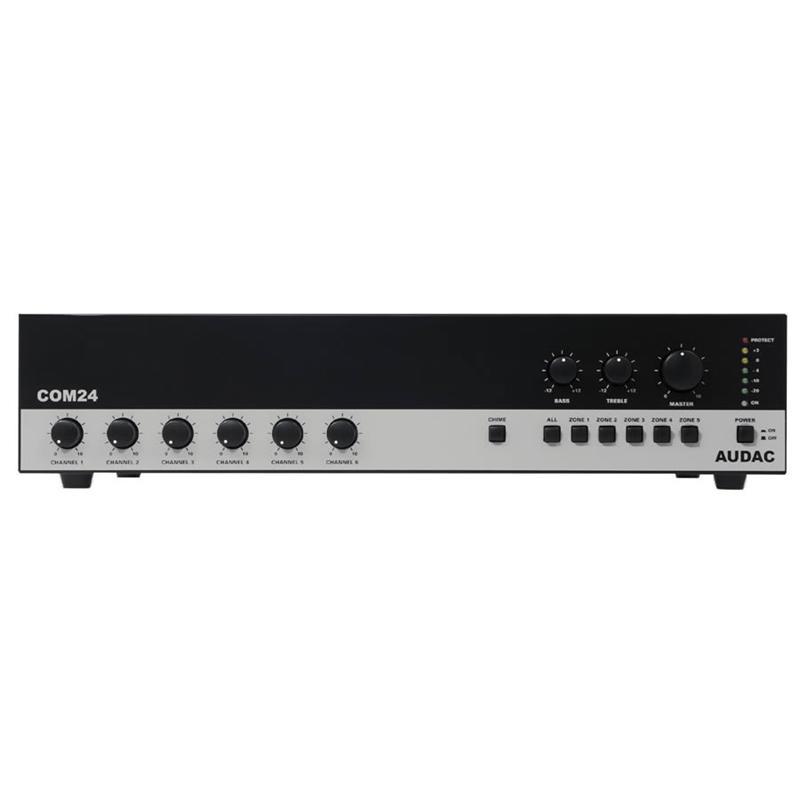

Housed in a robust 19-inch, 2U steel chassis, the COM24 is built for both tabletop use and rack-mounted setups, with the included adapters facilitating seamless integration into standard equipment racks. The front panel features intuitive controls, including individual level adjustments for each input channel, a master volume knob, and a 2-band tone control for precise audio tailoring. A 5-segment VU meter provides clear visual feedback of output levels, ensuring accurate monitoring during operation.
| Specification | Details |
|---|---|
| Continuous Power (AES) | 240 W |
| Frequency Response (±3 dB) | 20 Hz - 20 kHz |
| Signal-to-Noise Ratio | > 90 dB |
| THD+N (@ 1 kHz) | < 0.5% |
| Inputs | 4 x Balanced Mic/Line (XLR), 1 x Balanced Mic/Line (6.3mm Jack), 1 x Stereo Unbalanced Line (RCA) |
| Outputs | 100V / 4Ω |
| Protection | DC, Short Circuit, Overheating, Overload, Signal Limiting |
| Cooling | Convection Cooled |
| Power Supply | 230 ~ 240 V AC / 50 ~ 60 Hz |
| Dimensions (W x H x D) | 482 x 88 x 330 mm |
| Weight | 10.5 kg |
The COM24 delivers clear and reliable audio performance, with low distortion and a high signal-to-noise ratio ensuring quality sound reproduction. The built-in 5-zone speaker selector enhances its versatility, allowing tailored audio distribution to different areas within a facility.
Q: Can the COM24 support both low and high impedance speaker systems?
A: Yes, the COM24 is designed to support both 4Ω low impedance and 100V high impedance speaker systems, providing flexibility for various installation requirements.
Q: Does the COM24 have phantom power for condenser microphones?
A: Yes, it provides 15V phantom power on its four balanced XLR microphone inputs, accommodating condenser microphones.
Q: Is it possible to integrate a paging microphone with the COM24?
A: Absolutely. The COM24 includes remote microphone inputs with priority and chime function support, ideal for paging applications in commercial spaces.
Q: What kind of speaker setup can the COM24 control?
A: The unit includes a 5-zone speaker selector, allowing independent control over five different output zones, ideal for multi-room audio management.
Q: Does the COM24 offer any emergency audio features?
A: Yes, the amplifier includes a priority mute contact, which allows external emergency systems such as fire alarms to override the audio signal for safety messages.
