The Adastra RM1202 is a versatile rackmount mixer amplifier designed for professional audio installations requiring independent control of two zones. With dual 120W outputs, it caters to environments such as gyms, sports centres, cafés, reception areas, and bars, offering seamless audio distribution and management.

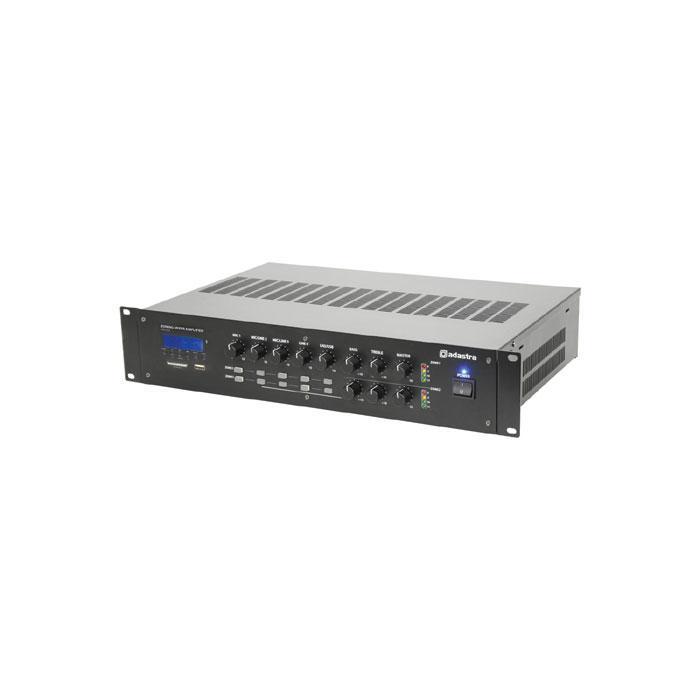

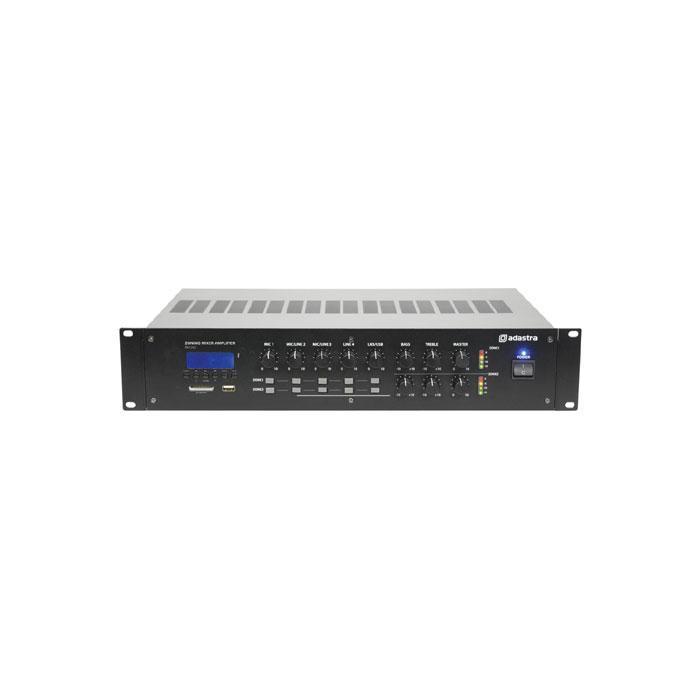

Housed in a robust 19-inch, 2U steel chassis, the RM1202 ensures durability and reliability for rack-mounted setups. The front panel features intuitive rotary controls for each input channel and zone, with LED indicators for easy monitoring. The integral USB/SD/FM audio player and internal Bluetooth receiver enhance its functionality by providing multiple audio source options.
| Specification | Details |
|---|---|
| Power Supply | 110-230Vac, 50/60Hz (IEC) |
| Power Output | 2 x 120W rms |
| Audio Source | USB/SD/FM/Bluetooth audio player |
| Inputs | 1 x Mic (XLR), 2 x Mic/Line (6.3mm jack), 2 x Line (twin RCA) |
| Zone Outputs: Line | 2 x RCA |
| Zone Outputs: Speaker | 2 x terminal outputs: 100V / 8 Ohms / 4 Ohms / COM |
| Phantom Power | +20V switchable to Mic.1 XLR |
| Total Harmonic Distortion (THD) | <0.76% @ 1kHz |
| Input Impedance | 1k Ohms (mic/line) |
| Input Sensitivity | -11dB (line), -46dB (mic) |
| Signal-to-Noise Ratio (SNR) | 84dB (line), 82dB (mic) |
| Bluetooth Version | 2.1 |
| Frequency Response | 100Hz - 20kHz |
| Dimensions (W x D x H) | 483 x 320 x 88mm |
| Weight | 11.24kg |
The RM1202 delivers high-quality audio performance with minimal distortion, ensuring clear and reliable sound across both zones. Its intuitive interface and wide range of input options make it a user-friendly solution for both novices and audio professionals. Whether it's for announcements, background music, or public address purposes, the RM1202 adapts seamlessly to varied acoustic environments and operational needs.
Q: Can I use the RM1202 to control two different music sources in two zones?
A: Yes, the RM1202 allows you to route different input sources to each zone independently, making it ideal for multi-environment audio control.
Q: Is Bluetooth pairing secure and easy to set up?
A: Absolutely. The internal Bluetooth receiver supports quick and reliable pairing with mobile devices, ensuring stable and secure wireless playback.
Q: Does the RM1202 support microphone paging with priority override?
A: Yes, Mic 1 features a variable priority override function for announcements and includes phantom power support for condenser microphones.
Q: Is this unit suitable for 100V line systems?
A: Yes, each zone supports 100V line outputs as well as 4 and 8 Ohm configurations, ensuring compatibility with various speaker setups.
Q: Can I mount the RM1202 in a standard rack?
A: Yes, the RM1202 is a 2U 19-inch rackmountable unit, making it ideal for professional AV installations.
