The Adastra UX240 is a compact and powerful 100V mixer-amplifier, tailored for both commercial and professional installations. Housed in a solid metal chassis, it offers a robust 240W RMS output, making it suitable for retail stores, educational institutions, and hospitality venues. Its efficient design and versatile input options support a wide range of audio distribution needs.

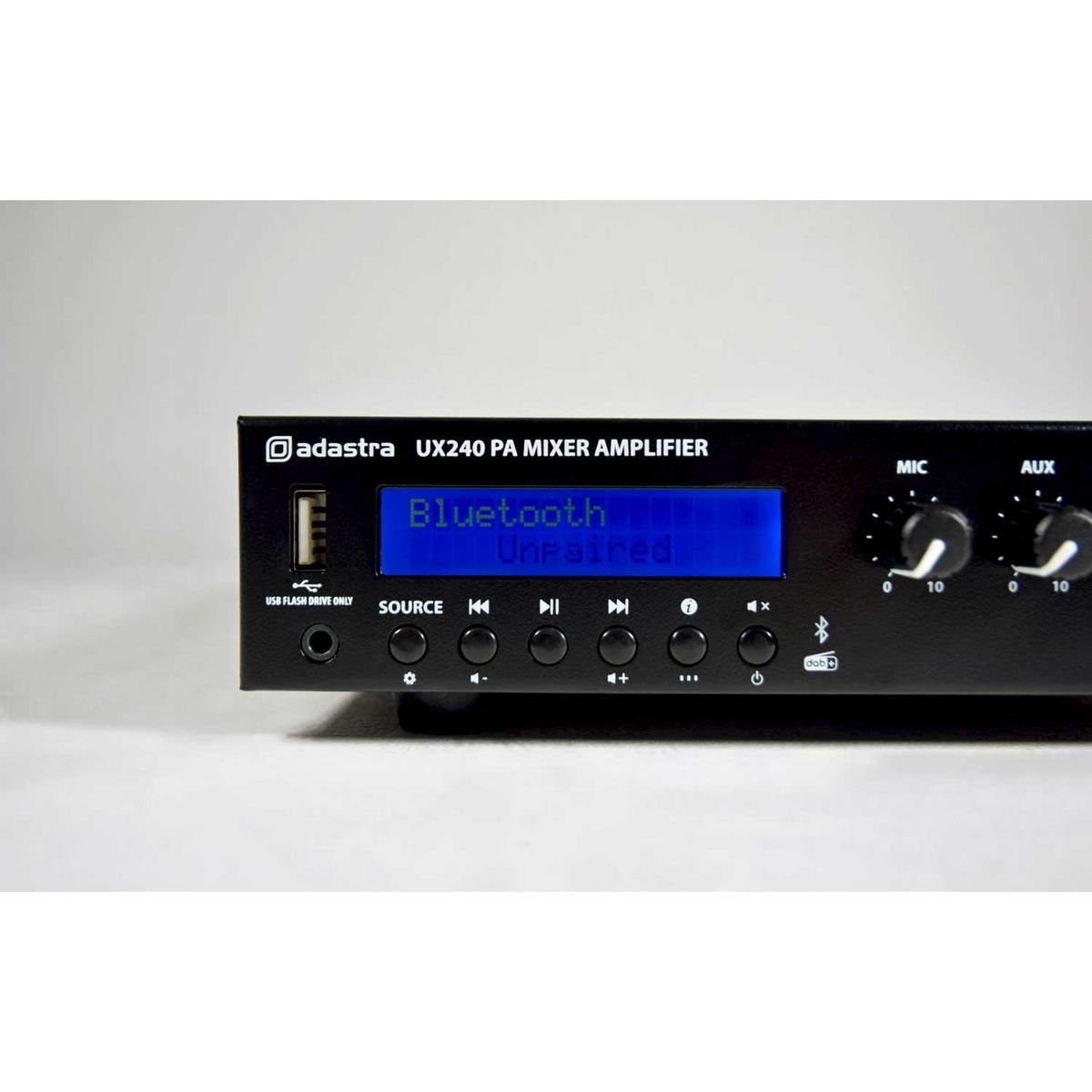

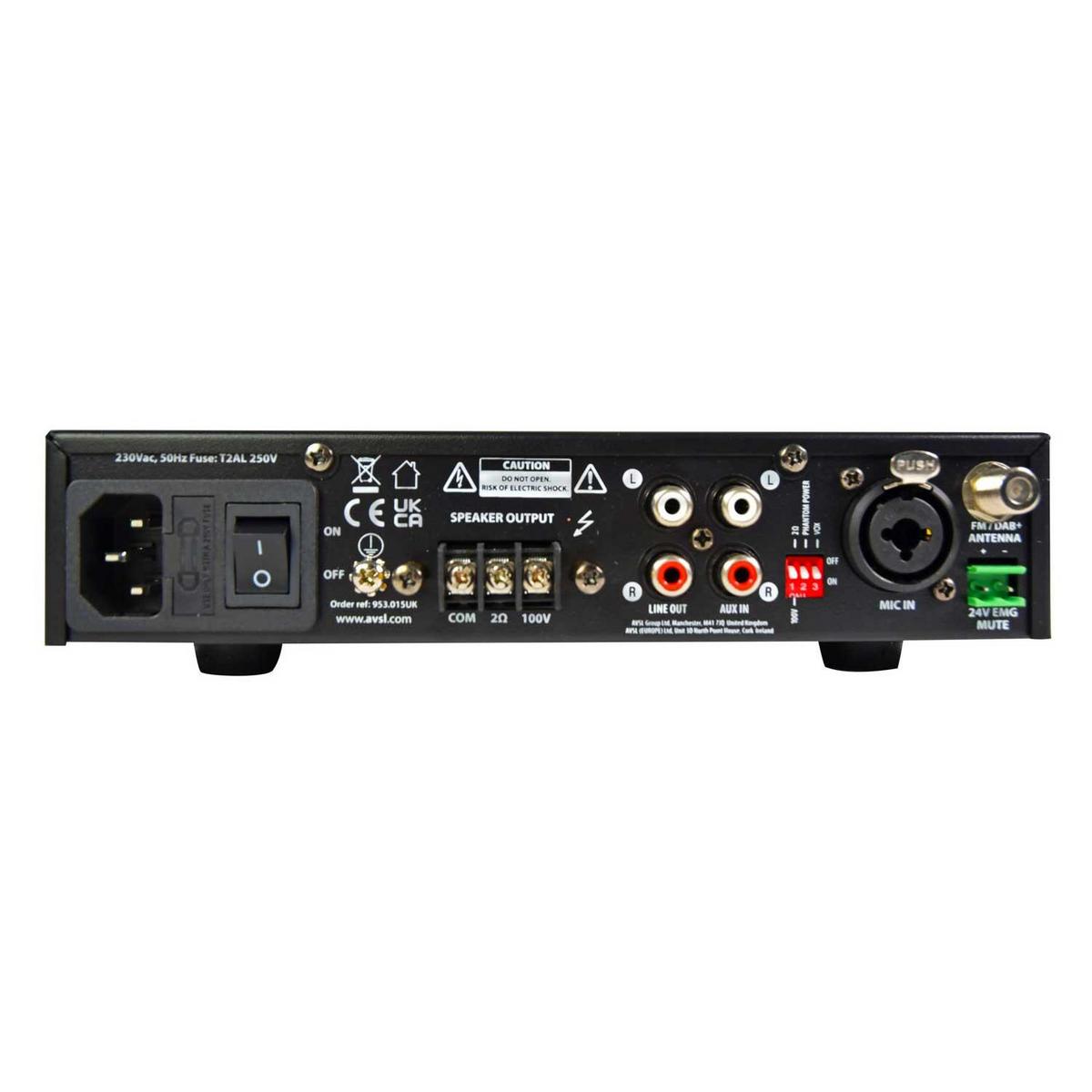

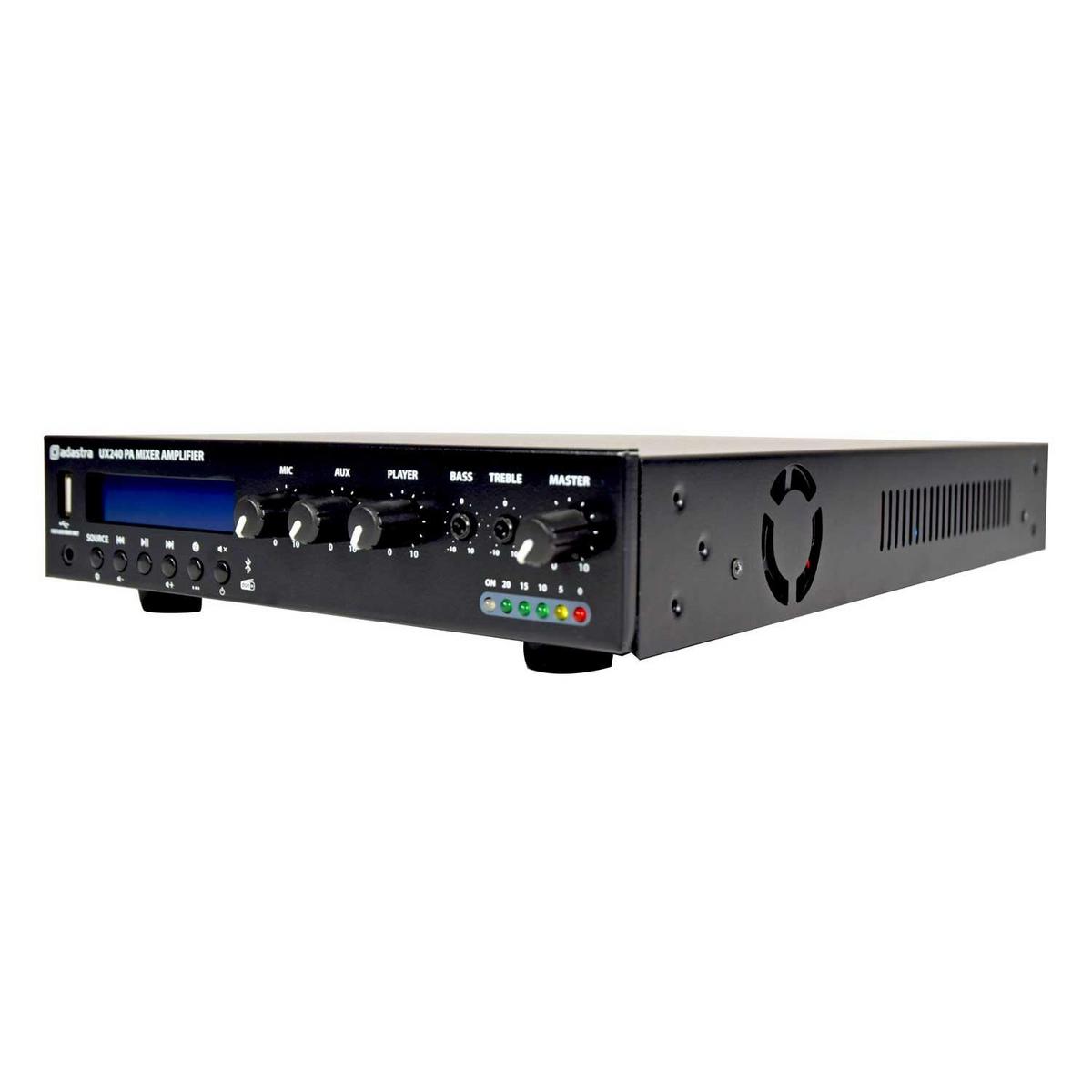

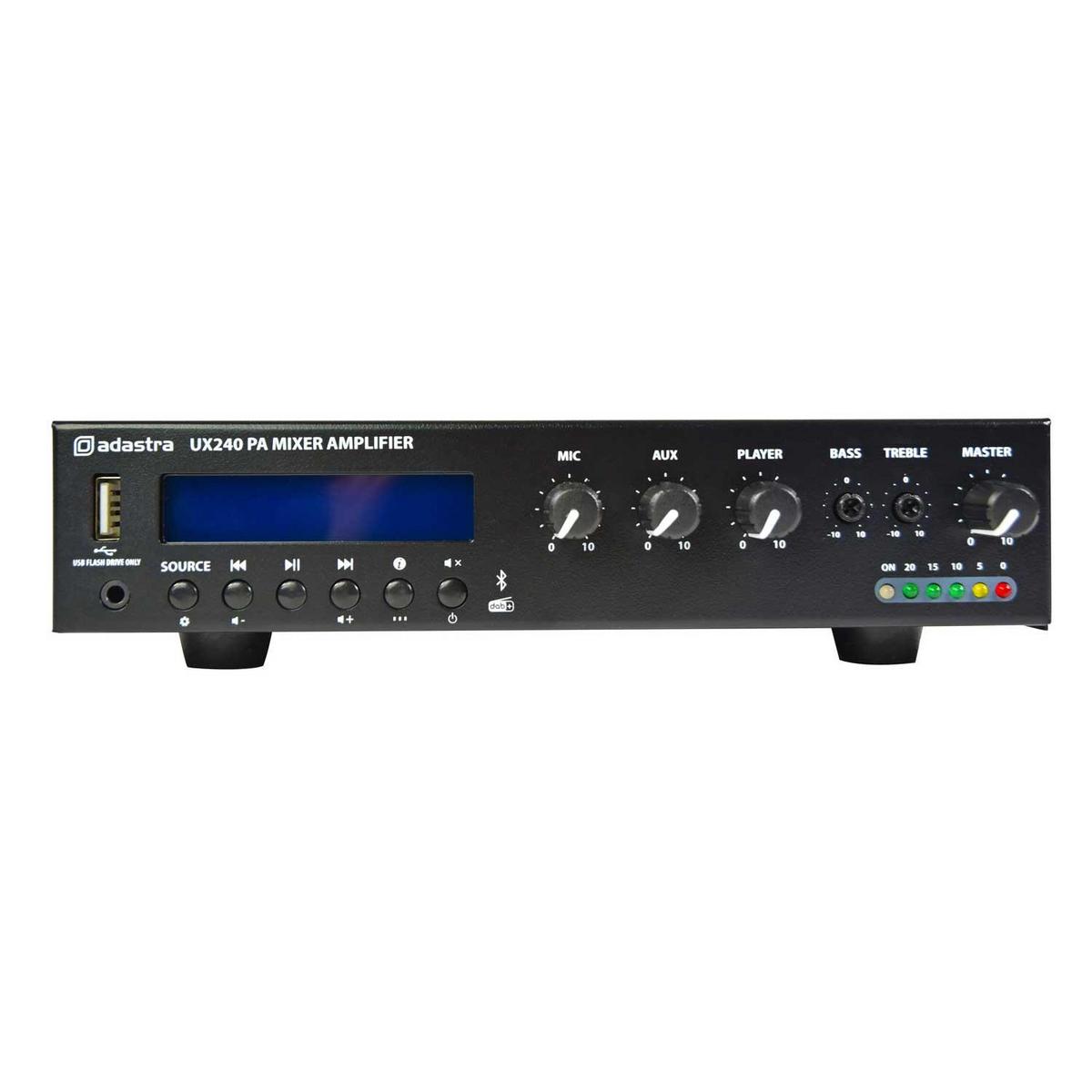

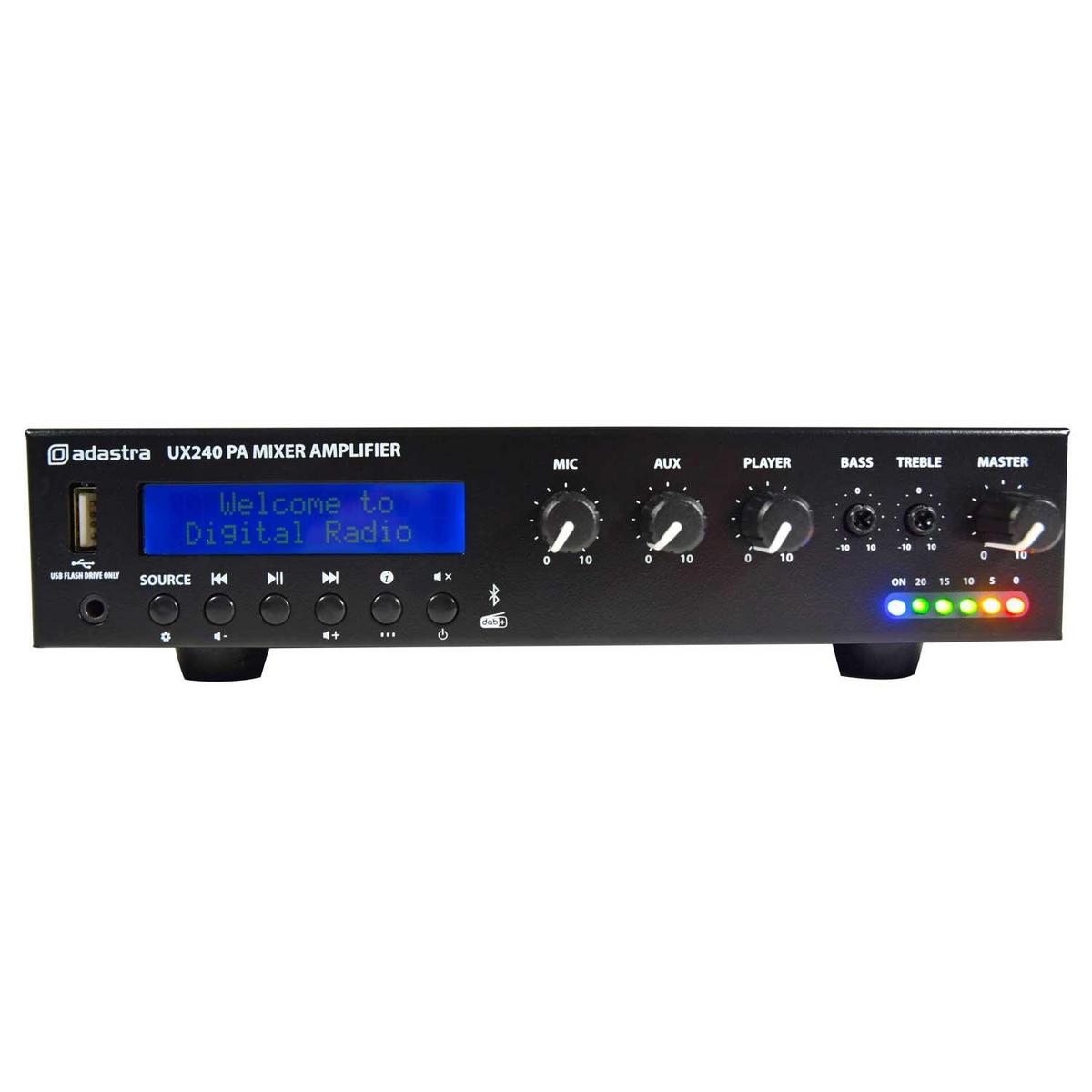

Housed in a solid metal chassis with a half-width 1U rack-mountable profile, the UX240 combines durability with space-saving efficiency. The front panel hosts clearly marked rotary controls for master volume, bass, and treble, ensuring quick adjustments on-site. Clearly labelled rear panel connectors and included mounting brackets provide convenient installation and maintenance.
| Specification | Details |
|---|---|
| Power Output (RMS) | 240W |
| Power Source | 170-264Vac, 50Hz (IEC) |
| Amplifier Type | Class D with transformer output |
| Audio Inputs | 1 x Mic (jack/XLR), 1 x Line (RCA), 1 x Aux (3.5mm) |
| Media Playback | USB, Bluetooth 5.0, DAB+/FM, Aux |
| Line Output | 2 x RCA (mono) |
| Speaker Outputs | Screw terminals: 100V / 2 Ohms / Common |
| Emergency Mute | 24V relay contacts |
| Dimensions (W x D x H) | 350 x 210 x 54 mm |
| Weight | 4.32 kg |
The UX240 offers excellent reliability and sound clarity, easily fulfilling a range of commercial needs from background audio to voice announcements. It is engineered for intuitive operation and can be used with minimal technical knowledge, making it ideal for environments with non-technical staff. Its diverse input and output options improve flexibility and long-term value.
Q: Can the UX240 drive both 100V line and low impedance speakers?
A: Yes, it supports both 100V line and 2 Ohm low impedance loads, switchable via DIP settings.
Q: Does it support Bluetooth streaming?
A: Yes, the amplifier features Bluetooth 5.0 for high-quality wireless audio playback.
Q: Is phantom power available for the mic input?
A: Yes, phantom power is switchable on the XLR microphone input for condenser microphones.
Q: Is this suitable for use in fire alarm systems?
A: Yes, it has a 24V relay contact for emergency muting integration.
Q: Can it be mounted in a rack?

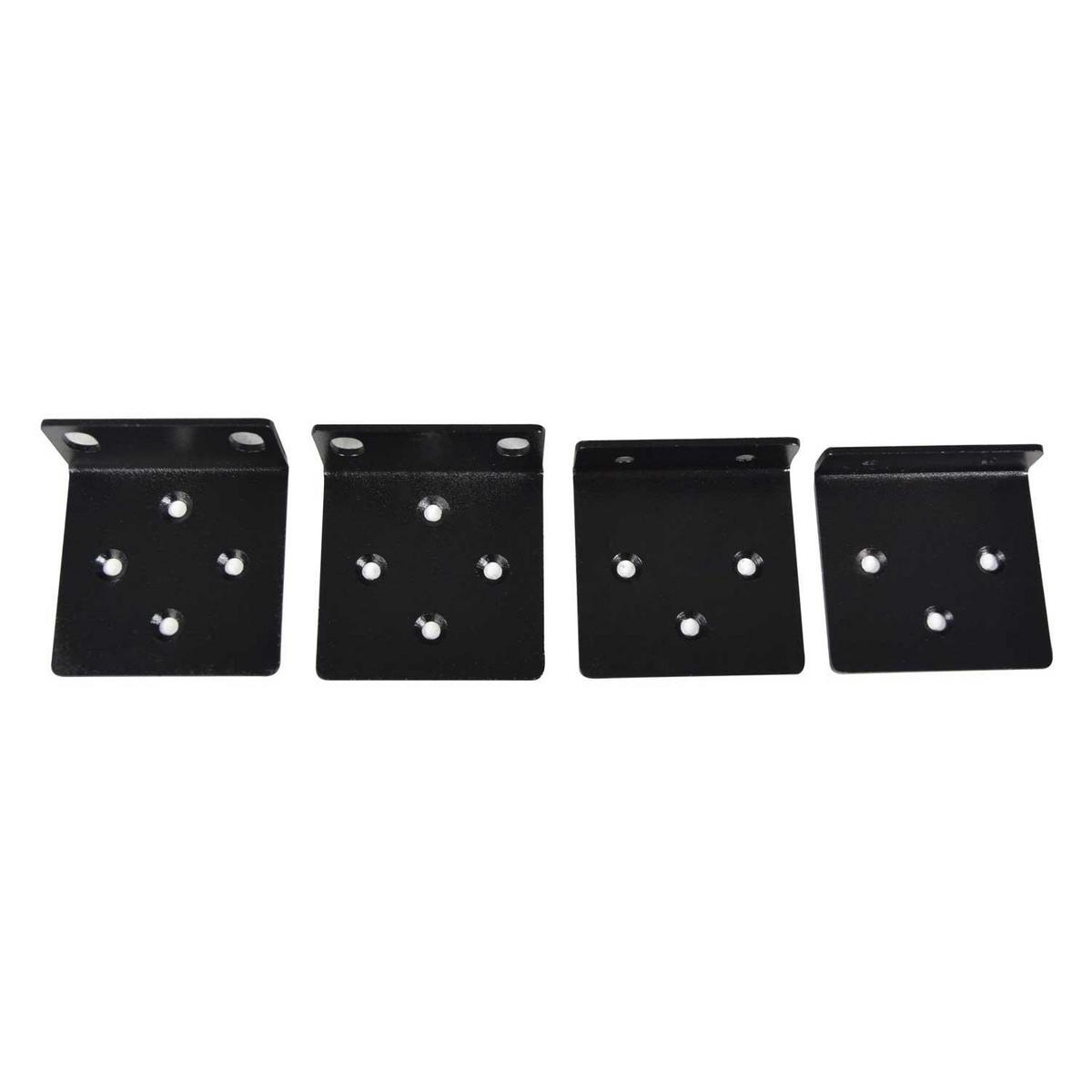

A: Yes, it includes mounting brackets for rack or flat surface installation.
