The Monacor PA-M224 is a professional-grade 2-zone PA matrix mixing amplifier designed for versatile audio distribution in various environments, including commercial establishments, educational institutions, and houses of worship. With a power output of 240 W per zone, it efficiently manages audio across two distinct zones, each with individual controls and tone adjustments.

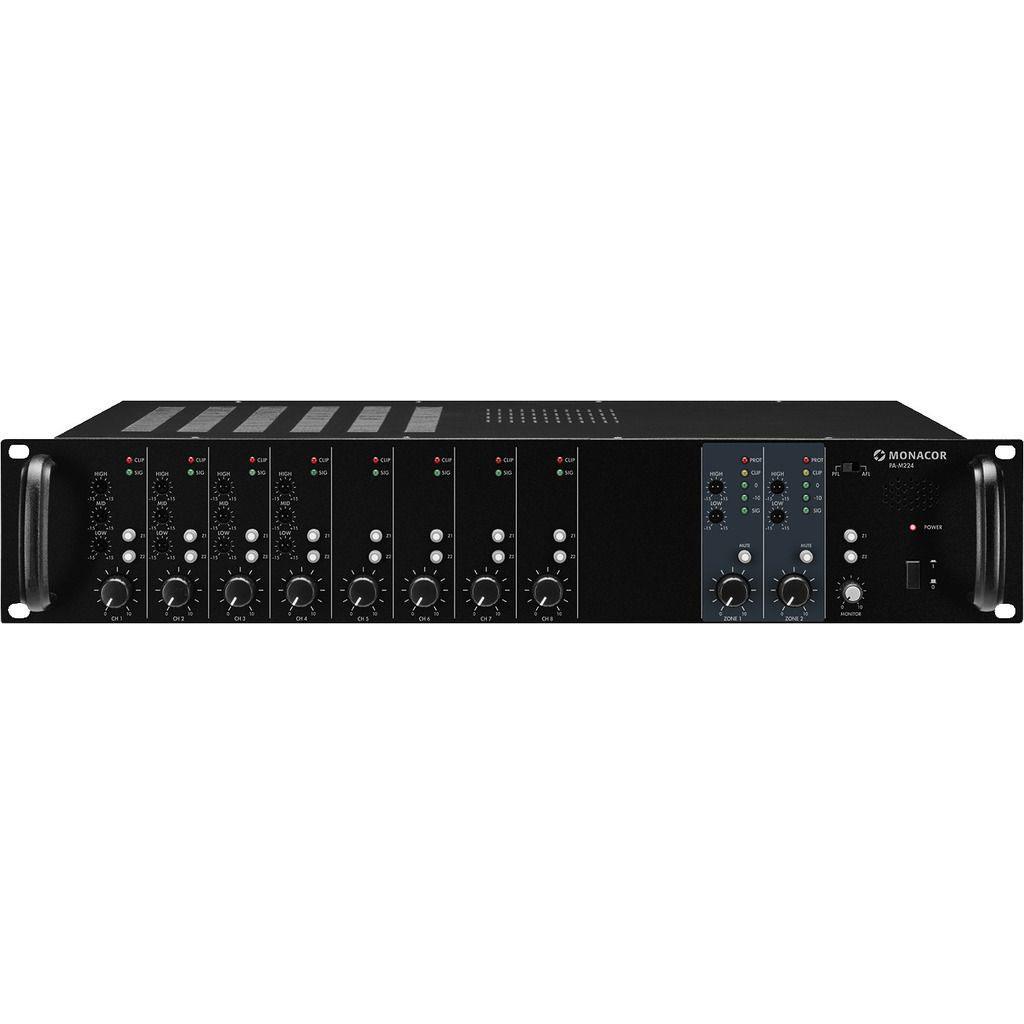

Housed in a robust 19-inch, 2U steel chassis, the PA-M224 ensures durability and reliability for rack-mounted installations. Its front panel features intuitive controls for each zone, facilitating straightforward configuration and monitoring. The Class D amplifier design enhances efficiency, reducing energy consumption and heat generation.
| Specification | Details |
|---|---|
| Peak Output Power | 2 x 290 W |
| Power Rating | 2 x 240 W |
| Channels | 8 |
| Zones | 2 |
| Inputs | 2.5 mV/20 kΩ (mic), 2 V/20 kΩ (line) |
| Frequency Range | 20-20,000 Hz |
| Equalizer Bass | ±12 dB/80 Hz (channels 1-4), ±15 dB/80 Hz (zones 1-2) |
| Equalizer Midrange | ±12 dB/2.5 kHz (channels 1-4) |
| Equalizer Treble | ±12 dB/12.5 kHz (channels 1-4), ±15 dB/12 kHz (zones 1-2) |
| Signal-to-Noise Ratio | > 70 dB |
| Total Harmonic Distortion | < 0.1% |
| Phantom Power | 24 V |
| Power Supply | ~ 230 V / 50 Hz / 800 VA |
| Dimensions (W x H x D) | 482 x 88 x 320 mm |
| Rack Units | 2U |
| Weight | 10.5 kg |
The Monacor PA-M224 offers precise, dual-zone audio control with minimal distortion and flexible input configuration. Designed for reliability and ease of use, it is ideal for installations that require custom sound environments across multiple areas. Its intuitive control panel and compatibility with expansion modules make it a scalable solution for long-term projects.
Q: Can I use condenser microphones with the PA-M224?
A: Yes, the PA-M224 supports condenser microphones via its switchable 24 V phantom power on mic inputs.
Q: Is this amplifier suitable for background music and paging?
A: Absolutely. It is designed for both background music distribution and priority paging, especially with talkover on channel 1.
Q: Can I integrate wall-mounted remote controls?
A: Yes, the unit is compatible with PA-M1WP wall modules for remote volume and source control.
Q: Is rack mounting hardware included?
A: The unit is housed in a standard 19" 2U rack-mount chassis, suitable for integration into any rack system.
Q: How many zones can I control with this amplifier?
A: The PA-M224 allows independent control of two separate audio zones.
