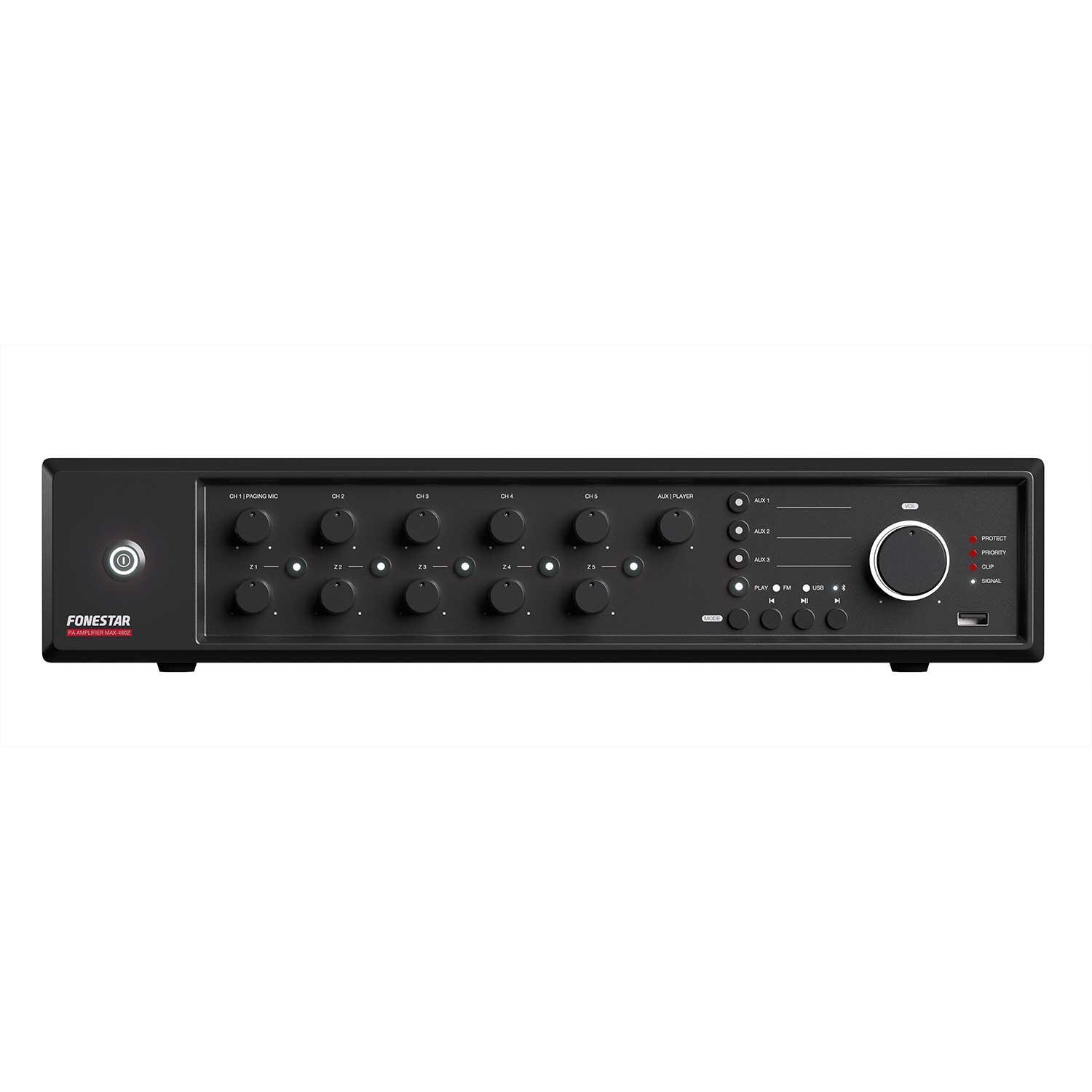

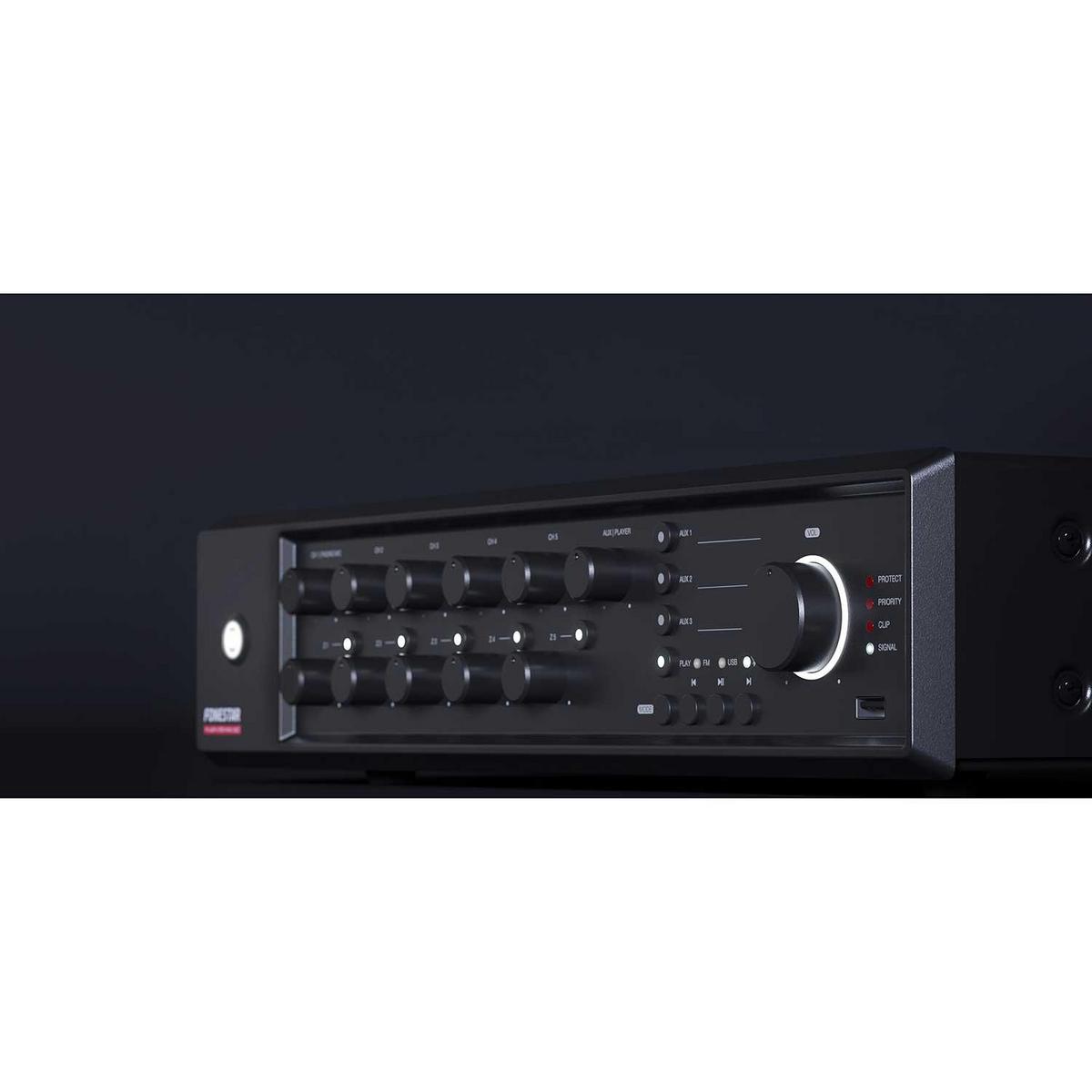

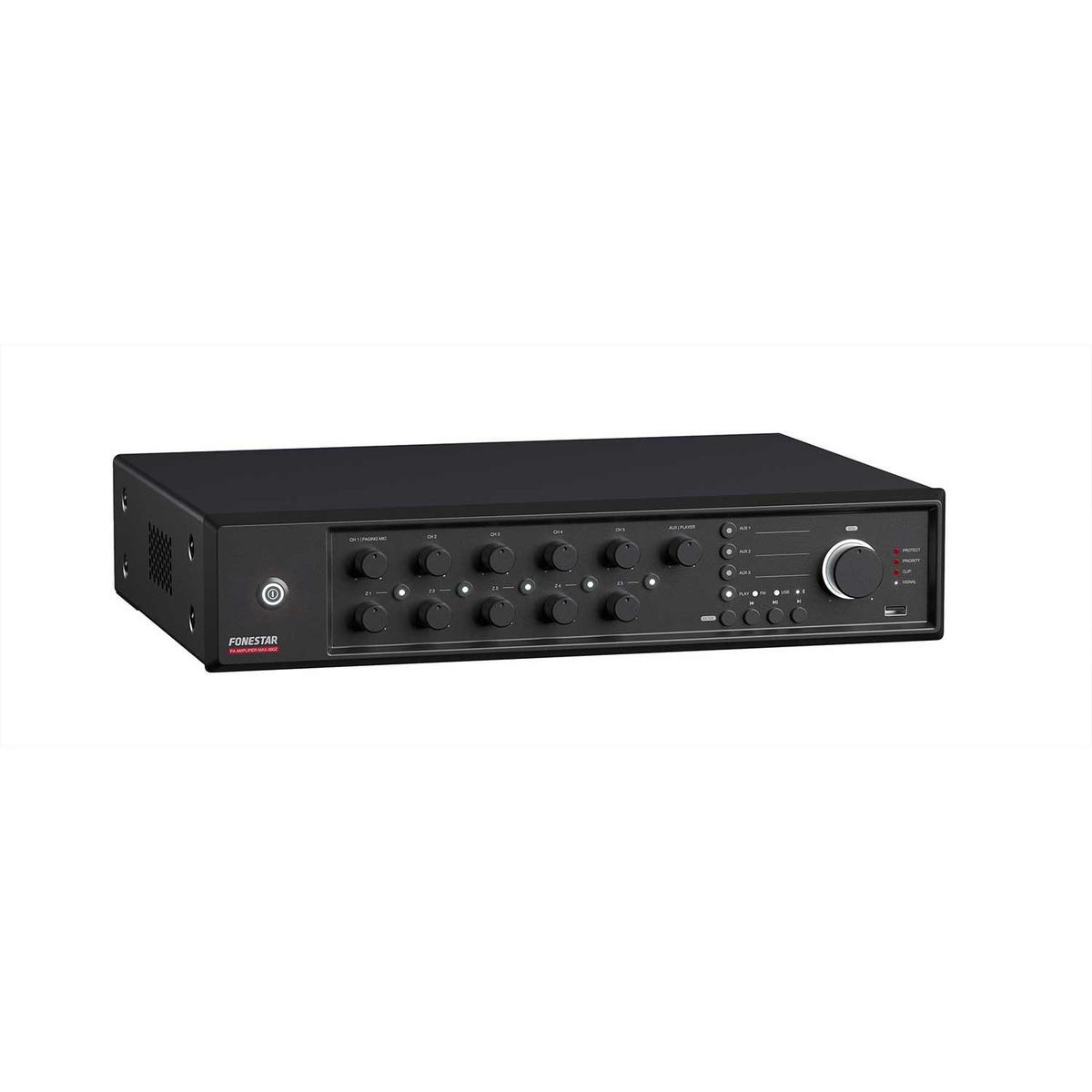

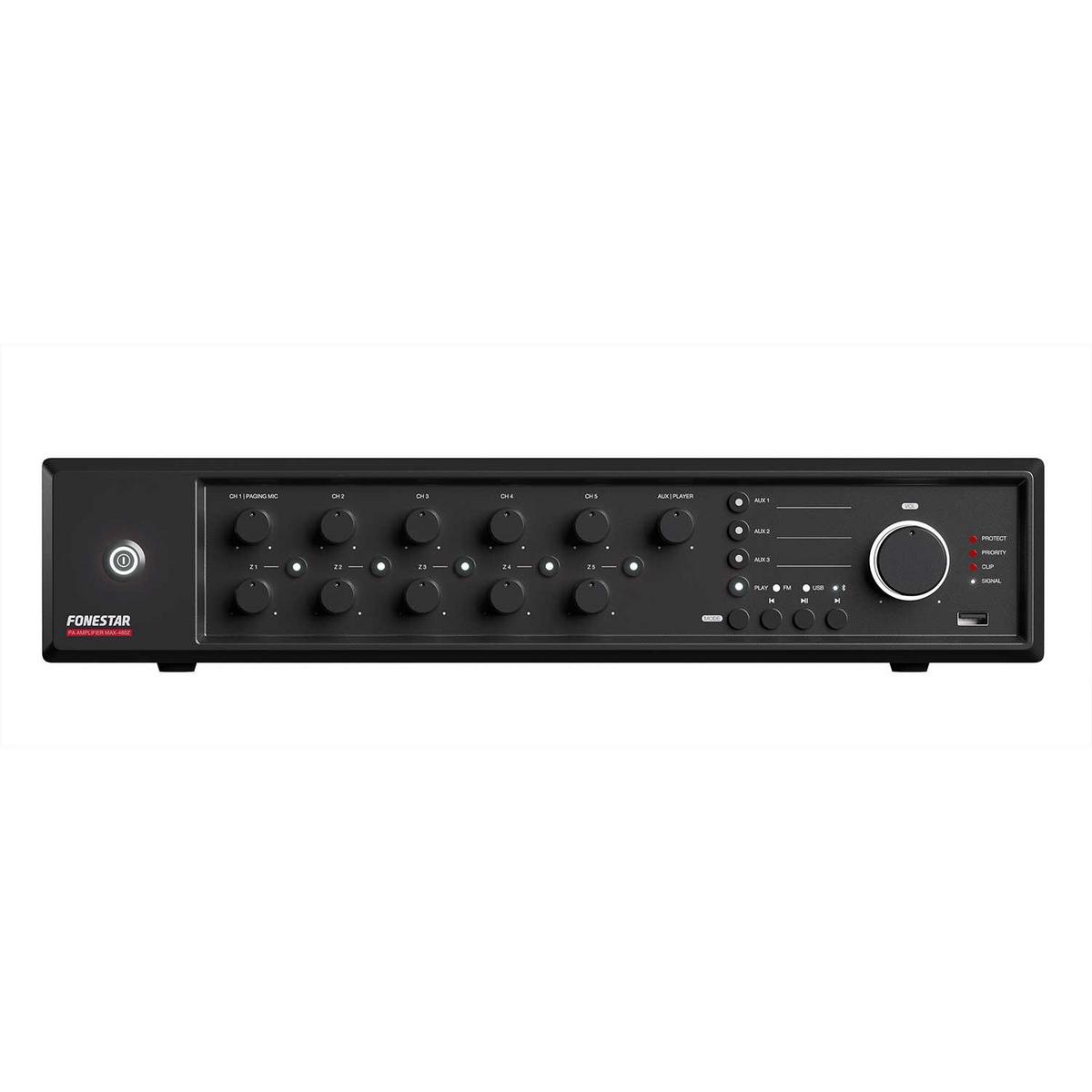

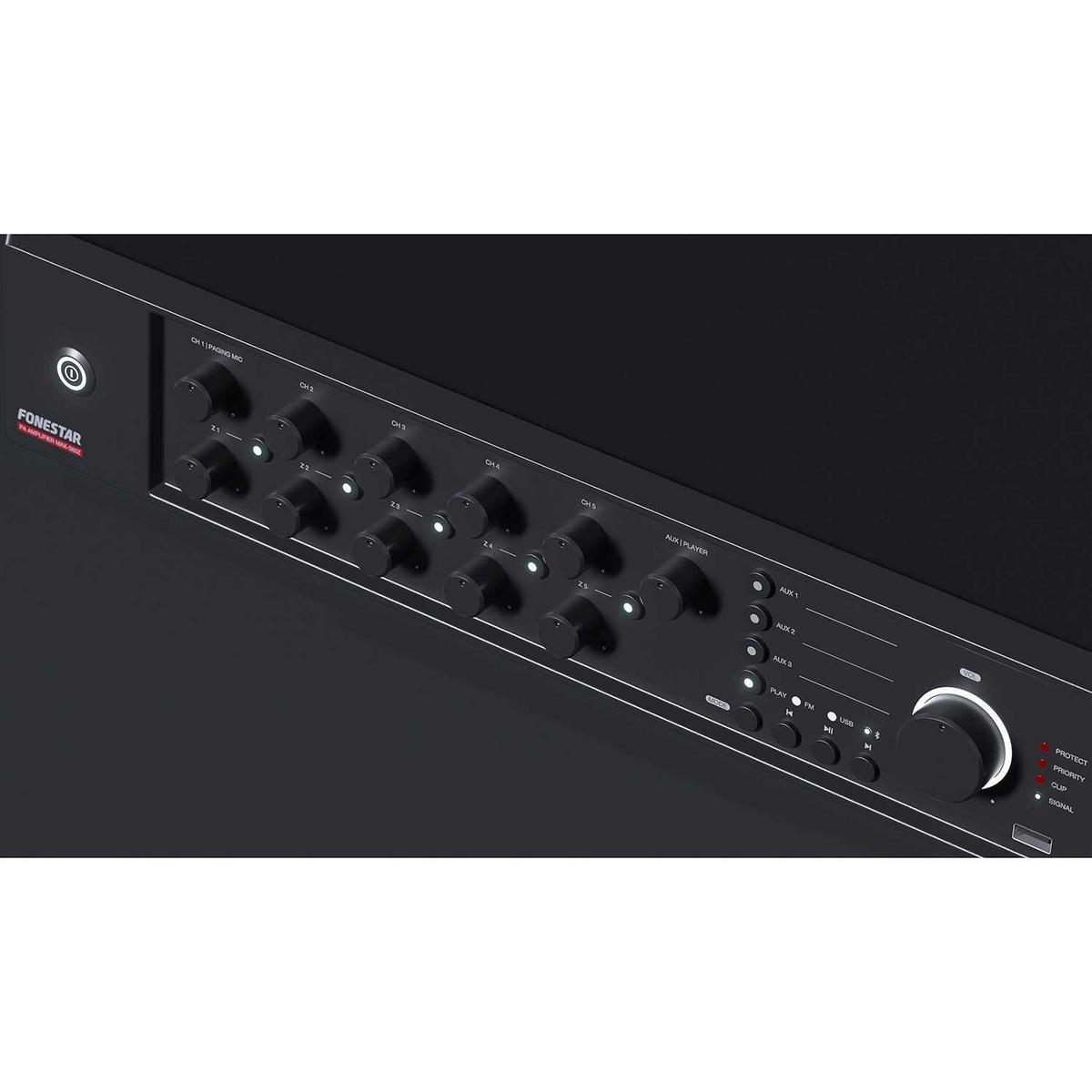

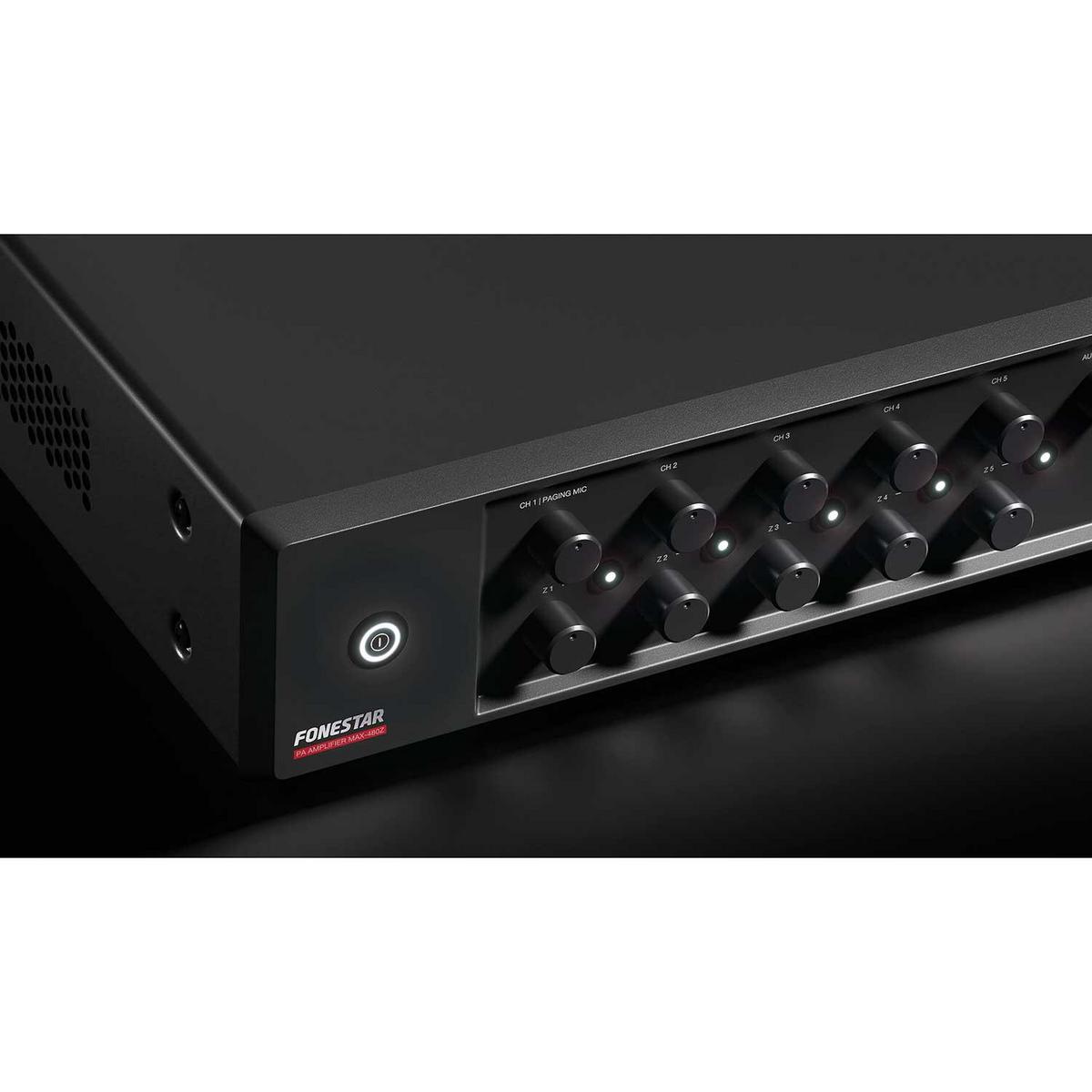

Fonestar MAX-480Z 480W 100V PA Amplifier (5 or Single Zone)

Fonestar MAX-480Z 480W Multi-Zone PA Amplifier (5 Zone)

Overview

The Fonestar MAX-480Z is a powerful and versatile 480W RMS multi-zone PA amplifier designed for professional installations requiring flexible audio distribution across multiple areas. With Class-D amplification, integrated media playback and advanced control features, it is ideal for commercial, retail and public address systems.

Offering independent control across 5 zones along with emergency integration and priority management, the MAX-480Z is a complete solution for complex audio installations.

Multi-Zone Audio Control

The amplifier supports up to five independent speaker zones, each with its own volume control and on/off function.

• 5 speaker zones with individual volume control
• Zone on/off switching
• Ideal for multi-room or multi-area installations

High Power & Audio Performance

With 480W RMS output and wide frequency response, the MAX-480Z delivers clear and powerful sound across all connected zones.

• 480W RMS Class-D amplifier
• Frequency response: 45 Hz – 22 kHz
• Low distortion: <0.5% THD

Flexible Output Options

The amplifier supports multiple output configurations for compatibility with various speaker systems.

• 100 V line output (multi-zone)
• 70 V line output
• 4 Ohm low impedance output
• Up to 240W per zone (100 V)

Integrated Media Player

A built-in media player allows easy playback of background music without additional equipment.

• Bluetooth 5.3 connectivity
• USB playback
• FM radio tuner
• Autoplay and playback memory functions

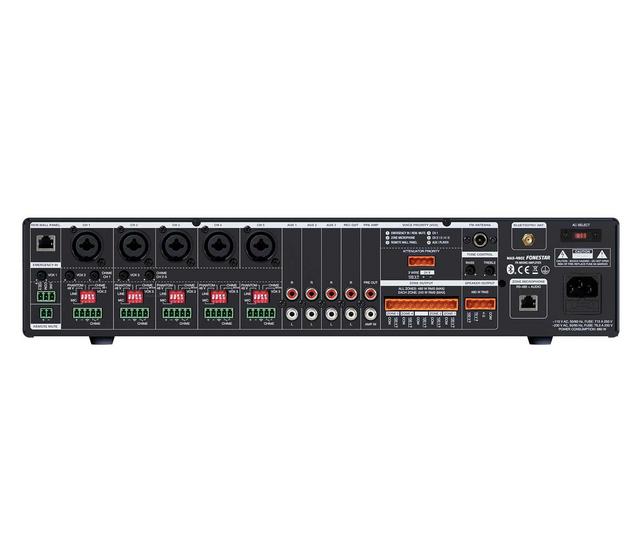

Comprehensive Input Options

The MAX-480Z provides a wide range of inputs for microphones, auxiliary sources and system integration.

• 5 × mic/line inputs with 48V phantom power
• 3 × AUX inputs (RCA)
• Emergency input (100 V or line level)
• Remote wall panel and zone microphone (RJ45)

Priority & Emergency Functions

Designed for safety-critical environments, the amplifier includes priority and emergency override features.

• Emergency input with automatic mute (VOX or contact closure)
• Chime (ring tone) generator
• 24V priority for attenuators
• Multiple priority levels for inputs

Reliable & Silent Operation

The MAX-480Z uses induction cooling with no fan, ensuring silent operation and minimal maintenance.

• Fanless cooling design
• Quiet and maintenance-free operation
• Compact and robust construction

Advanced Protection

Built-in protection circuits ensure safe and reliable operation in demanding environments.

• Soft start system
• Overload and overcurrent protection
• Thermal and short-circuit protection

Key Features

• 480W RMS Class-D multi-zone PA amplifier
• 5 independent speaker zones with volume control
• 100 V, 70 V and 4 Ohm outputs
• Bluetooth, USB and FM media player
• Microphone inputs with phantom power
• Emergency input and priority control
• Chime generator for announcements
• Fanless cooling for silent operation

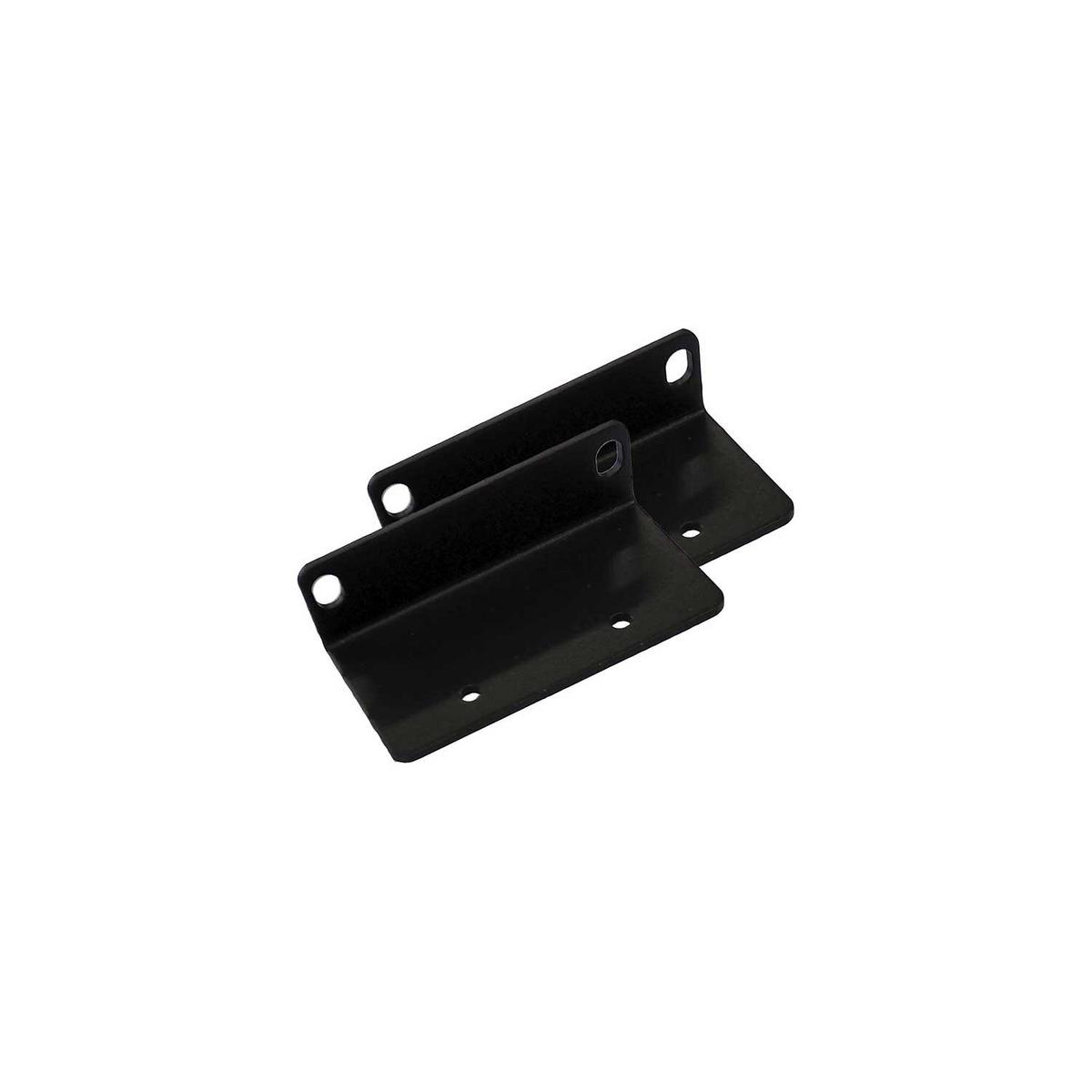

• Rack mountable (2U, 19")

Specifications

Applications

The MAX-480Z is ideal for shopping centres, offices, schools, hotels, restaurants, warehouses and public buildings requiring multi-zone audio distribution with emergency paging capabilities.

Q&A

Q: Can I control different areas independently?
A: Yes, the amplifier supports 5 zones, each with individual volume control and on/off switching.

Q: Does it support emergency announcements?
A: Yes, it includes an emergency input with priority override and mute functionality.

Q: Does it have built-in music playback?
A: Yes, it features Bluetooth, USB and FM playback for background music.
