The Monacor PA-6010Z is a robust 10-zone mono PA mixing amplifier delivering 600 W of power, designed for professional audio installations in settings including schools, offices, and public facilities. It facilitates individual control over each zone, making it ideal for tailored audio distribution in complex setups.

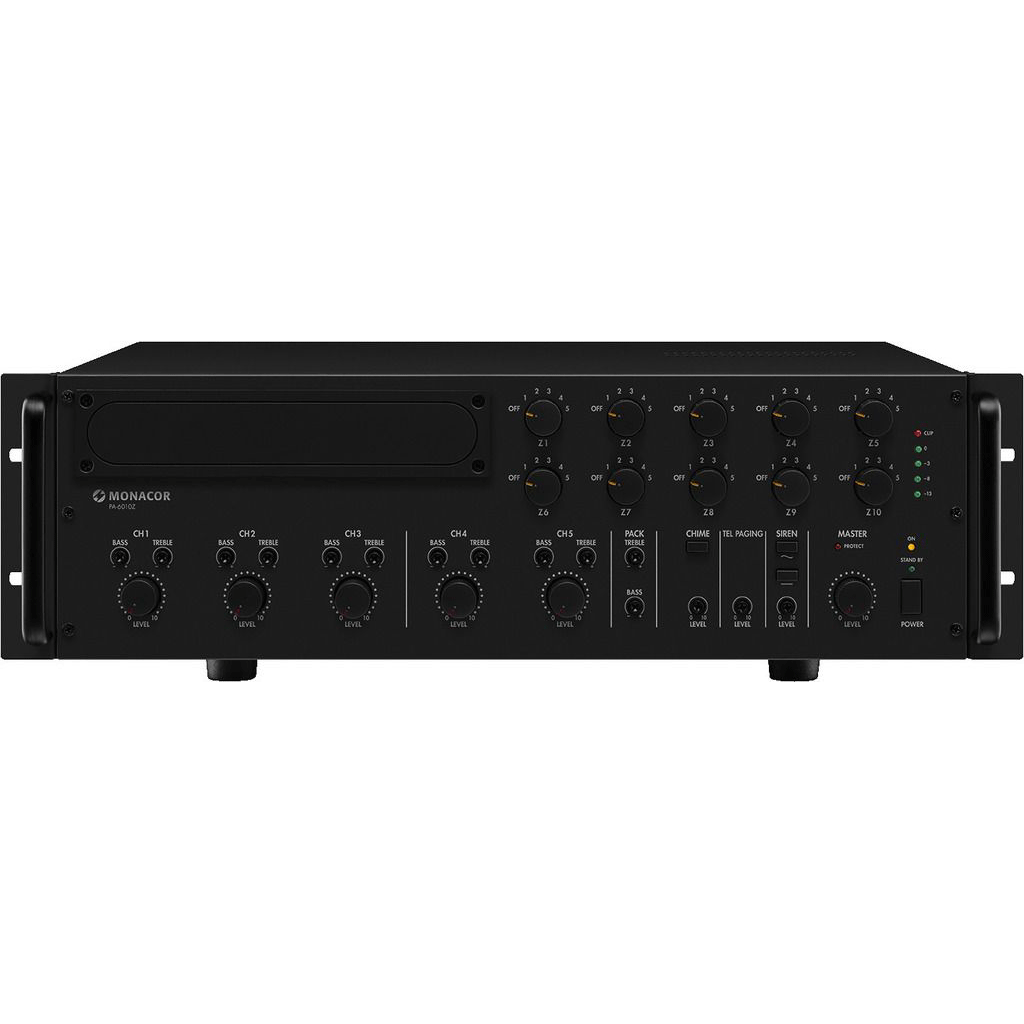

Encased in a durable 19-inch, 3U steel chassis, the PA-6010Z is designed for rack-mount installations, ensuring longevity and reliability. The front panel is equipped with intuitive controls, including bass, treble, and master adjustments, along with LED indicators for signal and clip status. A regulated fan ensures optimal cooling during extended operation, thereby enhancing the amplifier's performance and extending its lifespan.
| Specification | Details |
|---|---|
| Power Rating | 600 W |
| Zones | 10, individually controllable |
| Inputs | 3 x Mic/Line (combination jacks), 2 x Stereo Line (RCA) |
| Frequency Range | 55 Hz - 16,000 Hz |
| Equaliser | Bass ±10 dB at 100 Hz, Treble ±10 dB at 10 kHz |
| Signal-to-Noise Ratio | > 70 dB (Mic), > 80 dB (Line) |
| Total Harmonic Distortion | < 1% |
| Phantom Power | 15 V |
| Power Supply | ~230 V AC, 50 Hz; DC 24 V |
| Dimensions (W x H x D) | 482 x 133 x 352 mm |
| Weight | 22 kg |
The PA-6010Z delivers clear and reliable audio across all zones, with minimal distortion and a high signal-to-noise ratio. Its intuitive interface and versatile input options suit both technicians and casual users.
Q: Can the PA-6010Z handle both microphone and line-level inputs simultaneously?
A: Yes, the PA-6010Z is equipped with three combination jacks that accept both microphone and line-level inputs, allowing simultaneous use of multiple audio sources.
Q: Is it possible to control the PA-6010Z remotely?
A: Yes, the PA-6010Z can be connected to up to 32 zone paging microphones (PA-2400RC) and up to 3 push-to-talk microphones (PA-4300PTT) for remote control and announcements.
Q: Does the PA-6010Z support emergency power operation?
A: Yes, the unit includes a 24 V DC power connection to maintain operation during mains power outages, ensuring continuous audio distribution in critical situations.
Q: Are there optional accessories for expanding the PA-6010Z's functionality?
A: Yes, Monacor offers compatible modules such as the PA-1120DMT for digital messaging and scheduling, as well as remote zone control interfaces for enhanced integration.
Q: What types of venues is the PA-6010Z best suited for?
A: This amplifier is ideal for larger installations requiring zone-based audio distribution, including schools, office buildings, hotels, factories, and public institutions.
