The Monacor PA-812DAP is a versatile mono Class D PA mixing amplifier designed for both home users and professionals. It integrates an MP3 player, FM/DAB+ tuner, and Bluetooth connectivity and delivers 120 W of power. Its high-efficiency Class D design ensures energy savings, while the fanless cooling system guarantees silent operation.

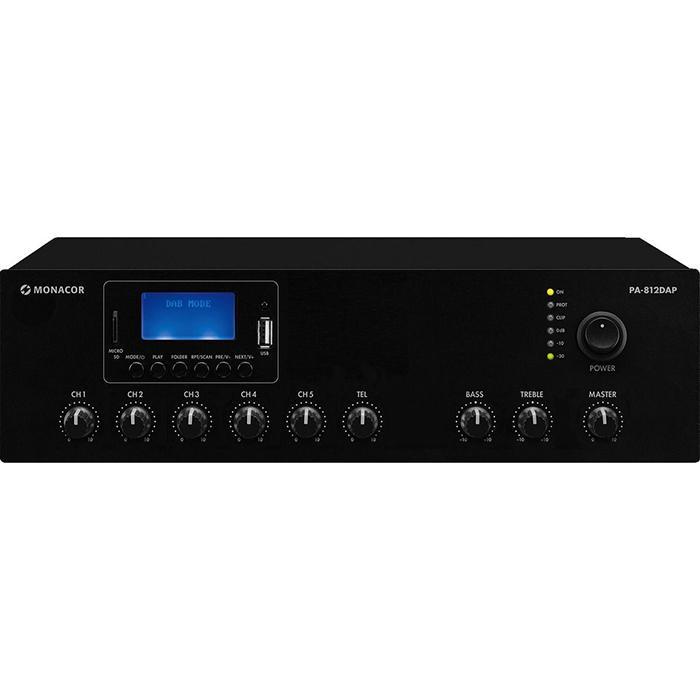

Constructed with a robust steel chassis, the PA-812DAP is built for durability. The front panel features an LED display and intuitive controls for easy navigation. Its compact dimensions (320 mm × 95 mm × 245 mm) and 4.5 kg weight make it suitable for various installations.
| Specification | Details |
|---|---|
| Power Rating | 120 W |
| Frequency Range | 60 Hz - 15,000 Hz |
| Equalizer | Bass and Treble ±10 dB |
| Signal-to-Noise Ratio | 72 dB (mic, channels 1-3); 85 dB (line, channels 2-5) |
| Total Harmonic Distortion (THD) | < 0.5% |
| Phantom Power | 48 V |
| Power Supply | ~230 V/50 Hz/250 VA; DC 24 V/8.4 A |
| Dimensions (W × H × D) | 320 mm × 95 mm × 245 mm |
| Weight | 4.5 kg |
The PA-812DAP delivers clear and reliable audio output, making it ideal for settings ranging from small venues to professional installations. Its user-friendly interface, combined with multiple input options and integrated audio sources, offers flexibility and ease of use. The silent, fanless design ensures discreet operation in noise-sensitive environments.
Q: Can I connect multiple microphones to the PA-812DAP?
A: Yes, the amplifier offers one balanced XLR microphone input with 48 V phantom power and two unbalanced inputs that can be switched between mic and line levels, allowing multiple microphone connections.
Q: Does the PA-812DAP support Bluetooth audio streaming?
A: Yes, it features Bluetooth version 4.2, enabling wireless audio streaming from compatible devices.
Q: Is there a way to play music from a USB drive?
A: Absolutely. The integrated MP3 player supports USB and SD interfaces, allowing playback from external storage devices.
Q: What type of speakers can I connect to the PA-812DAP?
A: The amplifier provides speaker outputs via screw terminals, compatible with various speaker configurations. Ensure the total load matches the amplifier's specifications.
