The OMNITRONIC MP-650P is a high-performance mono PA mixing amplifier delivering 650 watts RMS of power. Suitable for both home and professional users, it is ideal for public address systems and background music installations. The integrated MP3 player with USB and SD card inputs, along with an IR remote control, offers versatile audio playback options.

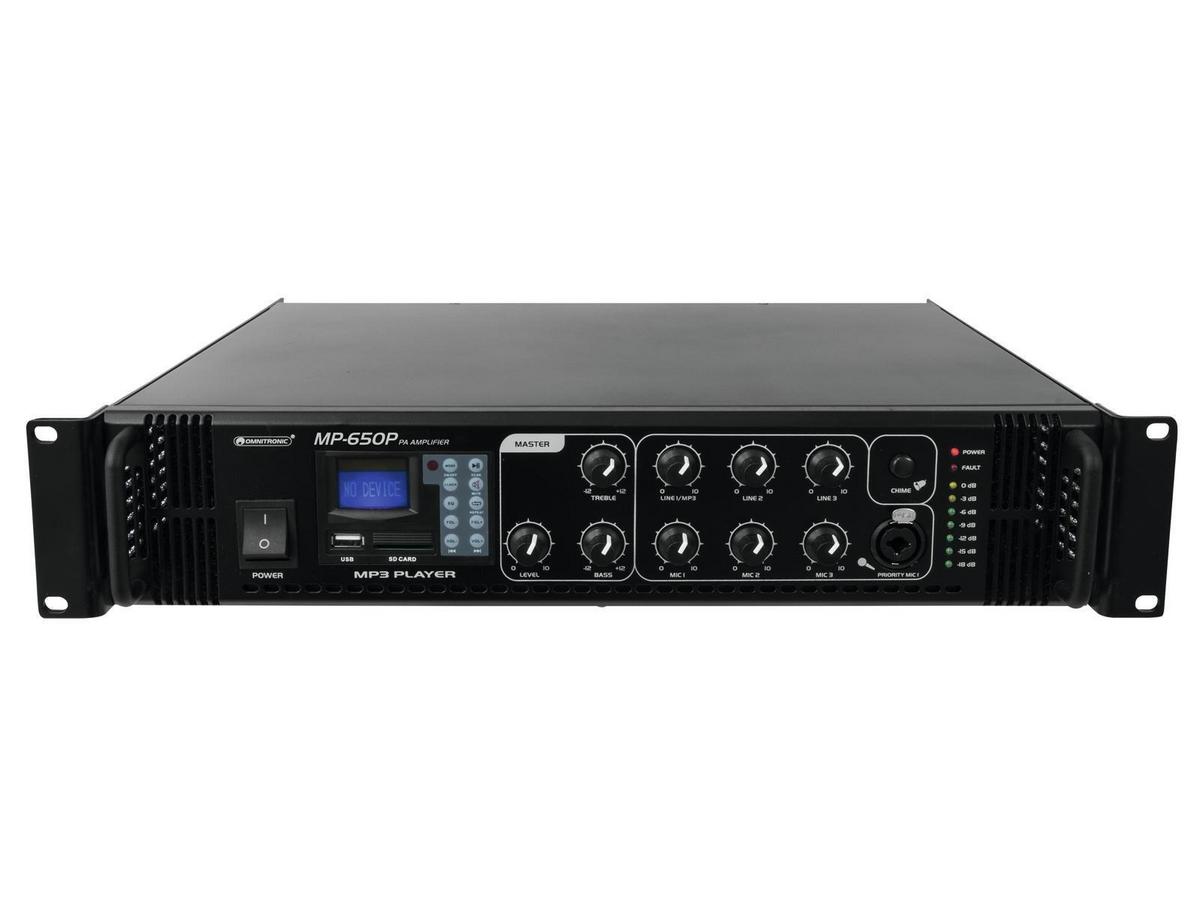

Constructed with a robust 19-inch, 2U steel chassis, the MP-650P ensures durability for rack-mounted setups. The front panel features an LCD with a blue backlight for the MP3 player, intuitive rotary controls, and LED indicators for easy configuration and monitoring. Fan cooling enhances reliability during extended operation.
| Specification | Details |
|---|---|
| Power Supply | 230 V AC, 50 Hz |
| Power Consumption | 1300 W |
| Output Power | 650 W RMS |
| Output Type | 70 V, 100 V, or 4-16 ohms |
| Frequency Range | 80 Hz - 14,000 Hz |
| Signal-to-Noise Ratio | 85 dB (line), 75 dB (mic) |
| Dimensions (W x D x H) | 483 x 400 x 88 mm |
| Weight | 20 kg |
The MP-650P delivers clear and powerful audio output with minimal distortion, ensuring reliable sound quality across various applications. Its user-friendly interface, combined with flexible control options, makes it suitable for both technical operators and end-users. The amplifier's robust construction and integrated protection circuits contribute to its longevity and dependable performance in demanding environments.
Q: What types of speakers are compatible with the MP-650P?
A: The MP-650P supports both 70 V and 100 V PA speakers, as well as low-impedance speakers ranging from 4 to 16 ohms, providing flexibility for various audio setups.
Q: Can I play music directly from a USB drive or SD card?
A: Yes, the integrated MP3 player allows playback from USB devices and SD(HC) cards up to 32 GB, supporting folder navigation and repeat functions.
Q: How many microphones can be connected simultaneously?
A: The amplifier features three microphone inputs, each with separate level controls, enabling simultaneous use of multiple microphones.
Q: Is there a priority function for announcements?
A: Yes, Microphone input 3 includes an adjustable priority circuit, allowing it to override other inputs for important announcements.
Q: What protection features does the MP-650P have?
A: The amplifier incorporates protection circuits with LED indicators for over-current, short circuit, and turn-on delay, ensuring safe and reliable operation.
