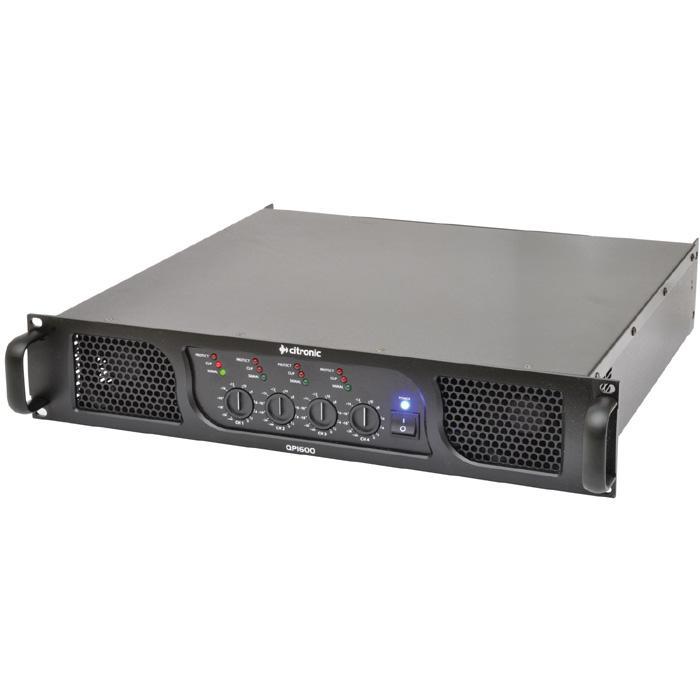

The Citronic QP1600 is a robust quad power amplifier engineered for professional audio applications, including live performances, installations, and multi-zone sound systems. With four independent channels, each delivering substantial power output, the QP1600 ensures high-quality audio performance and versatility for both mobile and fixed installations.
Encased in a durable 2U steel chassis, the QP1600 is designed for rack-mounted setups, offering durability and long-term reliability. The front panel features individual gain controls for each channel, accompanied by LED indicators for signal presence, clipping, and protection status, facilitating straightforward operation and monitoring. Rear-mounted cooling fans and ventilation grilles ensure efficient heat dissipation, maintaining optimal performance during extended use.
| Specification | Details |
|---|---|
| Power Output (RMS) | 4 x 400W @ 2 Ohms; 4 x 300W @ 4 Ohms; 4 x 200W @ 8 Ohms |
| Frequency Response | 5Hz - 50kHz |
| Total Harmonic Distortion (THD) | 0.05% |
| Slew Rate | 40V/µsec |
| Signal-to-Noise Ratio | 103dB |
| Input Sensitivity | 0dB @ 0.775Vrms |
| Input Impedance | 20k Ohms |
| Inputs | 4 x Balanced XLR |
| Outputs | 4 x SPK connectors; 4 x Parallel XLR line outputs |
| Cooling | Rear-mounted fans, front ventilation grilles |
| Protection Features | Short-circuit, DC fault, overload, soft-start |
| Power Supply | 230V AC, 50Hz (IEC) |
| Fuse Rating | F8A |
| Dimensions (W x D x H) | 483 x 439 x 88mm |
| Weight | 22kg |
The QP1600 delivers clear and powerful audio across its four channels, making it suitable for a variety of professional settings. Its intuitive interface, featuring individual gain controls and LED indicators, allows for easy operation and monitoring. The amplifier's comprehensive protection circuitry and efficient cooling system contribute to its reliability, ensuring consistent performance even under demanding conditions.
Q: What types of speakers can be connected to the QP1600?
A: The QP1600 can drive speakers with impedances as low as 2 Ohms per channel, accommodating various speaker configurations. Ensure the combined load on each channel does not fall below 2 Ohms to maintain optimal performance.
Q: Can the QP1600 be used in a bridge mode configuration?
A: No, the QP1600 does not support bridge mode. It is designed for independent 4-channel output.
Q: Is the amplifier fan noise noticeable in quiet environments?
A: The cooling fans operate based on thermal requirements. Although audible in quiet settings, they remain unobtrusive in most professional environments.
Q: Can the QP1600 be used for subwoofers?
A: Yes, with its high power output and wide frequency response, the QP1600 is suitable for driving passive subwoofers, particularly in large venue installations.
Q: Is rack mounting hardware included?
A: Yes, the QP1600 comes with integrated rack ears for standard 19-inch rack mounting.
