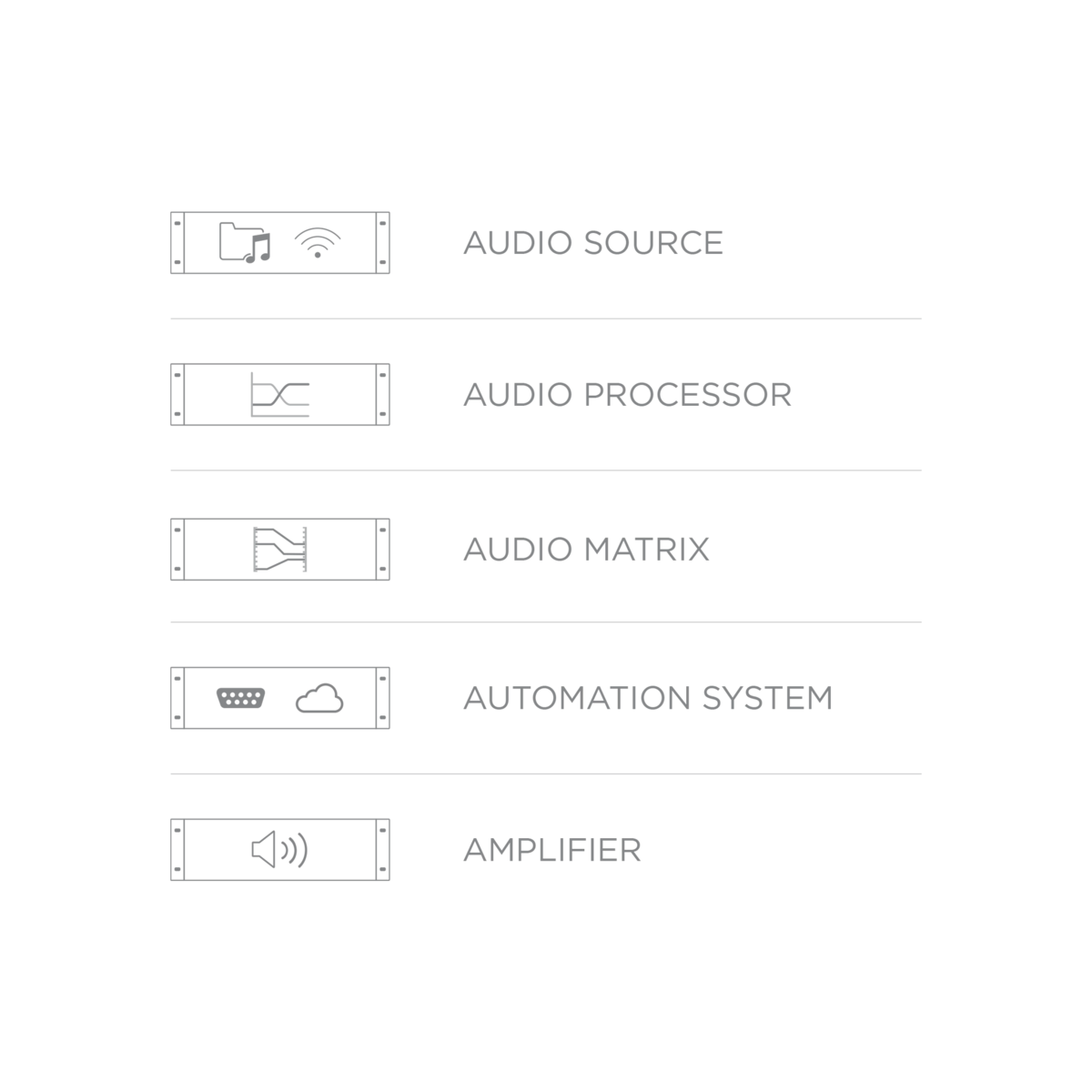

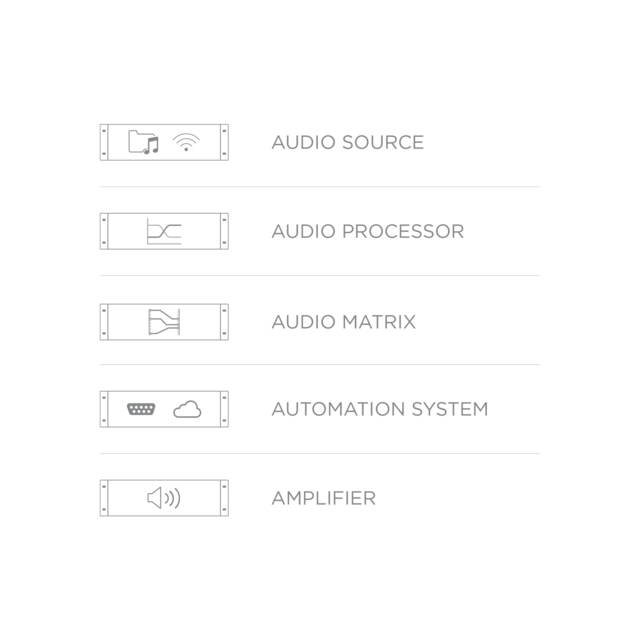

The AUDAC MFA216 is a versatile all-in-one audio solution tailored for small to medium-sized commercial installations, including retail spaces, hospitality venues, and corporate environments. Combining amplification, audio processing, source integration, and control capabilities within a compact half 19" rack enclosure, the MFA216 offers a streamlined approach to professional audio system design.
The MFA216 features a robust 2 x 80W Class-D amplifier (or 160W in bridged 70/100V mode) and supports both low-impedance and constant voltage speaker configurations. Its integrated SourceCon™ slot allows for modular expansion with a range of modular audio sources, such as streaming services or internet radio, providing flexibility to adapt to evolving audio requirements.

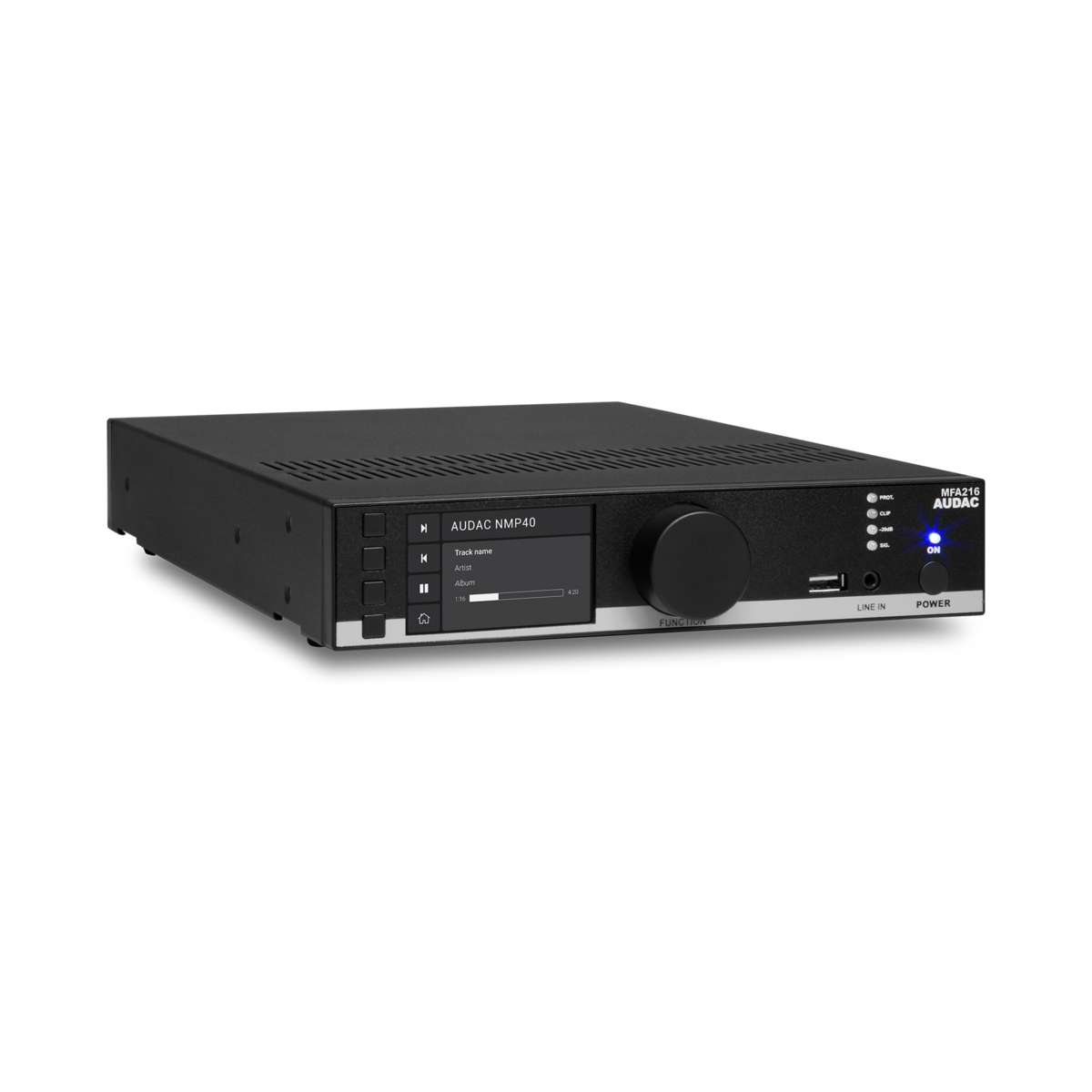

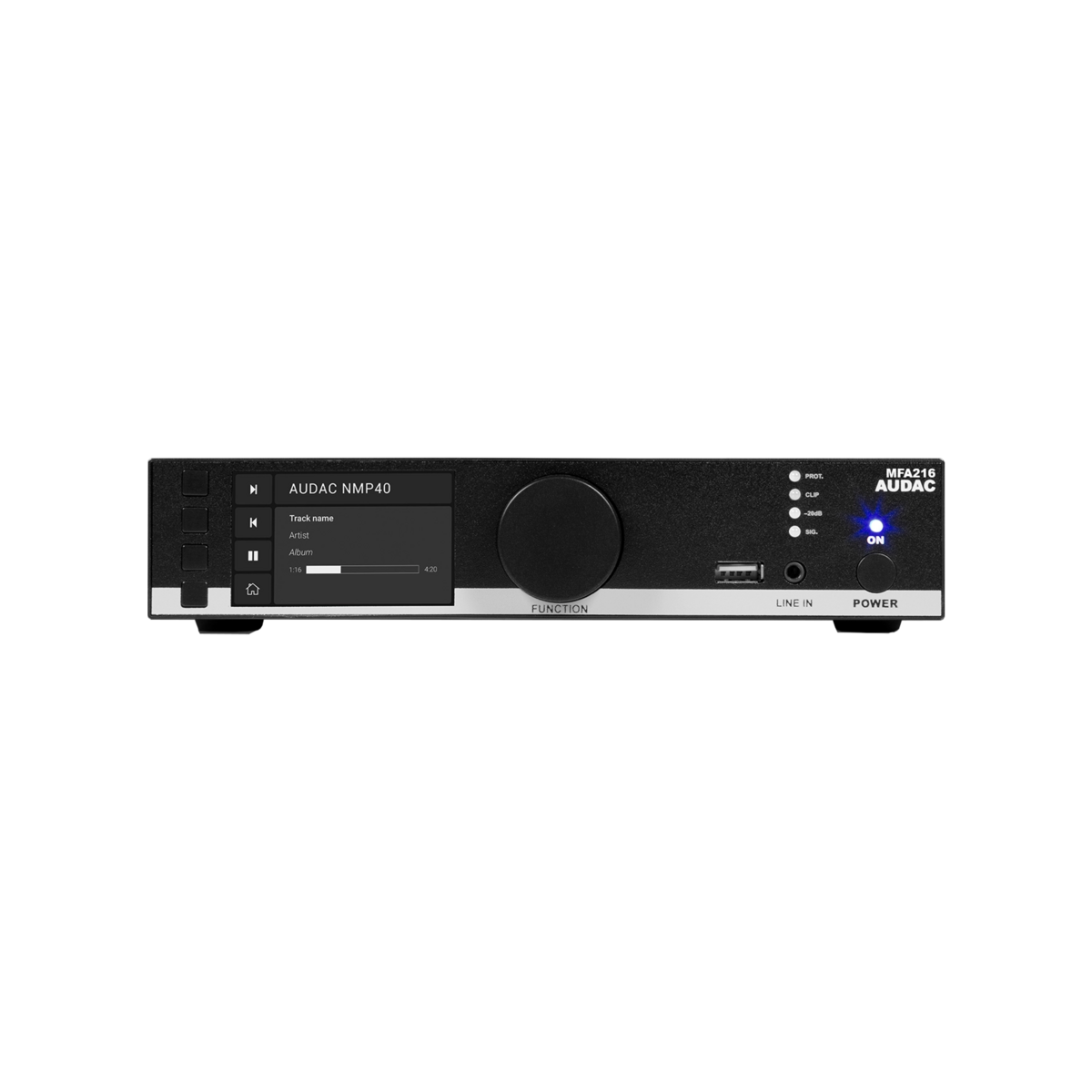

Constructed with a durable steel chassis, the MFA216 ensures longevity and resilience in demanding installation scenarios. Its sleek, compact design supports both desktop placement and optional rack mounting. The front panel boasts a 2.8” TFT display accompanied by a rotary encoder and tactile buttons, enabling intuitive navigation and control. Additionally, front-accessible USB and line-in ports enhance user convenience for media playback and configuration tasks.
| Specification | Details |
|---|---|
| Power Source | 100–240 V AC / 50–60 Hz |
| Amplifier Type | Class-D |
| Output Power (Stereo) | 2 x 80 W @ 4 Ω |
| Output Power (Bridged) | 1 x 160 W @ 70/100 V |
| Frequency Response | 20 Hz – 20 kHz (±3 dB) |
| THD+N (@ 1 kHz) | < 0.05% |
| Signal-to-Noise Ratio | > 90 dB |

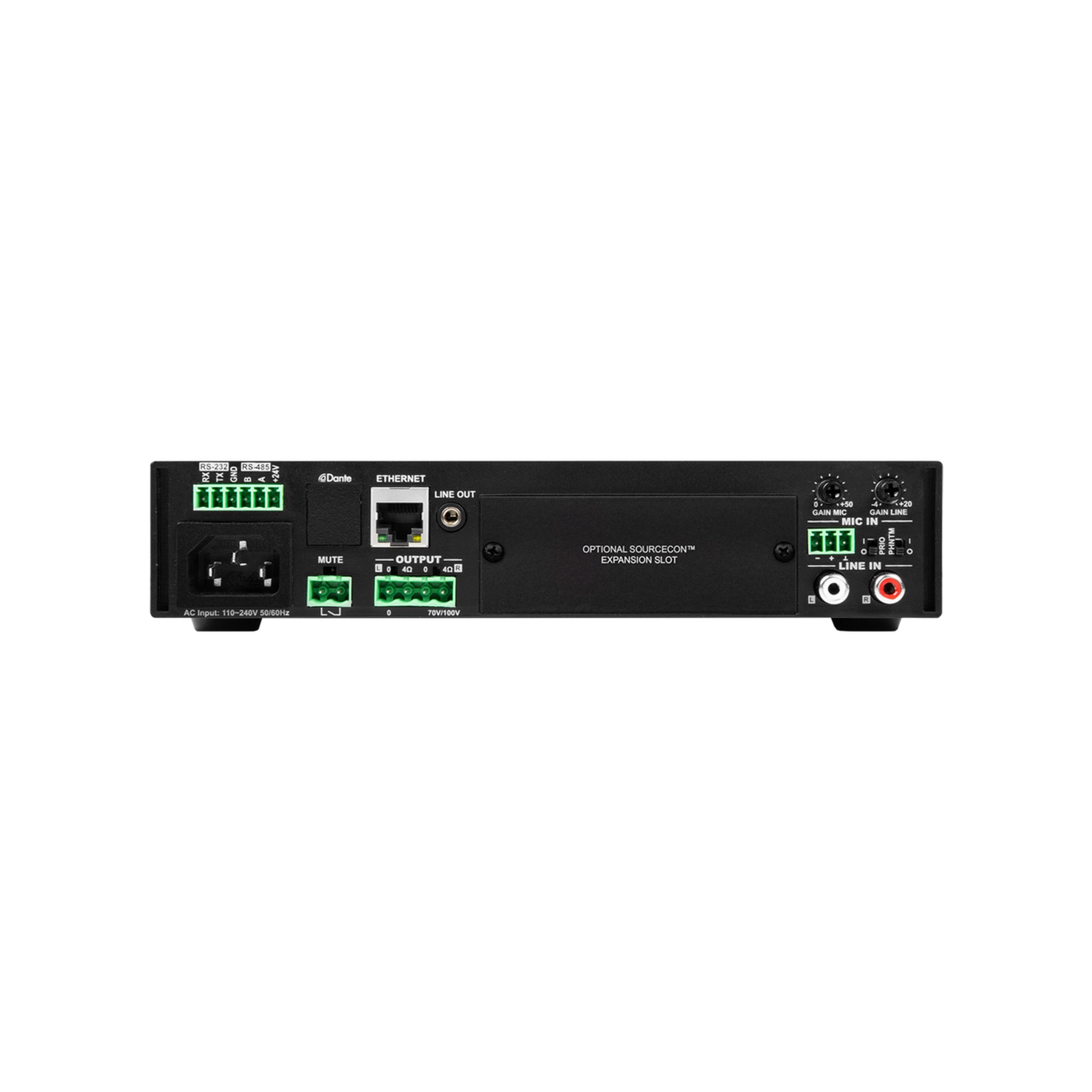

| Inputs | 1 x Balanced Mic/Line (Euroblock), 1 x Unbalanced Stereo (RCA/3.5 mm Jack), 1 x SourceCon™ Slot |
| Outputs | 1 x Line Out, 1 x 70/100 V (Bridged) |
| Control Interfaces | RS232, RS485, TCP/IP, AUDAC Touch™ 2, Front Panel, Optional Wall Controller |
| Dimensions (W x H x D) | 217.5 x 43.7 x 300 mm |
| Weight | 2.2 kg |
| Additional Features | Priority Mute Contact, Front USB Port, Optional Dante™ Module, Energy-Saving Standby Mode |
The MFA216 ensures high-quality audio with minimal distortion, offering clear sound reproduction across various applications. Its advanced DSP capabilities support precise audio tuning for diverse acoustic environments. The intuitive front panel interface, combined with remote options via AUDAC Touch™ 2 and other control systems, provides flexible and user-friendly control. Its compact form factor and mounting versatility make it ideal for space-conscious installations.
Q: Can the MFA216 be integrated into a Dante™ network?
A: Yes, by installing the optional ANI44XT Dante™ module, the MFA216 can transmit and receive audio over a Dante™/AES67 network.
Q: Is it possible to create multiple audio zones with the MFA216?

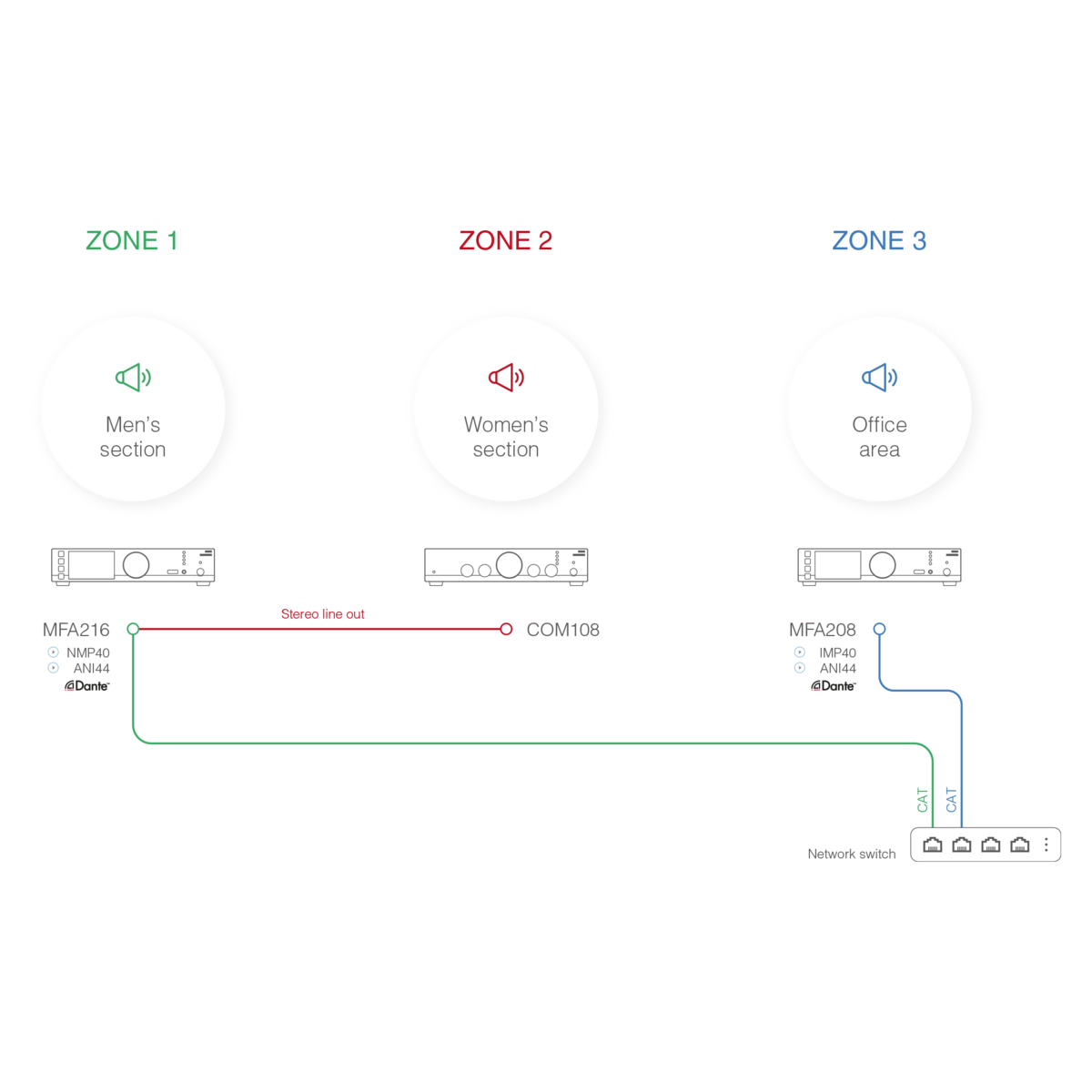

A: Absolutely. The MFA216's line-out feature allows the creation of a second stereo zone, with independent input selection and volume control via the front panel, TCP/IP, or AUDAC Touch™ 2.
Q: What types of audio sources can be connected to the MFA216?
A: Supported sources include balanced microphones or line-level devices via Euroblock connectors, unbalanced stereo sources through RCA or 3.5 mm jacks, and modular sources via the SourceCon™ slot.
Q: How can users control and configure the MFA216?
A: Control options include the front panel, RS232, RS485, TCP/IP, the AUDAC Touch™ 2 application, or optional wall-mounted controllers such as the MWX45.
Q: Does the MFA216 support energy-saving features?
A: Yes, it features a Class-D amplifier and standby mode to reduce power consumption during inactivity.
